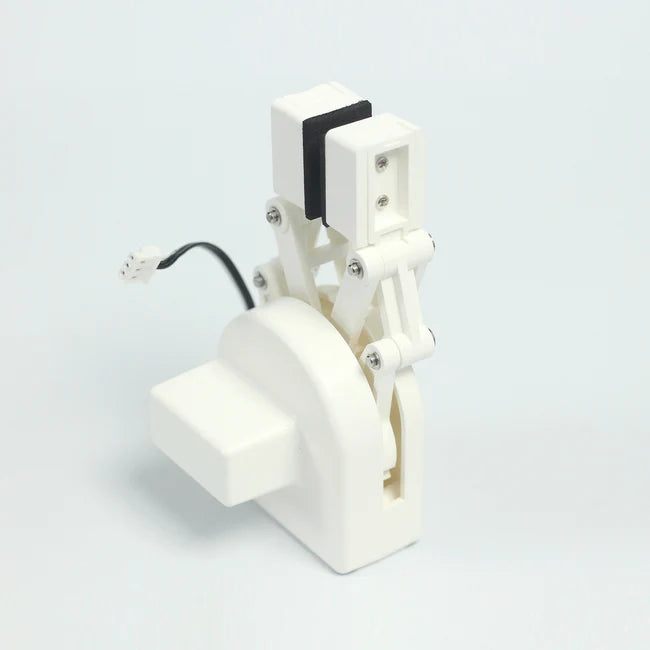

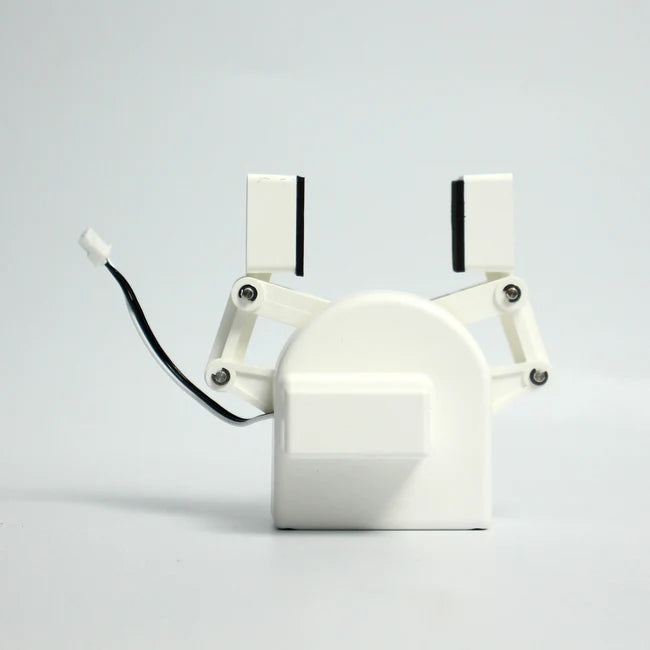

Adaptive Gripper is the grippers for collaborative robots.
Used for myCobot 280 M5Stack、 myCobot 280 Pi、myCobot 280 For Arduino、myCobot 280 Jetson Nano、myPalletizer 260 M5Stack、 myPalletizer 260 Pi、mechArm 270 M5、mechArm 270 Pi、myBuddy 280. 2-Finger adaptive gripper enables both internal and external parallel gripping, as well as a unique encompassing grip mode. It picks up any object of any shape and doesn't let go. Use it to accomplish a complete lineup of applications with a fast time-to-production—no robotics expertise required. It is key to a highly flexible and reliable robotic cell.
Features
Simple and Robust Robotic Hand
- The Adaptive Gripper is ideal for advanced manufacturing and robotic research. It adapts to the object’s shape for a solid grip, so you can focus on the task and not the grasping.
Full Control, Versatile Gripper
- Simply adjust the gripper’s position, speed, and force until it grasps your object perfectly.
- Can detect whether the part is picked and verify the size of the part.
High Repeat Positioning Accuracy
- Repeated positioning accuracy can reach 1mm, fast closing can be achieved.
Easy to Integrate, Easy to Use
- It installs in minutes on the Robot arm, and our Gripper makes its configuration and programming fast and intuitive.
Dynamic Torque Adjustment
- Objects within the rated load weight and size can be clamped by adaptive width.
Tutorial

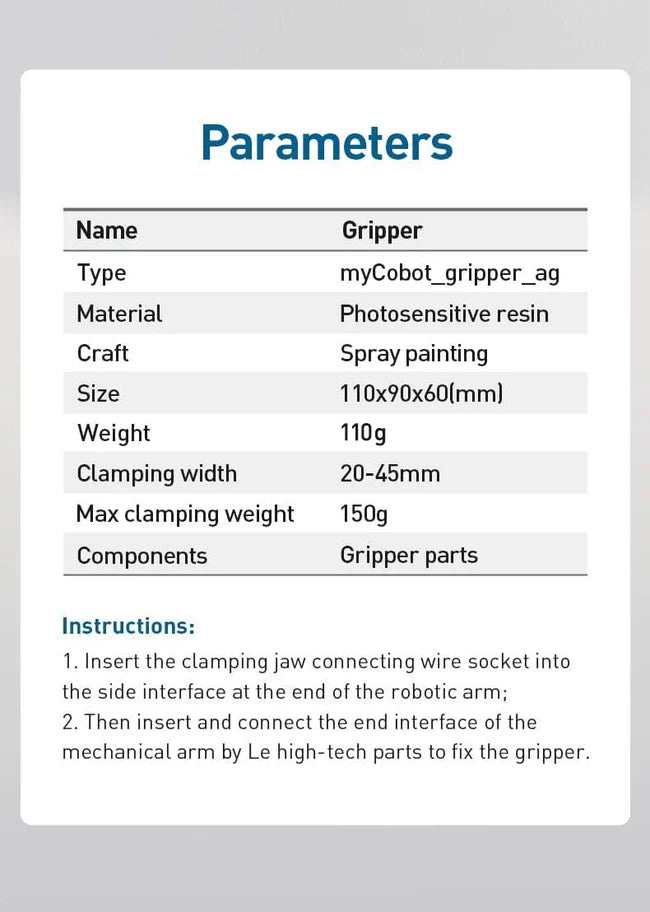

| Name | Gripper |
|---|---|
| Type | myCobot_gripper_ag |
| Material |
Photosensitive resin
|
| Craft | Spray painting |

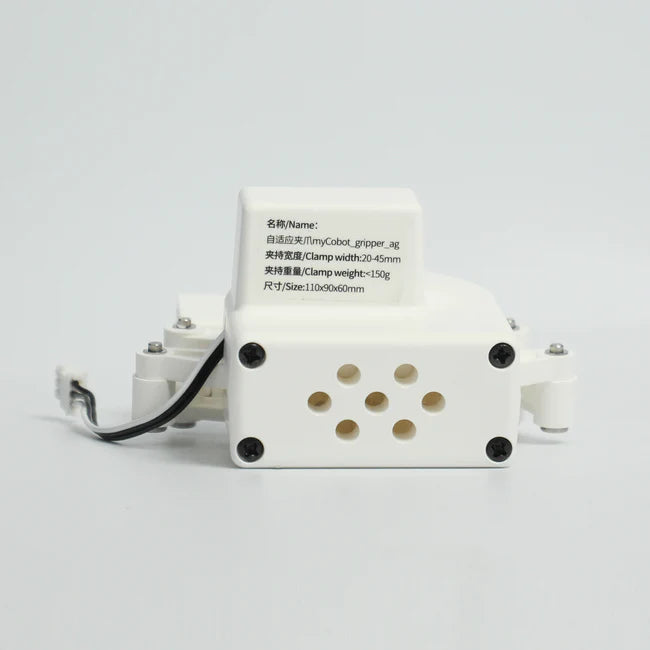

| Size | 110x90x60(mm) |
| Weight | 110g |
| Clamping width | 20-45mm |
| Max clamping weight | 150g |
| Fixed | Lego connectors |
| Control interface | IO control |
| Components | Gripper parts |

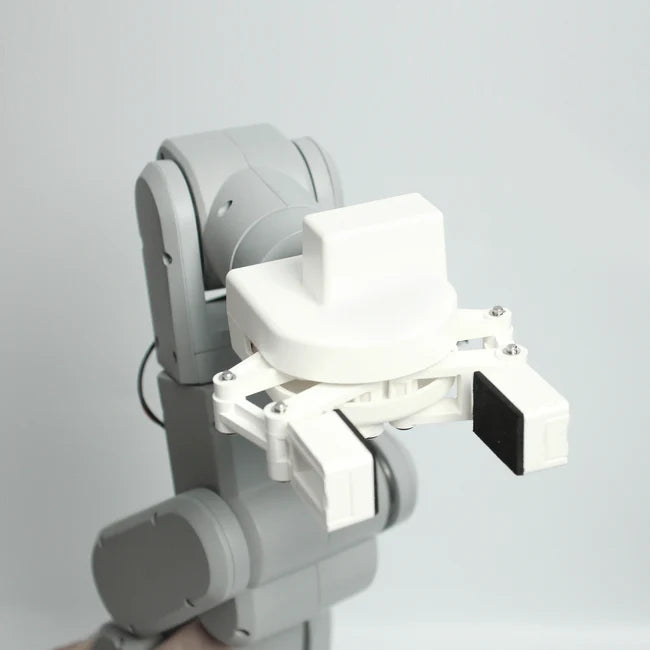

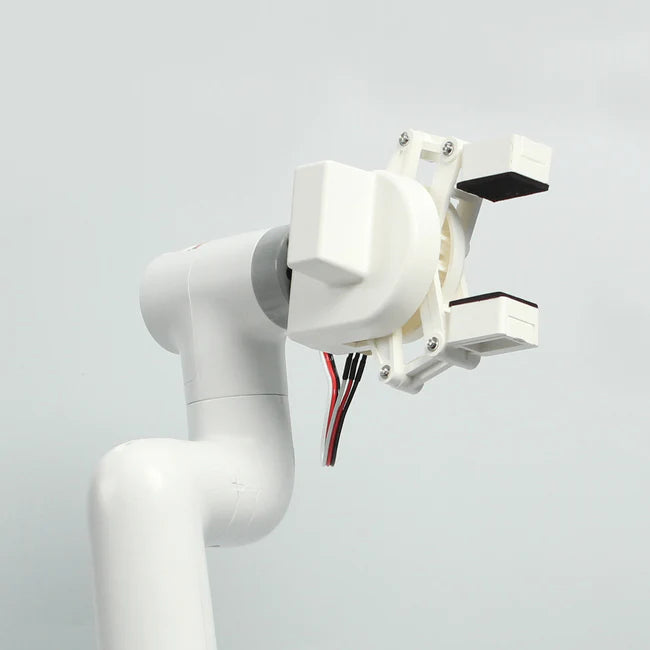

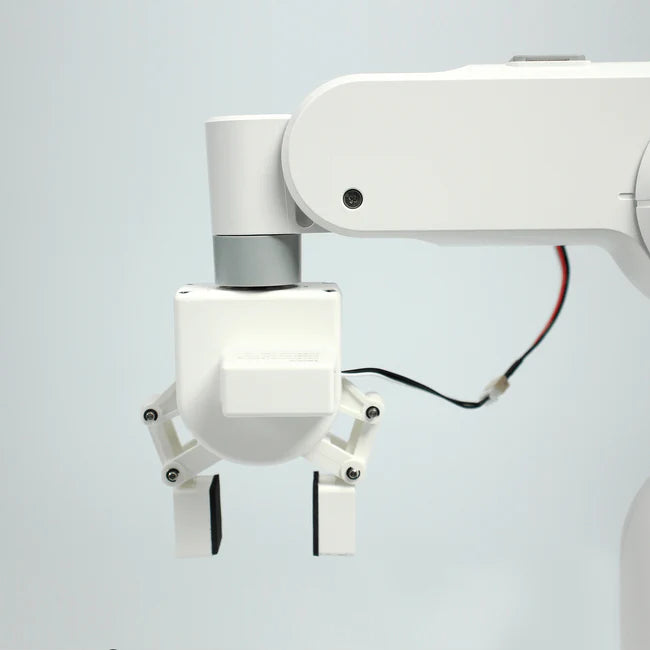

Instructions: 1. Insert the clamping jaw connecting wire socket into the side interface at the end of the robotic arm; 2. Then insert and connect the end interface of the mechanical arm by Le high-tech parts to fix the gripper.
