Fly On Easy Mode with Onboard Intelligence that Reduces Training Burden

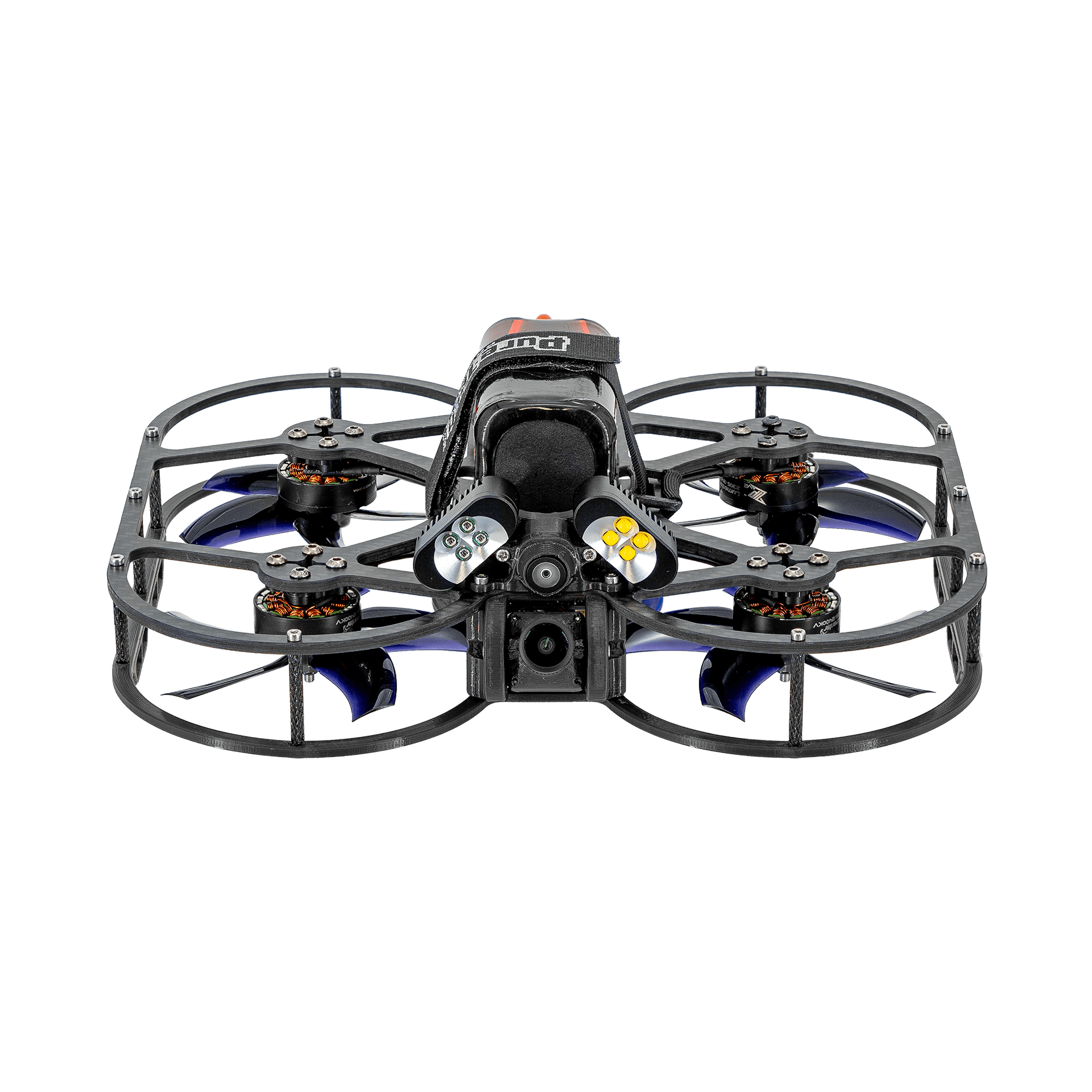

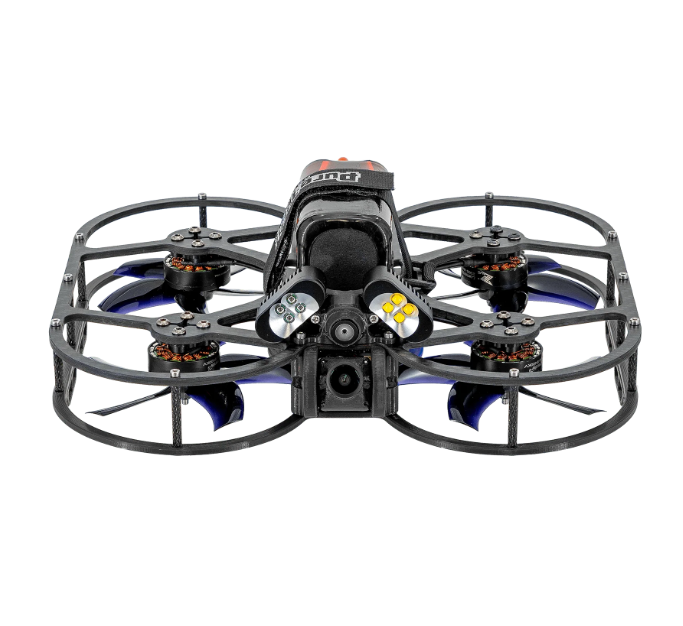

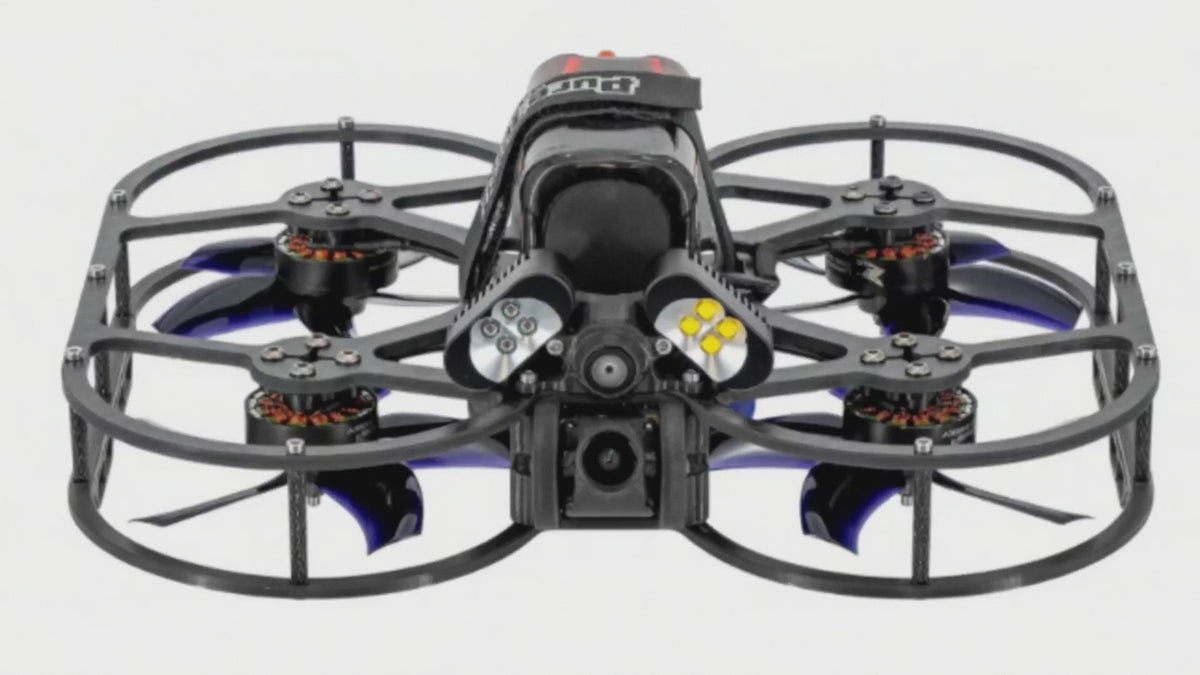

The Stinger Vision FPV is ModalAI’s ready-to-fly FPV drone that features MVX, ModalAI's FPV streaming technology (VRX/VTX) that offers long-range, low-latency video streaming, as well as enabling pilots to experience advanced, AI-enabled flight modes significantly reducing pilot training time. Powered by the VOXL® 2 Mini, the Stinger Vision comes equipped with computer vision-aided navigation and seamless FPV video streaming.
More Than a Drone: A Development Platform for the Future
MVX (ModalAI’s US-made FPV streaming technology, VRX and VTX)
- Digital HD with 256-bit encryption
- HDMI-based FPV Goggles and Displays
- Long-range video, tested up to 11km
- Low-latency video, 35-45ms glass to glass depending on configuration
- Dual-Band 2.412 - 2.484GHz and 5.160 - 5.885GHz
- Toggle & Fly 3 FPV Cameras: EO, Downward, Thermal (if Available)
- Connected by Dual 915MHz ELRS Gemini R/C
Perception
- 4MP Low-Light, IR-sensitive EO color image sensor for FPV streaming & capture
- (Optional) 640x480 VGA Boson+ Thermal for FPV streaming & capture
- Dual AR0144 computer vision cameras for autonomous flight
- Downward thermal camera for night-time position hold
- Multi-Cam Visual Inertial Odometry (VIO) to navigate in GPS denied environments
- Backtrack flight mode to recover from lost video link
VOXL 2 Mini Compute onboard
- Powered by the VOXL 2 Mini Blue UAS Framework Autopilot
- Integrated Qualcomm QRB5165 chipset: 8 cores up to 3.091 GHz, 8GB LPDDR5
- Dual TDK® ICM-42688 IMU and ICP-10111 Barometer for flight control
- Integrated PX4 / Ardupilot flight controller accelerated by onboard DSP
SWAP-Optimized
- 575g take-off weight
- 90mm propellers
- 157mm rotor base
- 12+ minutes flight time
NDAA Compliant
- Avionics U.S.-made by ModalAI
- Video Transmitter (VTX / air side) U.S.-made by ModalAI
-
Video Receiver (VRX / ground side) w/HDMI output U.S.-made by ModalAI and a FLIR camera
Fly On Easy Mode with Onboard Intelligence that Reduces Training Burden
The Stinger Vision FPV is ModalAI’s ready-to-fly FPV drone that features MVX, ModalAI's FPV streaming technology (VRX/VTX) that offers long-range, low-latency video streaming, as well as enabling pilots to experience advanced, AI-enabled flight modes significantly reducing pilot training time. Powered by the VOXL® 2 Mini, the Stinger Vision comes equipped with computer vision-aided navigation and seamless FPV video streaming.
More Than a Drone: A Development Platform for the Future
MVX (ModalAI’s US-made FPV streaming technology, VRX and VTX)
- Digital HD with 256-bit encryption
- HDMI-based FPV Goggles and Displays
- Long-range video, tested up to 11km
- Low-latency video, 35-45ms glass to glass depending on configuration
- Dual-Band 2.412 - 2.484GHz and 5.160 - 5.885GHz
- Toggle & Fly 3 FPV Cameras: EO, Downward, Thermal (if Available)
- Connected by Dual 915MHz ELRS Gemini R/C
Perception
- 4MP Low-Light, IR-sensitive EO color image sensor for FPV streaming & capture
- (Optional) 640x480 VGA Boson+ Thermal for FPV streaming & capture
- Dual AR0144 computer vision cameras for autonomous flight
- Downward thermal camera for night-time position hold
- Multi-Cam Visual Inertial Odometry (VIO) to navigate in GPS denied environments
- Backtrack flight mode to recover from lost video link
VOXL 2 Mini Compute onboard
- Powered by the VOXL 2 Mini Blue UAS Framework Autopilot
- Integrated Qualcomm QRB5165 chipset: 8 cores up to 3.091 GHz, 8GB LPDDR5
- Dual TDK® ICM-42688 IMU and ICP-10111 Barometer for flight control
- Integrated PX4 / Ardupilot flight controller accelerated by onboard DSP
SWAP-Optimized
- 575g take-off weight
- 90mm propellers
- 157mm rotor base
- 12+ minutes flight time
NDAA Compliant
- Avionics U.S.-made by ModalAI
- Video Transmitter (VTX / air side) U.S.-made by ModalAI
- Video Receiver (VRX / ground side) w/HDMI output U.S.-made by ModalAI and a FLIR camera
Technical Details
Multiple kit options for ready to fly integration.
| SKU |
Description |
| -K0 |
Drone Only |
| -K1 |
Drone and Battery |
| -K2 |
Drone with Battery and Controller |
| -K4 |
Drone with Battery, Controller and VRX (w/ HDMI-output)
|
Export Information
| Item |
Value
|
ECCN
|
EAR99 |
| Harmonized Tariff Schedule (HTS) Code |
8802.11.0190 |
| Country of Origin |
USA |
| Radio Frequencies Used |
WiFi 2.4GHz / 5GHz |
|
