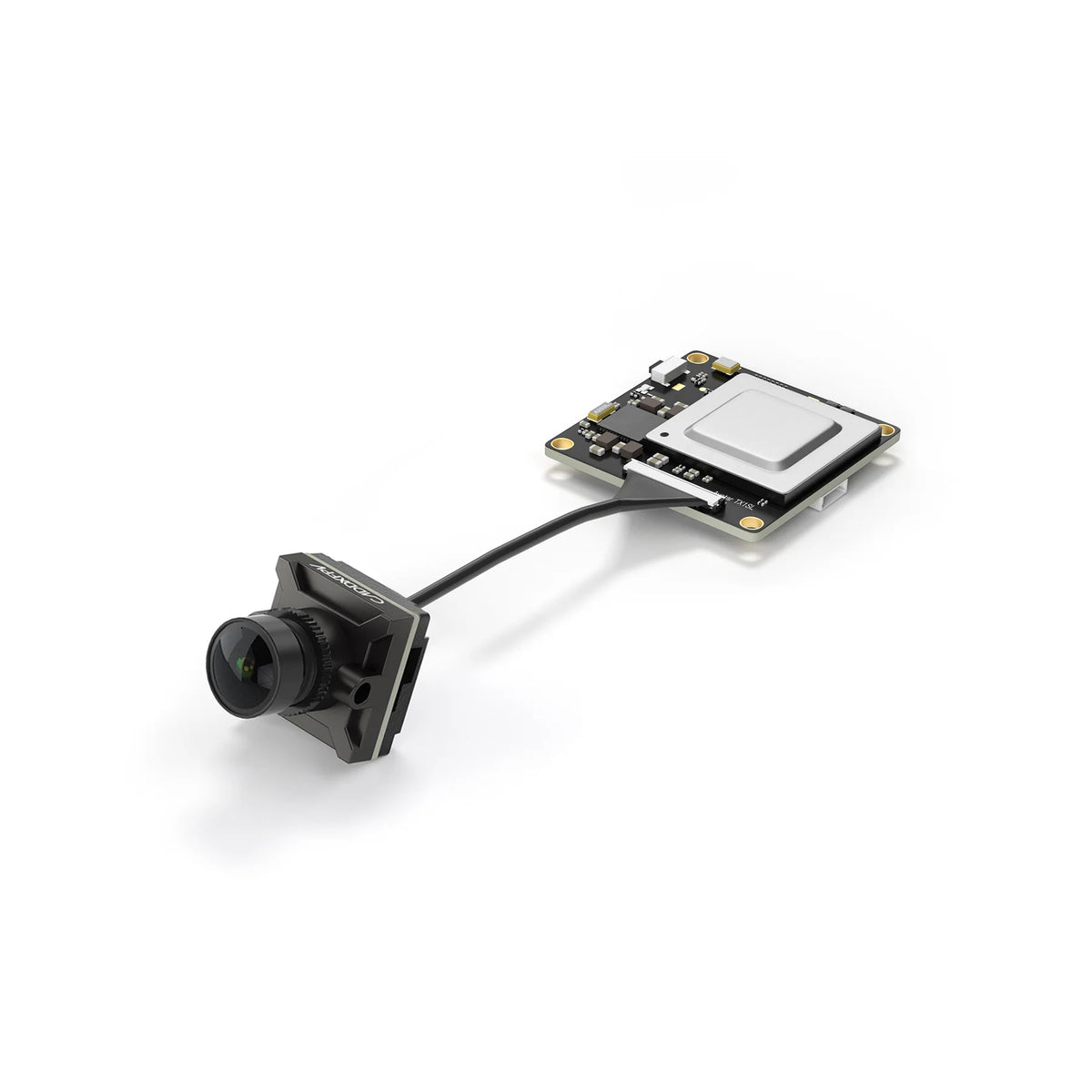

Walksnail Avatar HD Mini 1S Kit

Features:

Bullet Points:

1080P/60FPS,720P/120FPS
The Avatar HD system uses H.265 code,an industry-leading technology,
to provide 1080p FPV image quality with ultra-low latency.

6.8g light weight board
The Avatar mini 1S VTX weights only 6.8g and fits perfectly with the 75X quad.

22ms Low Latency
Supports both high frame rate and standard frame rate,
in high frame rate,it has an average latency of 22ms.

32G Built-in Storage
The Avatar mini 1s vtx comes with 32g built-in storage,it can record 1080p
with 60fps or 720p with 100fps/60fps HD flight videos without interference.

Camera

Model - Avatar nano
Image Sensor - 1/2.7”1nch
Resolution - 1080P/60fps,720P/120fps,720P/60fps
Ratio - 16/9 4/3
Lens - 2.1mm
FOV - 170°
Aperture - F2.0
Shutter Rolling - shutter
Min.Illumination - 0.001Lux
Weight - 3.5g
Dimensions - 14*14*17mm
Coaxial Cable - 55mm（default）/90mm




VTX

Model - Avatar mini 1s module
Communication Frequency - 5.725-5.850GHz
Transmitter Power (EIRP) - FCC:<25.5dBm; CE:<14dBm;
SRRC: <20dBm; MIC:<25dBm
I/O Interface - JST1.0*6(Power in)JST0.8*4(USB)

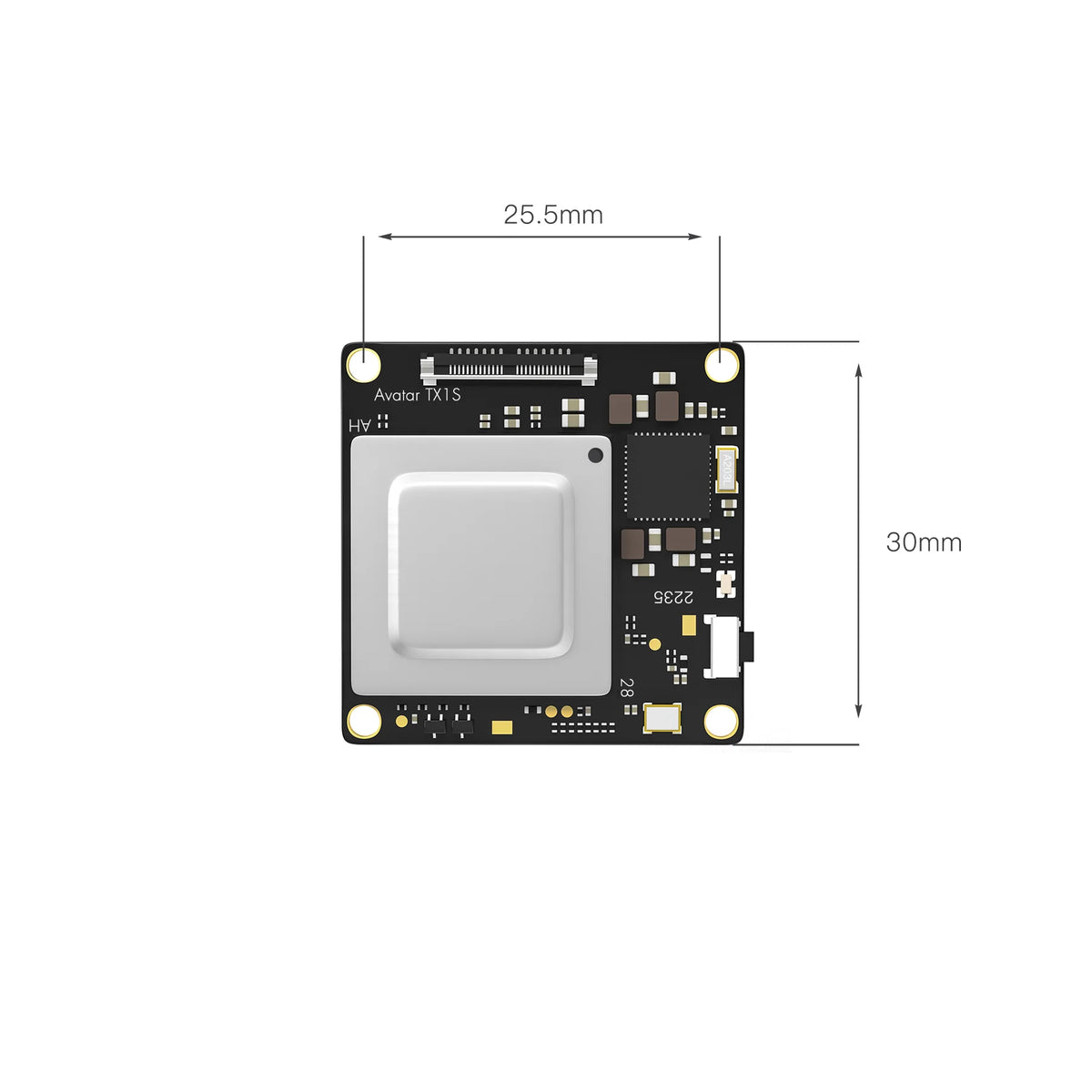

Mounting Holes - 25.5*25.5mm
Dimensions - 30*30*6.5mm
Storage - 8G(v2) / 32G(v3)
Recording - 1080p/720p
Weight - 6.8g
Operating Temperature - -20-40℃
Channels - 8
Wide Power Input - 3.1V-5V(V2) / 3.1V-13V(V3)
Supported FC System - Betaflight; Inav; Fettec; Kiss; ArduPliot
OSD - Canvas mode
Bitrate - 25mbps 50mbps
Latency - Average latency 22ms
Antenna - IPEX




VTX Antenna

Model - Polar Antenna
Polarization - LHCP
Bandwidth - 5.6GHz-5.9GHz
Average Gain - 2dBi
Radiation Efficiency - ≥98%
VSWR - ≤1.4
Connector - U.FL
Line Length - 90mm
Dimension - H105mm*R11.2mm
Weight - 1.5g

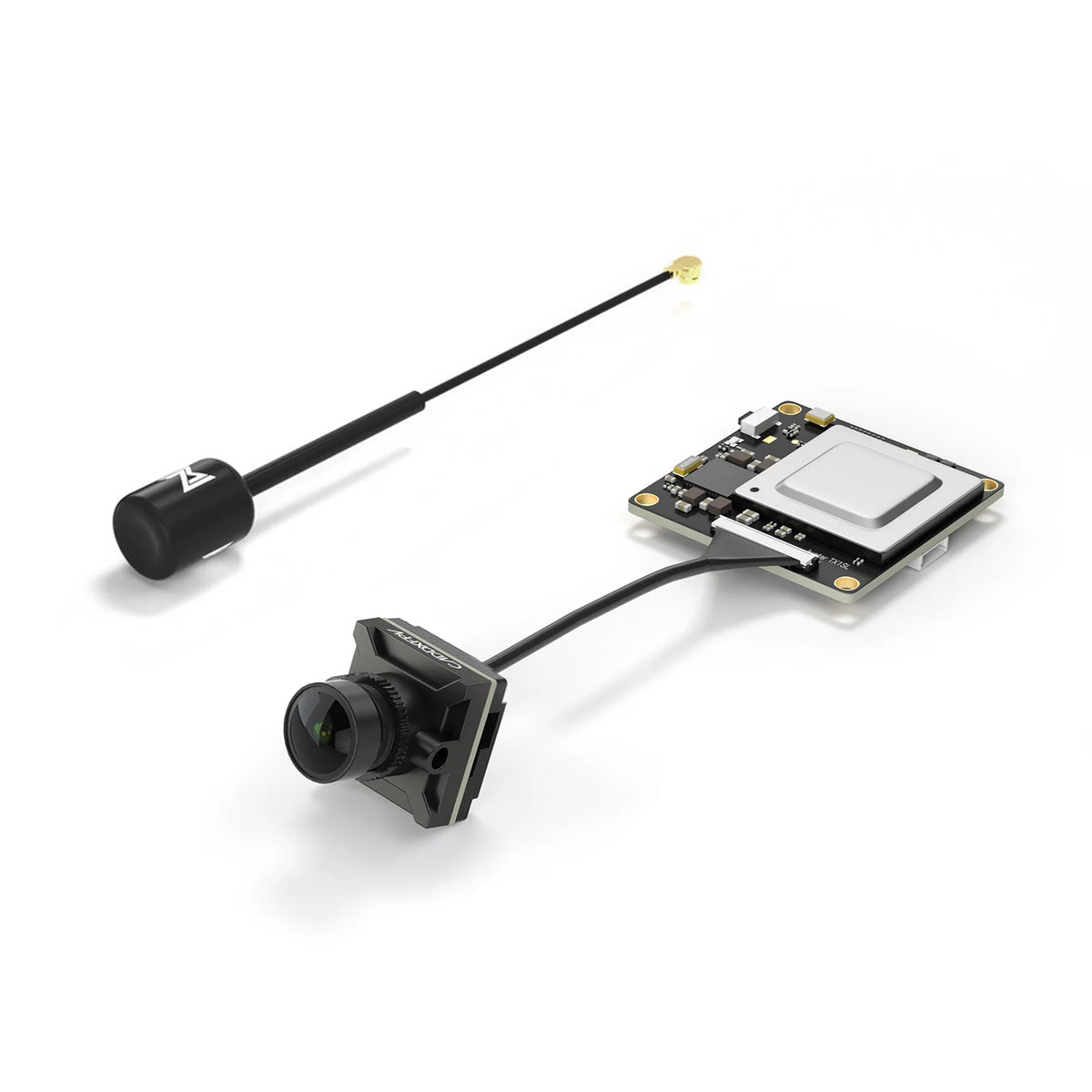

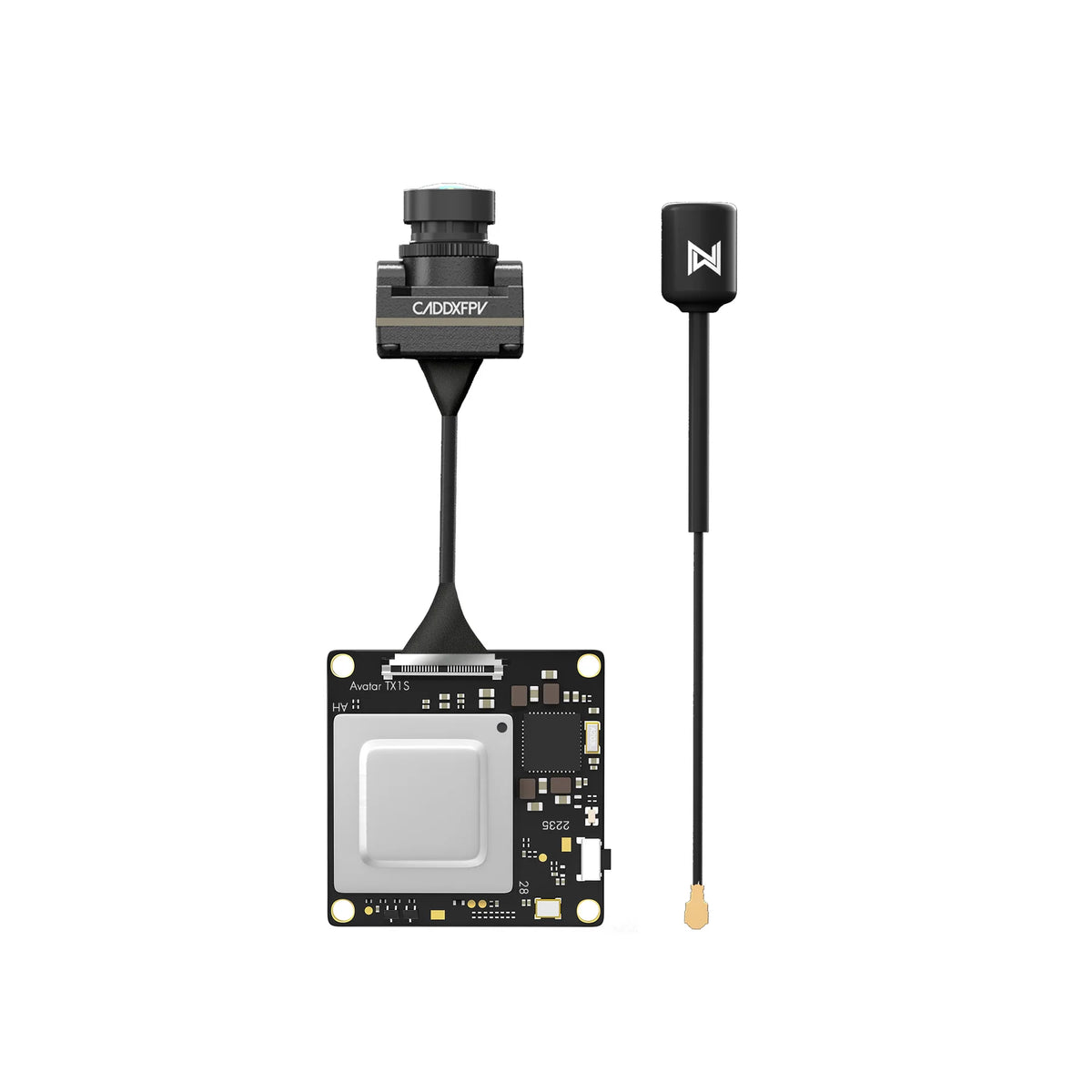

Packing List

Avatar Mini 1S KIT - X1
4 Pin USB Cable - X1
6 Pin Power Cable - X1
M2x3/4mm Screws - X2
M2x16mm Screws - X4
M2 Screw nut - X4
2.1x3.4x1mm Gasket - X5
