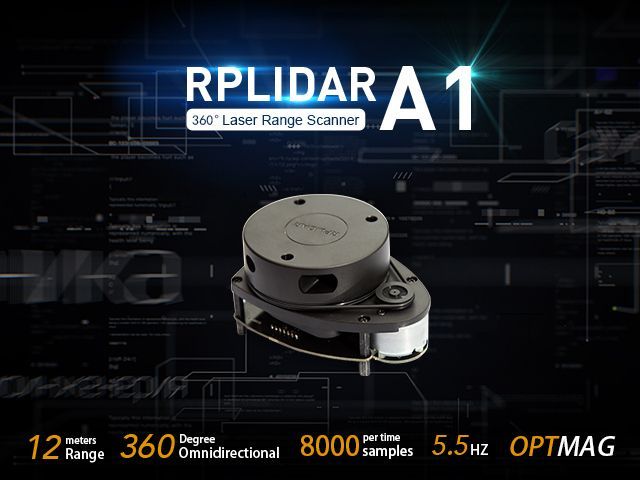

RPLiDAR A1M8-R6 360 Degree Laser Scanner Kit - 12M Range

Available Pre order Out of stock
• Free Shipping
$99.00
Quantity

Payment Methods

Description

Features

  • Measures distance data in more than 8000 times/s

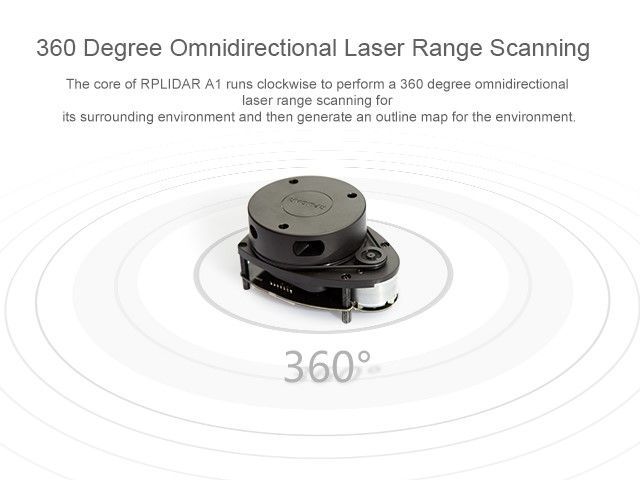

  • 360 Degree Omnidirectional Laser Range Scanning
  • 8000 times sample rate, the highest in the current economical LIDAR industry
  • OPTMAG Original Design, prolong the life-span
  • Configurable Scan Rate from 2-10Hz
  • Ideal for Robot Navigation and Localization
  • Plug and Play

Description

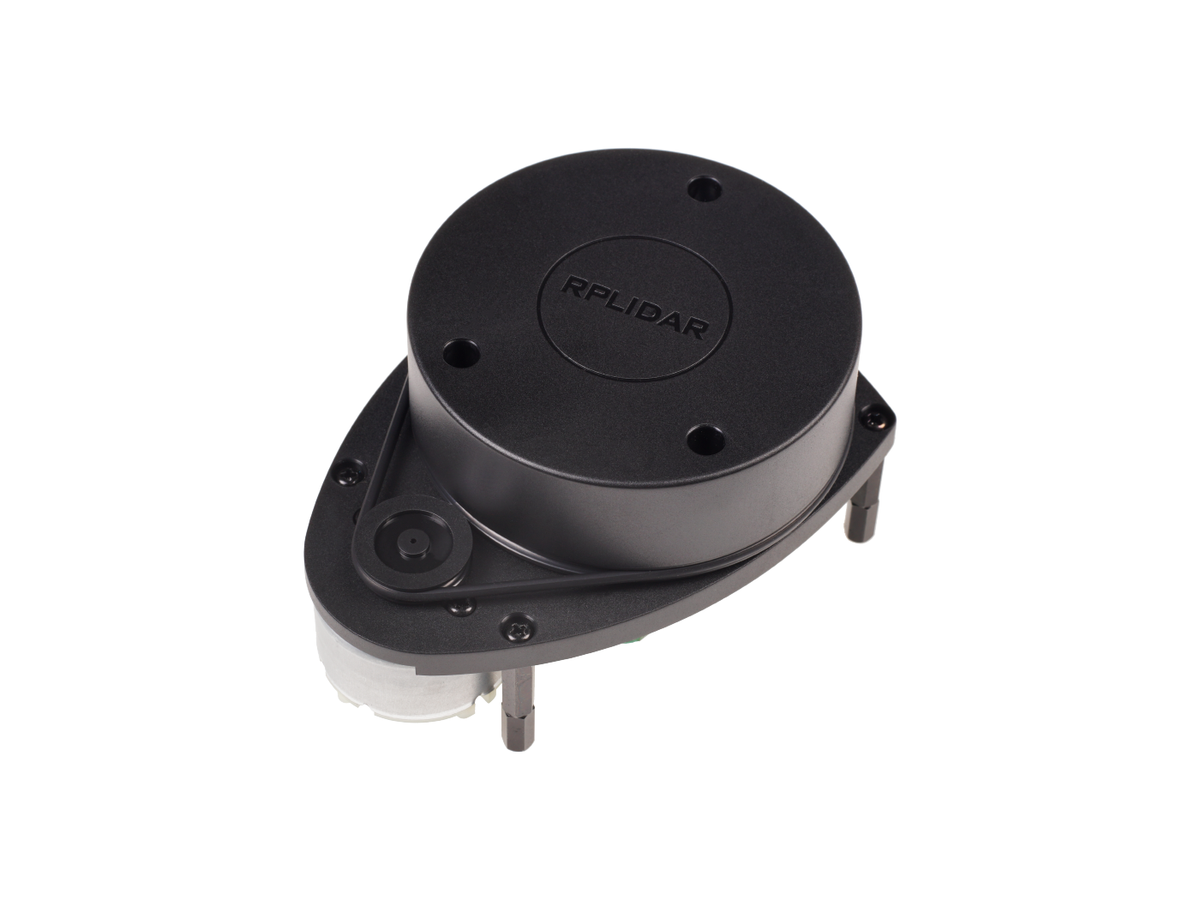

RPLIDAR A1 is a low cost 360-degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. The system can perform a 360degree scan within a 6meter range. The produced 2D point cloud data can be used in mapping, localization, and object/environment modeling.

RPLIDAR A1’s scanning frequency reached 5.5 Hz when sampling 360 points each round. And it can be configured up to 10 Hz maximum.

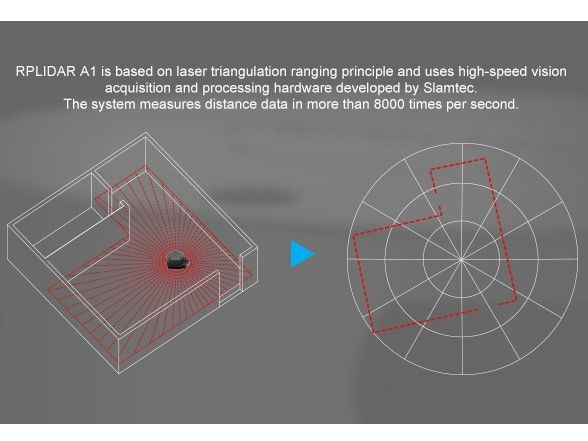

RPLIDAR A1 is basically a laser triangulation measurement system. It can work excellently in all kinds of indoor environments and outdoor environments without sunlight.

For your convenience, we made a table comparing different RPLiDARs so you can easily pick one that suits your project!

Application Scenarios

  • Home service /cleaning robot navigation and localization
  • General robot navigation and localization
  • Smart toy’s localization and obstacle avoidance
  • Environment scanning and 3D re-modeling
  • General simultaneous localization and mapping (SLAM)
Specifications

RPLIDAR A1M8-R6

Distance Range - 0.15m -12m
Measurement Resolution - <0.5 mm / <1% of actual distance *
Angular Resolution - ≤1°
Sample Rate - 2000 – 8000 Hz
Working Environment - Indoor


RPLIDAR A2M6

Distance Range - 0.2m – 18m
Measurement Resolution - <0.5 mm / <1% of actual distance *
Angular Resolution - ≤0.9°
Sample Rate - 2000 – 8000 Hz
Working Environment - Indoor



RPLIDAR A2M8

Distance Range - 0.15m -12m
Measurement Resolution - <0.5 mm / <1% of actual distance *
Angular Resolution - ≤0.9°
Sample Rate - 2000 – 8000 Hz
Working Environment - Indoor


RPLIDAR A3M1

Distance Range - White Objects:25 m / Black Object: 10 m
Angular Resolution - 0.225°
Sample Rate - 16 kHz or 10 kHz
Working Environment - Indoor & Outdoor


RPLIDAR S1

Distance Range - White Objects: 40m / Black Object: 10m
Measurement Resolution - 3cm
Angular Resolution - 0.313°-0.587°
Sample Rate - 9200 Hz
Working Environment - Indoor & Outdoor


RPLIDAR S2

Distance Range - White Objects: 30m / Black Object: 10m
Measurement Resolution - 5cm
Angular Resolution - 0.12°
Sample Rate - 32 kHz
Working Environment - Indoor & Outdoor


SLAMTEC MAPPER M1M1

Distance Range - 20m
Measurement Resolution - 5cm
Sample Rate - 7000 Hz
Working Environment - Indoor & Outdoor


SLAMTEC MAPPER M2M1 Pro

Distance Range - 40m
Measurement Resolution - 5cm
Sample Rate - 9200 Hz
Working Environment - Indoor & Outdoor





Specifications

Specification - Details

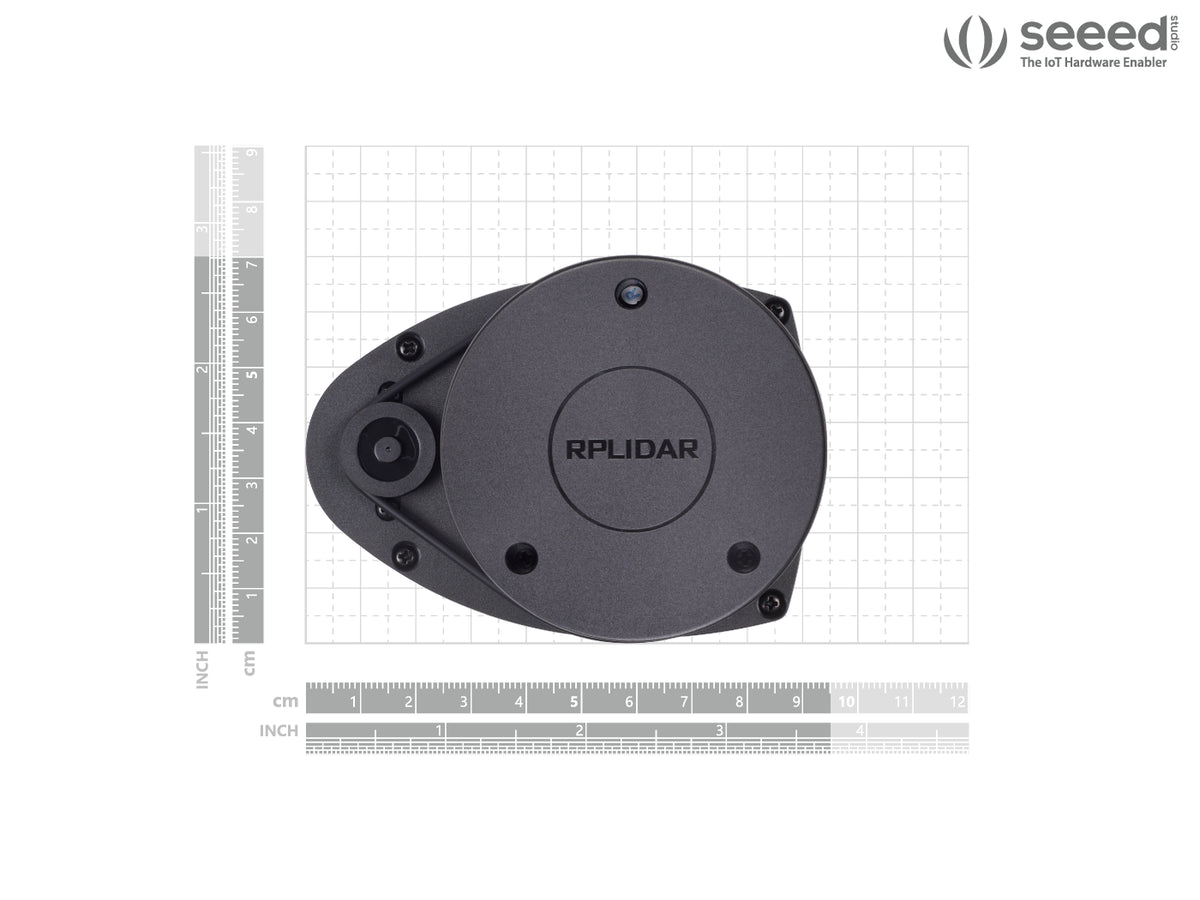

Dimensions - 98.5mm x70mm x60mm

Weight - G.W 170g

Battery - Exclude

Distance Range - 0.15 - 6m,White objects

Angular Range - 0-360 Degree

Distance Resolution - <0.5mm

Angular Resolution - ≤1Degree

Sample Duration - 0.5ms

Sample Frequency - 2000~2010Hz

Scan Rate - 1~10Hz,Typical 5.5Hz,

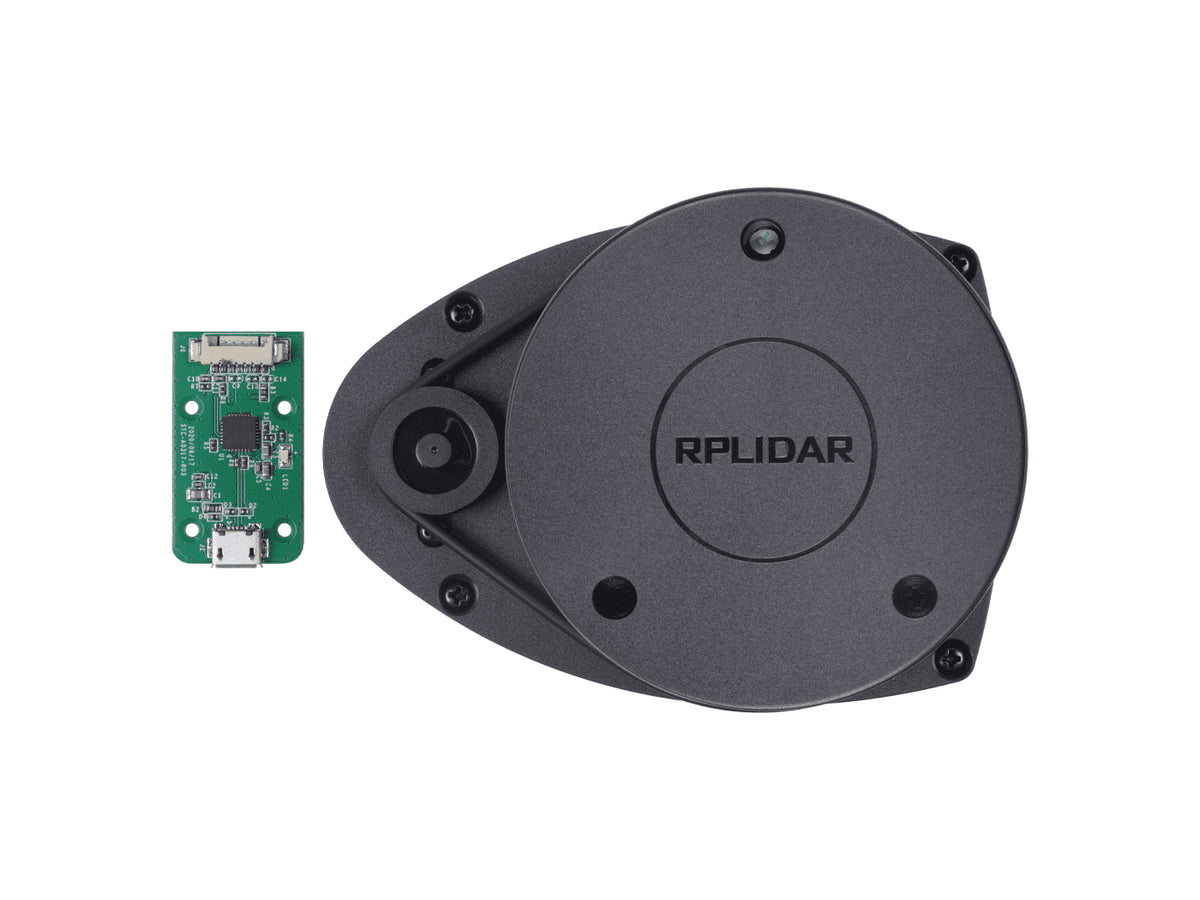

Part List
- 1 x RPLIDAR A1(PWM motor driver embedded
- 1 x USB Adapter
- 1 x RPLIDAR A1 communication cable



ECCN/HTS
HSCODE - 9031499090
USHSCODE - 9026104000
UPC
EUHSCODE - 9013101000
COO - CHINA
CE - 1
EU DoC - 1
RoHS - 1
TELEC - 1
UK DoC - 1
