LI-IPX-KW33000-MIPI-TOF-088H
Available
Explore product intelligence ↓$500.00
Bulk sales only. Minimum 10 units per item. For smaller orders, contact us.
Product intelligence
Capabilities
- Time-of-flight depth sensing
- Three-dimensional scene and distance measurement
- Robotics and machine-vision integration
Resources
- Manufacturer product informationWebView resource
- Additional manufacturer referenceWebView resource
Product details

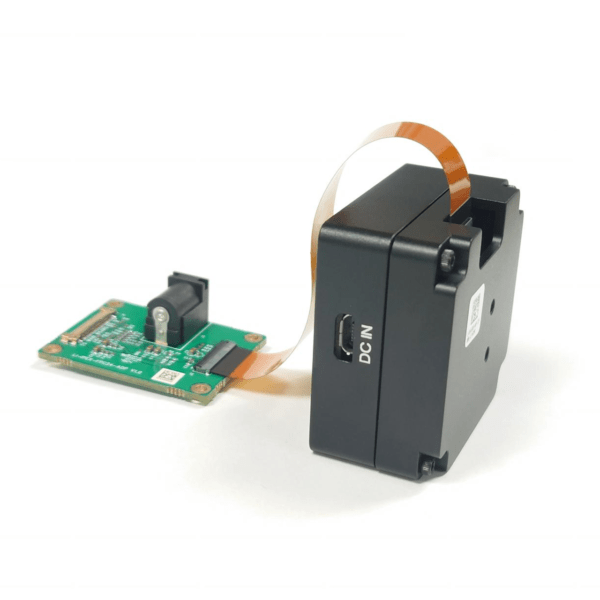

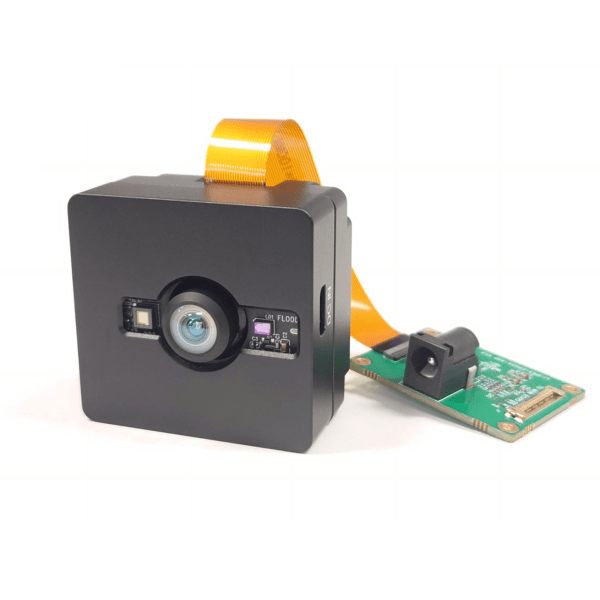

Nuvoton VGA-Pixel TOF and IR Image Sensor KW33000A1K
Compatible with NVIDIA® Jetson AGX Orin Developer Kit and USB30 Kit
2-lane MIPI & 12-bit RAW output
Lens: FOV H 88.2˚
| Resolution: | 640 (H) x 480 (V) (active pixels) |
| Optical Format: | 1/4″ |
| Pixel Size: | 5.6 x 5.6 μm |
| Power Supply: | 5 VDC |
| VCSEL: | DOT VCSEL (940 nm) & FLOOD VCSEL (940 nm) |
| Part#: | LI-IPX-KW33000-MIPI-TOF-088H |
Applications
Robot Navigation
3D Reconstruction
Human-Machine Interaction
Gesture Recognition
Facial Recognition
USB 3.0 EVA Kit SDK Supported
Camera Tool Source Code in C#
Capture & Display
Register Access Function
