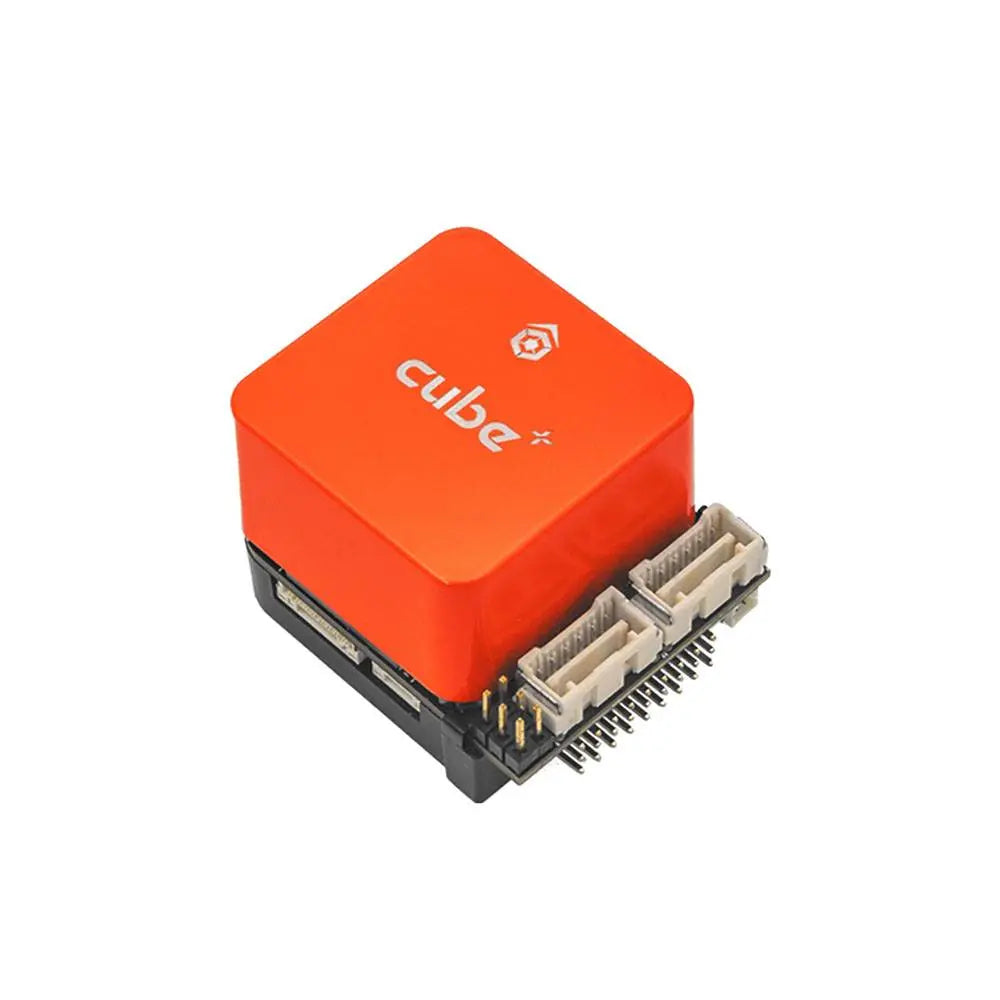

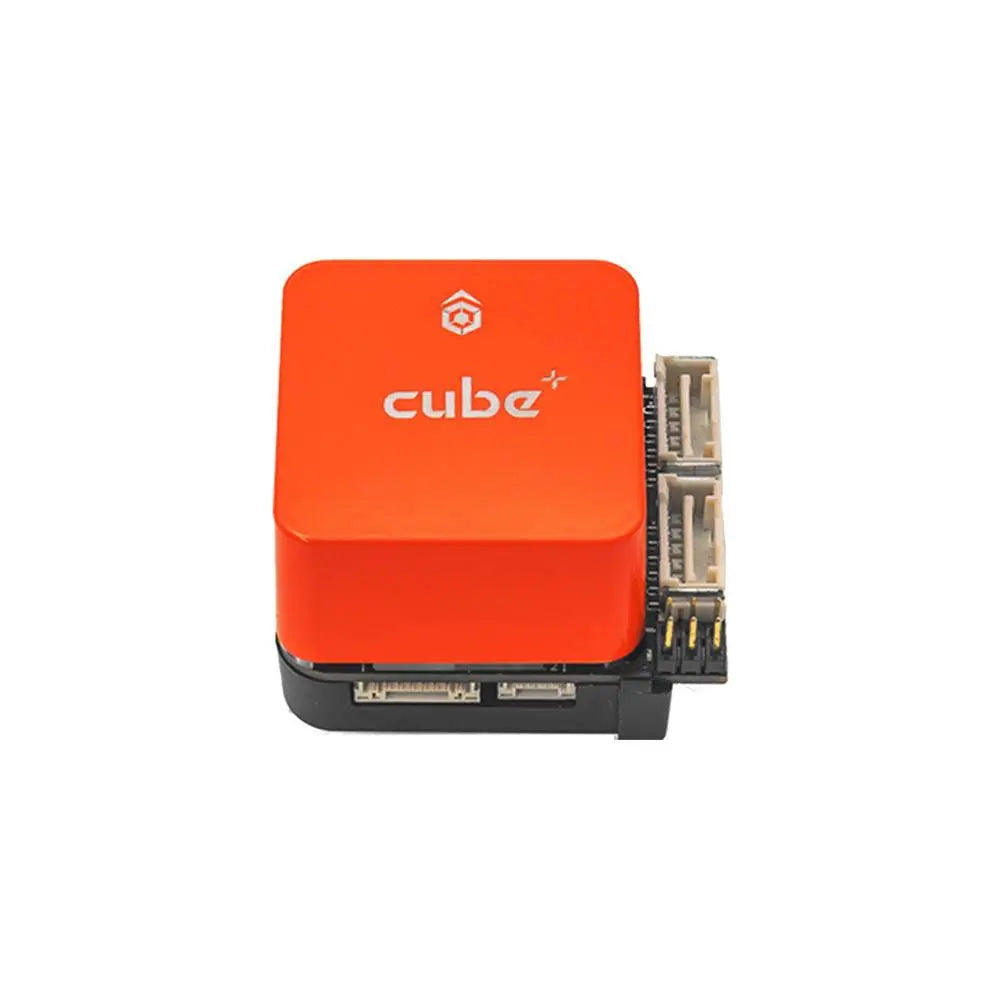

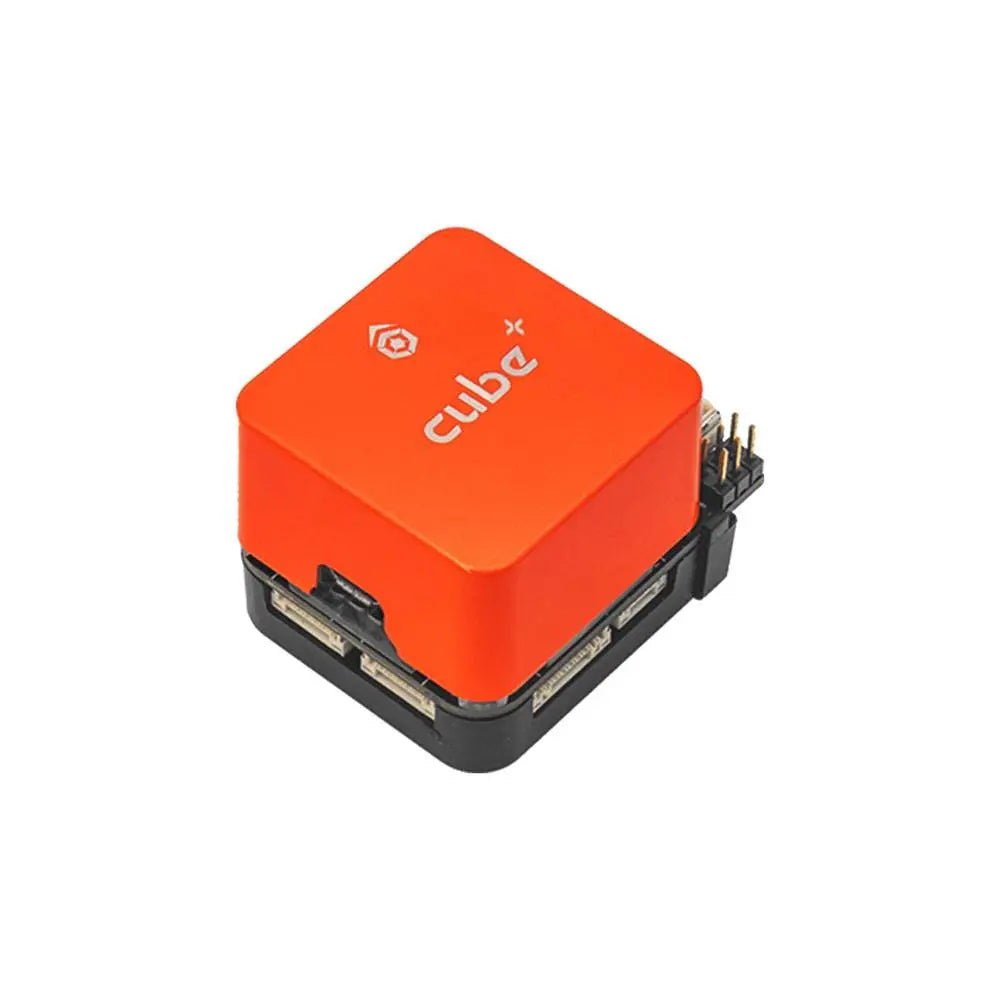

Hex Cube Orange + Mini Set

The Hex Cube Orange + Mini Set is an advanced flight controller solution combining the Cube Orange autopilot module and a compact Mini Carrier Board. The Cube Orange, developed by Hex Technology, is equipped with a high-performance STM32H743 ARM Cortex-M7 processor and supports ArduPilot firmware for seamless integration into drones, UAVs, and robotic systems. The Mini Carrier Board offers a space-saving design, connecting the Cube Orange to various peripherals such as GPS, telemetry, power modules, and ESCs. This combination provides a versatile, powerful, and reliable autopilot system for small to medium-sized drones and robotic applications, ensuring precise control and stable performance.

• Supports multiple modes such as Loiter
• Supports ground control stations
• Supports Mission Planner
• AUTO (with Waypoints)
• Built-in flight logging
• Altitude Hold
• Guide mode

• Sensors details: IMU1 (Isolated) ICM42688, IMU2(Isolated) ICM20948 or ICM42688, IMU3 (Fixed) ICM20649 or ICM45686, MS5611 x 2 (Baro)
• Supported vehicle type: Fixed-wing plane, Multicopters, Helicopter, VTOL-plane, Rover/boat/submarine
• Chassis Material: CNC Aluminum Alloy (cube)+ABS Molding(Carrier Board)
• Operating temperature: -10~+55° IMU with temperature control
• Supported firmware: Ardupilot, PX4, and Hionos DO-178C
• Main Processor: STM32H757 Dual Core M7 + M4
• Supported RC signals: PPM/SBUS/DSM
• Carrier Board Size: 47.5×40.5×20.2mm
• Power redundancy: Triple redundancy
• Cube Size: 38.4×38.4×22mm
• Sensors: Triple IMU System
• Coprocessor: STM32F100
• GPS/Serial interfaces: 4
• CAN FD interface: 1
• Debug interface: 2
• 12C interface: 1
• PWM I/Os: 14
• Weight: 53g

• 1x  Hex Cube Orange + Mini Set
• 1x Power Brick Mini Cable
• 1x Micro USB Cable
• 1x Power Brick Mini
• 1x GPS1 GH Cable
• 1x Buzzer Cable
• 2x CAN Cable
• 1x I2C Board
• 2x I2C Cable
