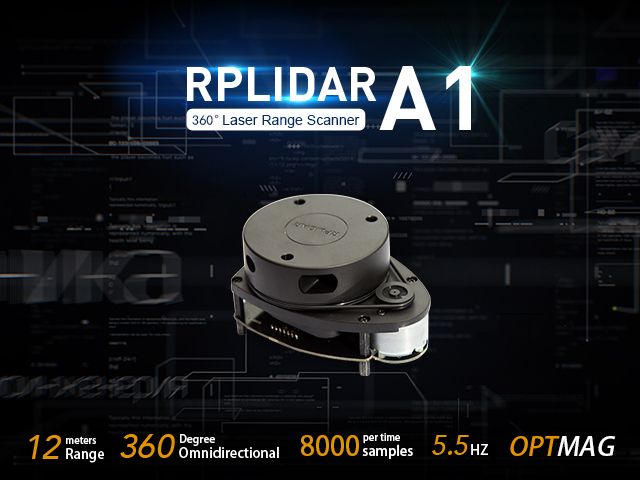

RPLiDAR A1M8 360 Degree Laser Scanner Kit - 12M Range

Features

• Measures distance data in more than 8000 times/s

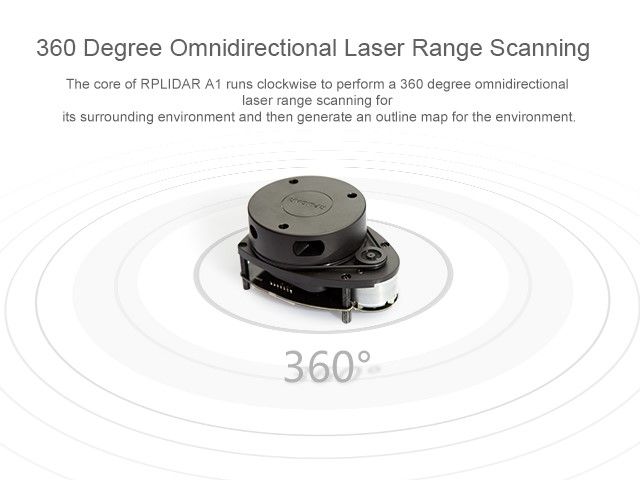

• 360 Degree Omnidirectional Laser Range Scanning
• 8000 times sample rate, the highest in the current economical LIDAR industry
• OPTMAG Original Design, prolong the life-span

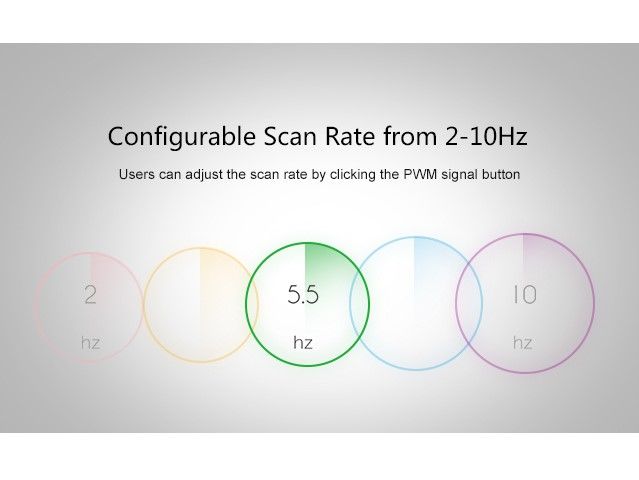

• Configurable Scan Rate from 2-10Hz

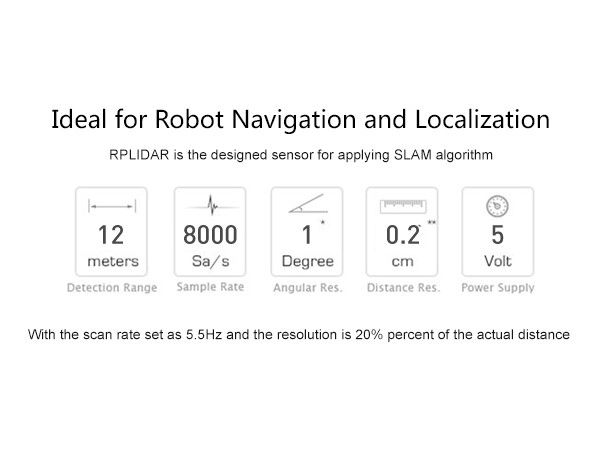

• Ideal for Robot Navigation and Localization
• Plug and Play

Description

RPLIDAR A1 is a low cost 360-degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. The system can perform a 360degree scan within a 6meter range. The produced 2D point cloud data can be used in mapping, localization, and object/environment modeling.

RPLIDAR A1’s scanning frequency reached 5.5 Hz when sampling 360 points each round. And it can be configured up to 10 Hz maximum.

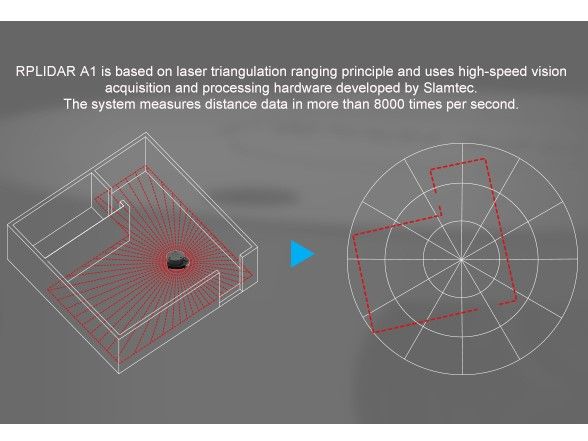

RPLIDAR A1 is basically a laser triangulation measurement system. It can work excellently in all kinds of indoor environments and outdoor environments without sunlight.

For your convenience, we made a table comparing different RPLiDARs so you can easily pick one that suits your project!

Application Scenarios

• Home service /cleaning robot navigation and localization
• General robot navigation and localization
• Smart toy’s localization and obstacle avoidance
• Environment scanning and 3D re-modeling
• General simultaneous localization and mapping (SLAM)
