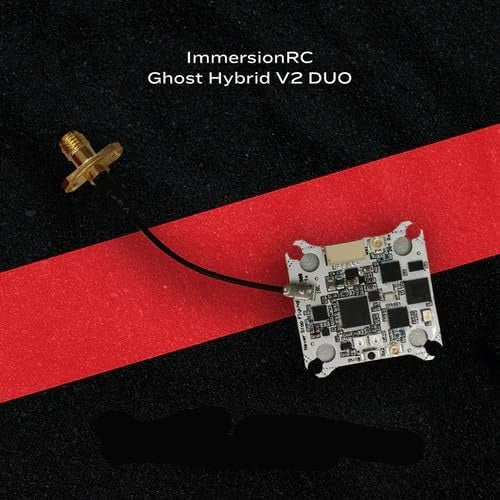

Extreme Range and Low Latency Video Transmitter Immersionrc Ghost Hybrid V2 Duo

Available Pre order Out of stock
• Free Shipping
$99.00
Quantity

Payment Methods

Description

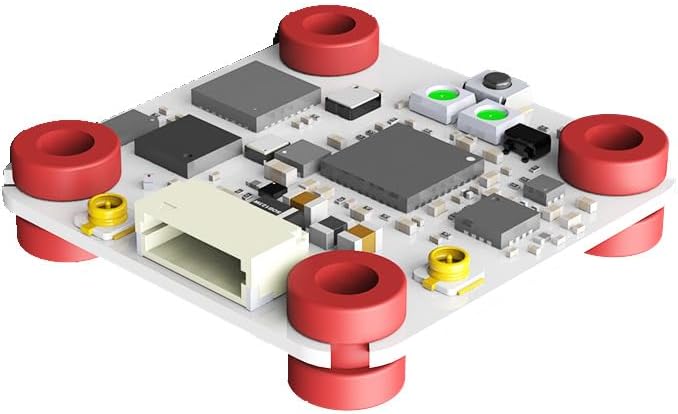

Immersion RC Ghost Hybrid 5.8GHz vTx/2.4GHz Rx. High-end analog video transmitter and high RC control link - all in one board.


A Perfect Fusion Ghost Receiver and Tramp Transmitter
There is nothing like the experience of flying an FPV drone, but building these marvelous machines is more complex than it needs to be. With Tramp, we set out to raise the bar on video transmitter technology. With Ghost, we set out to redefine the norms in receivers for R/C control. And now we have fused these two, in the groundbreaking Ghost Hybrid. Designed by pilots, built by pilots, supported by pilots.

The ImmersionRC Ghost Hybrid V2 DUO is the pinnacle of drone control systems, offering unparalleled performance and versatility for both FPV racing and freestyle flying enthusiasts. Engineered with precision and innovation, this hybrid system combines the best of both worlds, seamlessly integrating the advantages of the 2.4GHz and 868MHz frequency bands to deliver exceptional range, reliability, and responsiveness.

At the core of the Ghost Hybrid V2 DUO is its revolutionary protocol, which utilizes a unique hybrid approach to frequency hopping. By intelligently switching between the 2.4 GHz and 868 MHz bands, the system ensures optimal signal strength and interference rejection, even in crowded RF environments. This results in ultra-low latency and rock-solid connectivity, allowing pilots to push the limits of their flying skills with confidence.

With its advanced telemetry capabilities, the Ghost Hybrid V2 DUO provides real-time feedback on signal strength, link quality, and system health, empowering pilots to make informed decisions and optimize their flying experience. Whether racing through tight courses or exploring expansive landscapes, users can trust in the reliability and performance of the Ghost system.

In addition to its industry-leading performance, the Ghost Hybrid V2 DUO is designed for ease of use and flexibility. Compatible with a wide range of popular flight controllers, receivers, and transmitters, the system seamlessly integrates into existing setups, minimizing installation time and effort. Its compact form factor and lightweight design ensure minimal impact on drone performance and aerodynamics.

Furthermore, the Ghost Hybrid V2 DUO is backed by ImmersionRC's renowned customer support and commitment to quality. With regular firmware updates and ongoing development, users can expect continued enhancements and new features to further elevate their flying experience.

In summary, the ImmersionRC Ghost Hybrid V2 DUO redefines the standards for drone control systems, offering unmatched performance, reliability, and versatility for FPV racing and freestyle flying. With its hybrid frequency hopping protocol, advanced telemetry capabilities, and seamless integration, it provides the ultimate solution for pilots who demand the best in drone control technology.

  • All 48 Standard Channels
  • 20 x 20mm Mounting (inner)
  • Extreme Range AND Low Latency
  • Thermally regulated, Factory calibrated
  • 500Hz R/C Link Updates (HW is 1kHz ready)
  • Additional mounting holes, 25.5x25.5mm (outer)
  • Two full receiver channels (not just dual antenna)
  • Only 2.2g, perfect for the popular sub-250g class
  • Integrated 5.8GHz 25mW - 600mW Video Transmitter
  • 1kHz/1kHz ready for when OpenTx can supply quality data at this rate
  • 2.4GHz Lora OR FLRC control modes, for the best performance in any environment
  • Available vTx channels and power may vary from region to region to comply with local regulations



Intelligent vTx Control
Intelligent, and direct control of the video transmitter from the Ghost ecosystem. Use either the OLED menus on the Ghost Transmitter module or the responsive OpenTx tools menu. Tx remains silent on power-up and shuts down immediately in an (unlikely) failsafe.

Locking Connectors
Innovative locking connectors deliver the advantages of the lightweight u.FL/MHF standard, with the security required for world-class racing, or long-range flying. Simply plug the connector onto the board, and slide the locking cap to secure.

Heat map of semiconductor Thermal Regulation + Calibration

As with all tramp products, the Hybrid includes automatic thermal regulations, protecting the video transmitter against potentially damaging overheating while sitting on the starting pad. The on-board Tramp is factory calibrated, for precise power delivery during critical race events.

qTee Antennas
qTee, a.k.a ‘Cutie’ antennas are center-fed dipoles, with integral balun to ensure no cable radiation, and without unexpected nulls in the radiation pattern. Tip to Tip length of just 60mm, easy to install in anything from a Whoop to an X-Class quad.

Technical Details


Additional Information

Warranty & Support

Amazon.com Return Policy:Amazon.com Voluntary 30-Day Return Guarantee: You can return many items you have purchased within 30 days following delivery of the item to you. Our Voluntary 30-Day Return Guarantee does not affect your legal right of withdrawal in any way. You can find out more about the exceptions and conditions
Specifications

GHOST HYBRID SPECIFICATIONS

- Downlink RF Power: +13dBm
- vTx Control: Automatic, via Ghost
- Sensitivity: -117dBm in Long Range mode
- Power Supply: 5V, with Over Voltage Protection
- Dimensions: 26mm x 126mm, 2.2g (w/o antennas)
- Firmware: Over-the-air (OTA) upgradable (Rx and VTx)
- Antenna Connectors: Standard U.FL with Locking
Connectors
