Integrated Propulsion system

 This product is designed and used for Agricultural application or logistics transportation

Order procedure:

  1. To ensure your safety, Product Release Form must be submitted prior to shipment. https://www.hobbywingdirect.com/pages/product-release-form
  2. Proceed with your order.

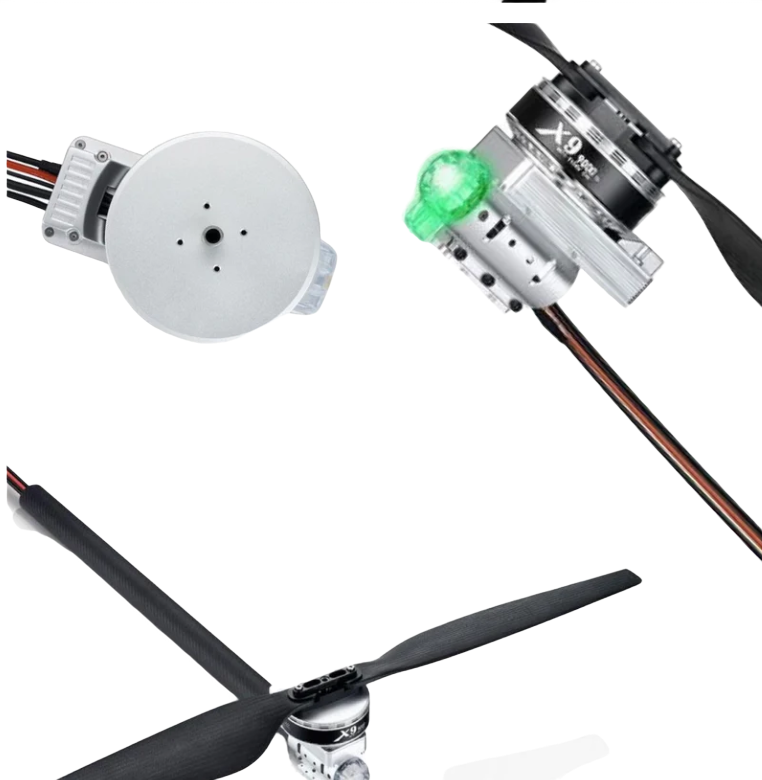

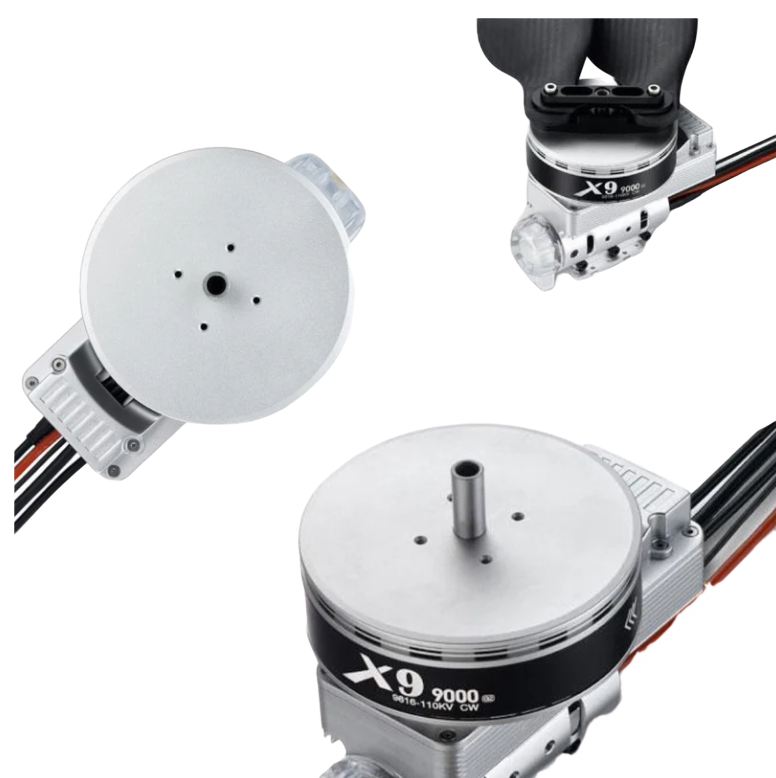

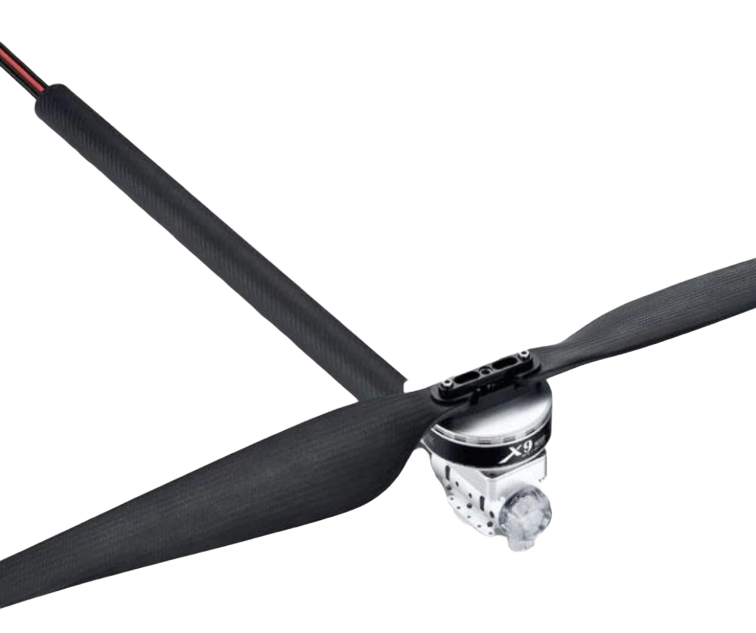

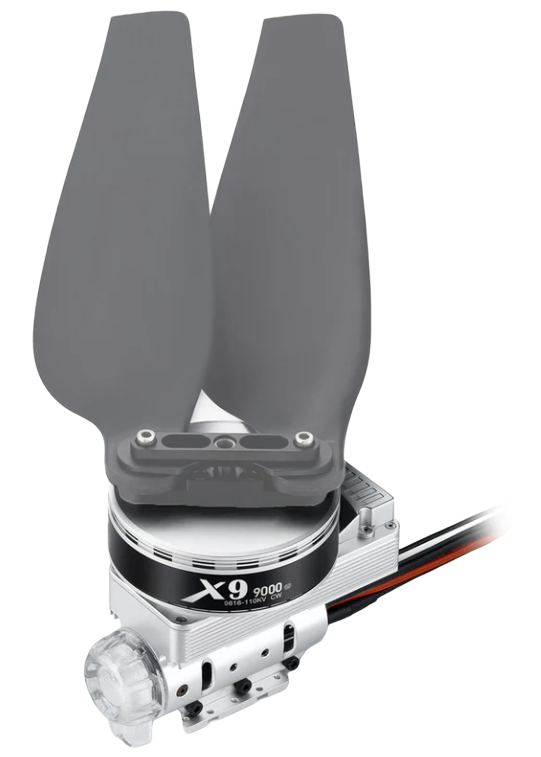

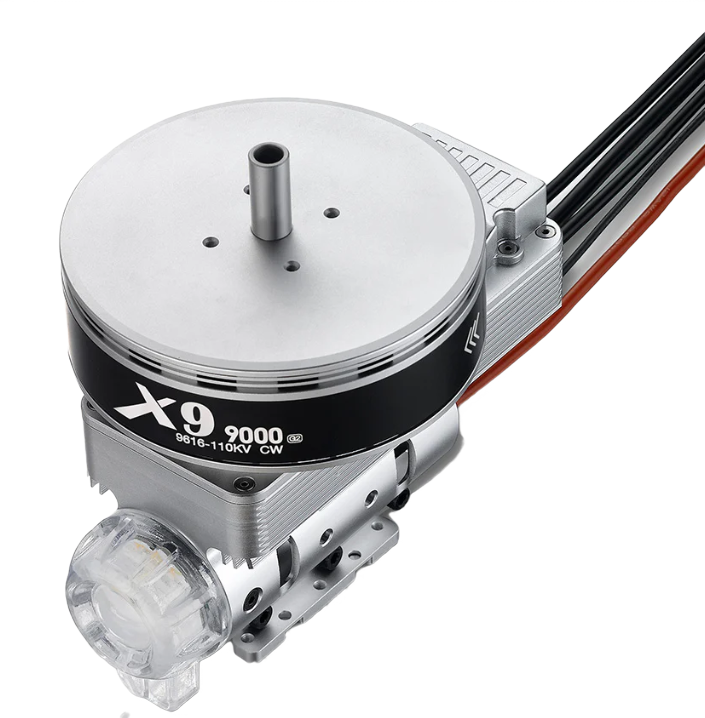

The COMBO-XRotor Pro-X9 brushless power system is a plant protection power system that adapts to uniaxial 7-9.5kg load. The maximum pulling force of uniaxial is 19.2kg, integrated with a 40mm carbon fiber tube arm. The waterproof grade is IPX7. It is resistant to rainwater, pesticides, salt spray, high temperature, sand and dust, impact, mud, and soil. ESC FOC-motor PMS system has optimized computing, with multiple protection functions such as power-on self-check, power-on voltage abnormal protection, overcurrent protection, lock-up protection and etc. as well as real-time data transmission.



for more details, check here:

Download

Specifications

Specifications:

Model - p/n
X9 Power System Combo - 30410030023 / 30410030024
X8Power System Combo - 30414000 / 30414001
X6 Power System Combo - 30414050 (CW) / 30414051 (CCW)

Model - Max Thrust
X9 Power System Combo - 19.2kg/Axis 46V, Sea Level
X8Power System Combo - 15.3kg/Axis 48V, Sea Level
X6 Power System Combo - 12kg/Axis (48V, Sea Level

Model - Recommended LiPo Battery
X9 Power System Combo - 12S LiPo
X8Power System Combo - 12S LiPo
X6 Power System Combo - 12S LiPo

Model - Recommended Takeoff Weight
X9 Power System Combo - 7-9.5kg/Axis (46V, Sea Level
X8Power System Combo - 5-7kg/Axis(48V,Sea Level
X6 Power System Combo - 3-5kg/Axis(48V,Sea Level)

Model - Product Weight (ESC/Motor/Prop)
X9 Power System Combo - 1400g
X8Power System Combo - 1040g
X6 Power System Combo - 720g

Model - Waterproof Rating
X9 Power System Combo - IPX7
X8Power System Combo - IPX7
X6 Power System Combo - IPX7

Model - Operating Temperature
X9 Power System Combo - -20-55℃
X8Power System Combo - -20℃~65℃
X6 Power System Combo - -20℃~50℃


Motor
Model - Stator size
X9 Power System Combo - 96*16mm
X8Power System Combo - 81*20mm
X6 Power System Combo - 70mm

Model - KV Rating
X9 Power System Combo - 110KV
X8Power System Combo - 100KV
X6 Power System Combo - 180KV

Model - O.D of Carbon Fiber Tube
X9 Power System Combo - φ40
X8Power System Combo - Φ35mm/Φ30mm (*Tube Adapter will be Needed)
X6 Power System Combo - φ30mm/φ28mm (*Tube Adapter will be Needed)

Model - Bearing
X9 Power System Combo - Imported Waterproof Bearing
X8Power System Combo - NSK Ball Bearing (Waterproof)
X6 Power System Combo - Imported Bearing



ESC
Model - Recommended LiPo Battery
X9 Power System Combo - 6-12S LiPo
X8Power System Combo - 6-12S LiPo
X6 Power System Combo - 6-12S LiPo

Model - PWM Input Signal Level
X9 Power System Combo - 3.3V/5V (Compatible)
X8Power System Combo - 3.3V/5V (Compatible)
X6 Power System Combo - 3.3V/5V (Compatible)

Model - Throttle Signal Frequency
X9 Power System Combo - 50-500Hz
X8Power System Combo - 50-500Hz
X6 Power System Combo - 50-500Hz

Model - Operating Pulse Width
X9 Power System Combo - 1100-1940 μs (Fixed or cannot be Programmed)
X8Power System Combo - 1100-1940 μs (Fixed or cannot be Programmed)
X6 Power System Combo - 1100~1940μs (Fixed or cannot be Programmed)

Model - Max. Input Voltage
X9 Power System Combo - 52.2V
X8Power System Combo - 52.2V
X6 Power System Combo - 52.2V

Model - Max. Input Current (Cont.)
X9 Power System Combo - 120 A (w/ Good Heat Dissipation)
X8Power System Combo - 80 A(w/ Good Heat Dissipation)
X6 Power System Combo - 80 A(w/ Good Heat Dissipation)

Model - Max. Peak Current (10s)
X9 Power System Combo - 150 A (w/ Good Heat Dissipation)
X8Power System Combo - 100 A (w/ Good Heat Dissipation)
X6 Power System Combo - 100 A (w/ Good Heat Dissipation)

Model - BEC
X9 Power System Combo - No
X8Power System Combo - No
X6 Power System Combo - No

Model - Nozzle Mounting Holes
X9 Power System Combo - φ28.4mm-2*M3
X8Power System Combo - Φ28.4mm-2*M3
X6 Power System Combo - φ28.4mm-2*M3

Model - Nozzle Mounting Holes
X9 Power System Combo - φ28.4mm-2*M3
X8Power System Combo - Φ28.4mm-2*M3
X6 Power System Combo - φ28.4mm-2*M3


Propeller
Model - Diameter×Pitch
X9 Power System Combo - 34.7×11 inch
X8Power System Combo - 3090
X6 Power System Combo - 2388

Model - Weight
X9 Power System Combo - 180g
X6 Power System Combo - 91g (w/ Propeller Adapter, Single Blade: 36g)
