Cube Red Pro Standard Set
Available
Explore product intelligence ↓Bulk sales only. Minimum 5 units per item. For smaller orders, contact us.
Product intelligence
Capabilities
- Dual STM32H757 autopilot
- Redundant inertial sensing
- Ethernet and CAN FD
- ArduPilot and PX4 support
Manufacturer
CubePilotSpecifications
Autopilot hardware
- Manufacturer
- CubePilot
- SKU
- CP-06318
- Processors
- 2 × STM32H757
- Inertial sensors
- 4 IMUs on primary H7; 1 on secondary H7
- Barometers
- 3
- CAN buses
- 3, with CAN FD support
- Other interfaces

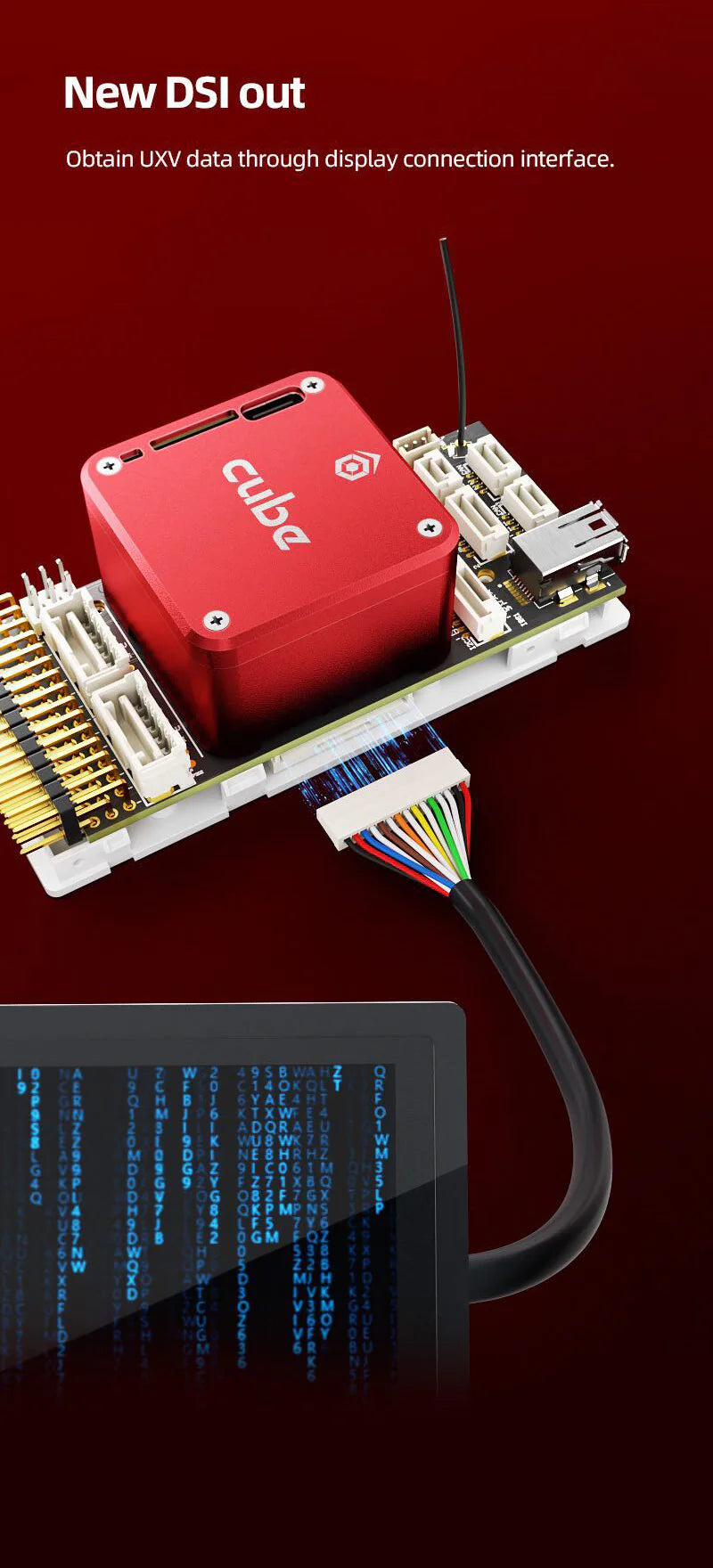

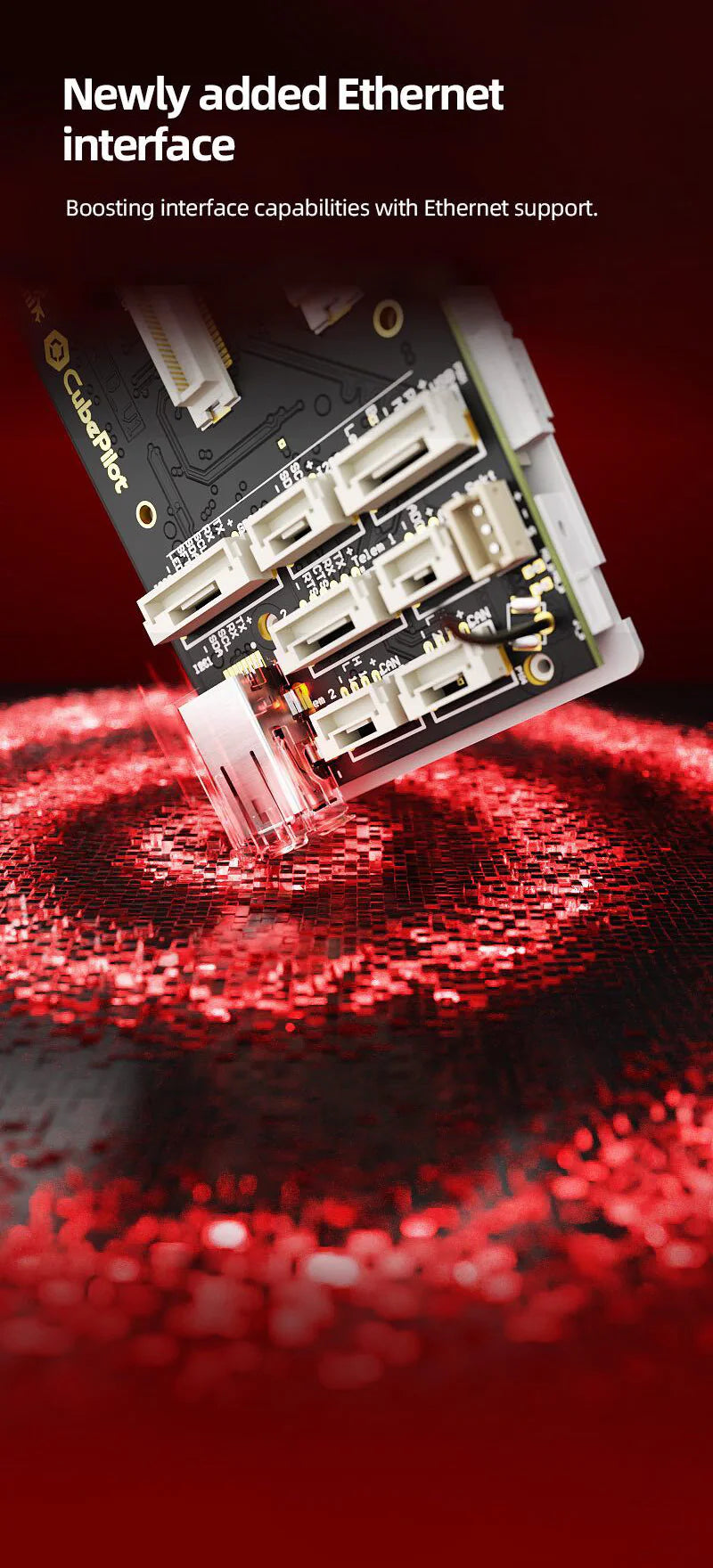

- Ethernet, USB-C debugging and DSI output
- Software
- ArduPilot and PX4
Standard set contents
- Flight controller
- Cube Red Standard Set
- Carrier and power
- ADS-B carrier board and Power Brick Mini
- Cables and interfaces
- Standard Cable Set v2.1, I2C board and 30 cm Mini IO to RJ45 cable
- Enclosure and mounting

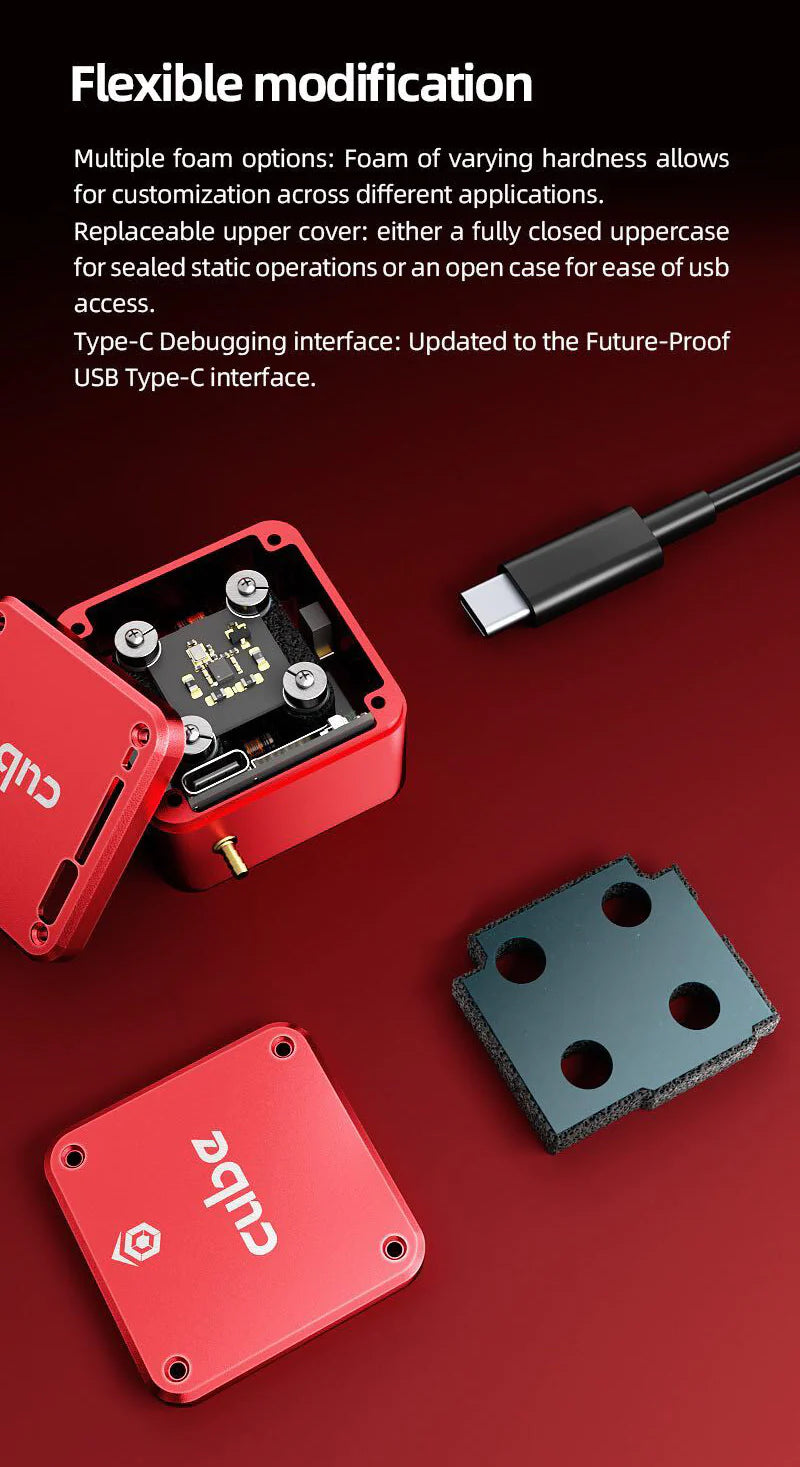

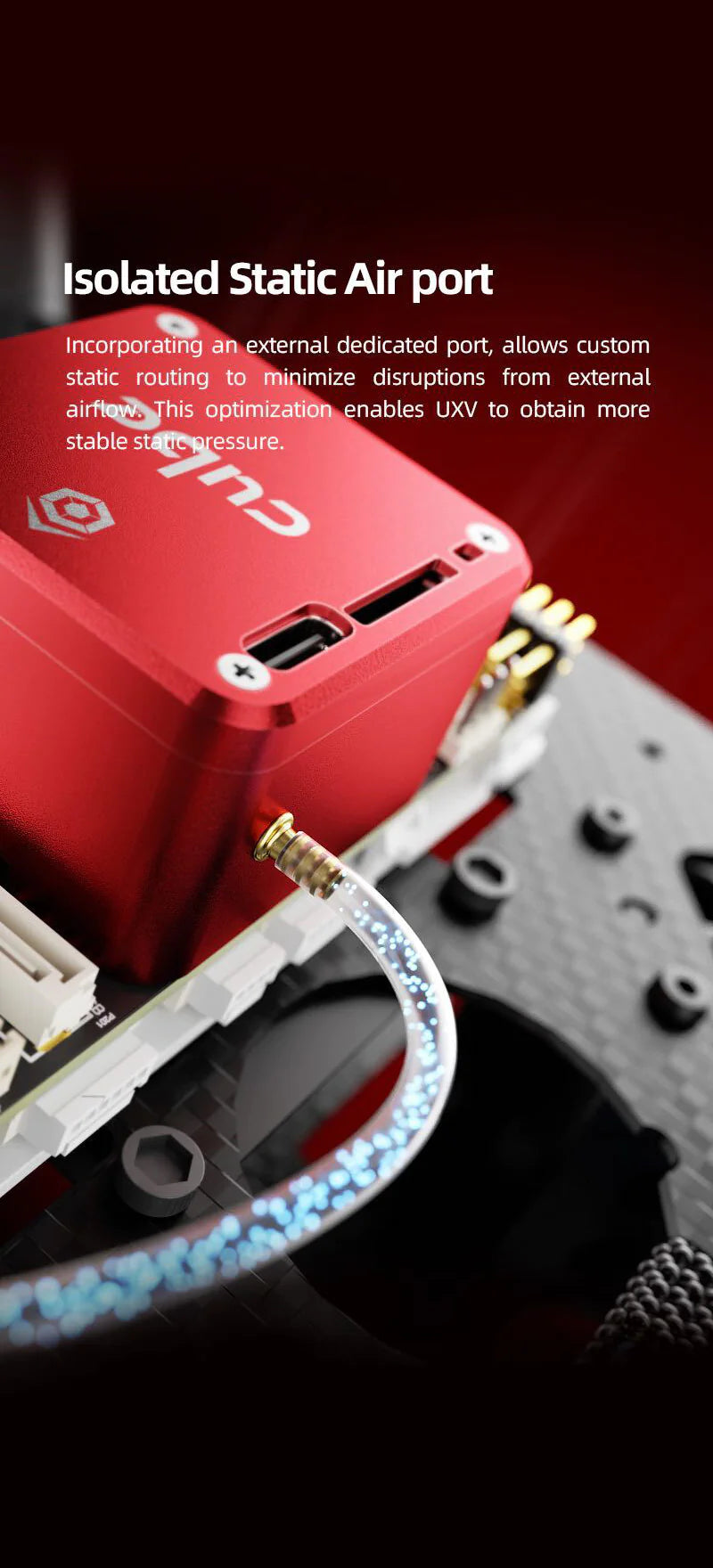

- Waterproof top case, M3 air tube connector, Foam A, Foam B and mounting stickers
Resources
- NWBlue Cube Red Pro Standard SetWebView resource
- CubePilot Cube Red documentationGuideView resource
Product details

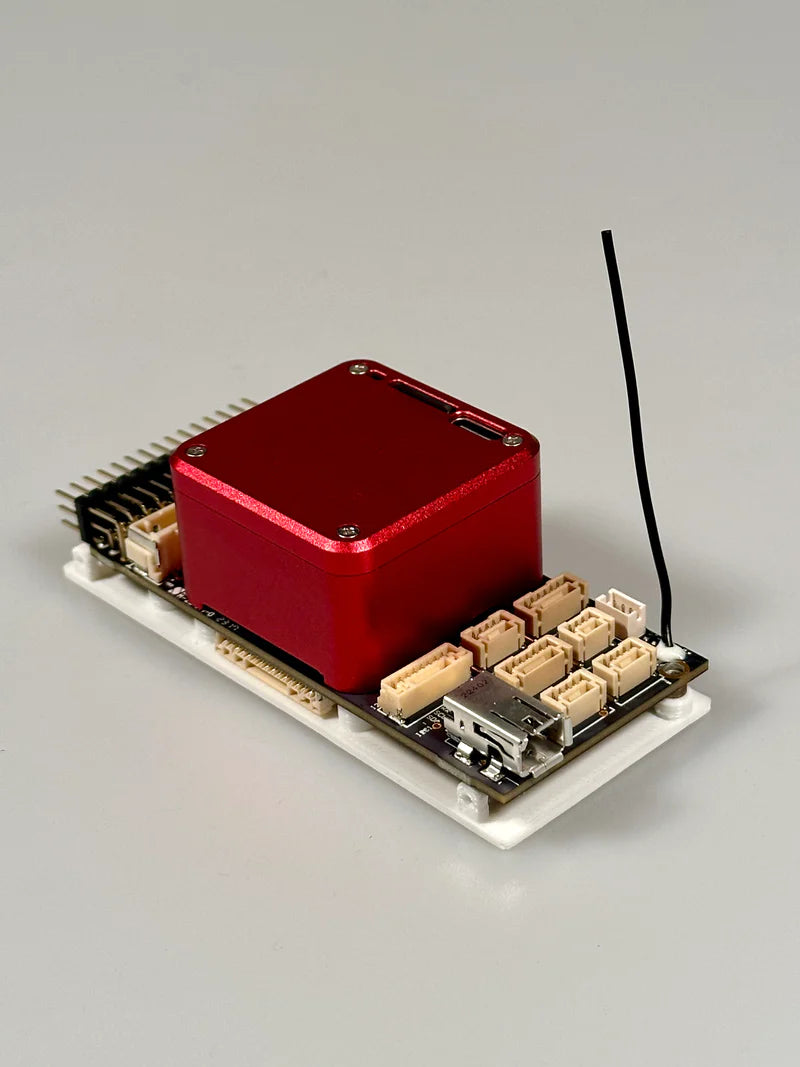

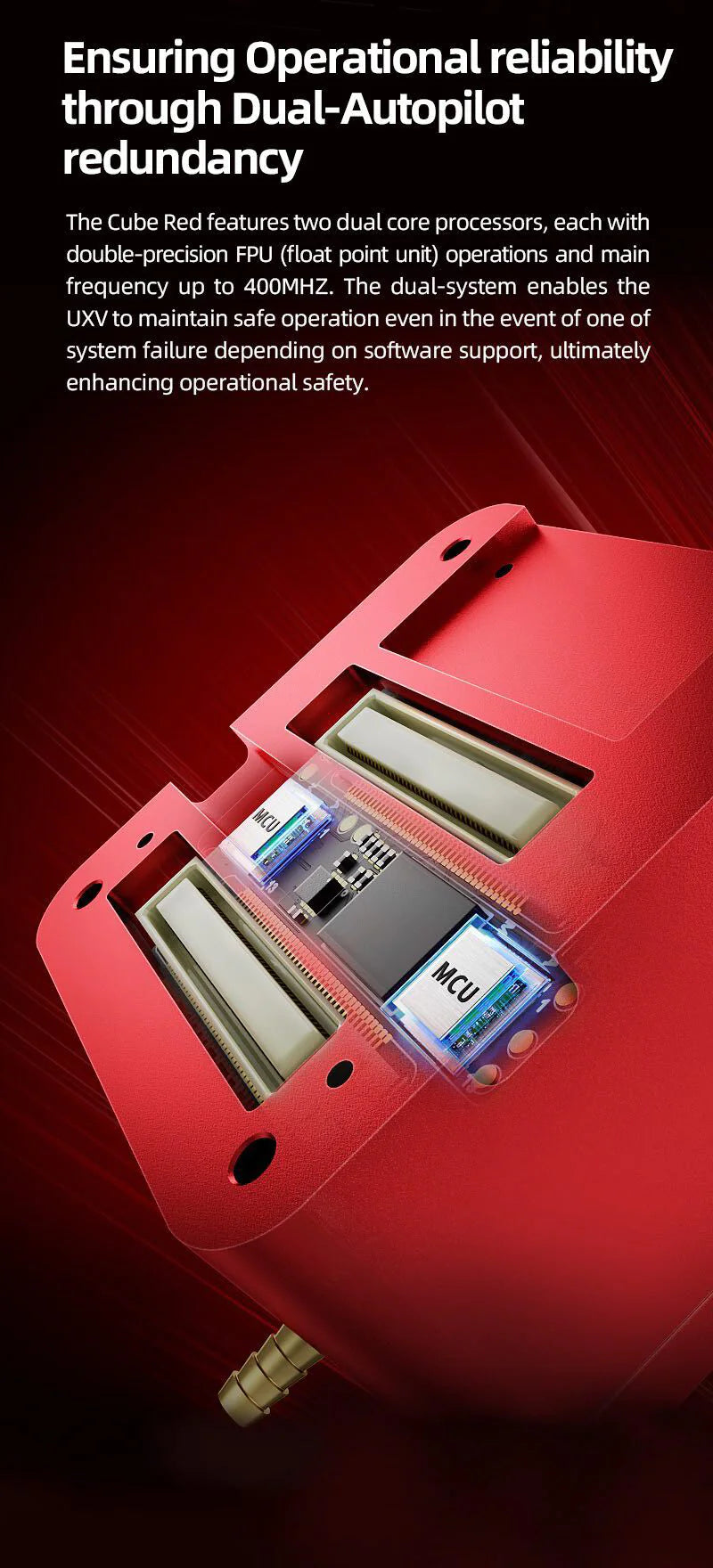

CubePilot Cube Red Pro Standard Set (CP-06318) is a redundant autopilot set for professional unmanned vehicles. It has two STM32H757 processors, four IMUs on the primary H7 plus one on the secondary H7, and three barometers. Interfaces include Ethernet, three CAN buses with CAN FD, USB-C debugging, and DSI output. CubePilot lists ArduPilot and PX4 support.
NWBlue states that Cube Red Pro is in a design update phase and that current purchases do not include a free upgrade to a later revision. Confirm the revision and availability before ordering.

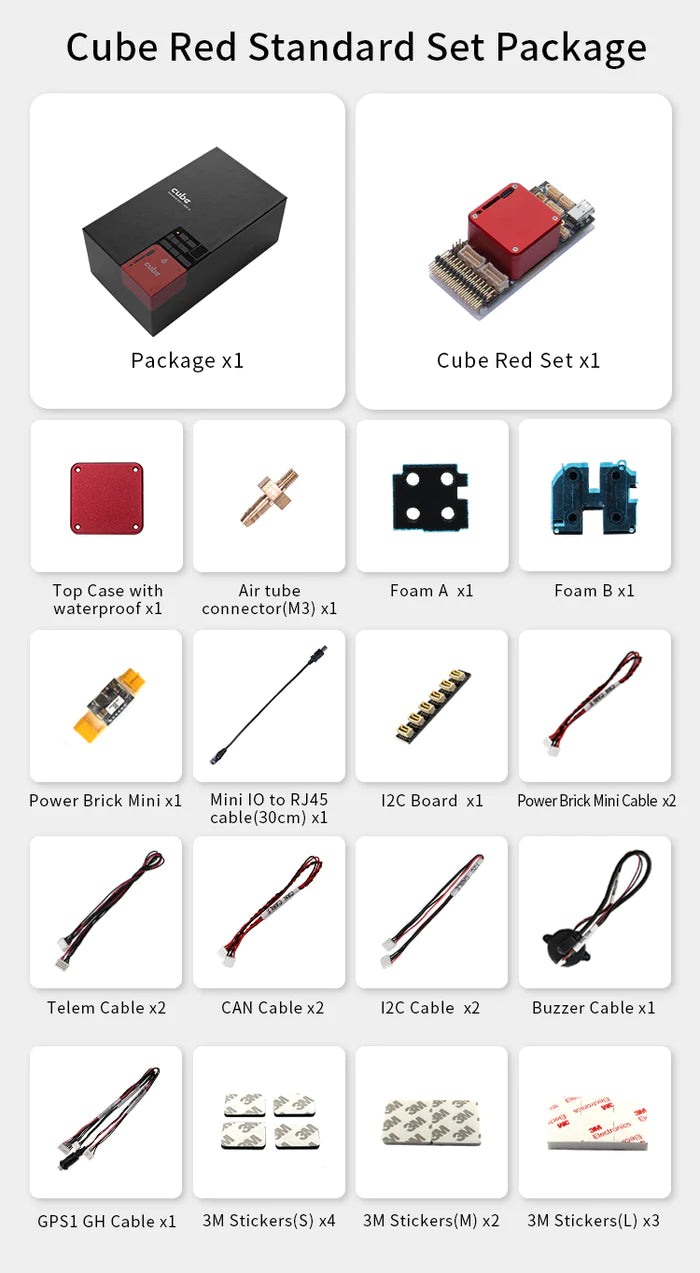

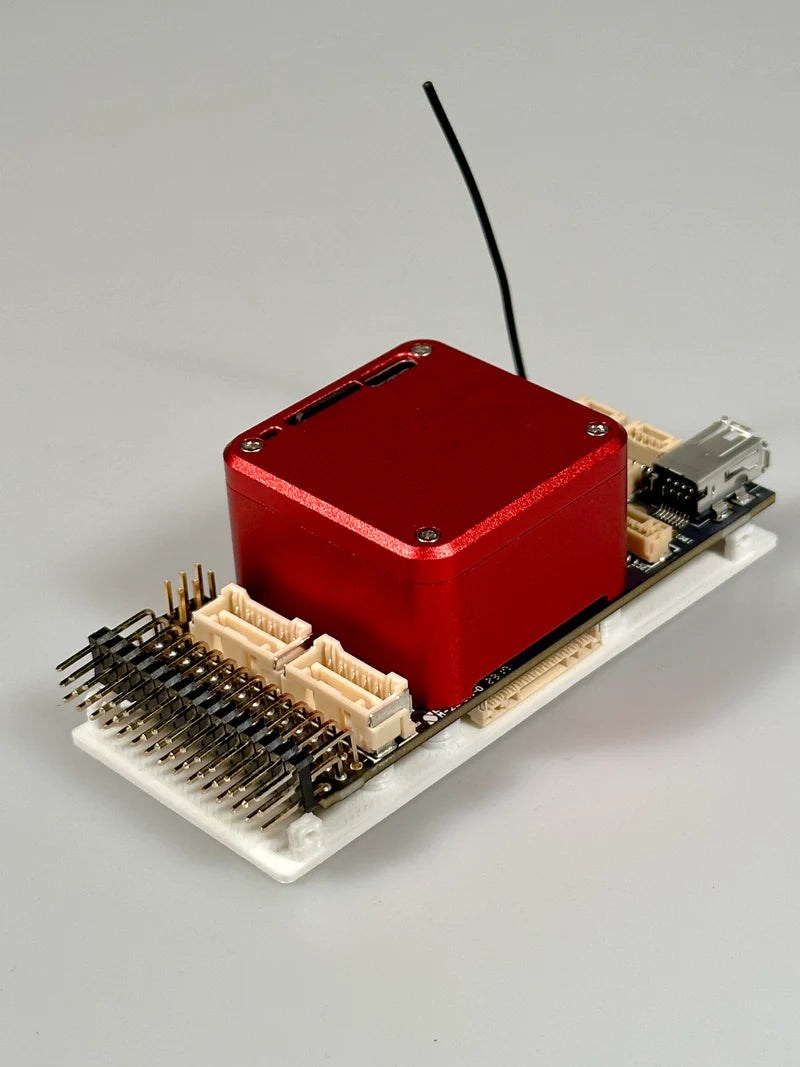

The standard set includes a Cube Red Standard Set, ADS-B carrier board, Standard Cable Set v2.1, I2C board, Power Brick Mini, waterproof top case, M3 air tube connector, two damping foams, a 30 cm Mini IO to RJ45 cable, and mounting stickers. See the NWBlue listing for exact quantities.
