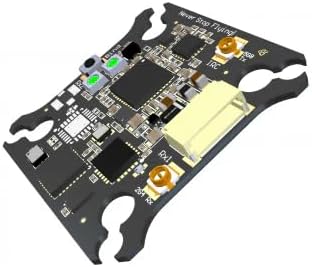

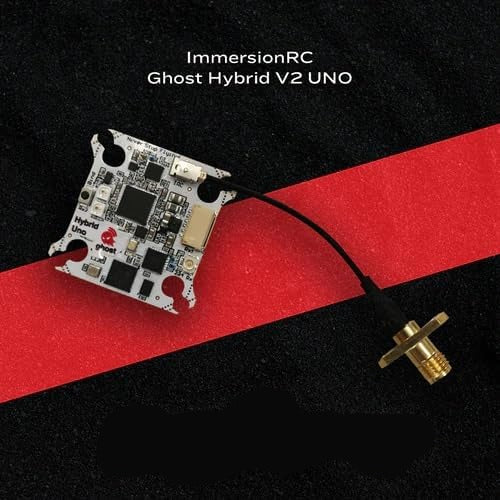

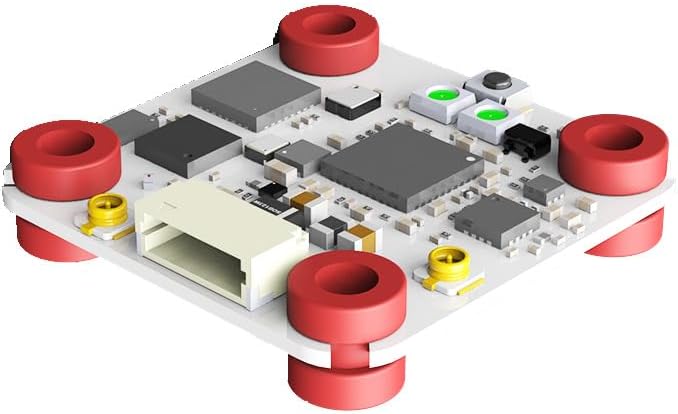

Immersion RC Ghost Hybrid 5.8GHz vTx/2.4GHz Rx. High-end analog video transmitter and high RC control link - all in one board.
A Perfect Fusion Ghost Receiver and Tramp Transmitter There is nothing like the experience of flying an FPV drone, but building these marvelous machines is more complex than it needs to be. With Tramp, we set out to raise the bar on video transmitter technology. With Ghost, we set out to redefine the norms in receivers for R/C control. And now we have fused these two together, in the groundbreaking Ghost Hybrid. Designed by pilots, built by pilots, supported by pilots.
The ImmersionRC Ghost Hybrid V2 Uno represents the pinnacle of drone control systems, offering unmatched performance and versatility for FPV racing and freestyle flying enthusiasts. Engineered with precision and innovation, this system combines cutting-edge technology with ease of use, providing pilots with an unparalleled flying experience.
At the heart of the Ghost Hybrid V2 Uno is its revolutionary hybrid protocol, which intelligently combines the best features of both the 2.4 GHz and 868 MHz frequency bands. This hybrid approach ensures exceptional range, reliability, and responsiveness, even in challenging RF environments. With ultra-low latency and robust connectivity, pilots can push the limits of their drones with confidence, whether racing through tight courses or exploring vast landscapes.
The Ghost Hybrid V2 Uno is equipped with advanced telemetry capabilities, providing real-time feedback on signal strength, link quality, and system health. Pilots can monitor crucial flight data and make informed decisions to optimize their flying experience. Additionally, the system supports over-the-air firmware updates, ensuring compatibility with future enhancements and improvements.
Designed for ease of use and flexibility, the Ghost Hybrid V2 Uno is compatible with a wide range of popular flight controllers, receivers, and transmitters. Its compact form factor and lightweight design make installation straightforward, with minimal impact on drone performance and aerodynamics. Whether upgrading an existing setup or building a new drone from scratch, the Ghost Hybrid V2 Uno offers seamless integration and reliable performance.
In addition to its exceptional performance, the Ghost Hybrid V2 Uno is backed by ImmersionRC's renowned customer support and commitment to quality. With regular firmware updates and ongoing development, users can expect continued enhancements and new features to further elevate their flying experience.
In summary, the ImmersionRC Ghost Hybrid V2 Uno sets the standard for drone control systems, offering unmatched performance, reliability, and versatility for FPV racing and freestyle flying. With its hybrid protocol, advanced telemetry capabilities, and seamless integration, it provides the ultimate solution for pilots who demand the best in drone control technology.
- All 48 Standard Channels
- 20 x 20mm Mounting (inner)
- Extreme Range AND Low Latency
- Thermally regulated, Factory calibrated
- 500Hz R/C Link Updates (HW is 1kHz ready)
- Additional Mounting holes, 25.5x25.5mm (outer)
- Only 2.2g, perfect for the popular sub-250g class
- Integrated 5.8GHz 25mW - 600mW Video Transmitter
- 1kHz/1kHz ready for when OpenTx can supply quality data at this rate
- Single-sided, with included gummies, for extremely low profile mounting
- 2.4GHz Lora OR FLRC control modes, for the best performance in any environment
- Available vTx channels and power may vary from region to region to comply with local regulations
Intelligent vTx Control
Intelligent, and direct control of the video transmitter from the Ghost ecosystem. Use either the OLED menus on the Ghost Transmitter module or the responsive OpenTx tools menu. Tx remains silent on power-up and shuts down immediately in an (unlikely) failsafe. Locking Connectors
Innovative locking connectors deliver the advantages of the lightweight u.FL/MHF standard, with the security required for world-class racing, or long-range flying. Simply plug the connector onto the board, and slide the locking cap to secure it.
Thermal Regulation + Calibration Heat map of semiconductor
As with all tramp products, the Hybrid includes automatic thermal regulations, protecting the video transmitter against potentially damaging overheating while sitting on the starting pad. The on-board Tramp is factory calibrated, for precise power delivery during critical race events.
qTee Antennas
qTee, a.k.a ‘Cutie’ antennas are center-fed dipoles, with integral balun to ensure no cable radiation, and without unexpected nulls in the radiation pattern.Tip to Tip length of just 60mm, easy to install in anything from a Whoop to an X-Class quad.
