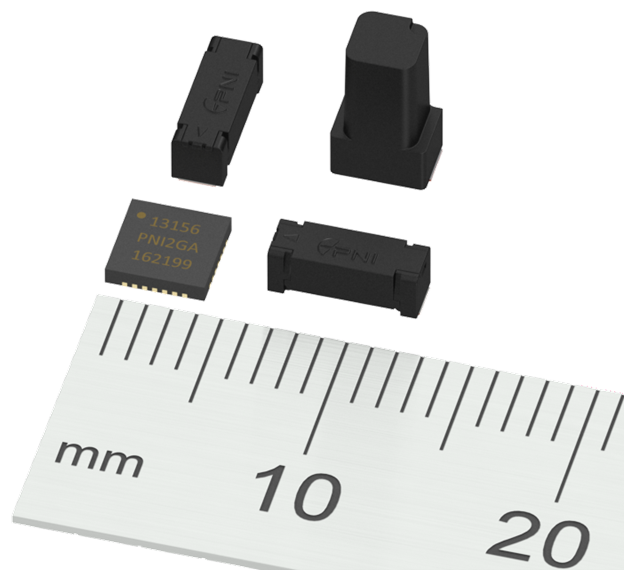

Magneto-Inductive Magnetometer RM3100

• Available Pre order Out of stock
• Free Shipping
$25.00
Quantity

Payment Methods

Description

The most accurate Low-SWaP magnetic sensor on (and off) the planet

Incredible resolution with low power, low mass, small size, and large dynamic range.

  • Getting accurate navigation and position data depends on having accurate magnetic field measurements to begin with. Unlike traditional Hall-effect sensors, the RM3100 magneto-inductive sensor has over 23 times better resolution and 33 times less noise resulting in far more precise data outputs.
  • The RM3100 can deflect fields as low as 2.7 nT at 1Hz, with a noise floor of 4 pT /√Hz at 1Hz. It also has a linear response over a range of 100,000 nT. The RM3100 has been tested for various environmental conditions, such as thermal shock, mechanical shock, radiation, and thermal cycles, and has shown strong performance and stability.
  • The RM3100 delivers impeccable signal-to-noise, drift-free, precise magnetic field measurements, ideal for underwater, ground, air, and space applications. It offers pinpoint resolution with low power, low mass, small size, and large dynamic range features.
  • Installed in over tens of millions of devices worldwide, and trusted by leading military and commercial companies for use in key equipment. And it’s tested and approved by NASA.
  • Stable and reliable over time and temperature and extremely radiation tolerant, the RM3100 has I2C and SPI interfaces.



Specifications

Specifications:


Sensitivity - 13nT

Noise - 15nT

Linearity over +/- 200 uT - 0.50%

Field Measurement Range - +/- 1100 uT

Current @ 8Hz, 3 Axes - 260 uA

Interface - SPI and I2C

Operating Temperature - -40°C to +85°C


RM3100

- 13 nT
- NA
- SPI/I2C
- 25.4 x 25.4 x 7.16
- 3-Axis Mag
- $25
