Portable Exoskeleton Controller for Robots – myController S570

Description

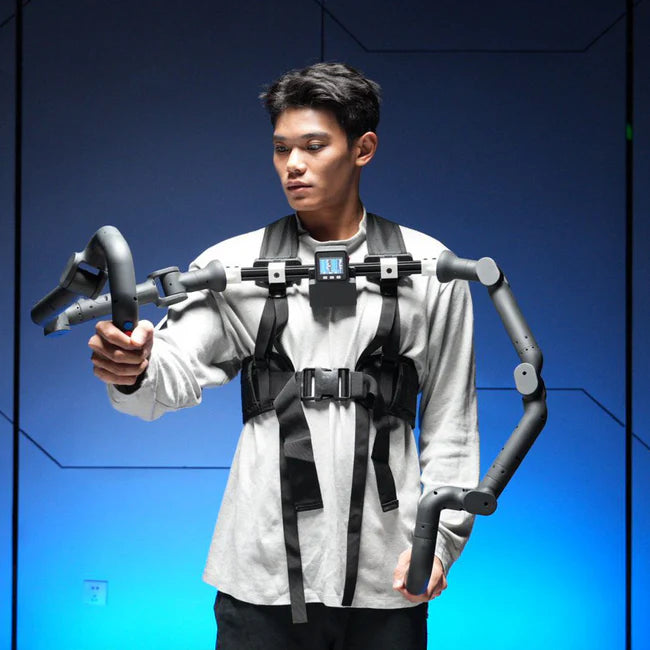

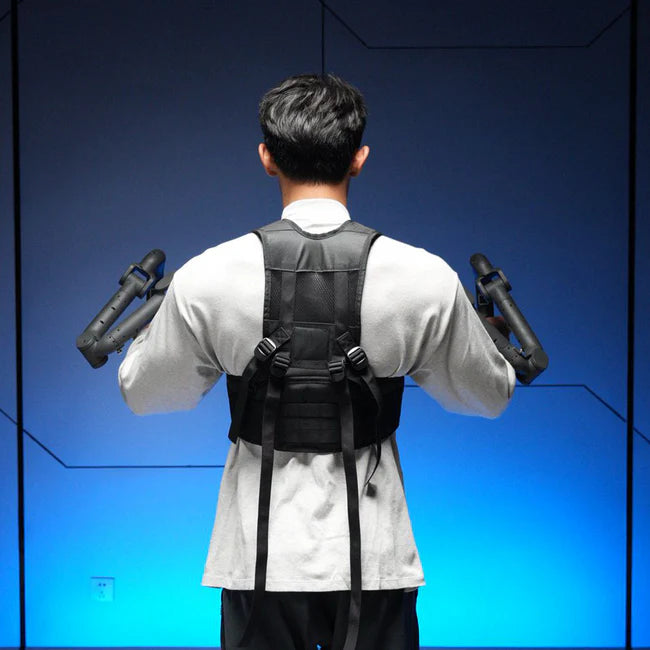

The myController S570 is a portable exoskeleton designed by Elephant Robotics for motion data collection. It can be used for myCobot 280、myCobot 320、myCobot Pro 630、myAGV、mechArm 270、myArm M750、myBuddy 280、Mercury Humanoid Robot and also works with different types of robots for data capture, remote control, and development. This device enables researchers, developers, and educators to seamlessly integrate robotics into practical applications and learning environments.

Features

Comprehensive Data Collection

The 5570 collects motion and environmental data, making it versatile for a wide range of research and development applications.

High Precision Sensors

Equipped with 4096-resolution magnetic encoders, It ensures precise motion tracking and accurate replication of movements.

High-Speed Sampling

With a 100Hz sampling rate, the $570 captures data quickly and accurately, even in high-speed motion scenarios.

Multi-Connection Options

Supports USB, Bluetooth, and wireless connectivity, offering flexibility for different environments, from stable indoor setups to remote outdoor use.

Real-Time Feedback

A built-in 2-inch LCD screen provides live updates on device status, helping users monitor and adjust operations as needed.

Modular and Customizable

The modular design allows for easy upgrades and maintenance, with customizable configurations to meet specific user needs.

Software Programming

Provides a standardized robot driver library via PyPI, supporting queries for joint angles, Cartesian coordinates, and more. Supports both ROS1 and ROS2, with RViz simulation and real-time robot state display.

Application

Research and Development

The S570 captures motion data at 100Hz, ensuring precise AI training and efficient robotic motion capture. Its advanced data processing capabilities make it ideal for handling complex scenarios in research and algorithm development, providing a solid foundation for innovation.

Education and Training

The S570 works seamlessly with robots of various DOFs, offering a flexible platform for hands-on learning. It enables intuitive robot control, helping students and researchers quickly understand robotics while promoting engaging and accessible education.

Robotic Teleoperation

With Python libraries and ROS support, the S570 simplifies robot integration for motion data collection and remote control. Its standardized formats and open-source tools make teleoperation easy, even for beginners.

Case Control Presentation

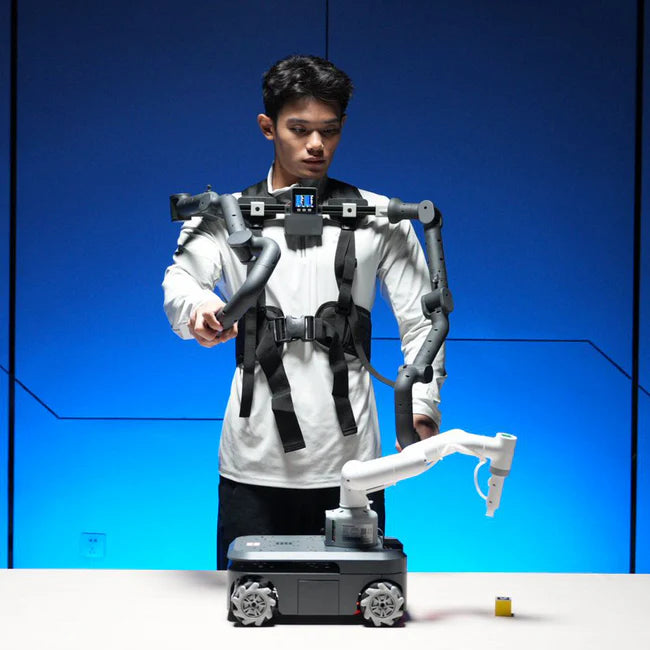

myAGV & myCobot 280

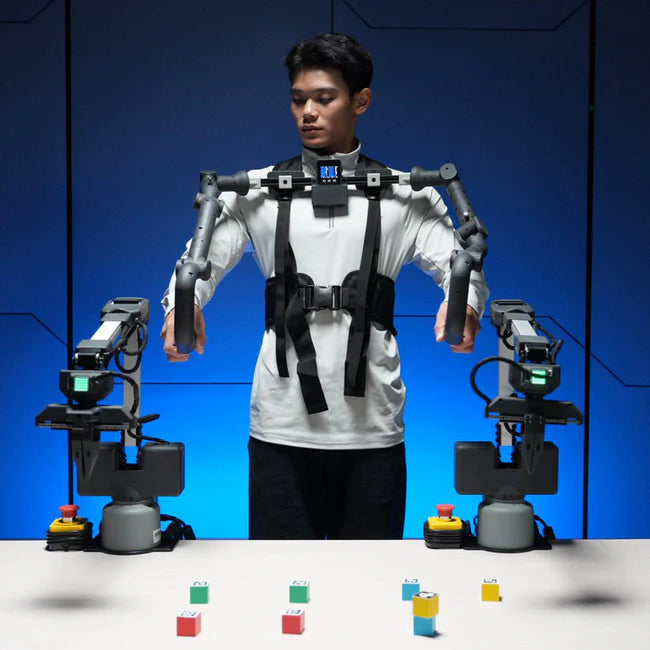

myArm M750

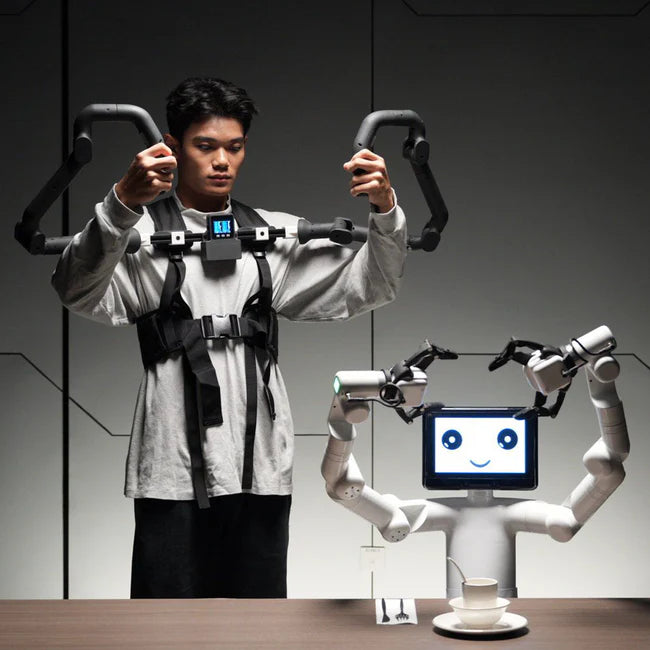

Mercury X1

Catching and throwing napkins

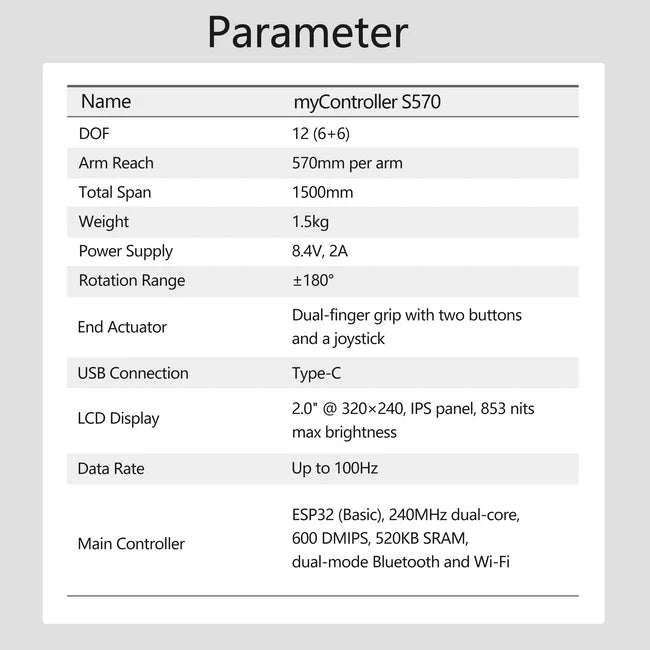

Product Parameters


Name myController S570 – Exoskeleton Controller
DOF 12 (6+6)
Arm Reach 570mm per arm
Total Span 1500mm
Weight 1.5kg
Power Supply 8.4V, 2A
Rotation Range ±180°
USB Connection Type-C
LCD Display 2.0″ @ 320×240, IPS panel, 853 nits max brightness
Data Rate Up to 100Hz
Main Controller ESP32 (Basic), 240MHz dual-core, 600 DMIPS, 520KB SRAM, dual-mode Bluetooth and Wi-Fi
Auxiliary Controller ESP32 ×2 (Atom), 4MB Flash, 5×5 LED Matrix
Interfaces Provides access to joint position, speed, acceleration, button status, joystick state, gyroscope data, and customizable LED colors (read/write)
File Formats Supports 3D-Step and 2D CAD files
Current Position Read
Current Speed Read
Current Acceleration Read
Button Status Read
Joystick State Read
Gyroscope Data Read
LED Light Color Read/Write
Robot Compatibility

myCobot 280

myCobot 320

myCobot Pro 630

Mercury Humanoid Robot

myAGV

mechArm 270

myBuddy 280

myArm M750

Other general-purpose robots

Specifications

DOF: 12 (6 per arm)

Arm Reach: 570mm per arm

Total Span: 1500mm

Weight: 1.5kg

Power Supply: 8.4V, 2A

Sampling Rate: 100Hz

Display: 2″ IPS LCD (320×240, 853 nits)

Connectivity: USB Type-C, Bluetooth, Wi-Fi

Main Processor: ESP32 dual-core, 240MHz

Compatibility: myCobot, myAGV, mechArm, Mercury, myBuddy, general robots

File Support: 2D CAD, 3D Step

Functions: Joint angle, speed, gyro, LED, joystick input
