RPLiDAR A2M12 360 Degree Laser Scanner Kit - 12M Range

This quantity of items is ( 10 In stock )
Limited-Time Offers, End in:
$229.00
  • Today free shipping
  • Pay 100% securely with any card or Paypal
  • NOTE: the price only applies to remaining stock
Shipping calculated at checkout.
Subtotal $229.00

Limited-Time Offers, End in:
RPLiDAR A2M12 360 Degree Laser Scanner Kit - 12M Range

PRODUCT DETAILS

RPLIDAR A2M12 is a 360-degree triangulation laser sensing scanner that samples at up to 16 kHz, capable of generating 2D point cloud map information for a 12m radius, within low precision, and running for up to 5 years. This next-generation low-cost, high-performance laser scanner will be your great instrument for in-home robots, 3D modelling, etc.

Features

  • 360 Degree Triangulation Laser Sensor Ranging Scanner: Generate 2D point cloud map information for 12m radius, 0.225° angular resolution
  • Distinguished Sampling Capability: Equip high-speed RPVision3.0 range engine, for up to 16KHz measurement frequency, 5 ~ 15Hz adjustable rotational speed
  • Prolong Operation Life: Apply OPTMAG light magnetic fusion technology for support up to five years of reliable running
  • Certified Output Laser Power: Safe as IEC-60825 Class One eye safety rating
  • Cup-size Design: Light & portable, 4cm ultra-thin shell, even can be placed on floor mopping robot

Description

RPLIDAR A2M12 applies the Triangulation Laser Sensing theory that emits and receives laser to measure the distance by calculating the receiving time. By embedded high-speed RPVision3.0 range engine, the RPLIDAR A2M12 offers 360 degrees, 12M radius, 16 kHz light detection and ranging, 0.225° angular resolution(10Hz) with 5 ~ 15Hz adjustable rotational speed, low sensing precision, 5 years reliable operation for the generation of 2D point cloud map information.

With the new brushless motor non-contact drive, the RPLIDAR A2M12 works with ultra-low noise. Additionally, its output laser power is as safe as IEC-60825 Class One eye safety. All of these make it an excellent tool for you to conduct positioning and obstacle detection. Being cup-size and light as 190g, it can be placed anywhere in your home or deployed on a domestic robot like a floor mopping robot, or home care robot.

This low-cost 2D laser scanner (LIDAR) remains high-performance and will be a great assistance to your demonstration of navigation and positioning.

Comparing 6 Different RPLiDARs

For your convenience, we made a table comparing 6 different RPLiDARs so you can easily pick one that suits your project!





Item



Measurement Performance







Distance Range



Measurement Resolution



Angular Resolution



Sample Rate



Working Environment



RPLIDAR A1M8-R6



0.15m -12m



<0.5 mm



≤1°



2000-8000 Hz



Indoor



<1% of actual distance *



RPLIDAR A2M8



0.15m -12m



<0.5 mm



≤0.9°



2000-8000 Hz



Indoor



<1% of actual distance *



RPLiDAR A2M12



0.2m-12m



<0.5 mm



0.225°



16 kHz



Indoor



<1% of actual distance *



RPLIDAR A3M1



White objects: 25 m







0.225°



16 kHz or 10 kHz



Indoor & Outdoor



Black objects: 10 m



RPLIDAR S1



White Objects: 40m



3cm



0.313°-0.587°



9200 Hz



Indoor& Outdoor



Black Objects: 10m



RPLIDAR S2



White Objects: 30m



5cm



0.12°



32 kHz



Indoor& Outdoor



Black Objects: 10m



SLAMTEC MAPPER M1M1



20m



5cm







7000 Hz



Indoor & Outdoor



SLAMTEC MAPPER M2M1 Pro



40m



5cm







9200Hz



Indoor & Outdoor



Application

  • General robot navigation and localization
  • Environment scanning and 3D re-modeling
  • Service robots or industrial robots working for long hours
  • Home service /cleaning robot navigation and localization
  • General simultaneous localization and mapping (SLAM)
  • Smart toy localization and obstacle avoidance

Specification

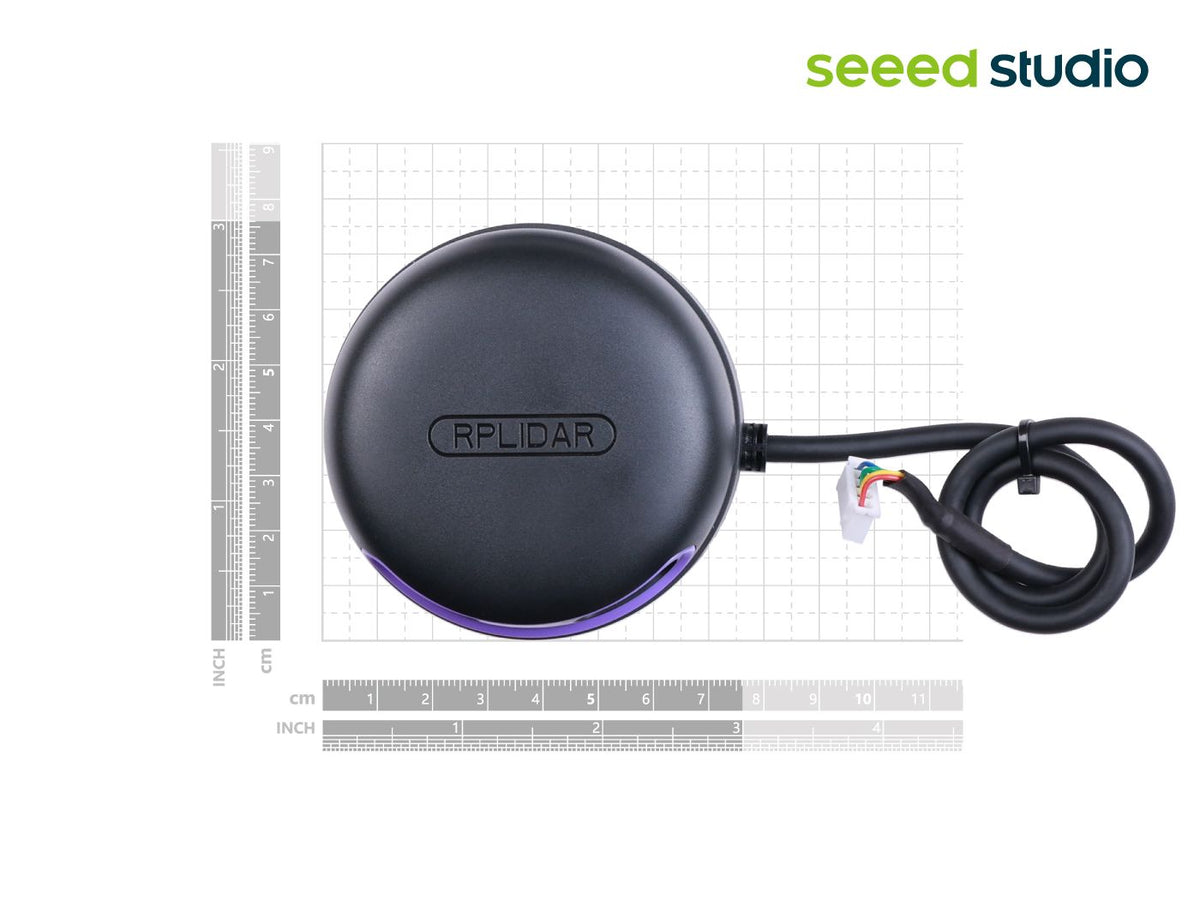

Dimensions



76mm x76mm x41mm



Weight



G.W 190g



Battery



Exclude



Distance Range



0.2 - 12m, Based on white objects with 70% reflectivity



Angular Range



0-360 Degree



Distance Resolution



<0.5mm



Angular Resolution



0.225 degree



Sample Duration



0.25ms



Sample Frequency



16000Hz



Scan Rate



5~15Hz,Typical 10Hz

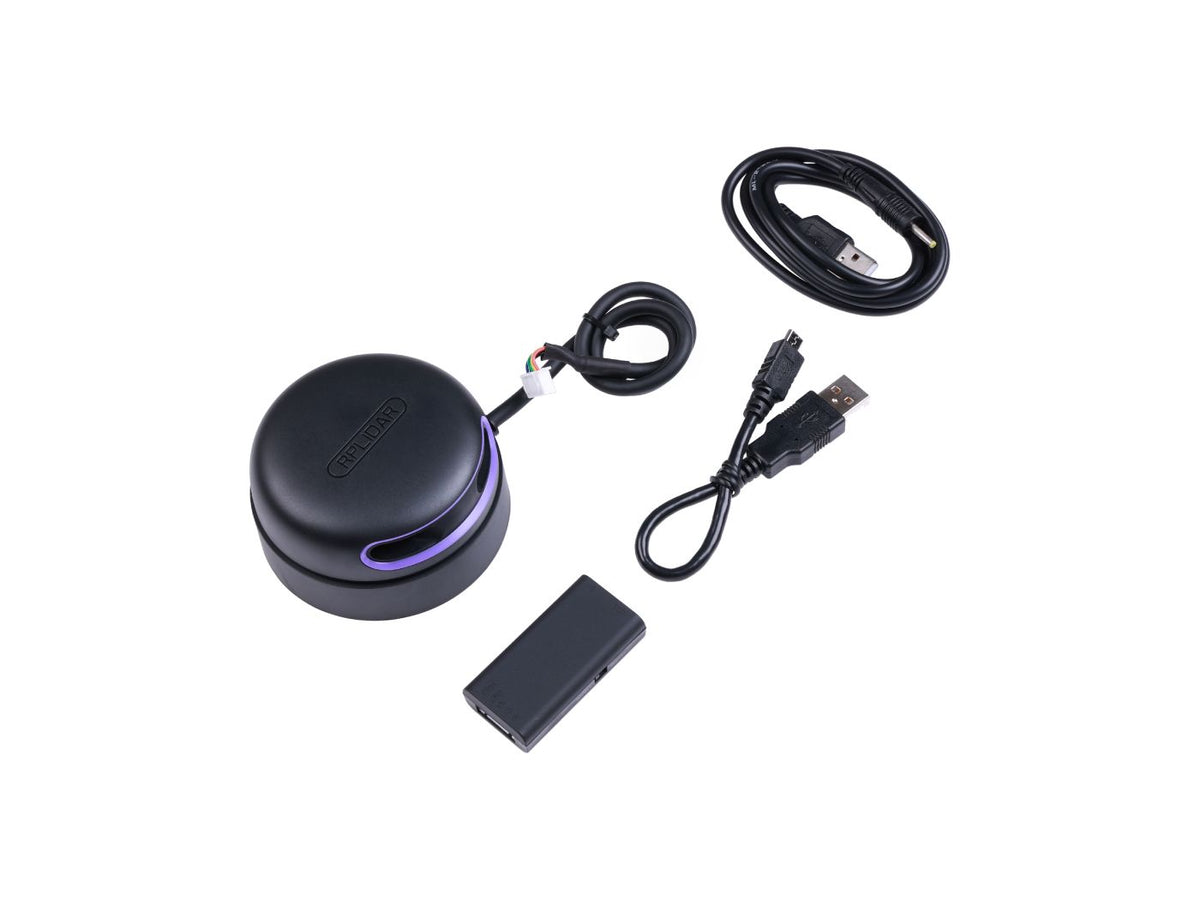

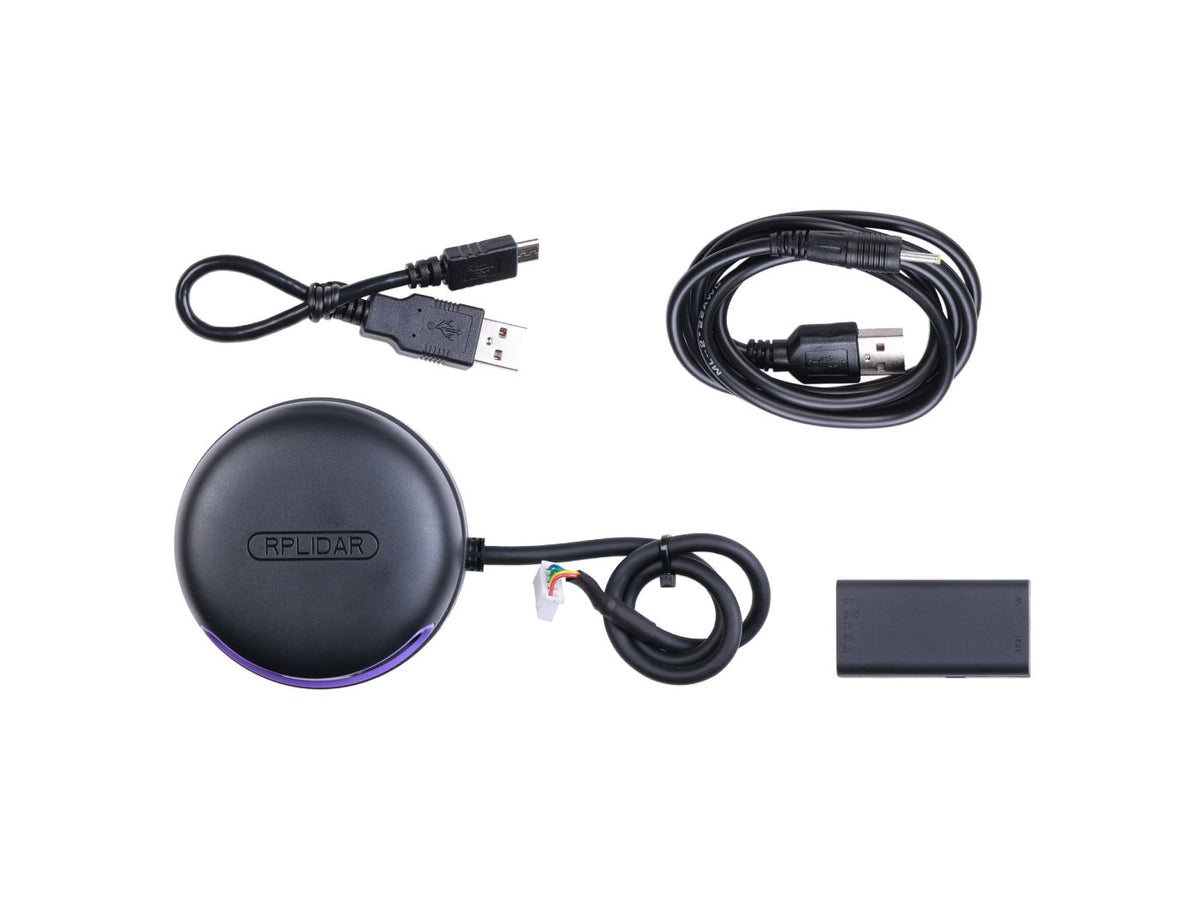

Part List



A2M12 RPLIDA

R(PWM motor driver embedded)



1



USB Cable



1



DC Cable



1



Adapter Driver Board



1


Note

Please download the offline version of Robostudio while testing. Click here: RoboStudio 20 v1.7.5_rtm.rar

FAQ

How come my product is not working since arrive and when I connect the PC there doesn't show any port?

Please check if the driver has been installed on your PC, or you can re-download the software.




ECCN/HTS

HSCODE 9031499090
USHSCODE 9031808070
UPC
EUHSCODE 9013101000
COO CHINA
CE 1
EU DoC 1
FCC 1
RoHS 1
