Description
Needs no manual calibration and no additional algorithms!
The first complete sensor-based orientation system for UAVs, ocean gliders, robots, and buoys.

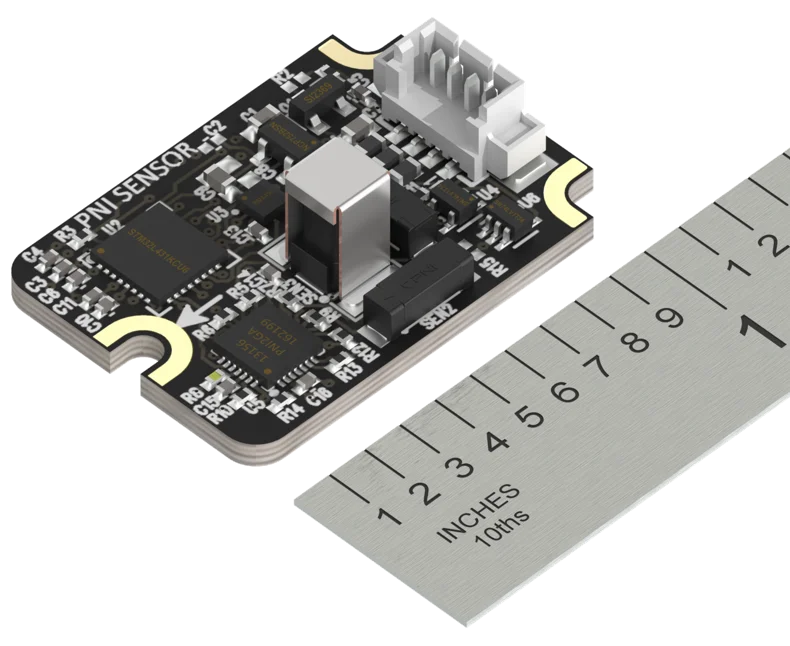

- Simple and easy to integrate, the new NaviGuider is a complete sensor-based IMU guidance module that requires no external calibration and no additional algorithms.
- The Best Parts: The NaviGuider module incorporates an RM3100 magnetic sensor, an accelerometer and a gyroscope, all tightly fused on a super low- power Edge-AI sensor coprocessor, freeing up your host processor for other work.
- Needs no more algorithms: It comes super-charged with the latest, military grade algorithms, including continuous hard and soft-iron magnetic auto- calibration, important magnetic anomaly compensation and industry-leading and real-world proven sensor fusion algorithms, all in a tiny Low-SWaP form.
- Minuscule Power Consumption: NaviGuider’s 15-state Kalman filter uses data from the sensors to provide reliable motion tracking and accurate compass heading, while using less than 30 mWatt of power. It offloads significant computational work-load from your host processor, for longer system deployment.
- Easy to Install: Even the most skilled UAV and Glider engineers are frustrated by the complexities of integrating IMUs and magnetic sensors, and irritated by the many calibration errors most magnetic sensors can inject. NaviGuider has a panel mountable printed-circuit assembly with a connector for cable interfacing. Its small form factor, UART interface and ASCII protocol makes system integration straightforward. For embedded designers, NaviGuider-I²C is available with an I²C interface on a surface-mountable PCBA.
Specifications:
| Specification | Heading Accuracy |
2º rms |
| Tilt Accuracy | 1º rms | |
| Magnetometer | ±2 00uT | |
| Gyroscope: | 2000 dps Drift error < 2°/min Scale error <0.3% |
|
| Accelerometer: | ±4G 0.5% linearity ±20mG bias stability |
|
| Data Outputs | Heading, Pitch & Roll, Rotation Matrix Quaternions, Magnetic, Accelerometer, and Gyroscope Sensor Data | |
| Maximum Sensor ODR | Gyro Accelerometer Magnetic sensor |
4000 Hz 400Hz 125 Hz |
| I/O Characteristics | Communication Interface | TTL-UART I²C (NaviGuider I²C module) |
| Mechanical Characteristics |
Dimension (l x w x h) |
27 x 19 x 8.35 mm 22 x 11 x 6.96 mm (NaviGuider I²C module) |
| Power Requirements | Supply Voltage Current draw |
2.9– 3.3 VDC 3.0V - 5.5V. (NaviGuider I²C module) 9.5 mA (UART) 8.55 mA (I2C) |
*NaviGuider I²C part number 14709 is available with an I²C interface.
NaviGuider IMU Modules Inertial Measurement Unit (IMU)
$345.00
