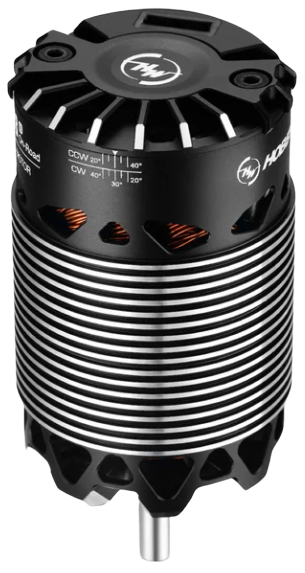

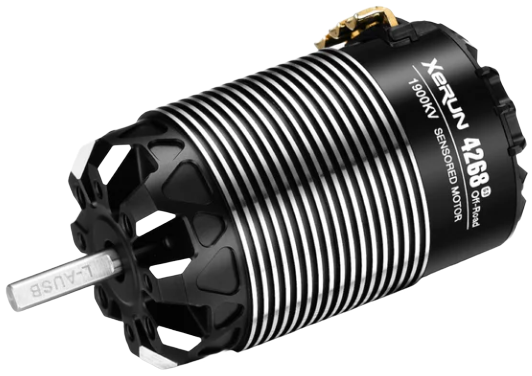

XERUN 4268 SD G3 Motor

Available Pre order Out of stock
• Free Shipping
$0.00
Quantity

Payment Methods

Description

Xerun 4268 SD G3 Motor

ROAR Approved



  • Suitable for 1/8th SCT, Buggy and Touring Car
  • Turbo Timing Technology
  • Full Sensored mode (when paired with XR8 Plus G2S ESC)
  • Adjustable Timing (Bi-Directional) 20-40 degrees
  • Advanced Hall Sensor System
  • 4-pole-8-magnet "Staggered Pole" rotor - HOBBYWING Patented design
  • Guarantees users the effective heat dissipation and dust prevention
  • The use of double insulated windings (240°C R-rated), NMB bearings from Japan, and the high-intensity adhesive (340°C) guarantees users the outstanding performance and super durability.
  • Learn more...
Specifications

Specification
Xerun 4268SD

p/n - 30401907 / 30401908
kv - 2200kv / 2000kv
pole - 4 / 4
Lipo - 2S-6S / 2S-6S
R. (Ω) - 0.0069 / 0.0069
no load current (A) - 4.1A / 4.2A
Size. O.Dia / Length (mm) - 42/68 / 42/68
Weight (g) - 285 / 285
Vehicles - 1/8 OffRoad / 1/8 OnRoad

Bearing Specs
Front Bearing Diameter - Rear Bearing Diameter

Outer=16mm, Inner=5mm, Height =5mm - Outer=11mm Inner=5mm Height=5mm
