Specifications:
Part Number - CE1101B
Voltage - 75V / 18S
Current (Sustained/Peak) - 150A / 300A
Power - 10kW
Max e-RPM - 250,000
Drive Frequency - 5 – 75kHZ
Timing Advance - 0 – 25°
Operating Temperature - -20°C – 100°C
IP Rating - 65

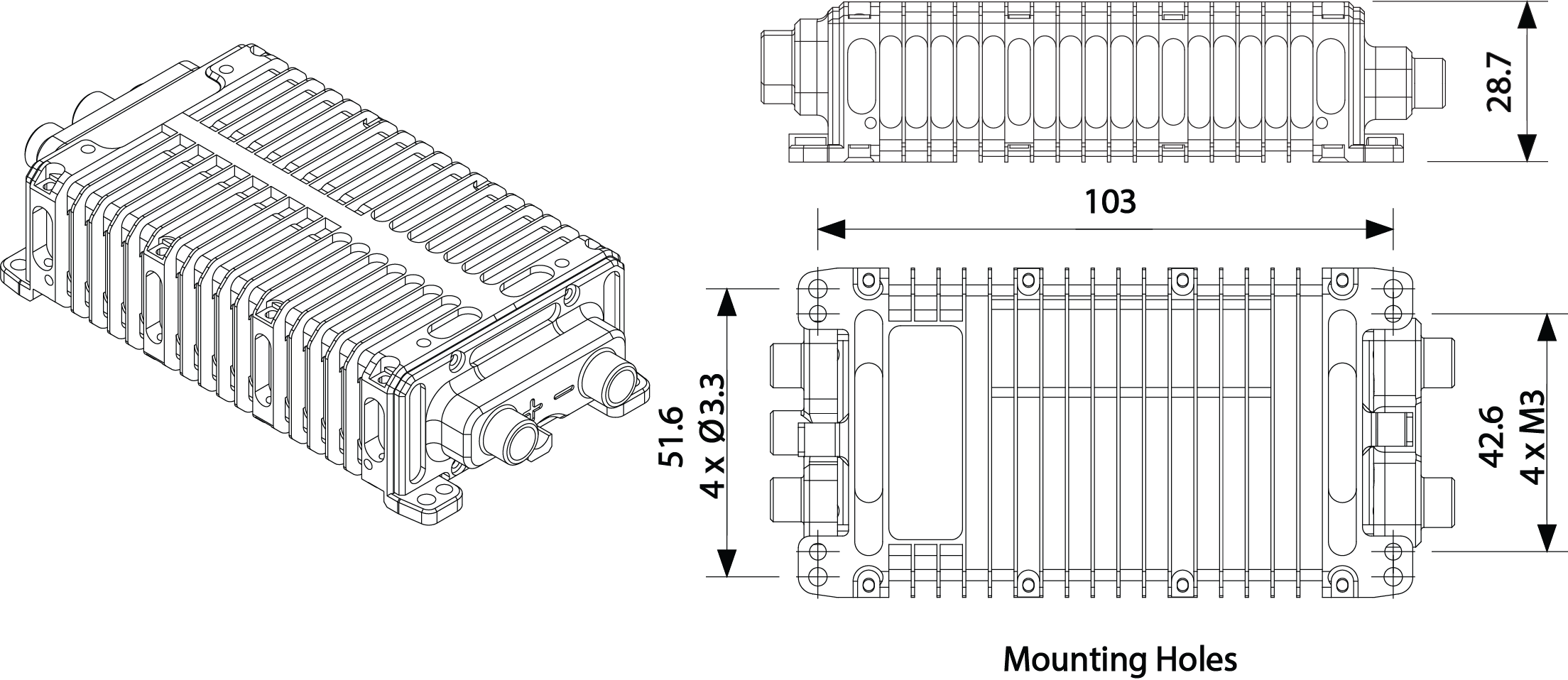

Length - 110mm (4.33” inch)
Width - 60mm (2.36” inch)
Height - 29mm (1.14” inch)
Weight - 300g (10.58oz)
Autopilots - DroneCAN, Ardupilot, Quattro & Piccolo
