MODEL - Cont. / Peak Current

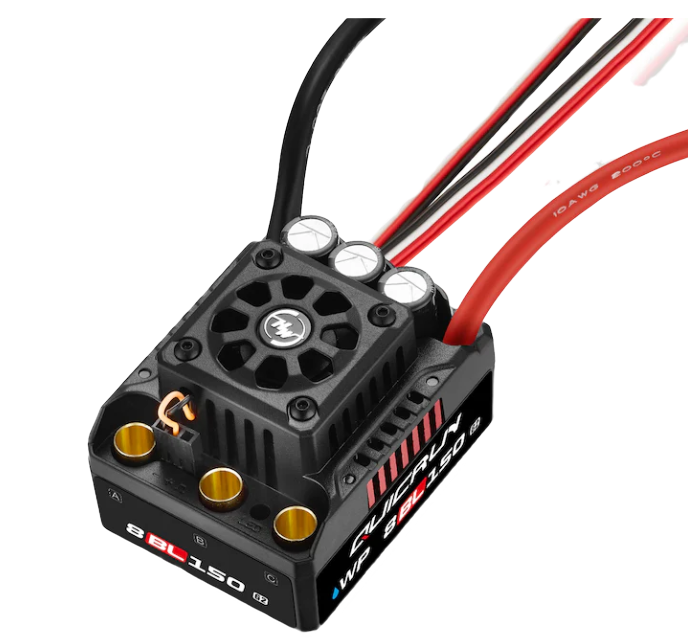

QUICRUN WP 8BL150 G2 - 150A / 950A
QUICRUN WP 10BL120 G2 - 120A / 760A
MODEL - Motor Type
QUICRUN WP 8BL150 G2 - Sensorless / Sensored Brushless Motor only in sensorless mode
QUICRUN WP 10BL120 G2 - Sensorless / Sensored Brushless Motor only in sensorless mode
MODEL - Applications
QUICRUN WP 8BL150 G2 - 1/8th Truck, Monster Truck
QUICRUN WP 10BL120 G2 - 1/10th Short Course Truck, Monster Truck
MODEL - Motor Limit
QUICRUN WP 8BL150 G2 - With 4S Lipo: KV 3000 / With 6S Lipo: KV 2400 4274 size motor
QUICRUN WP 10BL120 G2 - With 2S Lipo: KV 6000 3652 size motor /With 3S Lipo: KV 4000 3660 size motor / With 4S Lipo: KV 2600 4268 size motor
MODEL - Lipo Cells
QUICRUN WP 8BL150 G2 - 3-6S Lipo
QUICRUN WP 10BL120 G2 - 2-4S Lipo
MODEL - BEC Output
QUICRUN WP 8BL150 G2 - 6V / 7.4V adjustable, continuous current 6A Switch-mode
QUICRUN WP 10BL120 G2 - 6V / 7.4V adjustable, continuous current 5A Switch-mode
MODEL - Cooling Fan
QUICRUN WP 8BL150 G2 - Powered by built-in BEC
QUICRUN WP 10BL120 G2 - Powered by built-in BEC
MODEL - Size / Weight
QUICRUN WP 8BL150 G2 - 60(L) x 48(W) x 40.4(H) mm / 169.5g included input wires
QUICRUN WP 10BL120 G2 - 52.8(L) x 39.8(W) x 38.2(H) mm / 119g Included wires & connectors
MODEL - Programming Port
QUICRUN WP 8BL150 G2 - Shared with fan port
QUICRUN WP 10BL120 G2 - Independent programming port
Motor Specifications:

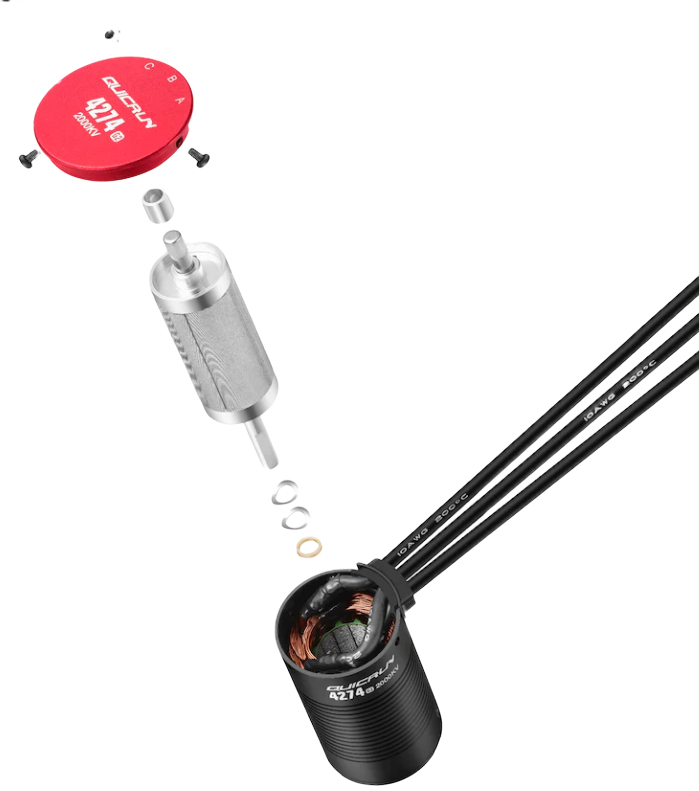

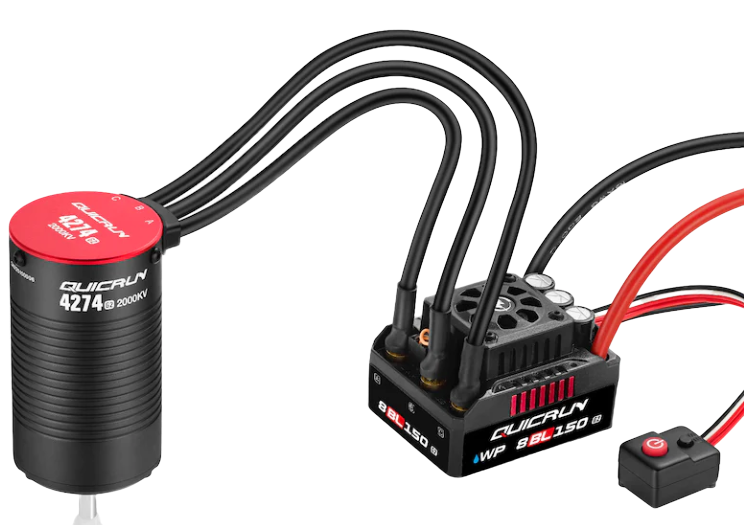

Model - QUICRUN 4274SL 2000KV G2
KV - 2000KV
Lipos - 3-6S
No-load Current (A) - 5.9A
Diameter/Length (mm) - Ø=42mm (1.65") / L=74.9mm (2.95")
Shaft Diameter/Length (mm) - Ø=5mm (0.20") / L=18.5mm (0.73")
Bearing Size (mm) - Front: D16*D5*T5 / Rear: D13*D5*T4
Poles - 4
Weight (g) - 477g
Applications - 1/8th Truck, Monster Truck

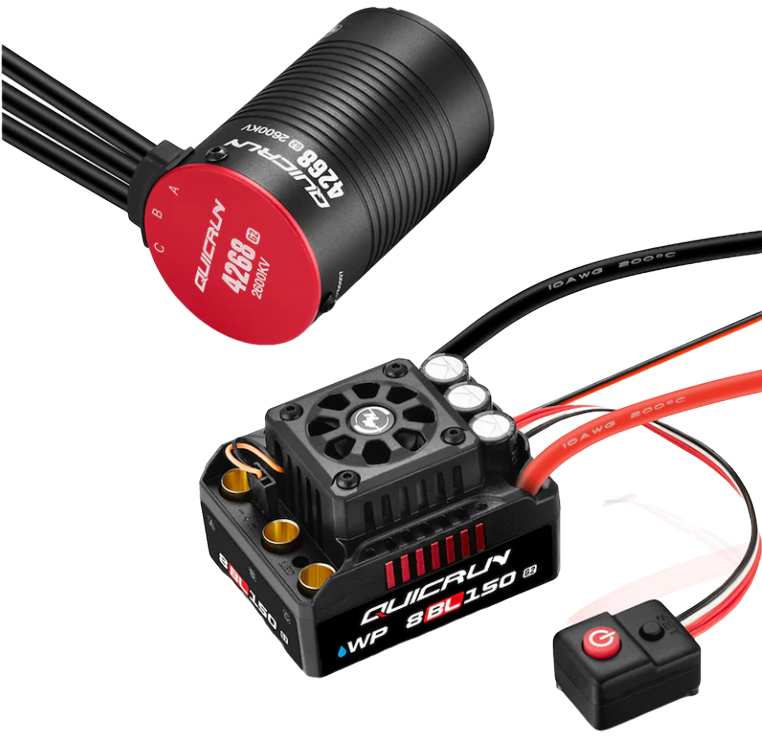

Model - QUICRUN 4268SL 2600KV G2
KV - 2600KV
Lipos - 3-4S
No-load Current (A) - 6.1A
Diameter/Length (mm) - Ø=42mm (1.65") / L=68.4mm (2.69")
Shaft Diameter/Length (mm) - Ø=5mm (0.20") / L=18.5mm (0.73")
Bearing Size (mm) - Front: D16*D5*T5 / Rear: D13*D5*T4
Poles - 4
Weight (g) - 417g
Applications - 1/8th Buggy & 1/10th Monster Truck
