Description
Camera kit
| ON Semiconductor 2.3MP CMOS Image Sensor AR0234CS | |
| Color Sensor | |
| GMSL2 Serializer | |
| Lens: | FOV H 121.5° |
| QTY of Sensor: | 2 |
| Baseline: | 55 mm |
| Active Pixels: | 1920 (H) x 1200 (V) |
| IMU: | Included |
| Frame Rate: | 2 * (1920 × 1200) @ 7.9 fps |
| Optical Format: | 1/2.6″ |
| Pixel Size: | 3.0 x 3.0 μm |
| Power Supply Range: | 9 ~ 19 VDC |
| Part#: | LI-AR0234CS-ST55-GM2C-120H |
| USB 3.0 EVA Kit Part#: | LI-USB30-AR0234CS-ST55-GM2C-120H |
Applications
Bar Code Scanner
Depth Sensing
Gesture Recognition
3D Scanning
Positional Tracking
Iris Scanning
Augmented Reality
Virtual Reality
Biometrics
Machine Vision
Camera kit

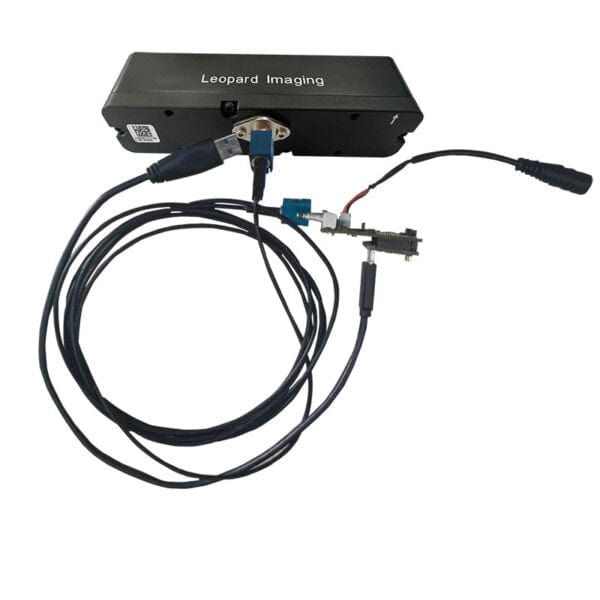

| Kit Part#: | LI-USB30-AR0234CS-ST55-GM2C-120H |
| Kit Includes: | 1. Serial Camera: LI-AR0234CS-ST55-GM2C-120H × 1 |
| 2. DeSer Board: LI-GMSL2-USB × 1 | |
| 3. 3-Meter Fakra Cable × 1 | |
| 4. 12 VDC Power Supply × 1 | |
| 5. USB 3.0 Cable × 1 |
USB 3.0 EVA Kit SDK Supported
Camera Tool Source Code in C#
Capture & Display
Register Access Function
