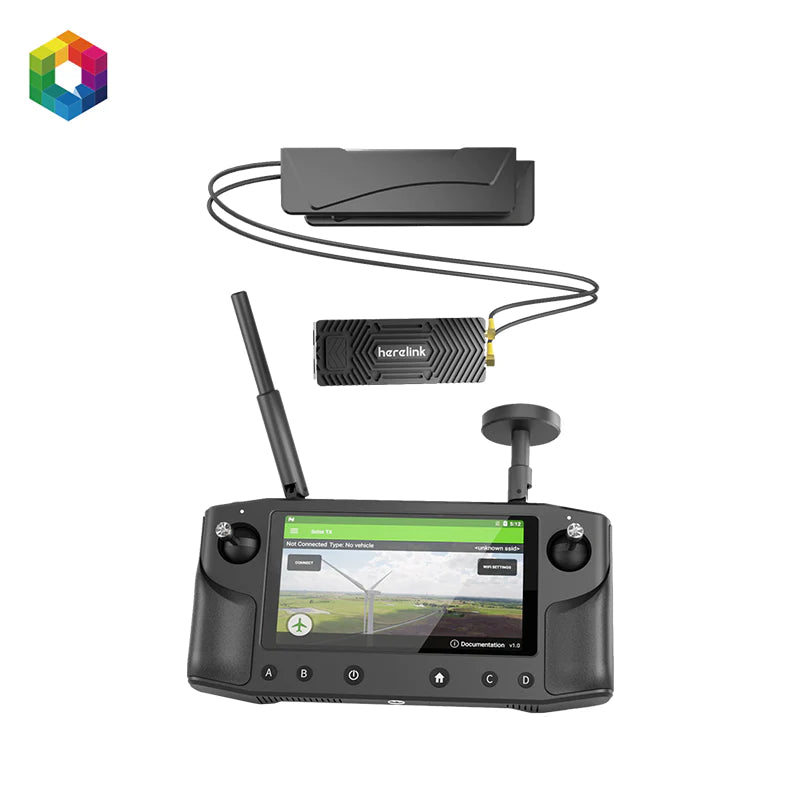

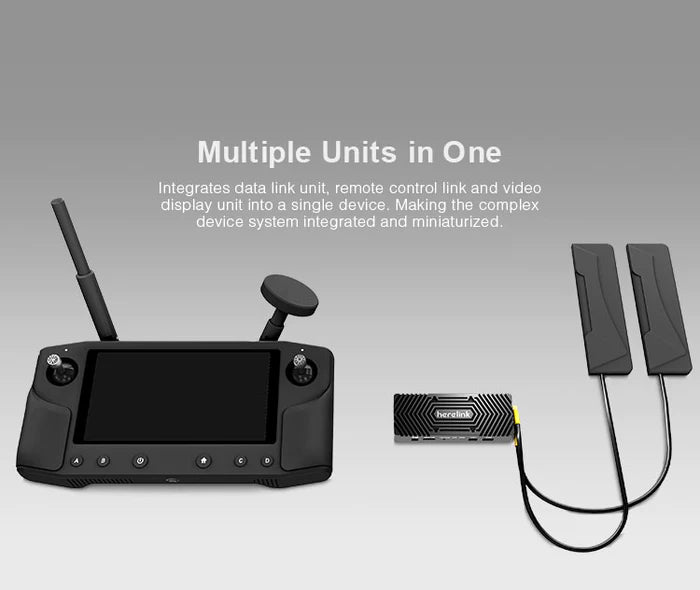

A HD Video Transmission System, using PineSync technology based on S1 processor. It is an easy-to-use device for sending HDMI video and audio signals, at an affordable pricing.

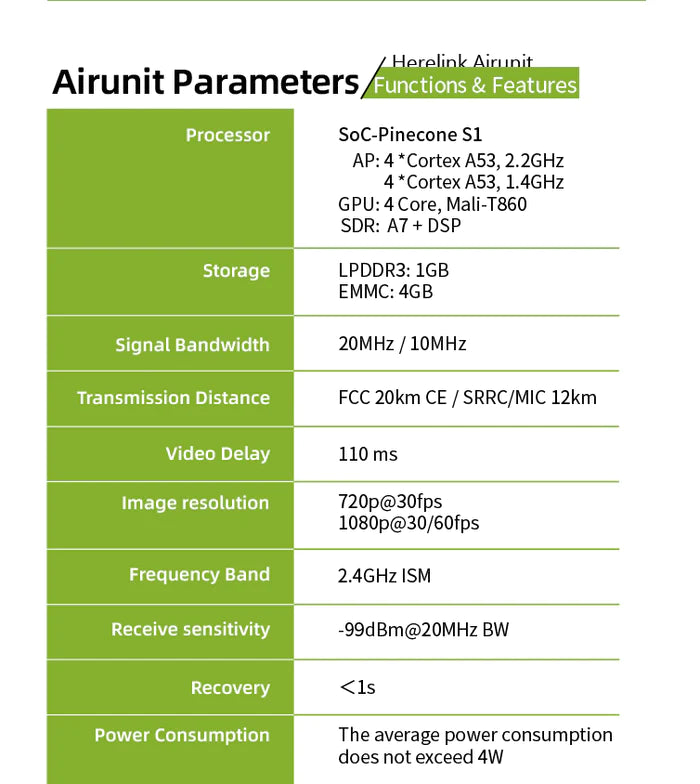

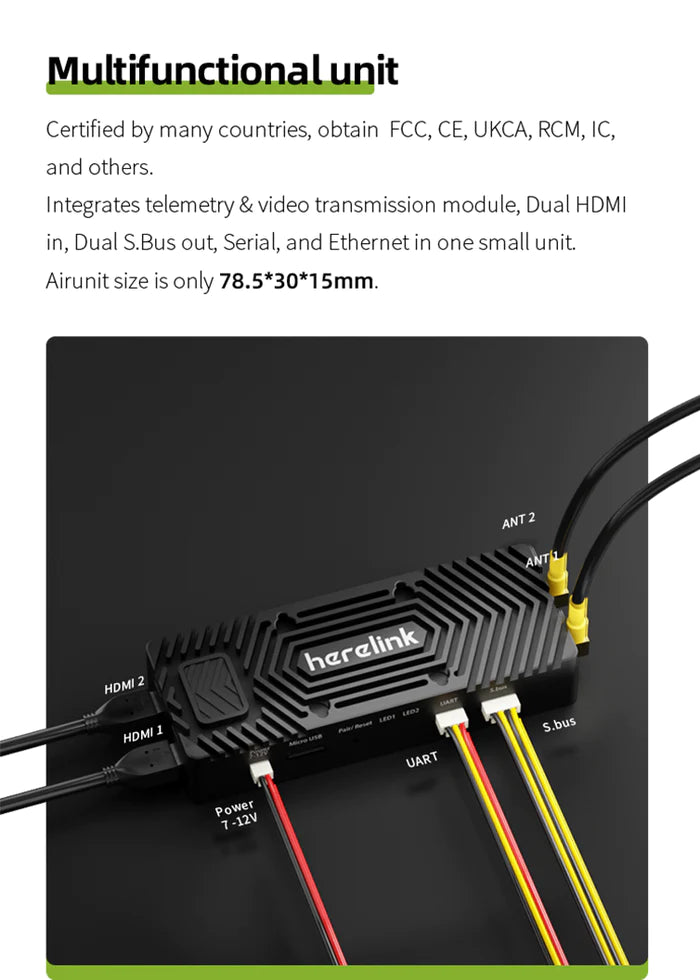

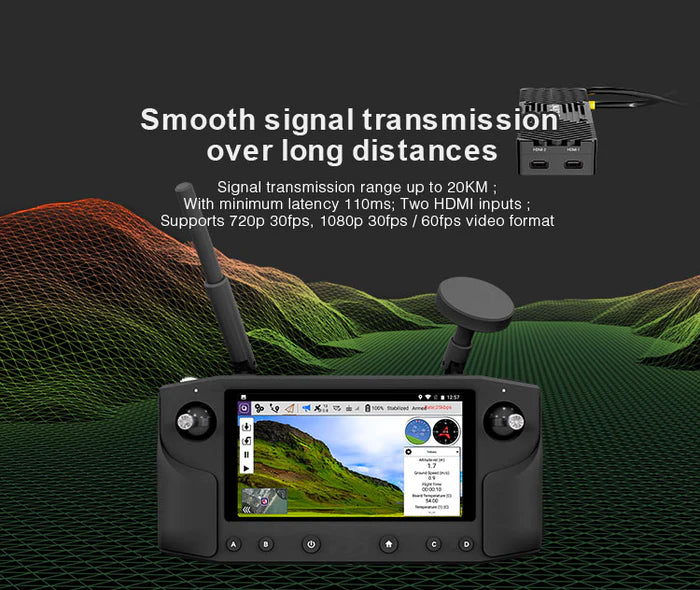

Signal transmission range up to 20KM; With minimum latency 110ms; Two HDMI inputs; Supports 720p 30fps, 1080p 30fps / 60fps video format

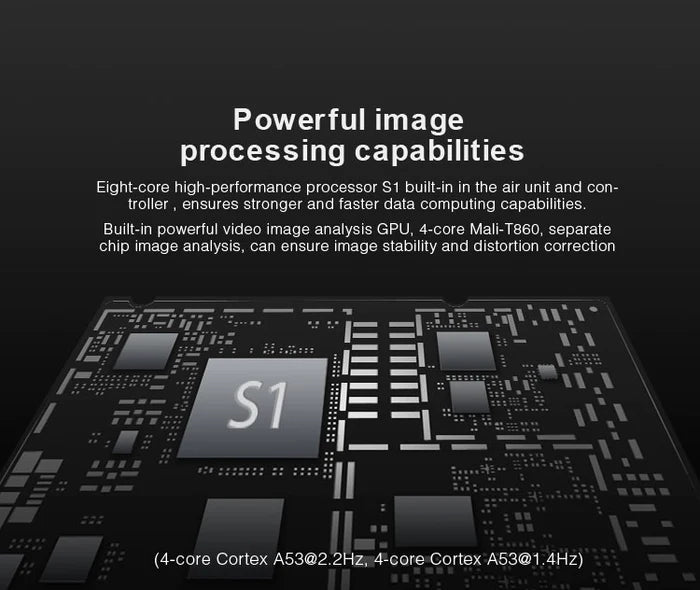

Eight-core high-performance processor S1 built-in in the air unit and controller, ensures stronger and faster data computing capabilities. Built-in powerful video image analysis GPU, 4-core Mali-T860.
Herelink can update OTA via WIFI connection in the application. Compared with downloading the whole firmware package, OTA upgrade only needs to download part of the update package, which is faster to download, install and upgrade, and greatly improves the efficiency of use.

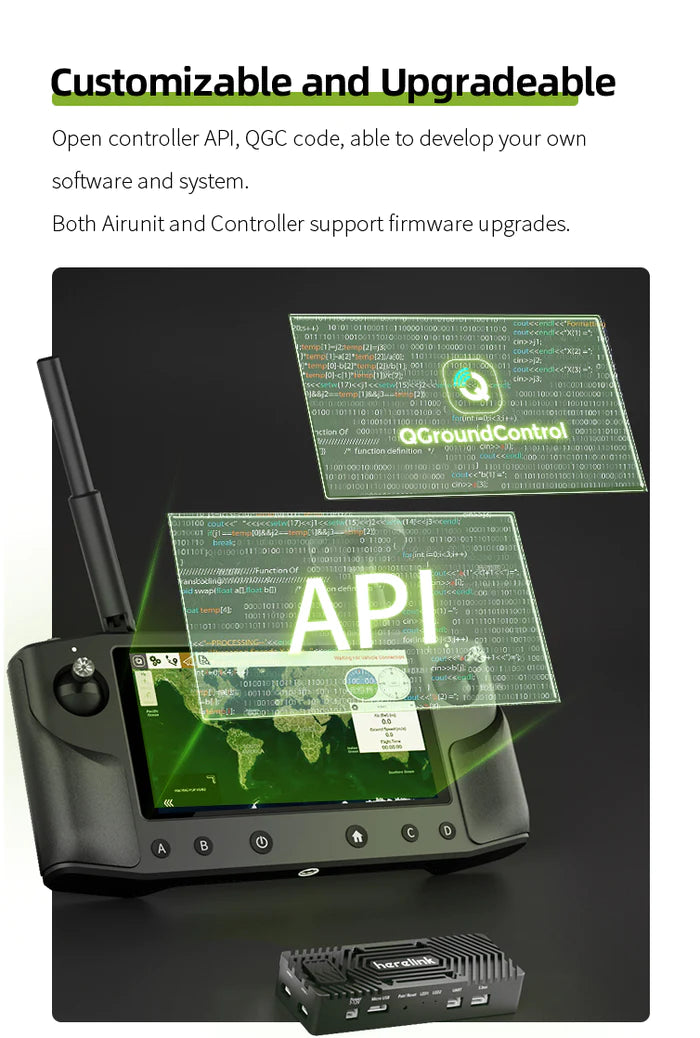

Herelink supports the installation of an OEM image, allowing you to customize your Settings to change, including boot animation changes, system configuration changes, Android application changes, and Android property changes. Please contact our sales team via your current re-seller for OEM support.
Manufactured in China

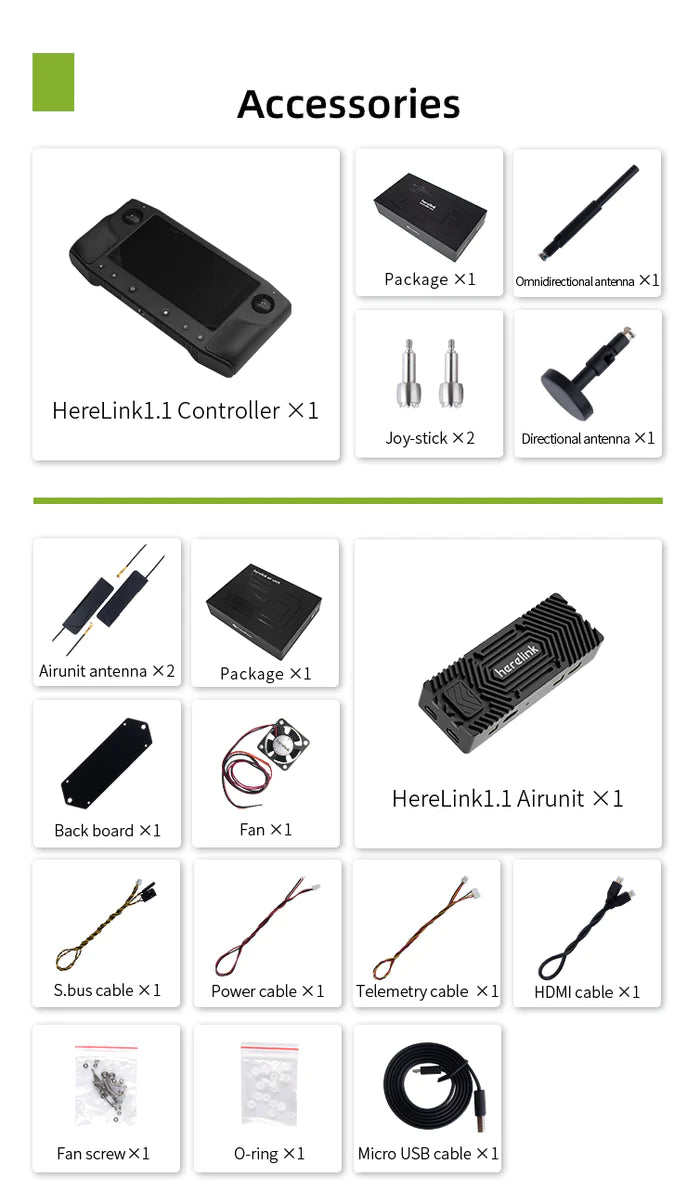

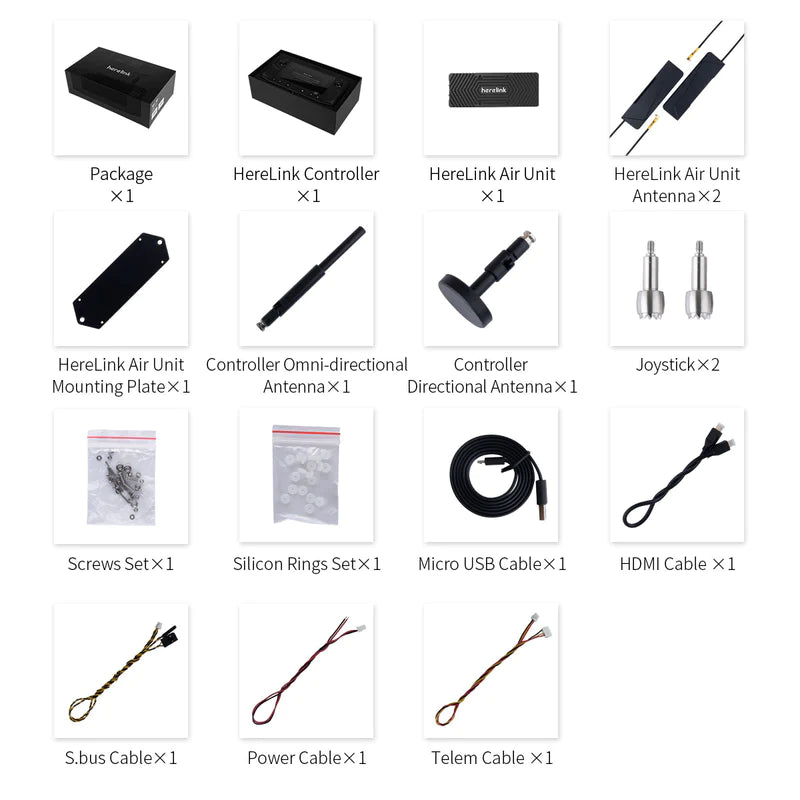

What's included:

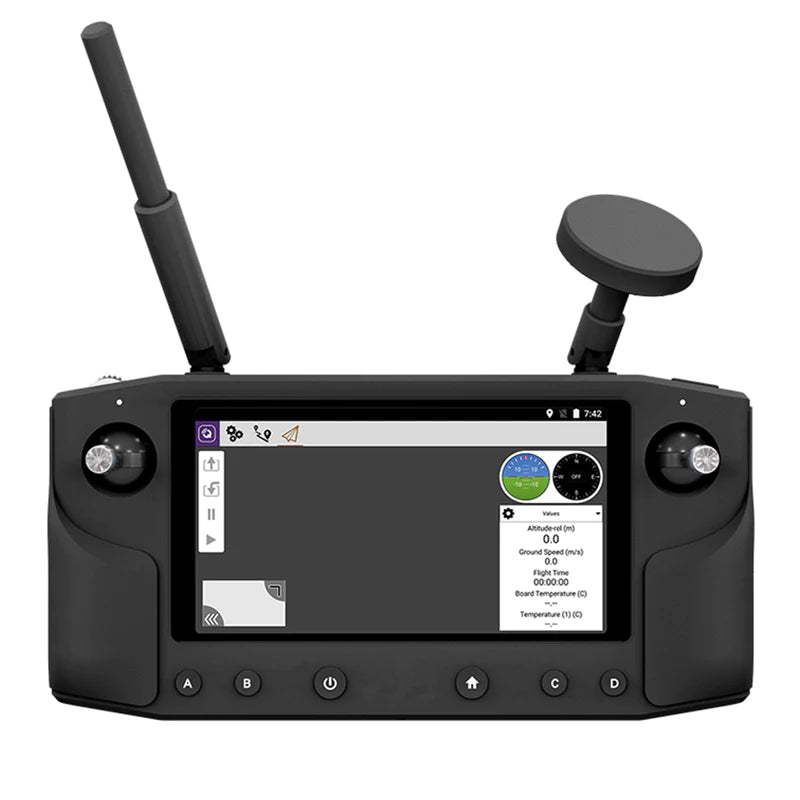

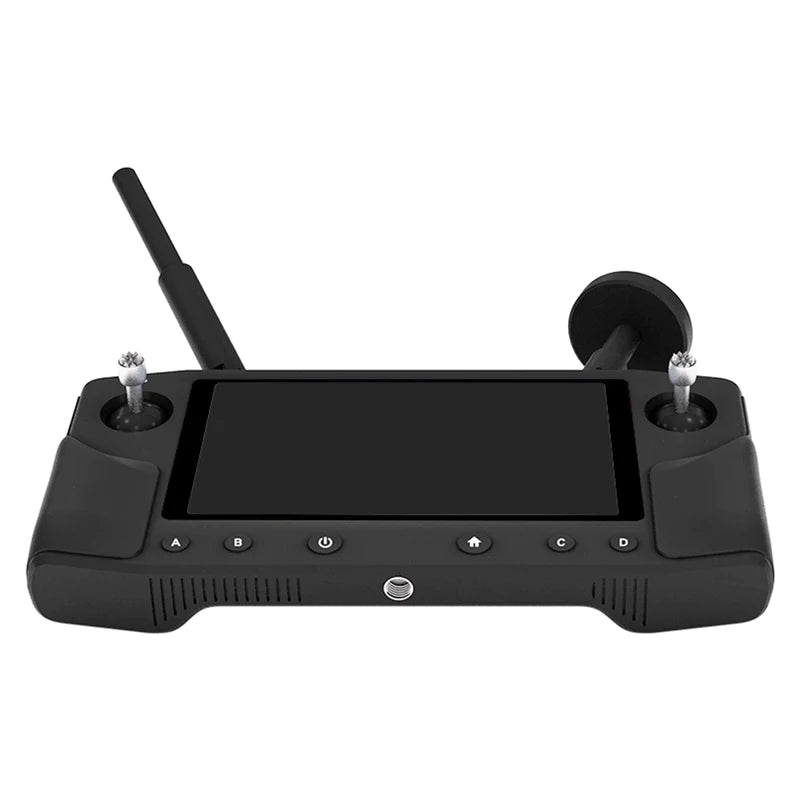

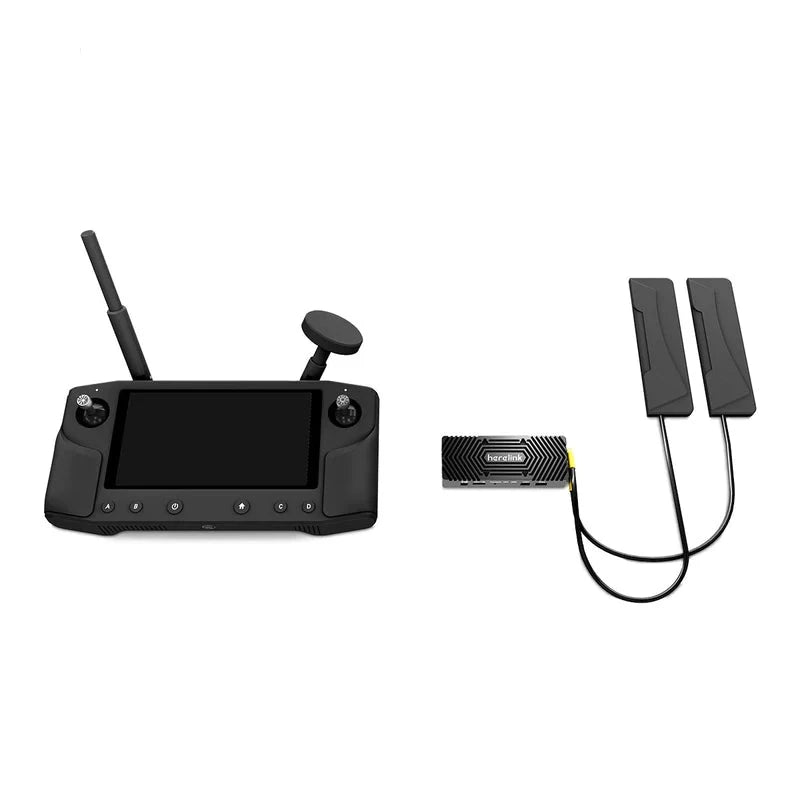

HX4-06212 Herelink Black v1.1 Bundle
HX4-06211 Herelink Black Controller Unit v1.1

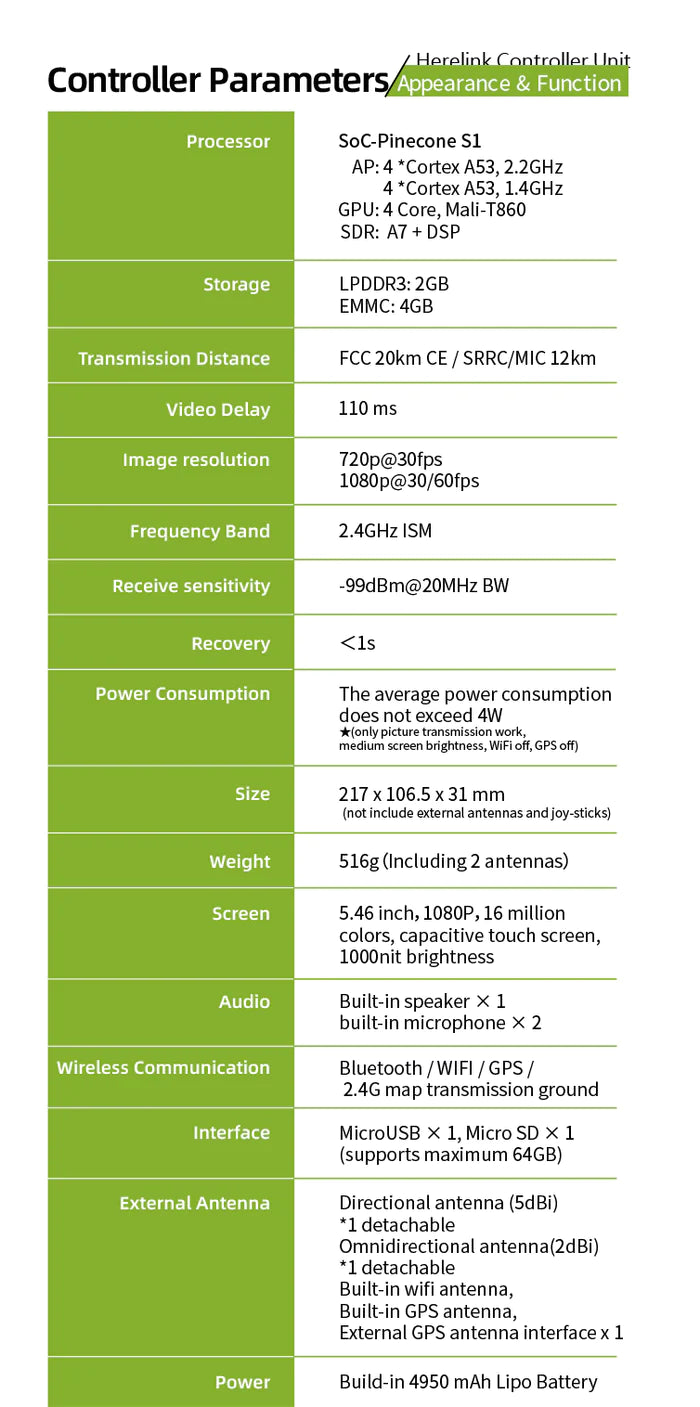

1x - Herelink Controller Unit
2x - Controller Joystick
1x - Omni-directional Antenna
1x - Directional Antenna
HX4-06210 Herelink Black Air v1.1

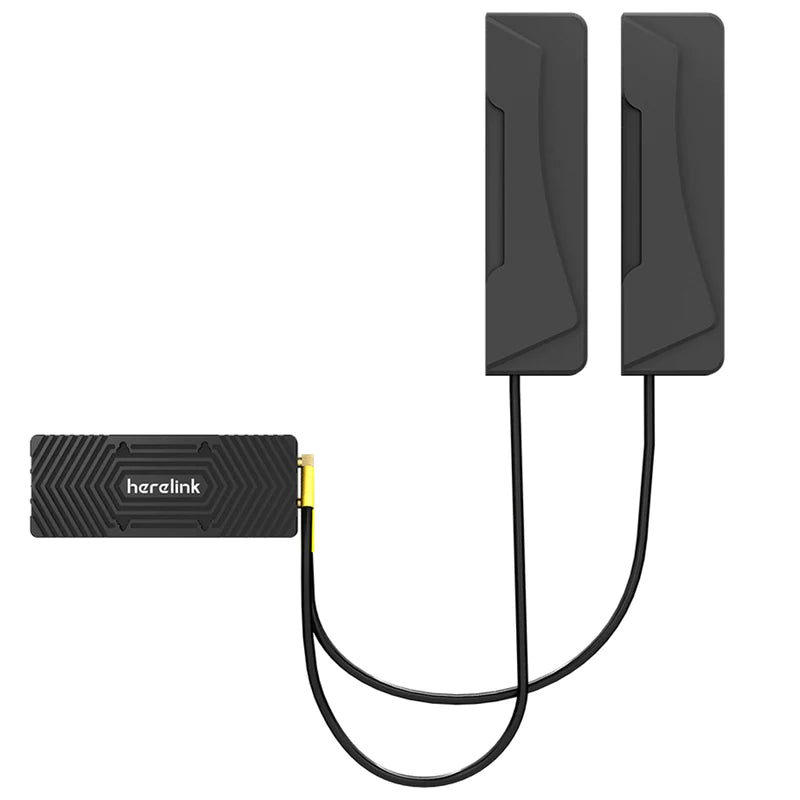

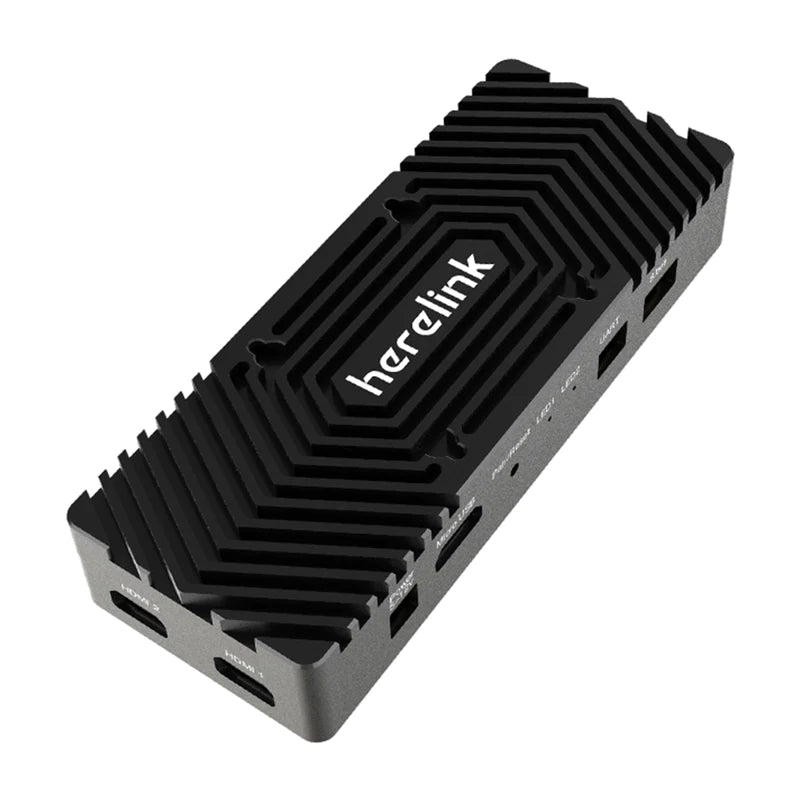

1x - Herelink Air Unit
1x - Mounting Plate
1x - Screw Set
1x - Silicone Ring Set
2x - Air Unit Taoglas Antenna

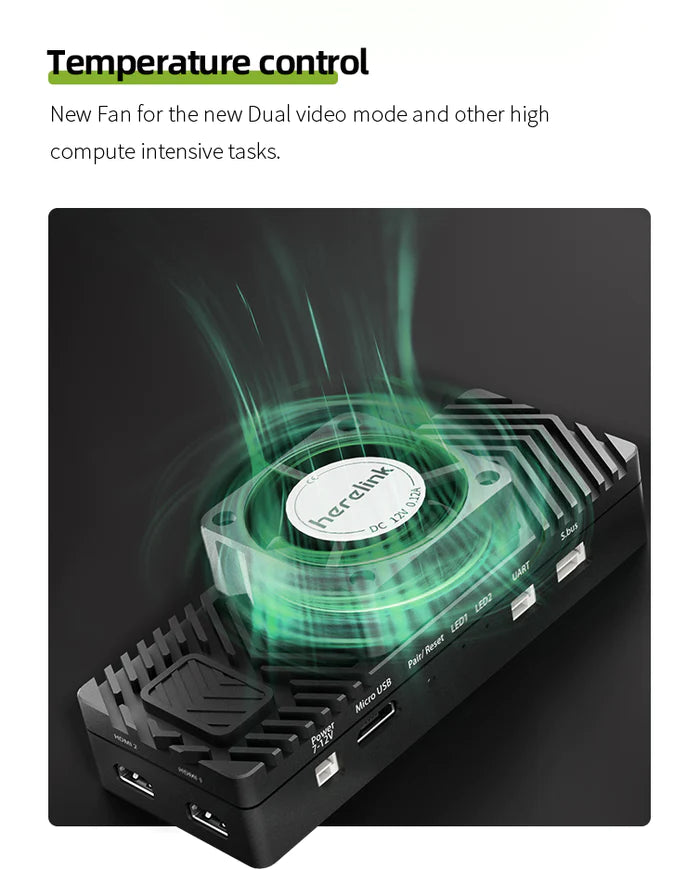

1x - Fan
1x - Cable Set
1x - HDMI Cable
For more details, please check the CubePilot official doc:
https://docs.cubepilot.org/user-guides/herelink/herelink-overview
