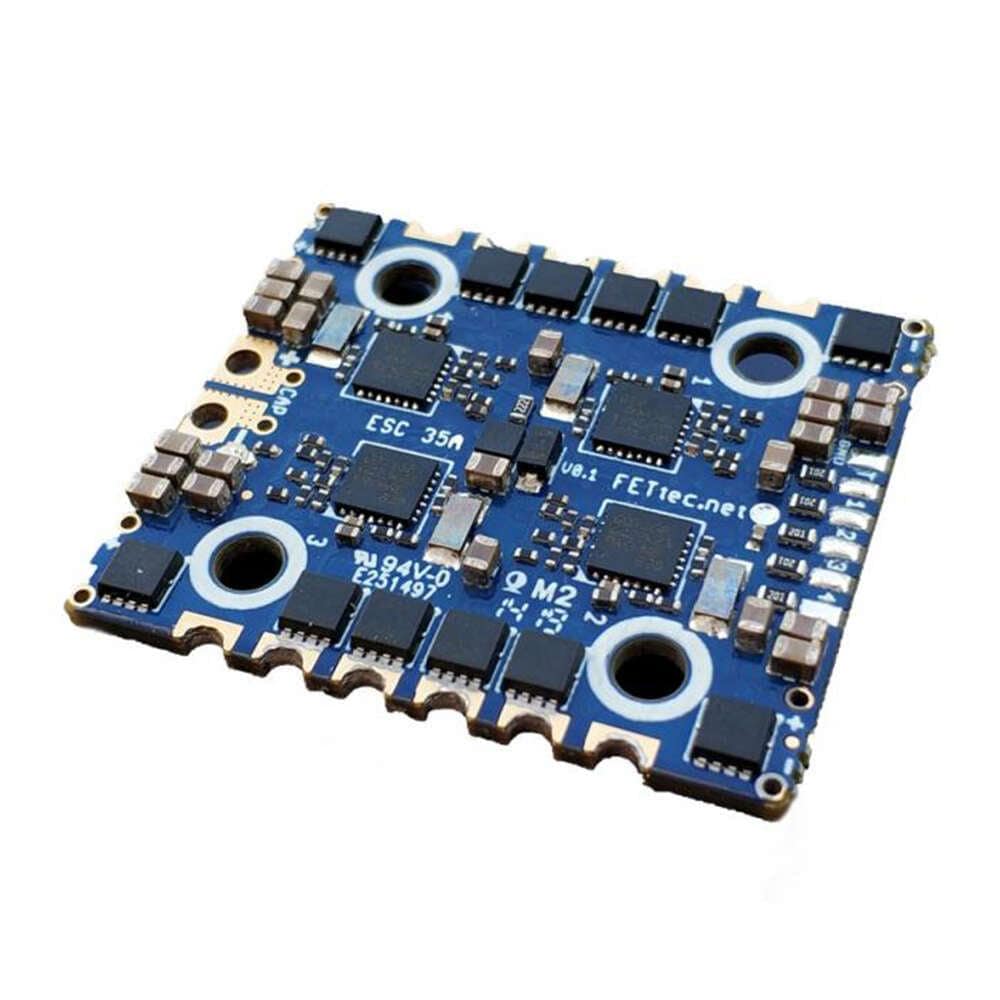

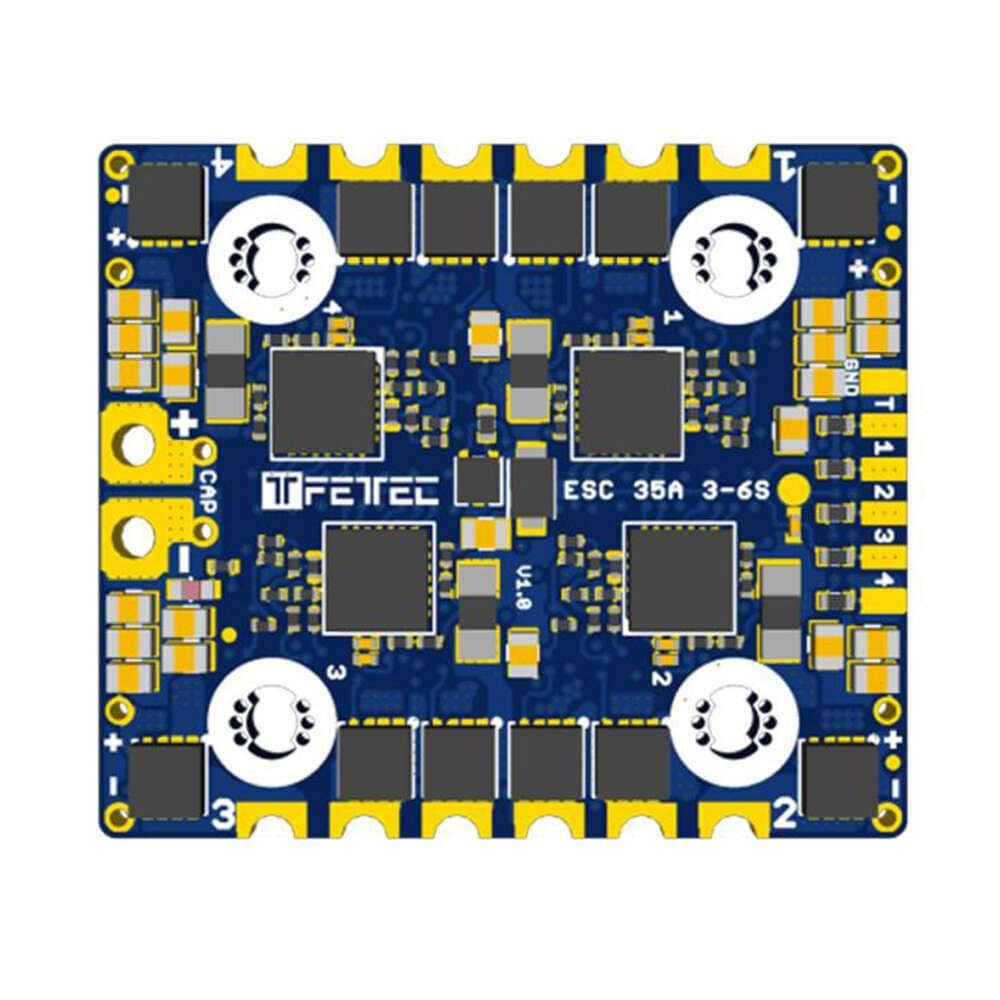

FETTEC ESC 4IN1 3-6S 35A V1.1

Available Pre order Out of stock
• Free Shipping
$59.95
Quantity

Payment Methods

Description

FEATURES

  • Active current limiting @ 35A
  • Input voltage: 3S-6S
  • High quality 40V MOSFETs
  • STM32G071 @ 64MHz
  • 128 kHz Motor PWM
  • Full sine wave control
  • Soldering holes for up to 5 additional capacitors
  • KISS FC Passthrough
  • Betaflight Passthrough (available in 4.1)
  • Automatic input signal detection:
  • Dshot 300-2400
  • PWM
  • OneShot42/125
  • OneWire BUS with up to 8kHz looptime (one cable for all Motorsignals and Telemetry)
  • in development: Crossfire, Sbus, Graupner HoTT

DIMENSIONS

  • 30mm wide x 35mm long
  • Mounting hole: 20mm x 20mm, M2 expandable to M3

FIRMWARE

  • New FETtec Firmware
  • FETtec Configurator for updated, configuration and telemetry. Standalone for MacOS, Windows 32 & 64 and Chrome Plugin

SCOPE OF DELIVERY

  • FETtec ESC 4in1 - 6S 35A
  • Capacitor 50V, ESC < 1ohm (337CKE050M)
  • JST-SH 8 Pin Cable
  • JST-SH 6 Pin Plug

AVAILABLE DOWNLOADS
