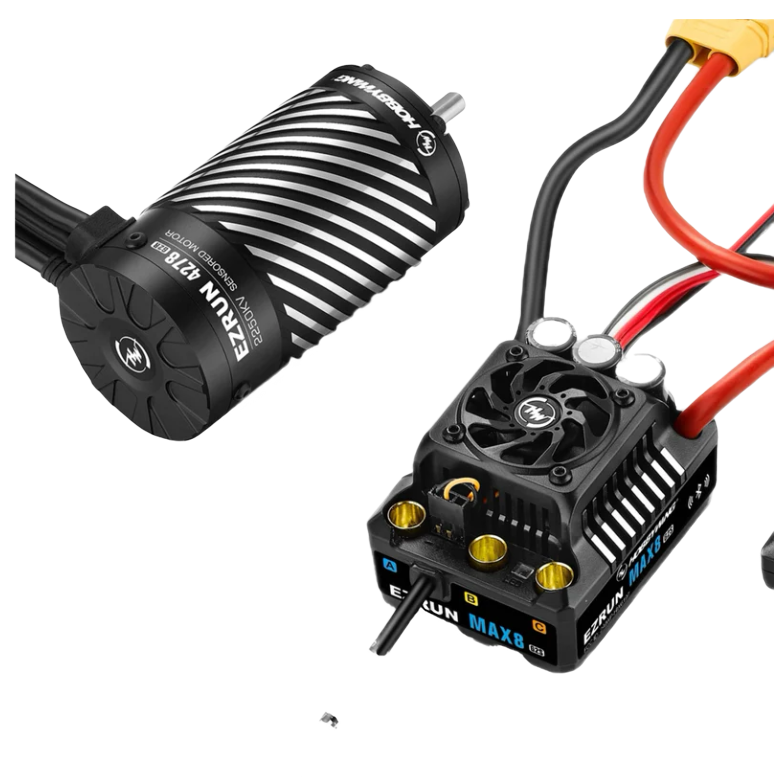

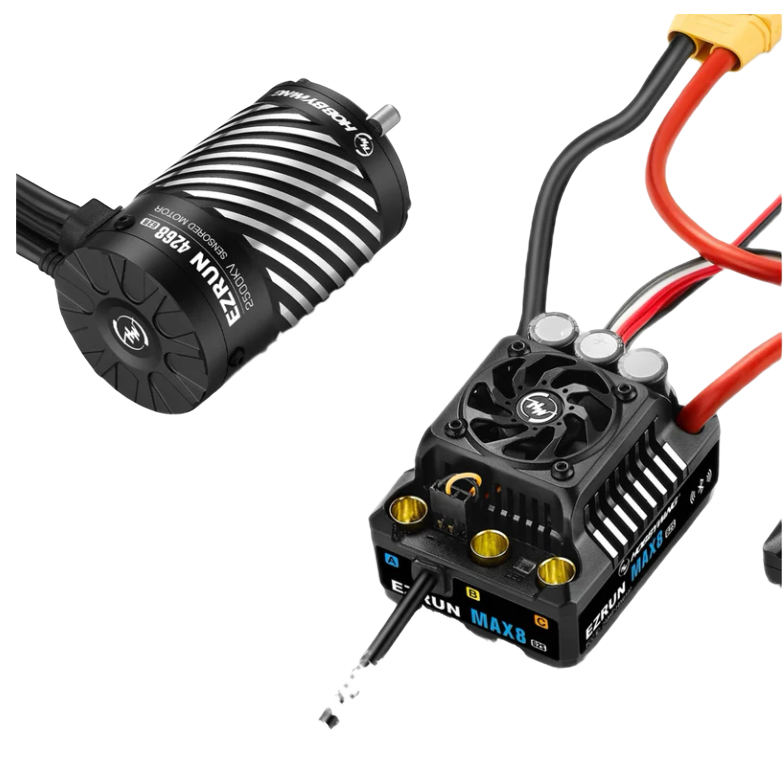

EZRUN MAX8 G2S COMBO

Unleash the MAX8 G2S Combo Paired with Ezrun Max 4200 series motor!

Learn more about MAX8 G2S >

What's in the box:

• (1) Ezrun MAX8 G2S ESC
• (1) Ezrun MAX 4268 or 4278 SD Motor
• Factory Decals and Accessories

• EzRun MAX8 G2S has an innovative waterproof sensor interface, enhancing the overall waterproof and dustproof performance. It is easy to deal with the harsh conditionscontaining sediment, ice and snow, water accumulation.

• Built-in ultra-powerful switch mode BEC and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.

• Supports turbo timing setting, the timing response is remarkable when used with the matching motor.

• Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, current protection.

• The built-in (integrated in the switch) Bluetooth function allows for setting and upgrading the esc by directly connecting to the mobile app, without any additional

• devices, making it simpler and more convenient.

• Data logging function to view various running data on the HW LINK app.

• Supports the firmware upgrade of the ESC, you can enjoy the latest functions.

Specifications:

MODEL EZRUN MAX8 G2S

Cont. / Peak Current - 160A / 1050A

Motor Type - Sensored and sensorless brushless motor

Applications - 1/8 On-road, Short course truck, Monster truck

Motor Limit (Note)* - With 4S Lipo: KV ≤ 3000
With 6S Lipo: KV ≤ 2400 (4278 size motor)

Lipo Cells - 3-6S Lipo

BEC Output - 6V / 7.4V / 8.4V adjustable, continuous current 6A
(Switch-mode)

Cooling Fan - A stable 6V or 7.4V or 8.4V from the built-in BEC

Size / Weight - 60 x 48 x 40.5mm / 192g (Included input wires & connectors)

Programming Method - iOS or Android smartphone (installed with the HW LINK app)


Comparison G2S | G2

MAX8 - Scale Vehicles
G2S - Bluetooth™ - 1/8
G2 - 1/8

MAX8 - Bluetooth
G2S - Bluetooth™ - Yes
G2 - No

MAX8 - Built-in Data logging
G2S - Bluetooth™ - Yes
G2 - No

MAX8 - Intelligent fan start-stop function
G2S - Bluetooth™ - Yes
G2 - No

MAX8 - Firmware Upgrade
G2S - Bluetooth™ - Yes
G2 - Yes

MAX8 - Motor Limit
G2S - Bluetooth™ - 4S Lipo: KV≤3000; 6S Lipo: KV≤2400 4278 size motor
G2 - same

MAX8 - BEC Output
G2S - Bluetooth™ - 6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)
G2 - same

MAX8 - Capacitor protection
G2S - Bluetooth™ - Yes
G2 - Yes

MAX8 - Waterproof
G2S - Bluetooth™ - Yes
G2 - Yes

MAX8 - Weight (g)
G2S - Bluetooth™ - 192g
G2 - 192g
