THE BEST RTR UPGRADE
MEETS PERFORMANCE

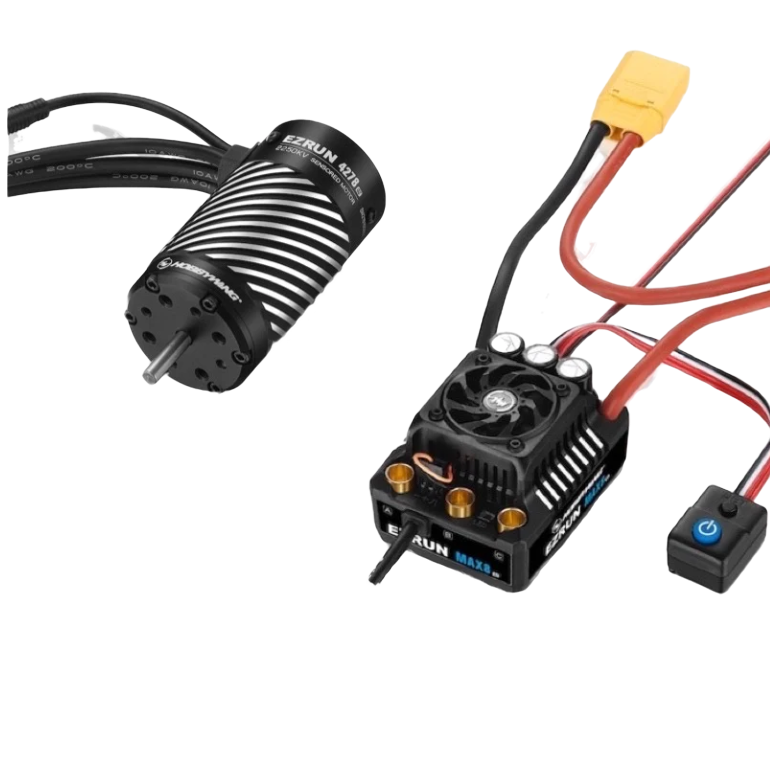

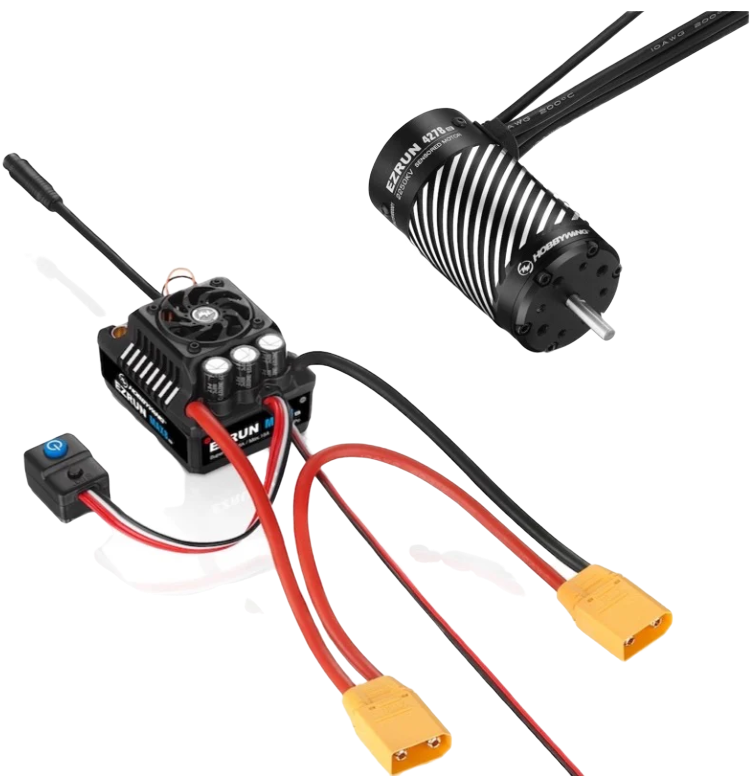

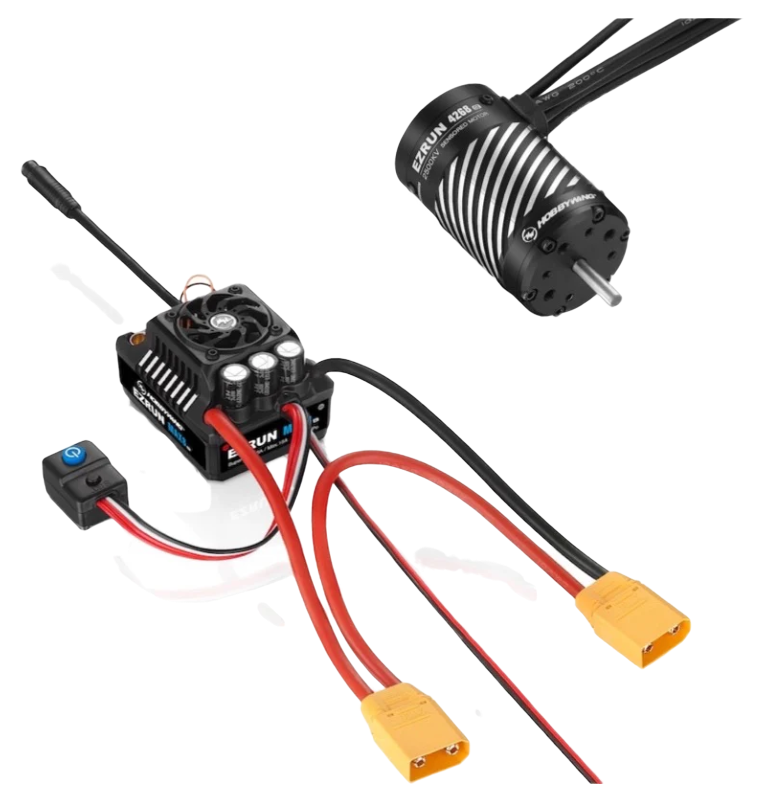

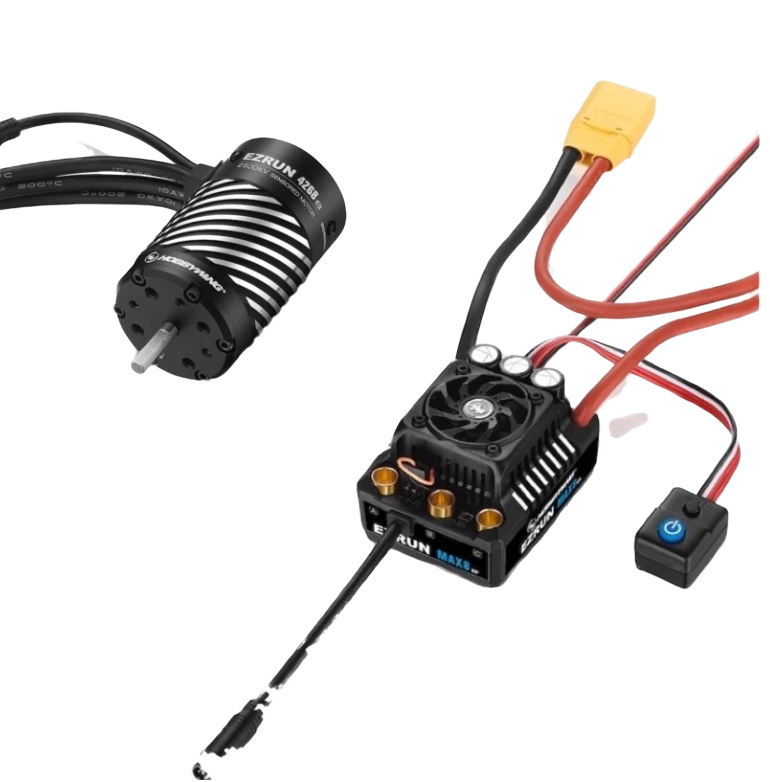

MAX8 Gen-II combo

Learn More: Full description of MAX8 ESC & MAX8 Motors:

• The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with the harsh conditions containing sediment, ice, snow, and water accumulation.
• Built-in ultra-powerful switch mode BEC with a continuous current of 6A, an instant 15A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
• Equipped with the most advanced and safe electronic switches. The traditional mechanical switch protects and prevents dust, humid and other harsh environments, contact rust, and violent impact (such as flying slope landing) caused by the automatic closure of mechanical switches and other issues.
• Support the 32-degree turbo timing setting. When used with the matching motor (such as EZRUN 4278SD), the maximum rpm can be increased by about 25%, easily winning your rival. • Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, and current protection.
• Support LED program card, LCD G2 program box, OTA programmer (Note: optional) to set the parameters of the ESC.
• Real-time data logging to view various running data on the HW LINK app using the OTA Bluetooth module.
• Support the firmware upgrade of the ESC (The multi-function LCD G2 program box or OTA Programmer is needed to purchase), you can enjoy the latest functions.

ESC Specifications MAX 8 G2 (2022)

Scale Vehicles - 1/8th

Cont./Peak Current - 160A / 1050A

Motor Mode - Sensored and sensorless brushless motor

Input - 3-6S Lipo

Motor Limit - 4S Lipo: KV≤3000; 6S Lipo: KV≤2400
4278 size motor

BEC Output - 6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)

Programming Port - shared with fan interface

Switch Mode - Electronic Switch

Capacitor protection - Yes

Waterproof - Yes

Size (L.W.H) mm - 60(L)x48(W)x40.5(H)mm

Weight (g) - 192g

Input/Output - Input：XT90 Output：6.5mm gold plug（female）

Motor Specification
Model - PN
4268SD - 30402751
4278SD - 30402800

Model - Pole
4268SD - 4
4278SD - 4

Model - KV (No-load)
4268SD - 2500KV
4278SD - 2250KV

Model - R. (Ω)
4268SD - 0.0065Ω
4278SD - 0.0048Ω

Model - Current No-load（A）
4268SD - 4.8A
4278SD - 5.0A

Model - Motor D.&L（mm）
4268SD - 42mm / 68mm
4278SD - 42mm / 78mm

Model - Shaft D.&L of the projecting part（mm）
4268SD - 5mm / 18.5mm
4278SD - 5mm / 18.5mm

Model - LiPo(S)
4268SD - 3-4S Lipo
4278SD - 3-6S Lipo

Model - W (g)
4268SD - 355g (no wire）
4278SD - 455g (no wire）

Model - Applicable
4268SD - 11/8 off-road，1/10 truck、crawler
4278SD - 1/8 truck, crawler

Model - Best match with
4268SD - MAX 8 G2 ESC
4278SD - MAX 8 G2 ESC
