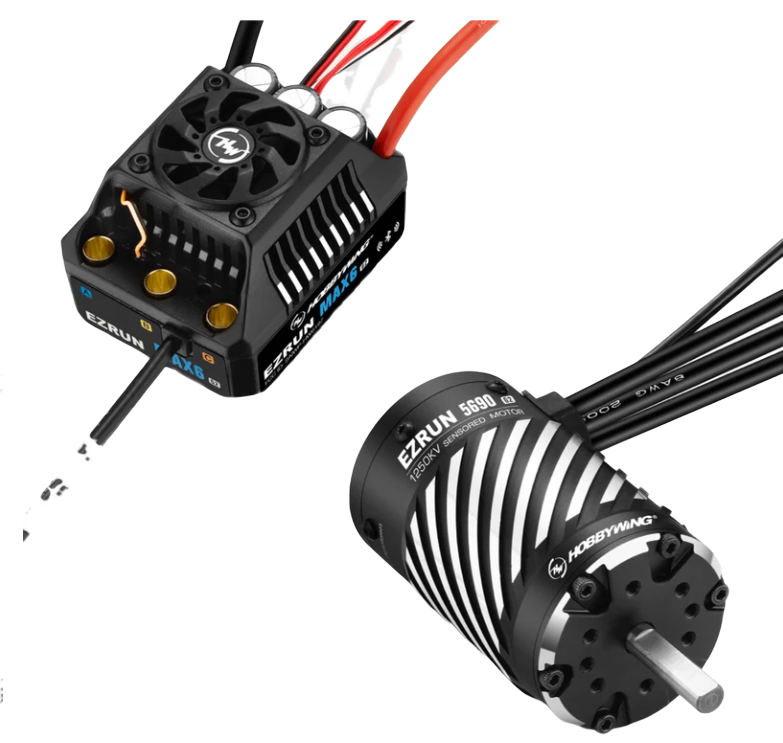

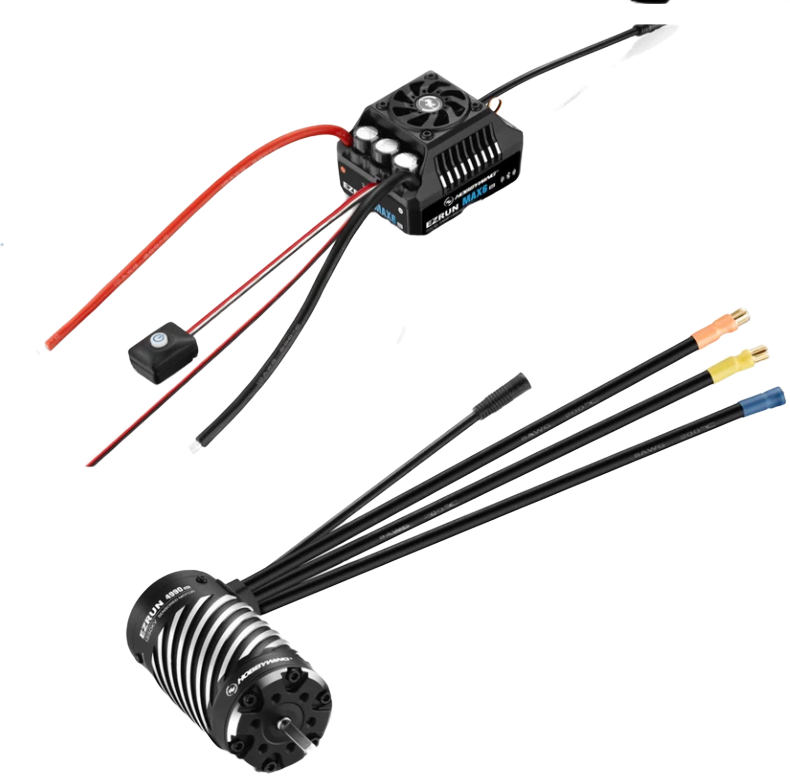

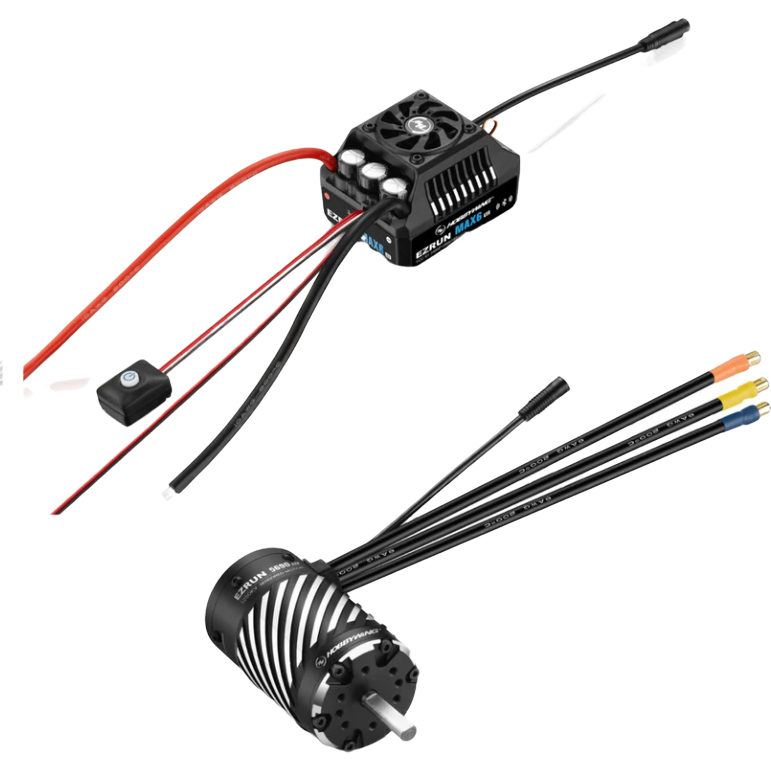

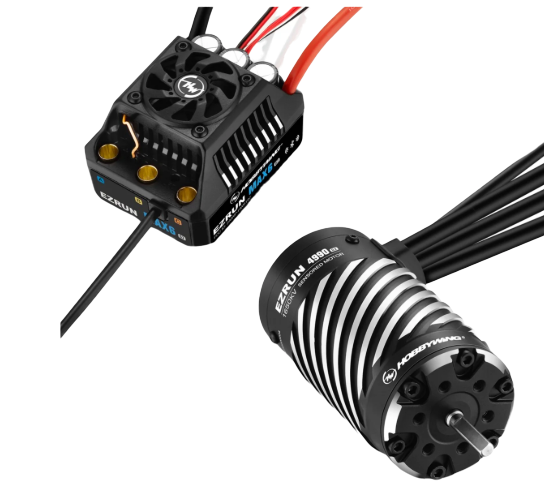

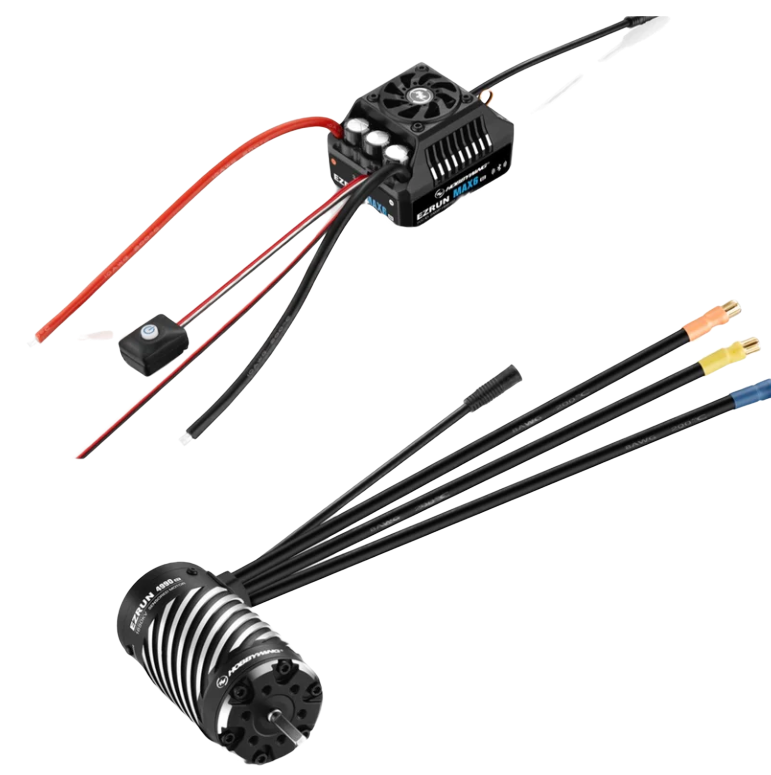

Ezrun MAX6 G2 Combo

What is inside the box?

• (1) Ezrun MAX6 G2 ESC
• (1) EzRun 4990 SD G2 motor or EzRun 5690 SD G2 motor with your choice.
• User's manual
• A HOBBYWING decal

• It comes with a built-in ultra-powerful switch mode BEC capable of delivering a continuous current of 8A, an instant 25A, and supports 6V/7.4V/8.4V switching, making it compatible with a wide range of powerful and high-voltage servos.
• This ESC supports turbo timing settings, delivering remarkable timing response when used with matching motors such as the EZRUN 4990SD/5690SD G2.
• Offers multiple protection functions, including battery low voltage protection, ESC and motor overheat protection, signal loss protection, and current protection.
• The built-in Bluetooth function, integrated into the switch, allows for easy ESC configuration and upgrades directly through a mobile app, eliminating the need for additional devices and making the process simpler and more convenient.
• Data logging function that enables users to view various running data on the HW LINK app.
• Supports firmware upgrades for the ESC, ensuring users can enjoy the latest features and improvements.
• The ESC features an innovative waterproof sensor interface that enhances overall waterproof and dustproof performance. It can easily handle harsh conditions, including sediment, ice, snow, and water accumulation

Specifications: Max Motors

MODEL EZRUN MAX6 G2

Cont. / Peak Current - 200A / 1200A

Motor Type - Sensored / Sensorless Brushless Motor

Applications - 1/6 & 1/7 On-road, Truck, Monster Truck

Motor Limit (Note)* - With 6S Lipo: KV ≤ 2400

With 8S Lipo: KV ≤ 1700, 4990/5690 size motor

Lipo Cells - 3–8S Lipo

BEC Output - 6V / 7.4V / 8.4V adjustable, continuous current 8A (Switch-mode)

Cooling Fan - A stable 6V, 7.4V, or 8.4V from the built-in BEC

Size / Weight - 70(L) × 56(W) × 45.5(H) mm / 245g (Included input wires)

Programming Method - iOS or Android smartphone (installed with the HW LINK app)

ESC
Model - EZRUN 4990SD G2
KV - 1650KV
LiPos - 3-8S
No-load Current - 7.0A
Diameter/ Length - Ø=49mm (1.93"), L=90mm (3.54")
Shaft Diameter/ Length - Ø=5mm (0.20"), L=21.5mm (0.85")
Bearing Size (mm) - Front: D19*D6*T6, Rear: D19*D6*T6
Poles - 4
Weight - 701g
Applications - 1/7th On-road, Short course truck, Truck, 1/8th Heavy-duty Monster truck

Model - EZRUN 5690SD G2
KV - 1250KV
LiPos - 3-8S
No-load Current - 6.6A
Diameter/ Length - Ø=56mm (2.20"), L=90.2mm (3.55")
Shaft Diameter/ Length - Ø=8mm (0.31"), L=30mm (1.18")
Bearing Size (mm) - Front: D22*D8*T7, Rear: D19*D8* T6
Poles - 4
Weight - 867g
Applications - 1/6th Short course truck, Truck, 1/5th Light-load Truck

Model - EZRUN 56118SD G2-650KV
KV - 650KV
LiPos - 8-12S
No-load Current - 5.5A
Diameter/ Length - Ø=56mm (2.20"), L=90.2mm (3.55")
Shaft Diameter/ Length - Ø=8mm (0.31"), L=30mm (1.18")
Bearing Size (mm) - Front: D22*D8*T7, Rear: D19*D8* T6
Poles - 4
Weight - 1272g
Applications - 1/5th Buggy, short course truck, Truck

Model - EZRUN 56118SD G2-800KV
KV - 800KV
LiPos - 8-12S
No-load Current - 6.9A
Diameter/ Length - Ø=56mm (2.20"), L=90.2mm (3.55")
Shaft Diameter/ Length - Ø=8mm (0.31"), L=30mm (1.18")
Bearing Size (mm) - Front: D22*D8*T7, Rear: D19*D8* T6
Poles - 4
Weight - 1277g
Applications - 1/5th Buggy, short course truck, Truck

Model - EZRUN 56118SD G2-1100KV
KV - 1100KV
LiPos - 6-8S
No-load Current - 8.0A
Diameter/ Length - Ø=56mm (2.20"), L=90.2mm (3.55")
Shaft Diameter/ Length - Ø=8mm (0.31"), L=30mm (1.18")
Bearing Size (mm) - Front: D22*D8*T7, Rear: D19*D8* T6
Poles - 4
Weight - 1287g
Applications - 1/5th Buggy, short course truck, Truck
