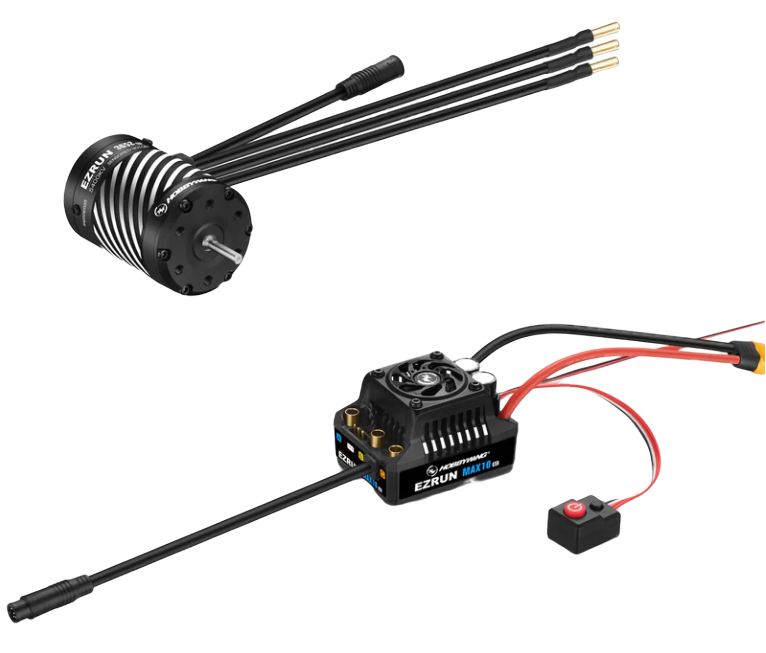

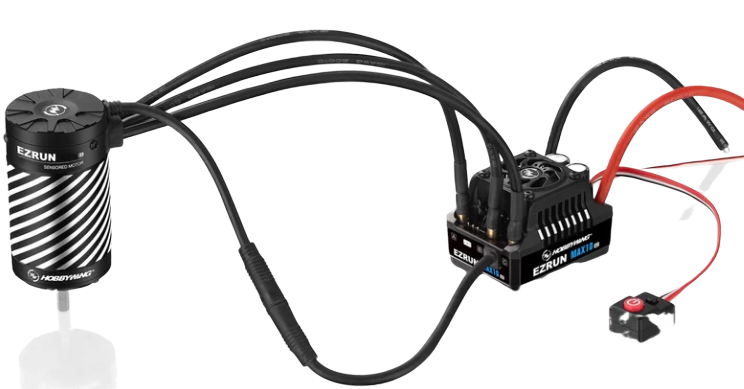

EZRUN MAX10 G2 Combo (80A ESC + 3652 G3 Motor)

Available Pre order Out of stock
• Free Shipping
$0.00
Quantity

Payment Methods

Description

RTR meets performance: IP64 waterproof
Smart sensored brushless system for 1/10th Buggy, On-road, and Light-weight SCT, Truck & Monster Truck.

    What's in the box?
      p/n  ESC Motor kv Lipo Rating
      38020346 Ezrun Max10 G2 80A Ezrun 3652SD G3 3300 2-3s
      38020347 Ezrun Max10 G2 80A Ezrun 3652SD G3 4100 2-3s
      38020348 Ezrun Max10 G2 80A Ezrun 3652SD G3 5400 2s



      Features

      • The EzRun Max10 G2 features an improved waterproof sensored cable interface and an upgraded sensored mode to achieve a great sense of control feel and perfectly matches the EzRun 3652/3665 SD G3 motors.
      • Supports Turbo timing adjustment of up to 32 degrees, and in combination with the EzRun 3652/3665 G3, the maximum speed is 25% more with greater effect.
      • The smart start-stop technology is introduced to the Max10 G2 ESC. The frameless fan will not be enabled to reduced noise and saving power. The fan will only work when the temperature rises to a certain level.
      • Compared with the previous generation of the MAX10 ESC, the total capacitance of the capacitor is increased by 74% and is overheating protected. The functions improve the power delivery from the battery to the ESC to avoid it from overloading and causing capacitors to explode.
      • Smart freewheeling technology enables the MAX10 G2 to have higher drive efficiency than the previous generation, resulting in lower operating temperatures and a minimum temperature of approximately 25°C lower than the previous generation.
      • After connecting the ESC with the OTA Bluetooth module, you can view the data (throttle amount, voltage, current, temperature, speed and etc) in real time through the mobile app to know the running status; The history of the running status can also be viewed by data logging.
      • The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
      Specifications

      Specification"

      EZRUN 3652 Sensored Brushless motor - Generation 3

      Ezrun Series - KV
      3652 SD G3 - 3300
      3652 SD G3 - 4100
      3652 SD G3 - 5400

      Ezrun Series - P/n
      3652 SD G3 - 30402603
      3652 SD G3 - 30402605
      3652 SD G3 - 30402606

      Ezrun Series - LiPo
      3652 SD G3 - 2-3S
      3652 SD G3 - 2-3S
      3652 SD G3 - 2S

      Ezrun Series - R. (Ω)
      3652 SD G3 - 0.00696Ω
      3652 SD G3 - 0.00696Ω
      3652 SD G3 - 0.00477Ω

      Ezrun Series - No-load Current
      3652 SD G3 - 3.9A
      3652 SD G3 - 5.0A
      3652 SD G3 - 6.8A

      Ezrun Series - Timing (deg.)
      3652 SD G3 - 0
      3652 SD G3 - 0
      3652 SD G3 - 0

      Ezrun Series - Motor Diameter & Length
      3652 SD G3 - Φ=37 / L=53
      3652 SD G3 - Φ=37 / L=53
      3652 SD G3 - Φ=37 / L=53

      Ezrun Series - Shaft Diameter & Length
      3652 SD G3 - Φ=3.17 / L=15
      3652 SD G3 - Φ=3.17 / L=15
      3652 SD G3 - Φ=3.17 / L=15

      Ezrun Series - Pole
      3652 SD G3 - 4
      3652 SD G3 - 4
      3652 SD G3 - 4

      Ezrun Series - Weight (g)
      3652 SD G3 - 227.1g
      3652 SD G3 - 227.9g
      3652 SD G3 - 227.9g
