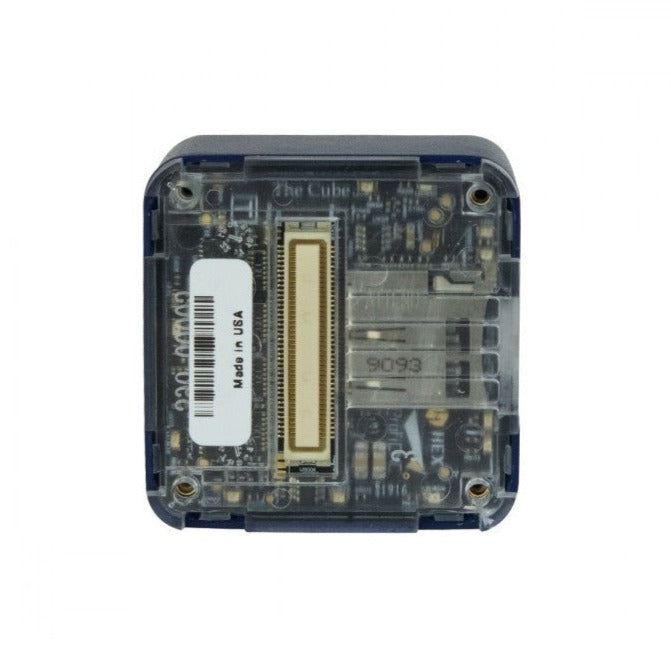

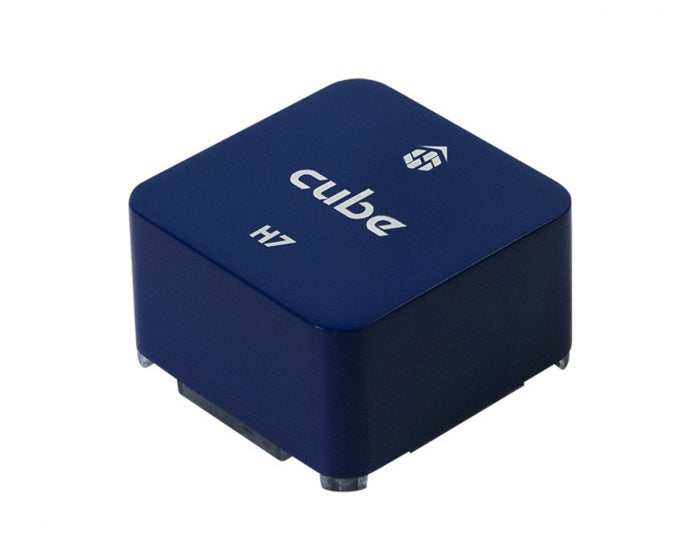

CubePilot The Cube Blue H7 - Pixhawk 2.1 Made in the USA

Available Pre order Out of stock
• Free Shipping
$868.99
Quantity

Payment Methods

Description
Specifications

SPECIFICATIONS


Connections and Interfaces:
14x PWM servo outputs (8 from IO, 6 from FMU)
S.Bus servo output
R/C inputs for CPPM, Spektrum / DSM and S.Bus
Analogue / PWM RSSI input
5x general purpose serial ports, 2 with full flow control
2x I2C ports
SPI port
2x CAN Bus interface
3x Analogue inputs (3.3V and 6.6V)
High-powered piezo buzzer driver (on expansion board)
High-power RGB LED (I2C driver compatible and connected externally only)
Safety switch / LED

PROCESSOR
STM32H7 Processor
32-bit failsafe co-processor
SENSORS
Three redundant IMUs (accelerometers, gyros, and compass)
Two redundant barometers

POWER
Redundant power supply with automatic failover
Servo rail high-power (7 V) and high-current ready
All peripheral outputs are over-current protected, and all inputs ESD protected


Regarding Hex/CubePilot products, CubePilot products are NDAA compliant, Executive Order 13981 Compliant. CubePilot PTY LTD is an Australian-owned company, that brings you True Blue Allied and USA-built solutions for your unmanned applications. Our Supplier, HexAero PTE LTD is also an Australian-owned company based out of Singapore, our manufacturing is done by American and Allied-owned Factories in California and Taiwan.
