Preface About Goggles X
As the Walksnail Avatar born, we've always been constantly collecting market's feedback and suggestions. In the new generation of research and development, we fully consider each function for customers like HDMI input and CVBS input (AV IN interface).
Product Features:
| ●Weight 290g
|
●+2 to-6 diopter
|
|
●FOV 50°
|
●Lenses can be replaced
|
|
●7-26V
|
●1PD57~72mm
|
|
●Front cover DIY
|
●Infrared Sensing
|
|
●1080P/100FPS
|
●Sharing mode
|
|
●HDMI input
|
●Built-in Gyro
|
|
●HDMI output
|
●AV in |

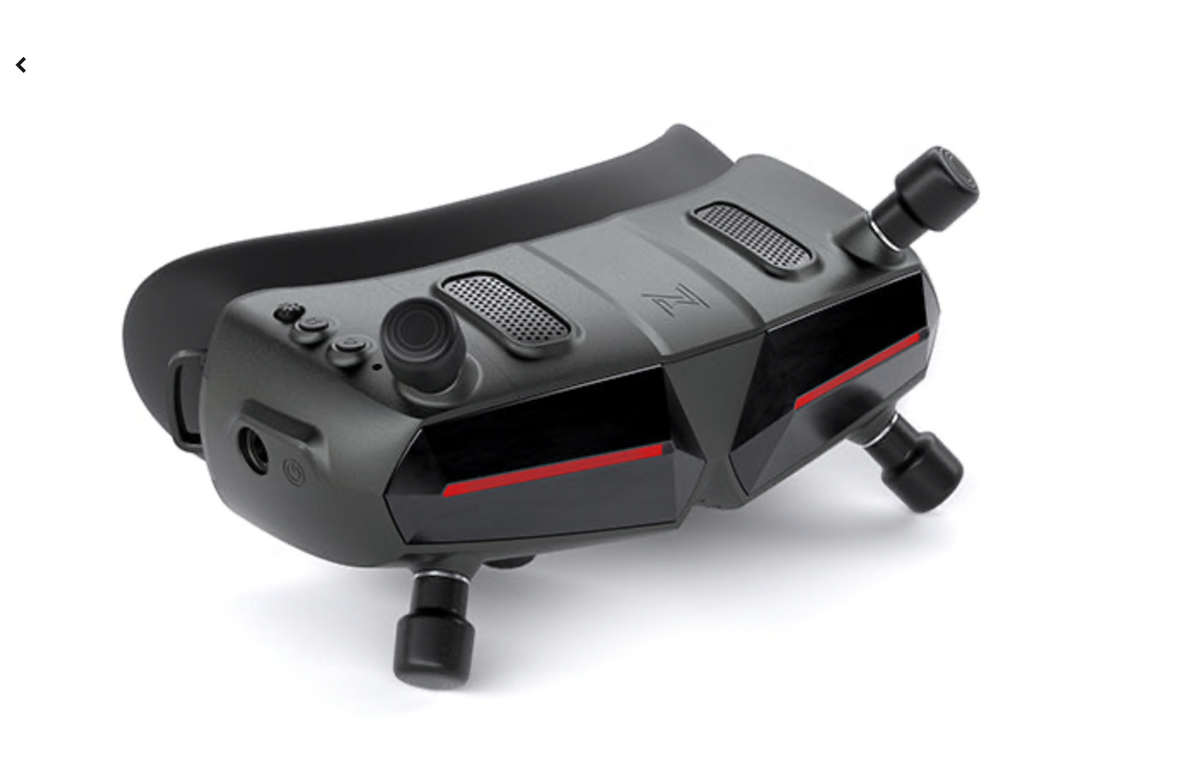

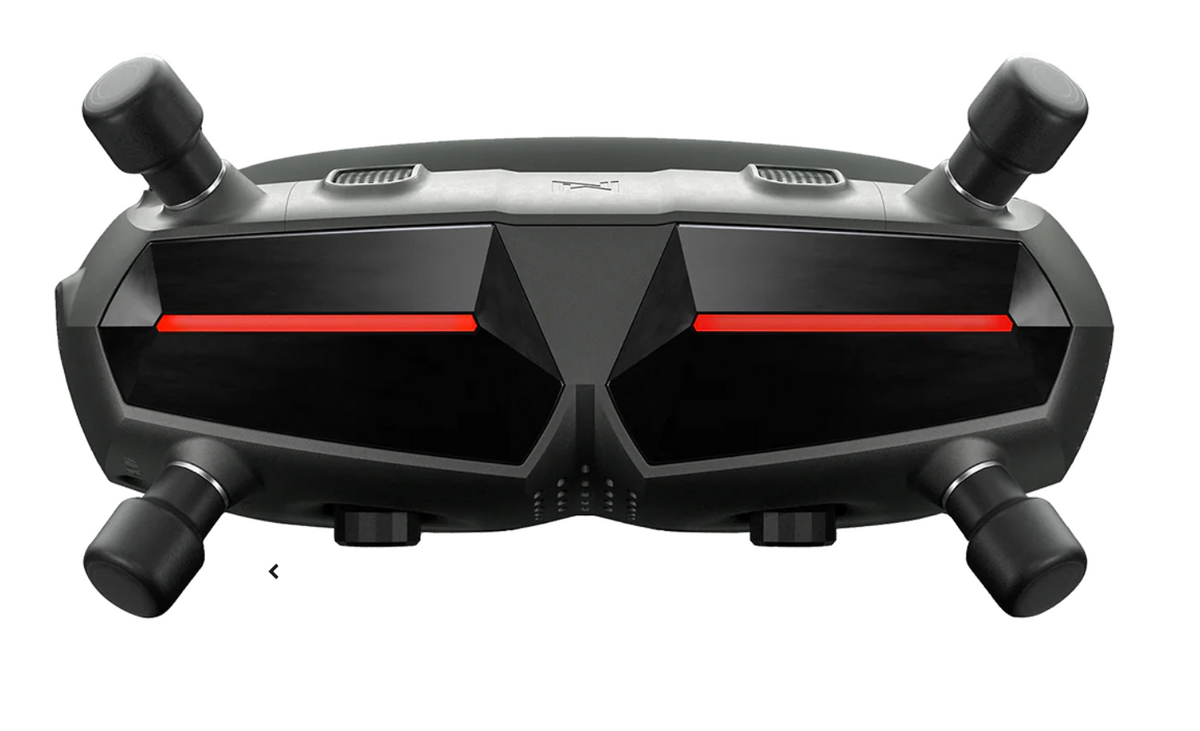

Bullet Points for Walksnail Avatar HD Goggles X
- The Avatar HD system utilizes industry-leading H.265 encoding technology to provide 1080p/100FPS FPV video quality with low latency, providing an immersive and responsive experience.
- The goggles have an AV IN interface and support analog signals, support a versatile solution for FPV pilots.
- The HDMI input expands the range of devices that can be used with the goggles, providing more flexibility and convenience. The HDMI OUT interface can be connected to other display devices to share your flight footage with pilots in real time.
- The front cover of the goggles can be removed and replaced with new antenna, replacing the two antennas located under the goggles, which provides pilots with more options to optimize their FPV experience.

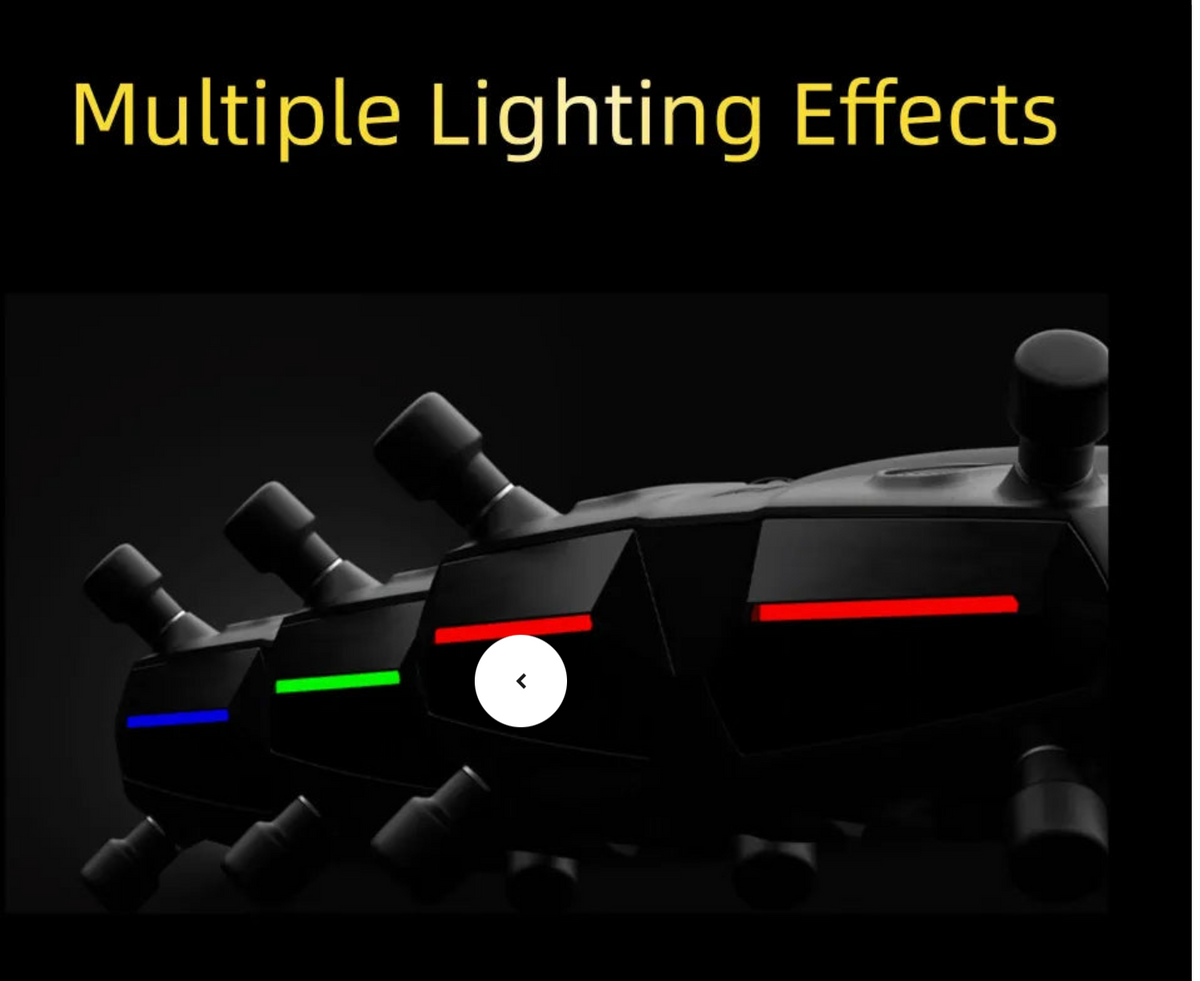

- The front cover of the goggles adds a light function, add a touch of style to your gear.
- 100% optical improvement, experience a clearer picture.
- Adjustable from +2.0 to -6.0 via diopter knob to personalize the viewing experience and easily go glasses-free.

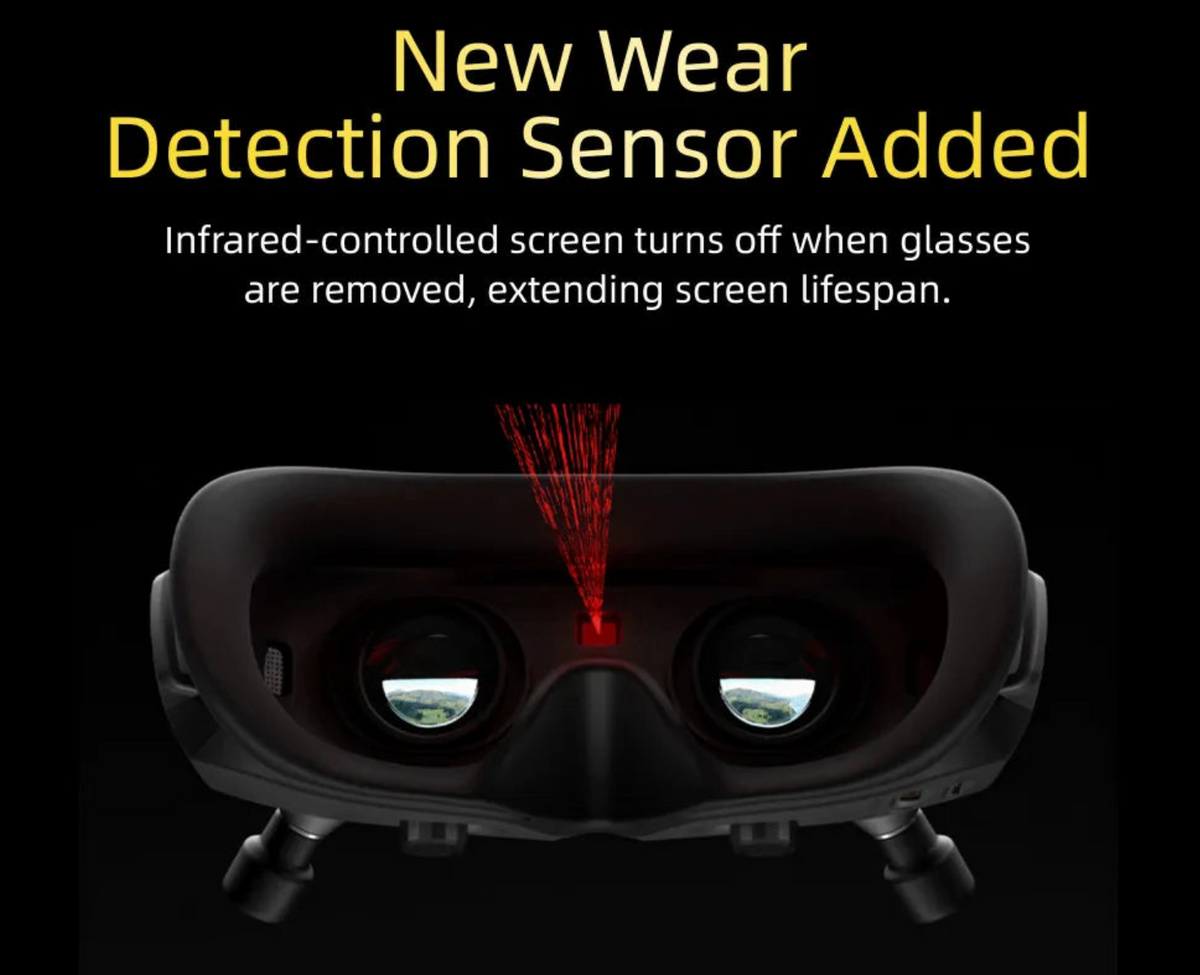

- The goggles use infrared sensing technology to provide pilots with a convenient and energy-efficient way to turn the screen on and off without manually pressing any buttons. This feature helping to extend the life of the screen.
- Lenses for astigmatism, myopia and blue light-blocking glasses can be replaced to meet different vision needs.
- The front cover of the goggles can be DIY, allowing pilots to use their imagination to customize interesting looks for the goggles.
- The goggles feature wide foam to provide pilots with a comfortable and secure fit regardless of different facial features, fits the face to reduce light leakage.
- The goggles are designed to be lightweight, mini, small and carry 50°FOV, making more comfortable for pilots while giving them a more immersive FPV experience.
- The goggles have built-in gyro hardware, which can be used to develop Fixed-wing, RC cars and other scenarios.
| Specifications | |
| Model | Avatar HD Goggles X |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power(EIRP) | FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |

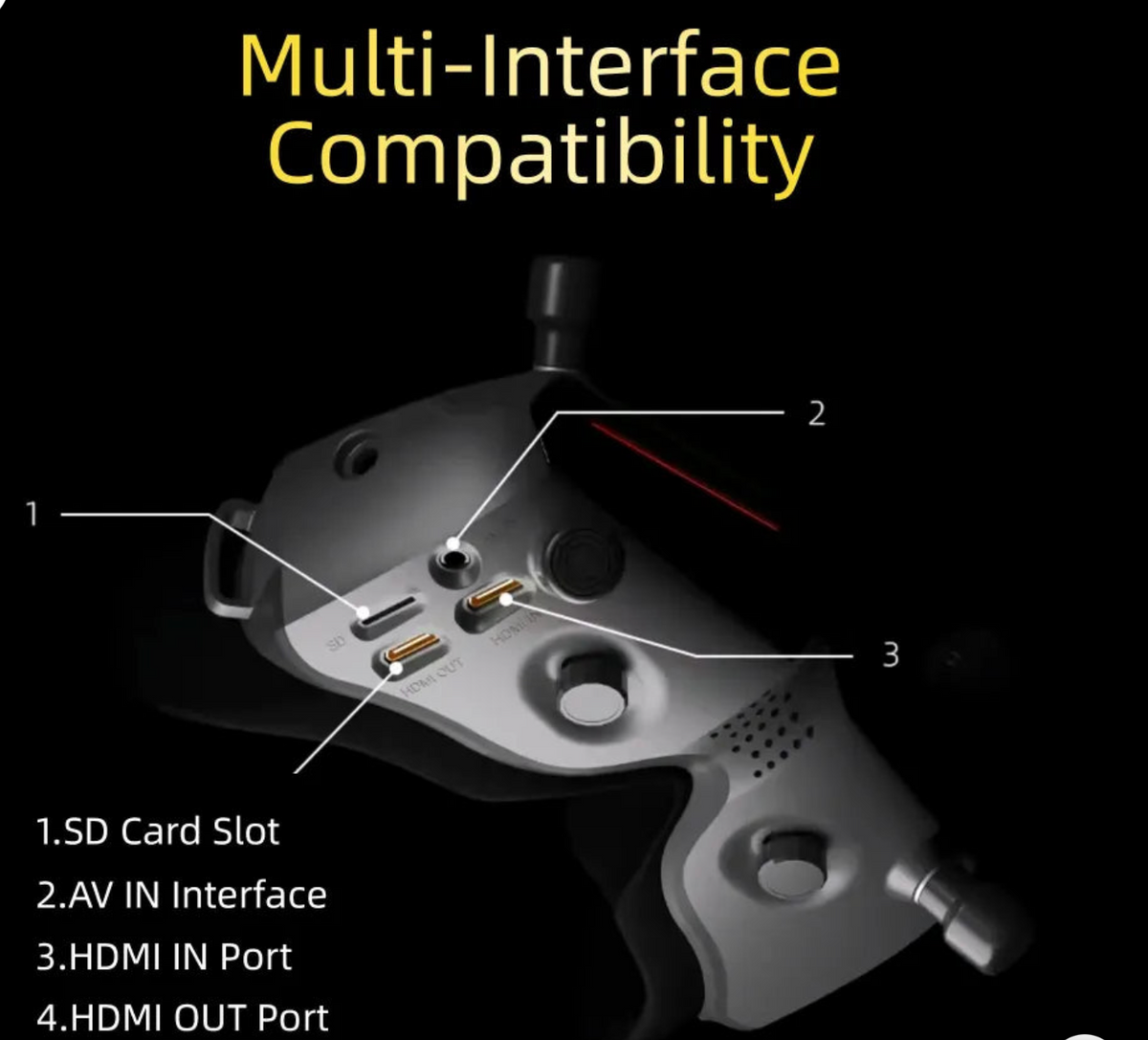

| I/O Interface | HDMI Out, HDMI Input, 5Pin 3.5mm Audio Port, DC5.5*2.1mm Port, Micro SD Card Slot |
| Transmission Resolution | 1080p 100fps, 1080p 60fps, 720p 100fps, 720p 60fps |
| Code Rate | Max 50 Mbps |
| Min. Latency | Average 22ms |
| Average Gain | 2dBi |
| Polarization | LHCP |
| Transmission Distance | ＞4km |
| Channel | 8 |
| Screen Resolution | 1920*1080/100Hz |
| Screen Material | OLED |
| IPD Mechanical Range | 57mm-72mm |
| Adjustable Focus Range | ＋2.0 to－6.0 Diopter |
| FOV | 50° |
| Power Input | 7-25.2v(2S-6S) |
| SD card | Support 256G |
| System | Avatar HD system |
| Wide Foam material | PU |
| Built-in Gyro | Yes |

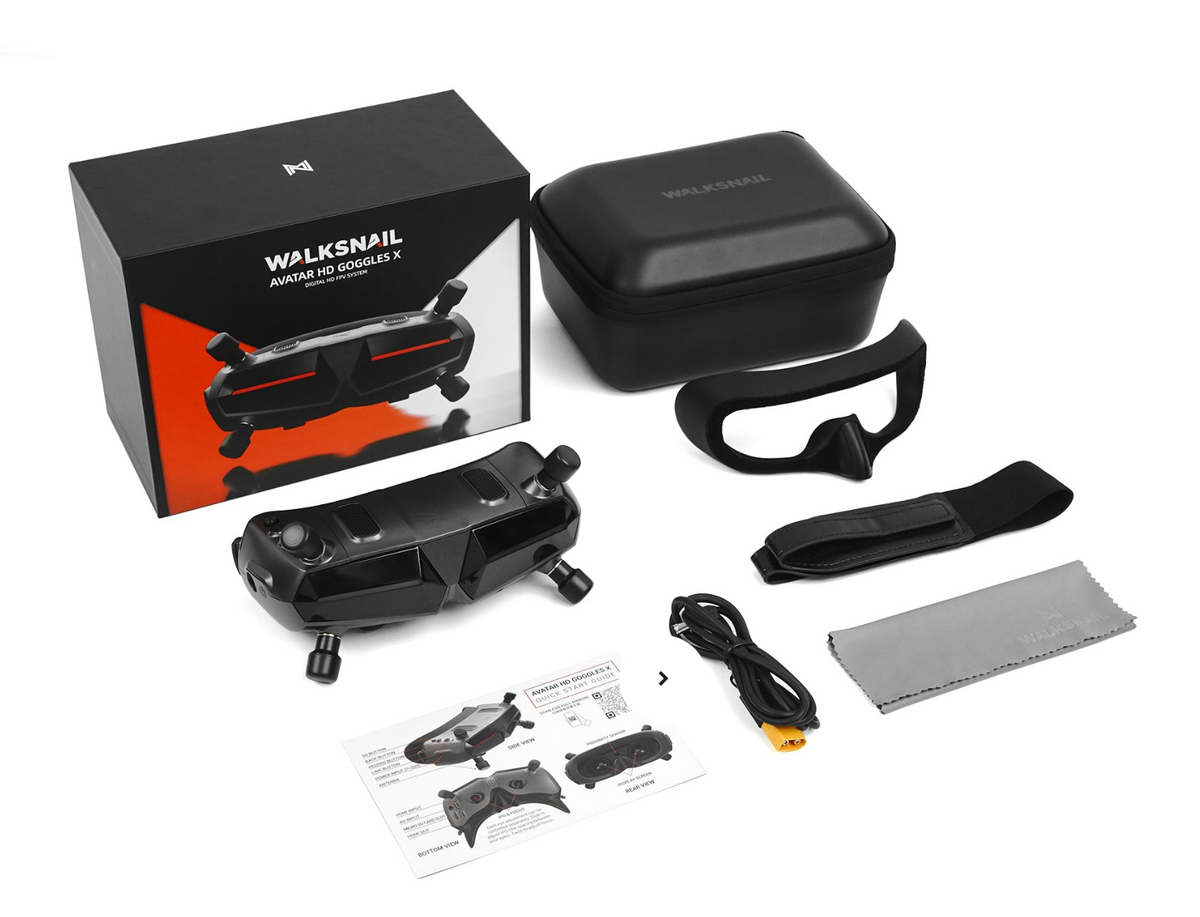

| Product List | |
| Walksnail Avatar HD Goggles X | x1 |
| Wide Foam (PU) | x1 |
| Lens cleaning cloth | x1 |
| XT60 to DC 5.5*2.1mm power cord | x1 |
| Storage Box | x1 |

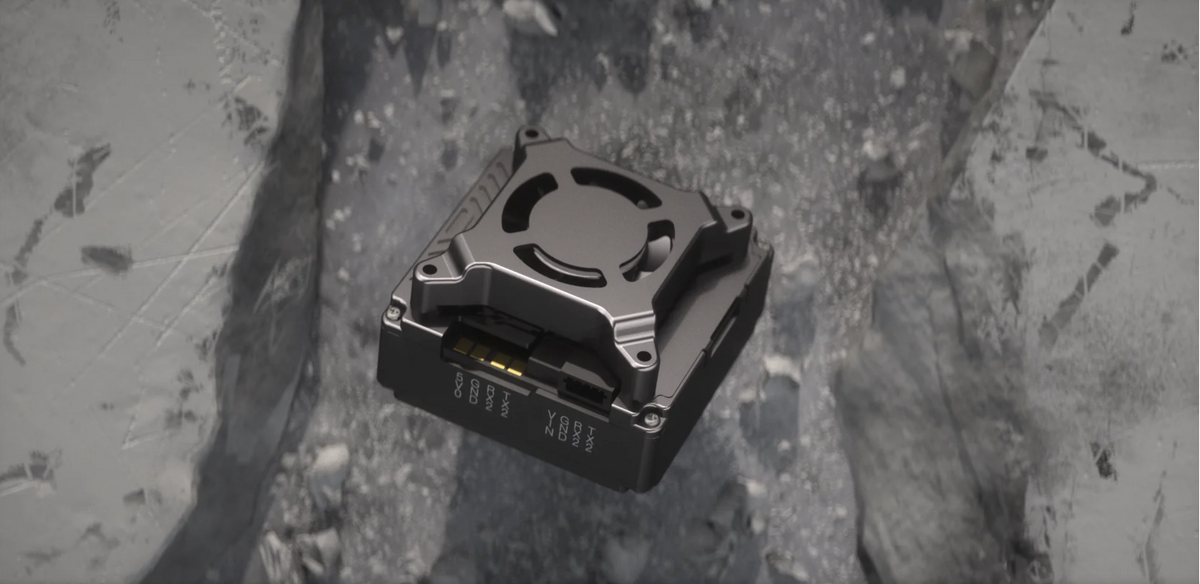

2. Walksnail Avatar GT KIT
| 2W (Max) | Long Range |
| 11.1V-25.2V | 1080P 100fps |
| Dual Antennas | High Frame Starlight |
| Micro SD Card Slot | Compatible Moonlight Camera（DVR 4K） |
Bullet Points:
Avatar GT significantly enhances signal transmission distance, meeting various flight requirements, and can reach up to 2W power within legal and regulatory limits, ensuring uninterrupted flight exploration and enhancing your FPV experience.

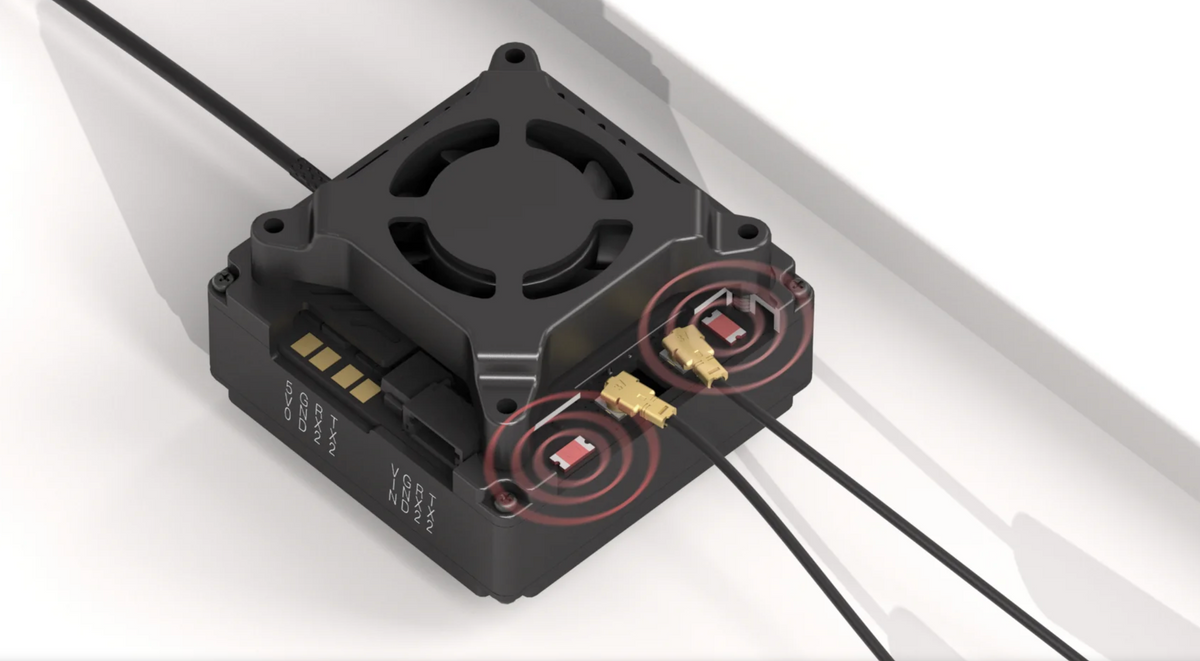

The Avatar GT boasts an internal ceramic antenna that optimizes performance during low-power mode, minimizing power consumption and heat generation.
| 2W (Max) | Long Range |
| 11.1V-25.2V | 1080P 100fps |
| Dual Antennas | High Frame Starlight |
| Micro SD Card Slot | Compatible Moonlight Camera（DVR 4K） |
Bullet Points:
Avatar GT significantly enhances signal transmission distance, meeting various flight requirements, and can reach up to 2W power within legal and regulatory limits, ensuring uninterrupted flight exploration and enhancing your FPV experience.
| Camera | |
| Model | Avatar HD Pro Camera |
| Image Sensor | 1/1.8-Inch Sony Starvis Ⅱ sensor |
| Resolution | 1080P/60fps; 1080P/100fps; 720P/120fps; 720P/60fps; |
| Ratio | 16/9; 4/3 |
| Lens | 8Mp |
| FOV | 160° |
| Aperture | F1.6 |
| Shutter | Rolling shutter |
| Min.Illumination | 0.00001Lux |
| Weight | 9.5g |

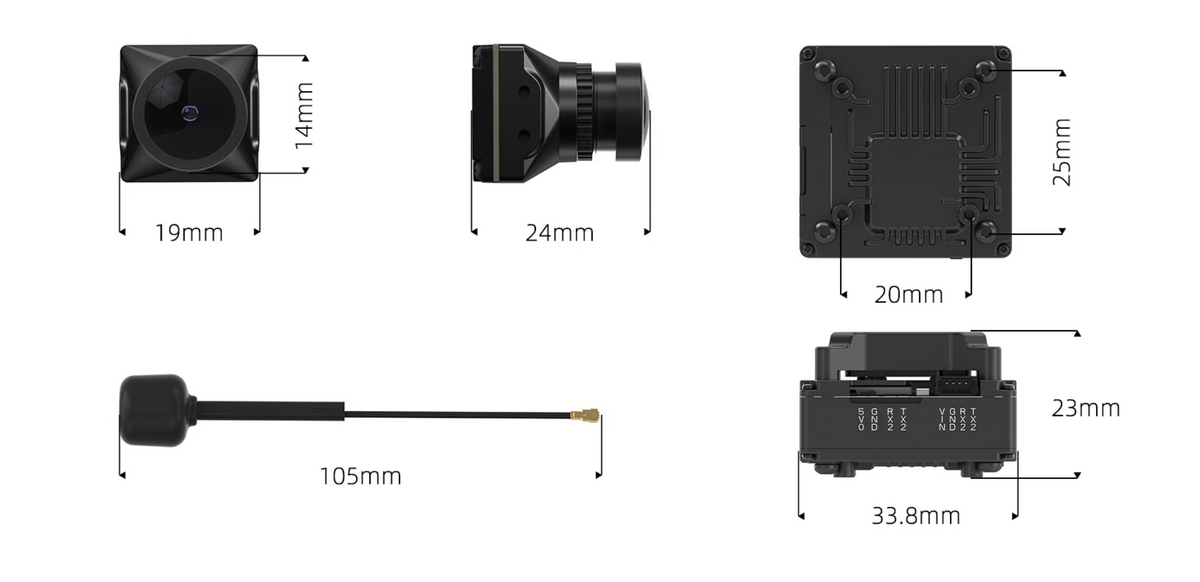

| Dimensions | 19*19*24mm |
| Coaxial Cable | 140mm |
| Gyroflow | supported |
| VTX | |
| Model | Avatar GT |
| Communication Frequency | 5.725-5.850 GHz |
| Transmitter Power (EIRP) | FCC: <30dBm, MAX:33dBm ; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm |

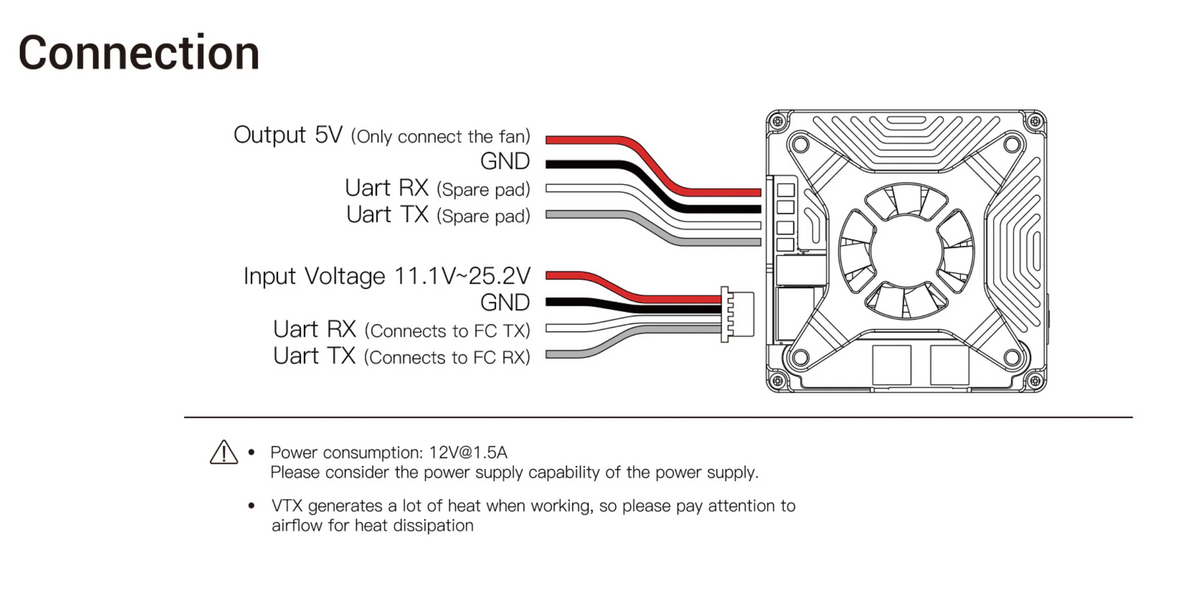

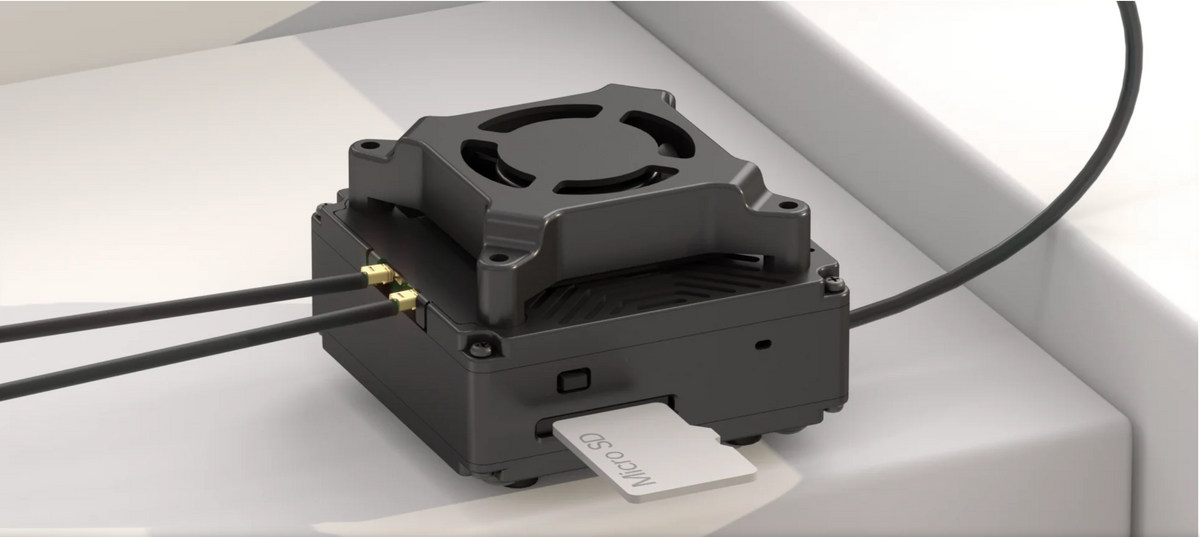

| I/O Interface | Micro SD card slot; JST1.0*4(power cable) |
| Supported SD Cards | Micro SD (up to 256 GB) |
| Mounting Holes | 25.5*25.5mm; 20*20mm |
| Dimensions | 34*34*23mm |
| Recording | 1080p/720p |
| Weight | 41.6g (Antenna included) |
| Operating Temperature | -10-40℃ |
| Channels | 8 |
| Wide Power Input | 11.1V-25.2V |
| Supported FC System | Betaflight; Inav; Fettec; Kiss; ArduPilot |
| OSD | Canvas mode |
| Latency | Average delay 22ms |
| Antenna | 2(IPEX) |
Note: Check area for risk of use before use.
Packing List：
1 x Walksnail Avatar GT KIT1 x Quick Guide2 x M2*4mm screws2 x M2*5mm screws2 x M2*6mm screws2 x M2*5*0.5mm spacer2 x SD card stickers1 x 4pin power cord
Watch videos:
https://www.youtube.com/watch?v=I0clu4MZy8E
3. CADDX GM Series Gimbal
Preface About GM1/GM2/GM3
Based on pilots feedback and implement head tracking function of goggles, our R & D department team has designed gimbals specifically for FPV cameras. This series includes three models: single-axis, dual-axis, and tri-axis, catering to various user needs. The design of the gimbal is primarily aimed at enhancing the pilot's experience, providing them with stable, smooth images, allowing them to easily capture stunning aerial videos and photos. With the addition of the head tracking function, it creates an immersive feeling.
Features:
| Enhanced FPV Experience | Head Tracking Functionality |
| Exceptional Stability | Quick Assembly |
| Compatibility | Flexibility |
Bullet Points:
CADDXFPV gimbal is designed to work perfectly with Avatar HD goggles, enabling head tracking functionality. This feature allows the gimbal to follow the movement of your head, making you feel as if you are in the cockpit, enhancing your FPV adventures with unmatched realism and control.
CADDXFPV gimbal uses advanced mechanical stabilization to effectively reduce camera shake during flight, ensuring clear and smooth footage even in unstable environments.
Easily manage gimbal modes and sensitivity through the Avatar goggles menu or via PWM controls, giving you precise control over your gimbal’s behavior.
No matter if you are using an FPV drone, RC FPV Wing, or RC car, CADDXFPV gimbal series provides the perfect solution for your needs. The gimbal's broad compatibility ensures it fits seamlessly with various FPV setups. Enhance your FPV experience with unparalleled stability and control, and capture stunning footage every time.
Equipped with a coaxial cable to connect with VTX, enabling seamless head tracking functionality, and ensuring a fully immersive FPV experience. The quick assembly process makes it simple for anyone to set up and start using the gimbal.
Available in three models—single-axis, dual-axis, and three-axis—our gimbal caters to the diverse needs and applications of users. Whether you're a professional pilot or an amateur enthusiast, The flexibility of CADDXFPV gimbals ensures they can meet the demands of any FPV application.
Q: When will it be shipped?A: In order to give pilots a better experience. Currently, each order will be shipped within 15 working days.
Q: Are GM1/GM2/GM3 compatible with all walknsail VTX?A: The gimbal can't be used with V1 VTX, Mini 1s, Nano V3 and GT VTX, but can only be used with V2 VTX, V2 VTX Dual and Moonlight VTX.
| Specification | |
| Model | GM1 |
| Camera Compatibility | 19mm FPV Camera |
| Image Stabilization | ±0.005° |
| Max Controllable Speed | ±1500°/s |
| Max Controlled Rotational Range | pitch: ±120° |
| Size | 32.2x38.1x20.5mm |
| Weight | 16g |
| Control Mode | PWM /UART |
| Head Tracking Control | Support |
| Voltage | 7~26V |
| Static Power Dissipation | 1.0W |
| Model | GM2 |
| Camera Compatibility | 19mm FPV Camera |
| Image Stabilization | ±0.005° |
| Max Controllable Speed | ±1500°/s |
| Max Controlled Rotational Range | Pitch: ±120°, Roll: ±60° |
| Size | 46.7x46.5x26.2mm |
| Weight | 30g |
| Control Mode | PWM /UART |
| Head Tracking Control | Support |
| Voltage | 7~26V |
| Static Power Dissipation | 1.2W |
| Model | GM3 |
| Camera Compatibility | 19mm FPV Camera |
| Image Stabilization | ±0.005° |
| Max Controllable Speed | ±1500°/s |
| Max Controlled Rotational Range | Pitch: ±120, Roll: ±60, Yaw: ±160° |
| Size | 50x46.5x53mm |
| Weight | 46g |
| Control Mode | PWM /UART |
| Head Tracking Control | Support |
| Voltage | 7~26V |
| Static Power Dissipation | 1.5W |
| Packing List | |
| GM1/GM2/GM3 | X1 |
| Power Cable | X1 |
