AirspeedNODE v2

Essential sensor for fixed-wing UAVs with Cyphal/CAN interface.

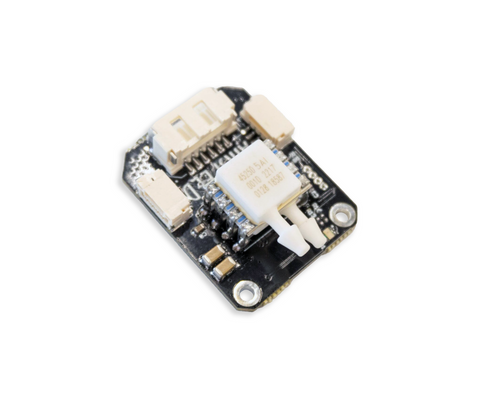

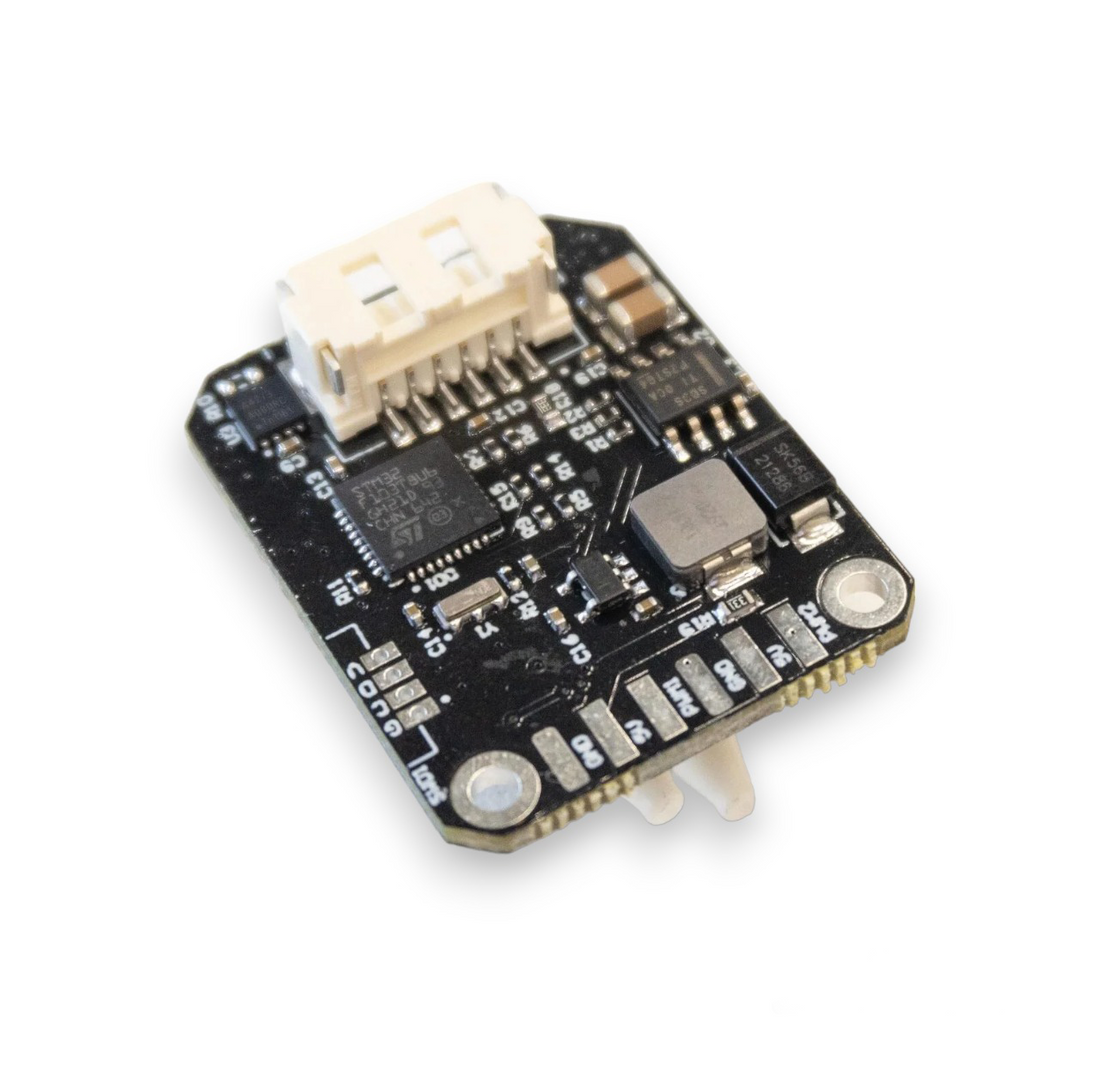

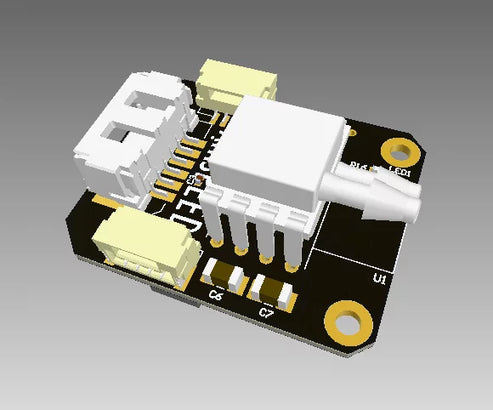

• RaccoonLab AirspeedNODE v2 is a wrapper under MS4525DO airspeed sensor that provides Cyphal interface. It reads measurements from the sensor via I²C and publishes temperature and differential pressure.
• This node measures differential pressure and temperature at a high rate and publishes averaged data at a lower rate. Publication and measurement rates might be configured using node parameters, but it is recommended to use the default values.
• Node supports both Cyphal and UAVCAN interfaces.
• Compatible with PX4 and Ardupilot-based autopilots.

Main specifications:

Sensor: MS4525DO airspeed sensor
Input Voltage: 5.5V – 30V

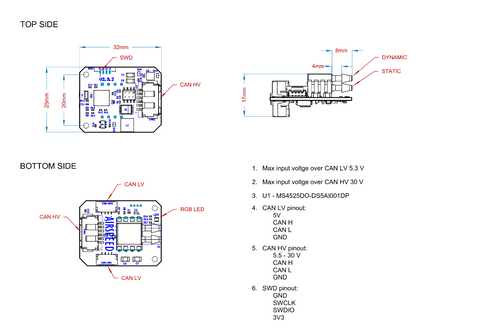

Connectors: UCANPHY Micro (JST-GH 4), 6-pin Molex, SWD
Mass: 8 g (with cable 9.4 g)
Dimensions: 40x23x14 mm

Note that RaccoonLab AirspeedNODE v2 ships with 1 pc JST 4-pin 0.17m cable. It comes with Cyphal firmware by default. If you want UAVCAN firmware, please add a note on the cart page.

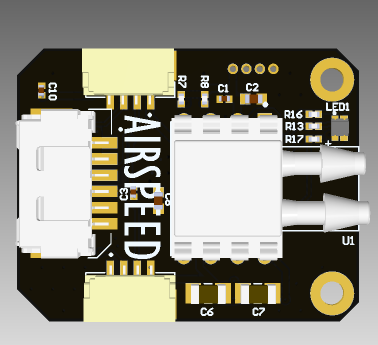

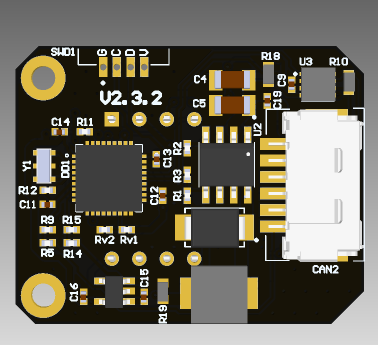

Node has main (measurement) and auxiliary (status, calibration, info, log, flight time recorder, etc) functions. The board has an internal LED indicator of the current status.

Qty Price Discount
1 €170.00 ea 0%
50 €161.50 ea 5%
100 €153.00 ea 10%
