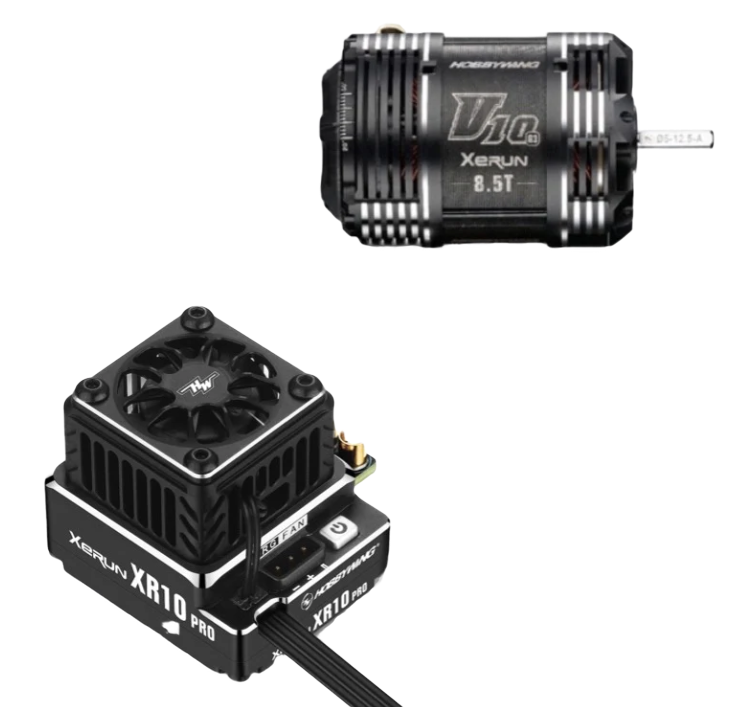

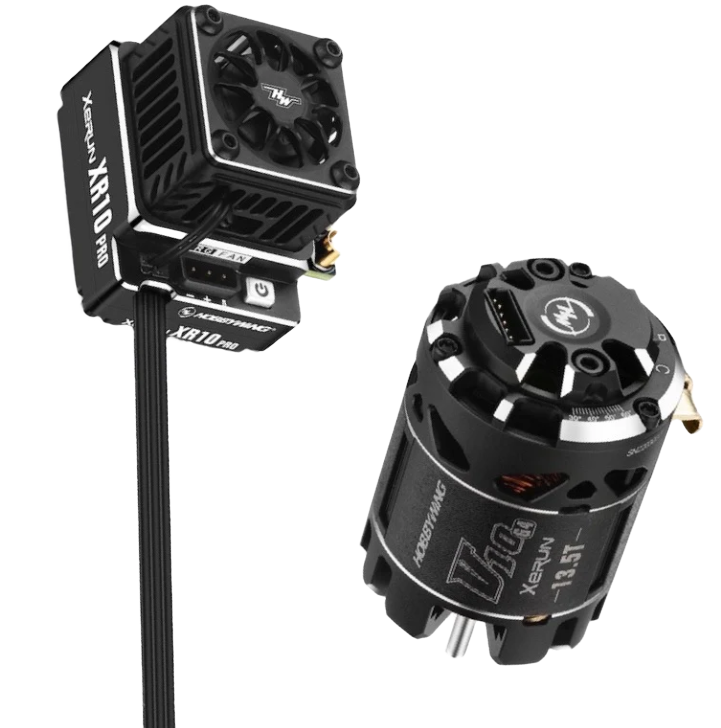

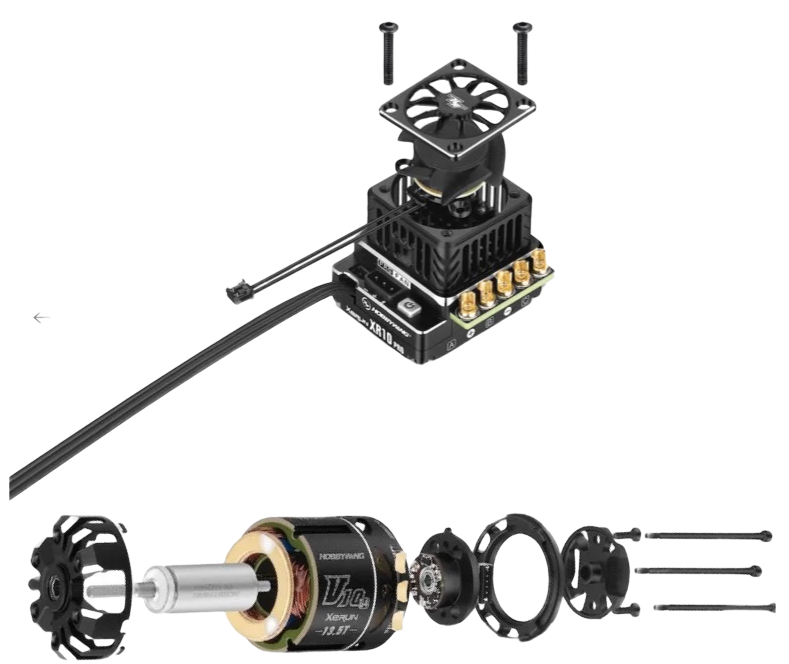

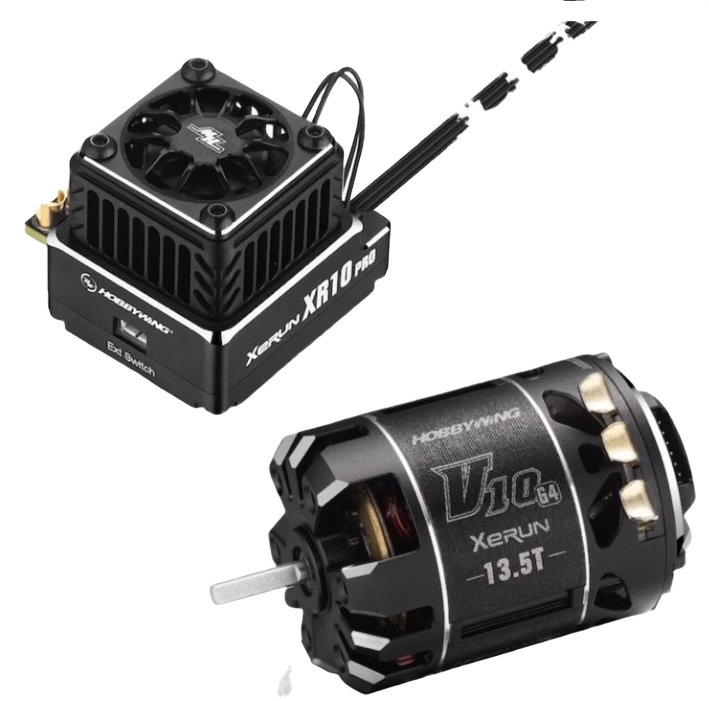

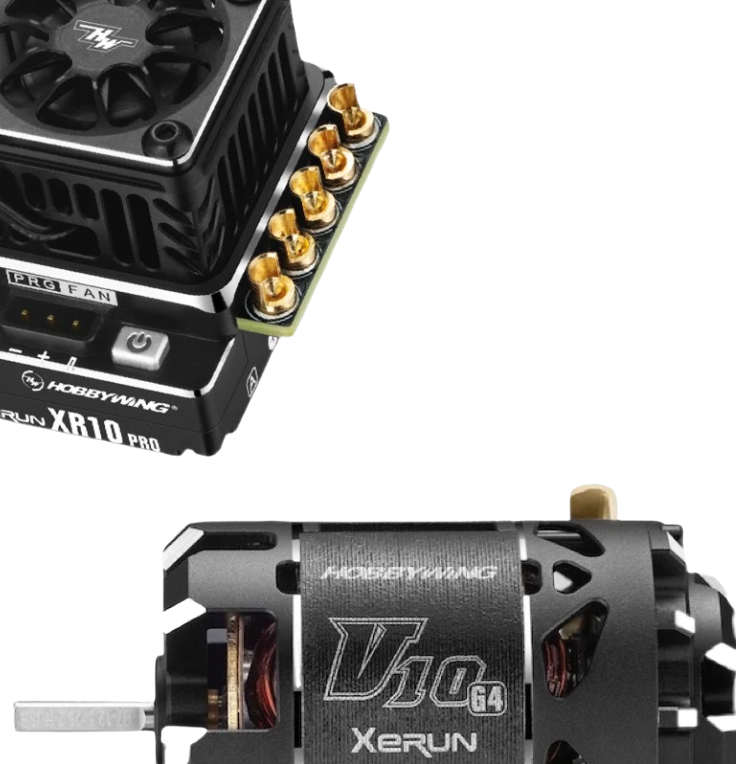

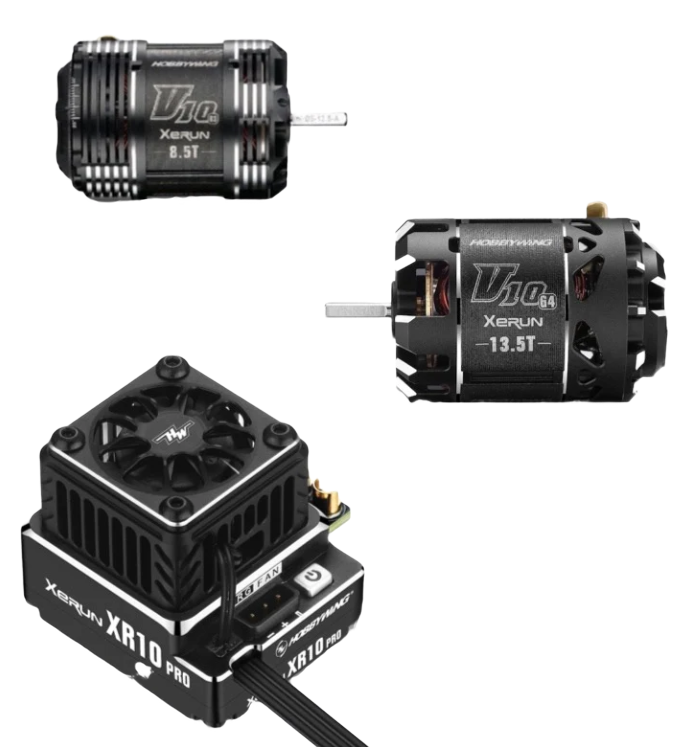

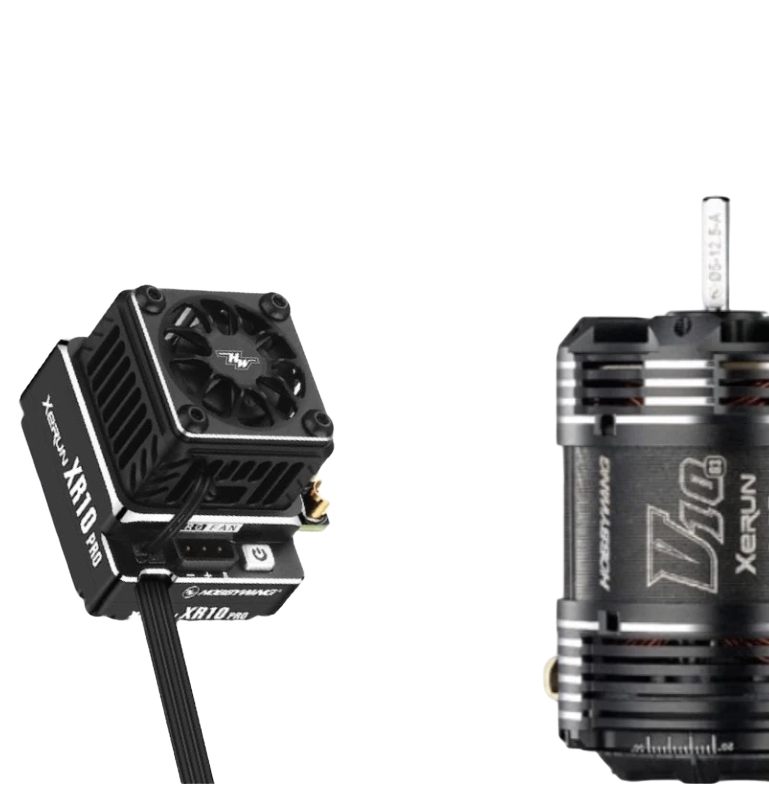

XR10 Pro ESC G2S Combo

What's in the box?

• 1x XR10 Pro G2S ESC
• Depending on the Motor Selection
  1x XERUN V10  Competition Brushless Motor

• 1x Bonus item(s)
  (2) Input wires & (3) Output wires -PRE-SOLDERED-
  (1)Dual capacitors -PRE-SOLDERED-
  (2) x cooling fan (1 extra)
• Decal




  Modified Editions

  P/N	Motor included in Combo
  38020325	V10 4.5T G3 _ ROAR National Champion Gear
  38020326	V10 5T G3
  38020327	V10 5.5T  G3
  38020328	V10 6T  G3
  38020329	V10 6.5T  G3
  38020330	V10  7T  G3
  38020331	V10 7.5T G3
  38020333	V10 8.5T G3



  Modified motors (4.5T-10.5T / 25.5T)


  • 2 POLE Super High-Efficiency brushless motor
  • Diameter/Length (mm): Ø=35.9mm L=51.2mm
  • Shaft Diameter/ Length (mm): Ø=3.17mm L=13.3mm (25.5T L=13mm)



Spec Class Editions

P/N - 38020441
Motor included in Spec Combo - V10 13.5T G4R - IFMAR World Champion Gear

P/N - 38020442
Motor included in Spec Combo - V10 17.5T G4R - IFMAR World Champion Gear

P/N - 38020443
Motor included in Spec Combo - V10 21.5T G4R

P/N - 38020336
Motor included in Spec Combo - V10 21.5T G4

P/N - 30112613B03
Motor included in Spec Combo - V10 25.5TG3R


Spec motors (13.5T-21.5T)

2 POLE Super High-Efficiency brushless motor
Diameter/Length (mm): Ø=35.8mm (1.41in) L=51.4mm (2.024in)
Shaft Diameter/ Length (mm): Ø=3.175mm (0.125in) L=13.9mm (0.547in)

p/n - 30401102
V10 - G3
T - 4.5
kv - 7340
LiPo - 2S
(Ω) - 0.0029
No-load Current (A) - 6.7
Max.Output Power (W) - 457
Current @Max. Output Power (A) - 122
Stock Rotor - Φ5-12.3
Weight (g) - 163

p/n - 30401116
V10 - G3
T - 5
kv - 6500
LiPo - 2S
(Ω) - 0.0035
No-load Current (A) - 5.5
Max.Output Power (W) - 443
Current @Max. Output Power (A) - 118
Stock Rotor - Φ5-12.3
Weight (g) - 159

p/n - 30401107
V10 - G3
T - 5.5
kv - 5900
LiPo - 2S
(Ω) - 0.0041
No-load Current (A) - 5
Max.Output Power (W) - 426
Current @Max. Output Power (A) - 115
Stock Rotor - Φ5-12.5
Weight (g) - 163

p/n - 30401117
V10 - G3
T - 6
kv - 5500
LiPo - 2S
(Ω) - 0.0048
No-load Current (A) - 4.5
Max.Output Power (W) - 415
Current @Max. Output Power (A) - 113
Stock Rotor - Φ5-12.5
Weight (g) - 162

p/n - 30401109
V10 - G3
T - 6.5
kv - 5120
LiPo - 2S
(Ω) - 0.0056
No-load Current (A) - 3.9
Max.Output Power (W) - 402
Current @Max. Output Power (A) - 113
Stock Rotor - Φ5-12.5
Weight (g) - 164

p/n - 30401118
V10 - G3
T - 7
kv - 4800
LiPo - 2S
(Ω) - 0.0065
No-load Current (A) - 3.5
Max.Output Power (W) - 364
Current @Max. Output Power (A) - 106
Stock Rotor - Φ5-12.5
Weight (g) - 161

p/n - 30401110
V10 - G3
T - 7.5
kv - 4420
LiPo - 2S
(Ω) - 0.0074
No-load Current (A) - 3.3
Max.Output Power (W) - 346
Current @Max. Output Power (A) - 100
Stock Rotor - Φ5-12.5
Weight (g) - 161

p/n - 30401119
V10 - G3
T - 8
kv - 4200
LiPo - 2S
(Ω) - 0.0089
No-load Current (A) - 3.0
Max.Output Power (W) - 320
Current @Max. Output Power (A) - 88
Stock Rotor - Φ5-12.5
Weight (g) - 160


p/n - 30401111
V10 - G3
T - 8.5
kv - 3970
LiPo - 2S
(Ω) - 0.0097
No-load Current (A) - 2.8
Max.Output Power (W) - 298
Current @Max. Output Power (A) - 84
Stock Rotor - Φ5-12.5
Weight (g) - 163

p/n - 30401746
V10 - G4R
T - 13.5
kv - 4100
LiPo - 1-3S
(Ω) - 0.020
No-load Current (A) - 5.4A
Max.Output Power (W) - 297
Current @Max. Output Power (A) - 70.7
Stock Rotor - Φ7-12.5*25.2-HUS
Weight (g) - 158

p/n - 30401745
V10 - G4R
T - 17.5
kv - 3450
LiPo - 1-3S
(Ω) - 0.035
No-load Current (A) - 4.6A
Max.Output Power (W) - 213
Current @Max. Output Power (A) - 49.4
Stock Rotor - Φ7-12.5*25.2-HUS
Weight (g) - 158

p/n - 30401744
V10 - G4R
T - 21.5
kv - 2600
LiPo - 1-3S
(Ω) - 0.055
No-load Current (A) - 4.0A
Max.Output Power (W) - 166
Current @Max. Output Power (A) - 37.7
Stock Rotor - Φ7-12.5*25.2-HUS
Weight (g) - 158

p/n - 30401133
V10 - G3R
T - 25.5
kv - 1780
LiPo - 2-3
(Ω) - 0.102
No-load Current (A) - 2.1
Max.Output Power (W) - 95
Current @Max. Output Power (A) - 23
Stock Rotor - Φ7-12.3-U
Weight (g) - 145
