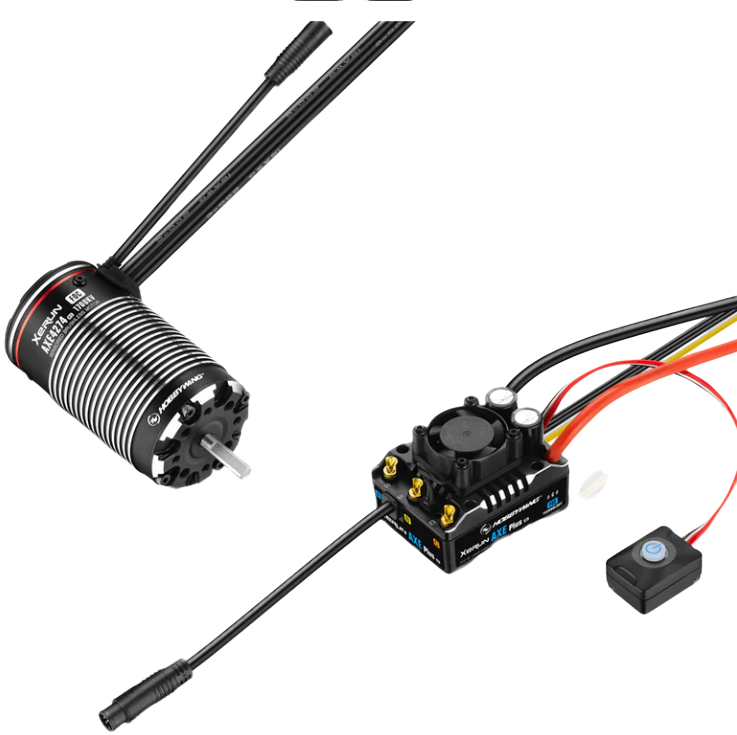

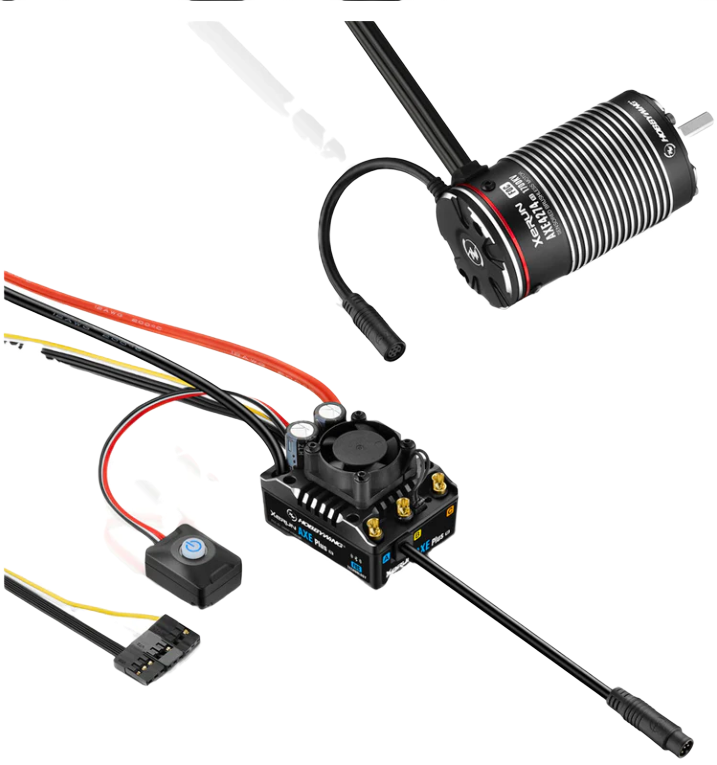

XERUN AXE R3 COMBO for 1/8-1/6 Crawlers

• Available Pre order Out of stock
• Free Shipping
$0.00
Quantity

Payment Methods

Description

What's in the box

  • 1x XeRun AXE R3 ESC
  • 1x XeRun AXE 4200 series motor



Overview

  • HOBBYWING's patented Field Oriented Control (FOC) technology. Its driving mode enhances the power system of rock crawlers. The low-speed torque is very strong, improving over standard brushless setups and even preferred over brushed setups for overall feel.
  • The chip-type magnetic encoder inside the motor guarantees consistency between the three phases' signals and always outputs pure and precise signals indicating the rotor position.
  • The waterproof and dust-proof design (IP67 standards) allows the AXE brushless power system to be used in all weather and track conditions without any risk of damage from water or dust. Damage to the vehicle caused by water, mud, or adverse conditions should be monitored closely when running in such environments.
  • Intelligent torque output and speed closed-loop control ensure easy handling and consistent motor RPM under all loads

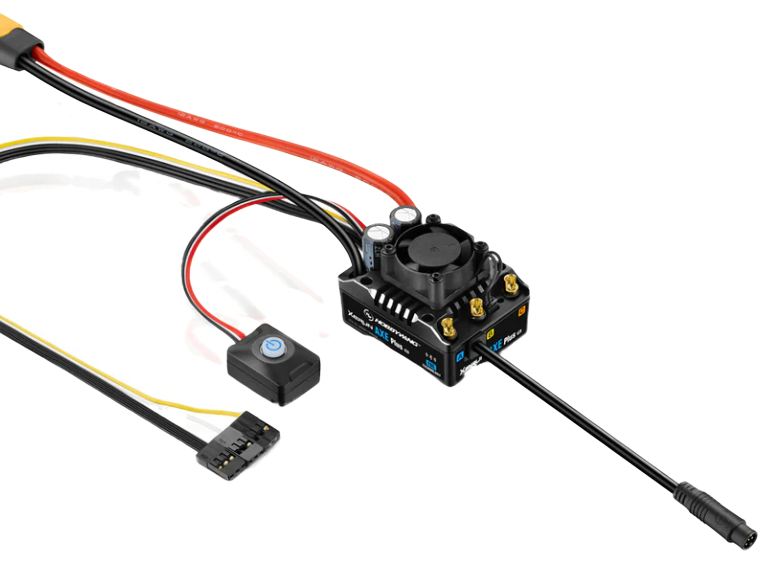

Specifications

Specifications:

Model - Cont./Peak Current
XERUN AXE Plus R3 - 135A/600A

Model - Motor Type
XERUN AXE Plus R3 - Only the XERUN AXE R3/R2 Series

Model - Applications
XERUN AXE Plus R3 - 1/10 & 1/8 & 1/6 Rock Crawler

Model - LiPo Cells
XERUN AXE Plus R3 - 2–6S Lipo

Model - BEC Output
XERUN AXE Plus R3 - 6V/7.4V/8.4V adjustable, Continuous Current of 6A

Model - Size
XERUN AXE Plus R3 - 49.5(L) x 37.9(W) x 32.8(H) mm (with Fan)

Model - Weight
XERUN AXE Plus R3 - 126.5g (Included input wires & connector)

Model - ESC Programming
XERUN AXE Plus R3 - iOS or Android smartphone (installed with the HW LINK app)


Motor Models Specifications:

Motor Model - XERUN AXE540 R2-2300KV
KV (No-load) - 2300KV
Recommended LiPos - 2–3S
No-load Current - 2.5A
Motor Diameter Length - 36.0/49.8 mm (1.42/1.96 in)
Shaft Diameter Length - 3.175/16.0 mm (0.125/0.63 in)
Poles - 4
Weight - 185g
Applications - 1/10 Crawler

Motor Model - XERUN AXE540L R2-1400KV
KV (No-load) - 1400KV
Recommended LiPos - 2–4S
No-load Current - 1.7A
Motor Diameter Length - 36.0/49.8 mm (1.42/1.96 in)
Shaft Diameter Length - 3.175/16.0 mm (0.125/0.63 in)
Poles - 4
Weight - 232g
Applications - 1/10 Crawler

Motor Model - XERUN AXE540L R2-2100KV
KV (No-load) - 2100KV
Recommended LiPos - 2–4S
No-load Current - 2.7A
Motor Diameter Length - 36.0/49.8 mm (1.42/1.96 in)
Shaft Diameter Length - 3.175/16.0 mm (0.125/0.63 in)
Poles - 4
Weight - 233g
Applications - 1/10 Crawler

Motor Model - XERUN AXE540L R2-2800KV
KV (No-load) - 2800KV
Recommended LiPos - 2–4S
No-load Current - 3.6A
Motor Diameter Length - 36.0/49.8 mm (1.42/1.96 in)
Shaft Diameter Length - 3.175/16.0 mm (0.125/0.63 in)
Poles - 4
Weight - 234g
Applications - 1/10 Crawler

Motor Model - XERUN AXE550 R2-3300KV
KV (No-load) - 3300KV
Recommended LiPos - 2–3S
No-load Current - 4.7A
Motor Diameter Length - 36.0/63.8 mm (1.42/2.51 in)
Shaft Diameter Length - 5/16.0 mm (0.197/0.63 in)
Poles - 4
Weight - 268g
Applications - 1/10& 1/8Crawler

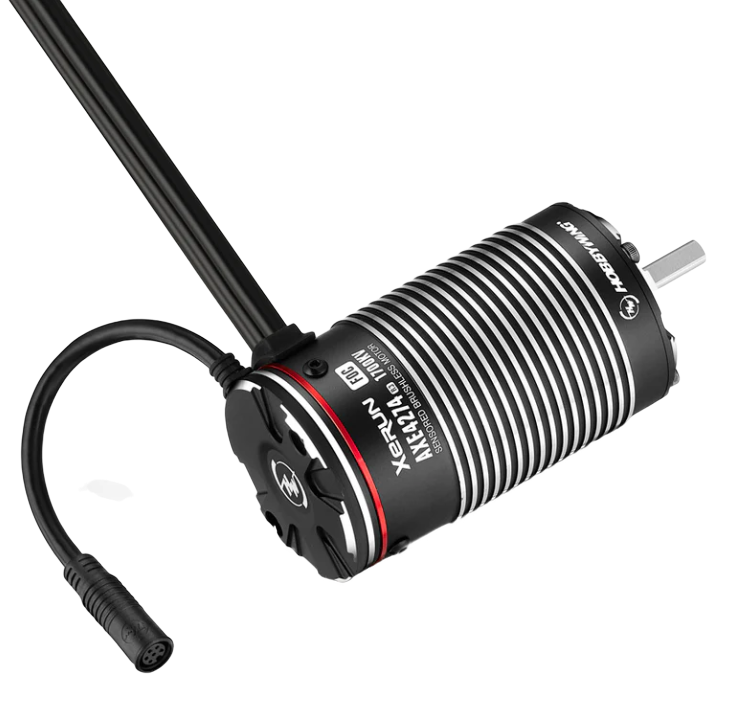

Motor Model - XERUN AXE4274 R3-1700KV
KV (No-load) - 1700KV
Recommended LiPos - 3–6S
No-load Current - 4A
Motor Diameter Length - 42/74 mm (1.65/2.91 in)
Shaft Diameter Length - 5/18.5 mm (0.197/0.73 in)
Poles - 4
Weight - 405g
Applications - 1/8&1/6Crawler

Motor Model - XERUN AXE4274 R3-1700KV
KV (No-load) - 1700KV
Recommended LiPos - 3–6S
No-load Current - 4A
Motor Diameter Length - 42/74 mm (1.65/2.91 in)
Shaft Diameter Length - 5/18.5 mm (0.197/0.73 in)
Poles - 4
Weight - 405g
Applications - 1/8&1/6Crawler

Motor Model - XERUN AXE4274 R3-2000KV
KV (No-load) - 2000KV
Recommended LiPos - 3–6S
No-load Current - 4.5A
Motor Diameter Length - 42/74 mm (1.65/2.91 in)
Shaft Diameter Length - 5/18.5 mm (0.197/0.73 in)
Poles - 4
Weight - 415g
Applications - 1/8&1/6Crawler
