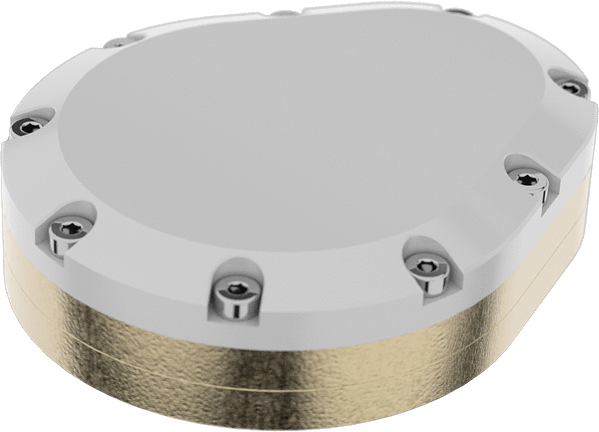

truFYX EXT GPS with SBAS (Class Beta-1)

Overview

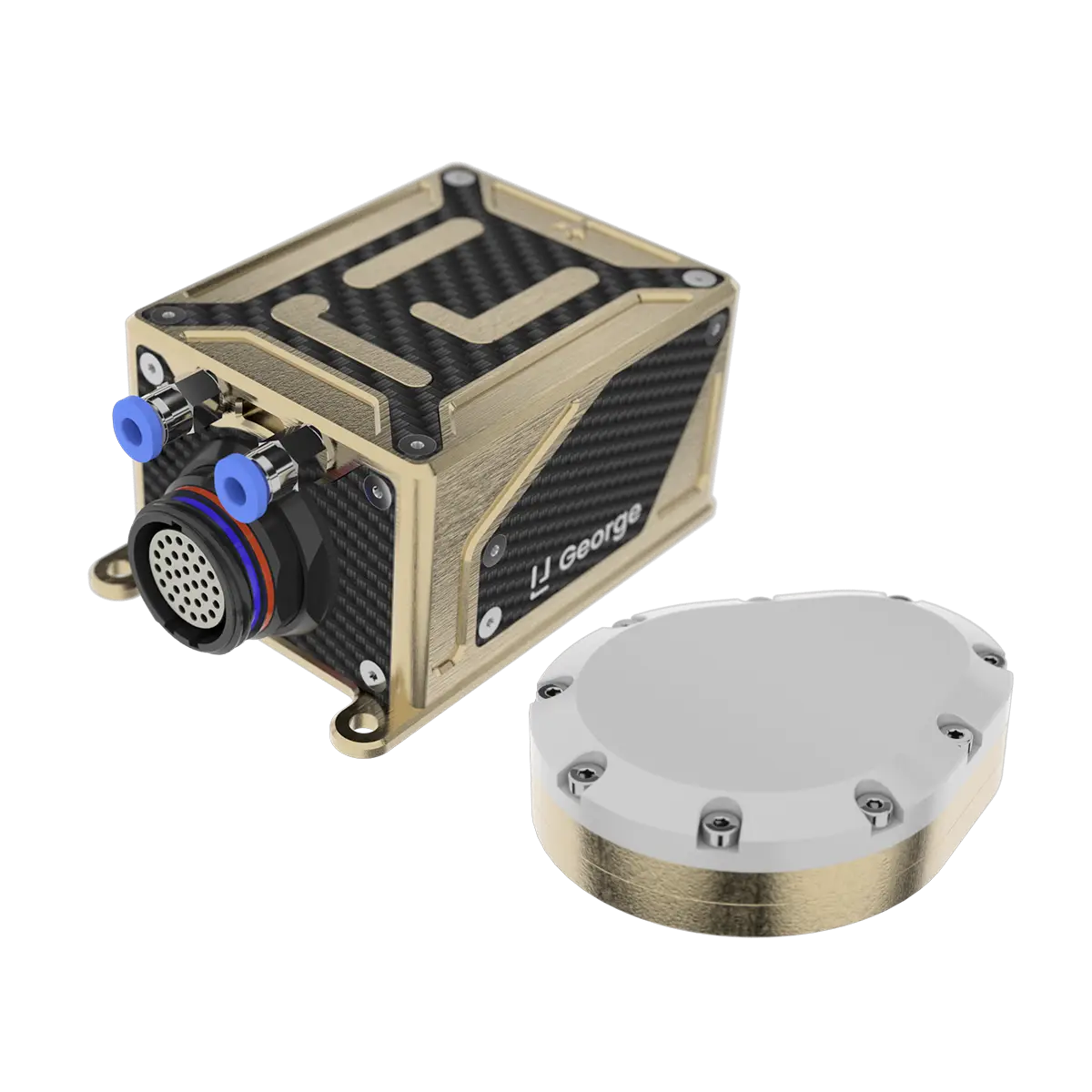

truFYX EXT is a non-certified version of the world’s first Technical Standard Order (TSO) certified SBAS Global Positioning System (GPS) position source designed specifically for Unmanned Aircraft Systems (UAS) autopilots and Automatic Dependent Surveillance – Broadcast (ADS-B) OUT solutions. The truFYX EXT incorporates the same GPS-SBAS receiver

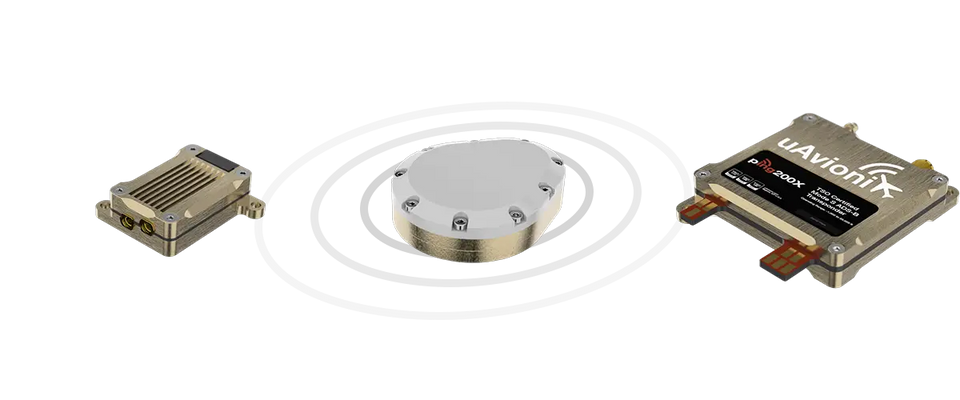

and antenna technology as the TSO-certified truFYX, adding a more robust enclosure, barometric pressure altimeter, and internal heater. Simultaneous dual outputs are available in specific configurations to provide a high-integrity output as well as a precision Kalman filtered output. Reduce your onboard GPS count by leveraging truFYX EXT as the primary position source to your autopilot and ADS-B solution.

Meets performance of TSO-C145e, Class Beta-1 GPS with SBAS:

• Primary position source for ADS-Bsurveillance
• Primary position source for domestic en route and terminal navigation

• Integrity in the absence of the SBAS signal through the use of Fault Detection and
  Exclusion (FDE)
• Enhanced accuracy with processing of optional ionospheric corrections
• Meets worldwide requirements for controlled airspace access





Radio Technical Commission for Aeronautics (RTCA)

• DO-229E Class Beta-1

• DO-178C Level C

• DO-254 Level C

• DO-160G (see Environmental) Federal Aviation Administration (FAA)

• Meets the performance of TSO-C145e Class Beta-1, TSO not currently authorized
