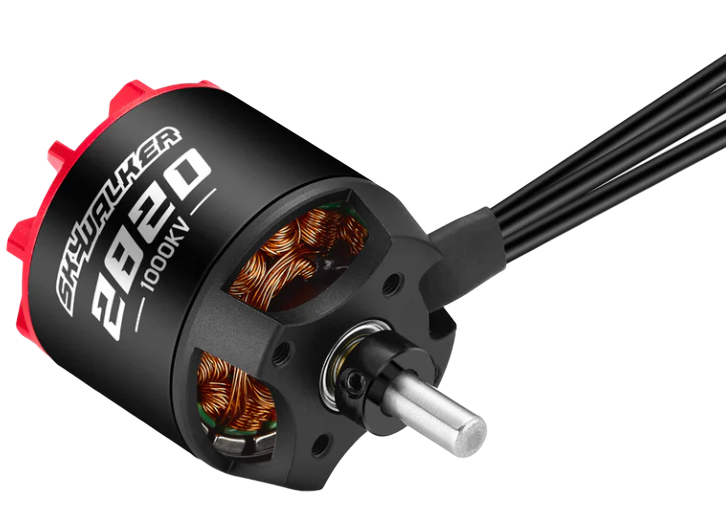

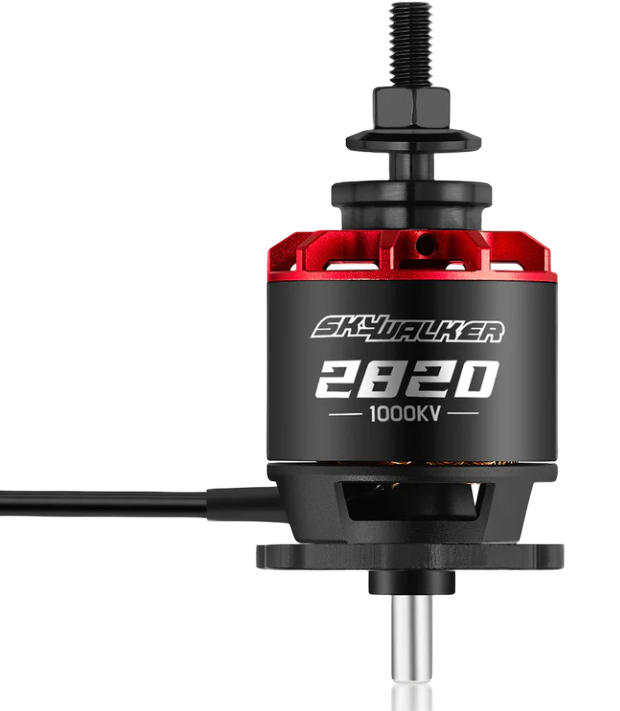

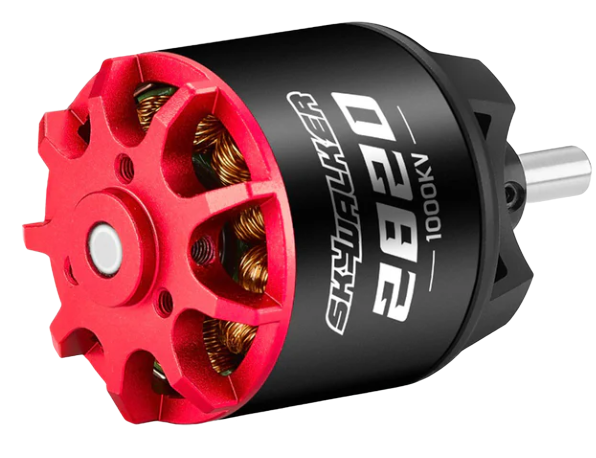

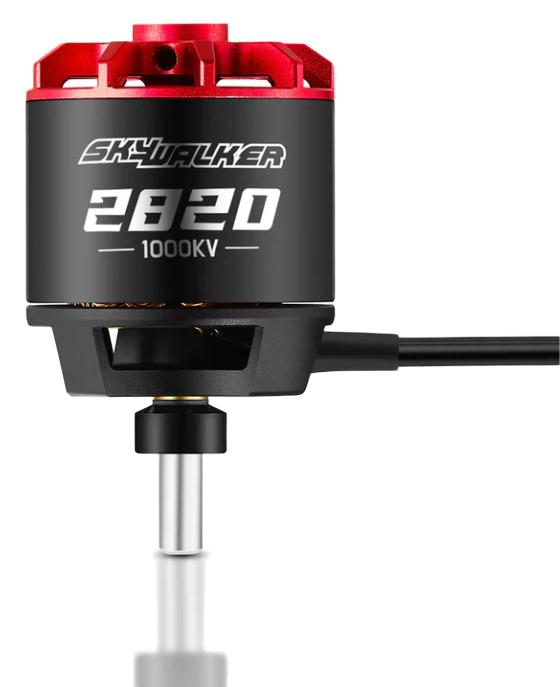

Skywalker 2820 SL motor

Available Pre order Out of stock
• Free Shipping
$0.00
Quantity

Payment Methods

Description

S.V.C technology

  • Experience Superior Vibration Control & smooth operation.
  • High power, strong performance

What's in the box?

  • (1) Skywalker brushless motor
  • (1) Mounting plate and hardware
  • (1) Prop adapter with hardware

*Learn more about Skywalker 2800 series motors >



  • The 2814, 2820, and 2826 fixed wing motors are newly designed with a high maximum pulling force of 4785g (2826 540KV, 22.2V, 14x6E paddles). These motors are ideal for 800-2300g 3D stunt fixed wings, gliders, sports fixed wings, and other applications where a strong pulling force is needed.
  • Utilizing a large hollow design and self-dissipating structure, the top cover effectively increases the motor's heat dissipation capacity, resulting in a longer lifespan for the motor.
  • This motor features advanced production and assembly techniques, including high-quality bearings and precise CNC machining, resulting in a remarkably low rotor dynamic balance. The result is reduced motor vibration and a smoother, more stable operation.
  • Top branded JNEH1200 silicon steel sheet, 0.2mm thick material, provides lower iron loss.N48 strong magnetic arc magnetic steel design provides maximum torque output for the motor.180 high temperature resistant enameled wire, enhances the high temperature resistance of the stator coil. Silicone wire outlet, which is softer and easier to route than the traditional straight outlet silicone wire.
Specifications

Specification:

Parameter - Recommended Battery
SkyWalker 2814 (1250KV) - 3-4S LiPo
SkyWalker 2820 (1000KV) - 3–4S LiPo
SkyWalker 2826 (850KV) - 3–4S LiPo

Parameter - No-load Current
SkyWalker 2814 (1250KV) - 2.98A/14.8V
SkyWalker 2820 (1000KV) - 2.65A/14.8V
SkyWalker 2826 (850KV) - 2.55A/14.8V

Parameter - Maximum Continuous Current
SkyWalker 2814 (1250KV) - 75.1A/35s
SkyWalker 2820 (1000KV) - 77A/46s
SkyWalker 2826 (850KV) - 69A/2 min 11s

Parameter - Maximum Continuous Power
SkyWalker 2814 (1250KV) - 1111.5W/35s
SkyWalker 2820 (1000KV) - 1139.7W/46s
SkyWalker 2826 (850KV) - 1006.5W/1 min 49s

Parameter - Motor Size
SkyWalker 2814 (1250KV) - Φ35.1*54mm
SkyWalker 2820 (1000KV) - Φ35.1*60mm
SkyWalker 2826 (850KV) - 35.1*66mm

Parameter - Shaft Diameter
SkyWalker 2814 (1250KV) - 5mm
SkyWalker 2820 (1000KV) - 5mm
SkyWalker 2826 (850KV) - 5mm

Parameter - Clip Mounting Hole Thread
SkyWalker 2814 (1250KV) - Φ15mm–3*M2.5
SkyWalker 2820 (1000KV) - Φ15mm–3*M2.5
SkyWalker 2826 (850KV) - Φ15mm–3*M2.5

Parameter - Base Thread
SkyWalker 2814 (1250KV) - Φ19mm–2*M3/Φ25mm–2*M3
SkyWalker 2820 (1000KV) - Φ19mm–2*M3/Φ25mm–2*M3
SkyWalker 2826 (850KV) - Φ19mm–2*M3/Φ25mm–2*M3

Parameter - Motor Weight
SkyWalker 2814 (1250KV) - 114g
SkyWalker 2820 (1000KV) - 145g
SkyWalker 2826 (850KV) - 176.2g

Parameter - Recommended ESC
SkyWalker 2814 (1250KV) - Skywalker-V2 80A
SkyWalker 2820 (1000KV) - Skywalker-V2 80A
SkyWalker 2826 (850KV) - Skywalker-V2 80A

Parameter - Propeller
SkyWalker 2814 (1250KV) - 4S:8×6E/9×4.5E/10×5E
3S: 10×5E/10×6E/11×5.5E
SkyWalker 2820 (1000KV) - 4S: 10×5E/11×5.5E/12×6E
3S: 12×6E/13×6.5E/14×6E
SkyWalker 2826 (850KV) - 4S: 12×6E/13×6.5E
3S: 14×6E/15×6E/15×8E
