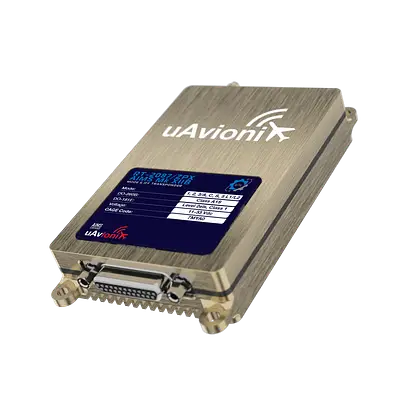

RT-2087/ZPX

• Available Pre order Out of stock
• Free Shipping
$500.00
Quantity

Payment Methods

Description

Micro IFF Mode 5 Transponder for Tactical UAVs

The RT-2087/ZPX is a complete, low-SWaP Combat ID and Air Traffic Control surveillance system designed to satisfy Identification Friend or Foe (IFF) Transponder and Automatic Dependent Surveillance – Broadcast (ADS-B) requirements for Unmanned Aircraft Systems (UAS) operating both in the battlefield and in controlled airspace.

When combined with a micro-crypto (e.g. KIV-79), small and tactical UAS benefit from interoperability using Mode 5—the latest IFF encryption standard adopted by NATO and its allies. Crypto emulators are available for non-classified development, testing, and NSM operation. ADS-B In is a supported native function providing Detect and Avoid (DAA) functionality. Ethernet control is an available option.

The RT-2087/ZPX system requirements are derived from TSO C112e, C166b, and C88b.



Specifications

Tech Specs...


Specification Value


Input Voltage - 11-33VDC / 3.5W Continuous (NORMAL) / 4W Peak (8ms maximum)

Size - 83 x 47 x 15 mm

Weight - 68 grams

Operating Temp - -45 to 71°C


Transponder

Mode 1,2, 3/A, C, S - -76dBm ±2dB
Mode 5 MTL (sensitivity) - -80dBm
1090 MHZ Tx Power - 250 W (54 dBm)

Altimeter
Range Accuracy TSO-C88b compliatnt up to 35,000 ft / 35,000 to 60,000 ft, ± 1%

Control Interface
Baudrate - 57,600 bps RS-485/-232
Protocol - GDL90+

Position Interface
Baudrate - 115,200 bps RS-232
Protocol - uAvionix OEM Protocol

ADS-B Traffic Interface
Baudrate - 115,200 bps RS-232
Protocol - GDL90+

KIV Interface
AIMS 04-900(A) - Option B (KIV-77 / KIV-79)

Options
1030/1090 MHz Transponder Antenna
uAvionix truFYX TSO-C145e Position Source
NSM programming for crypto emulator
Crypto emulators (KIV-77 and KIV-79)
