QUICRUN 10BL120 Sensored G2 COMBO

• Available Pre order Out of stock
• Free Shipping
$165.00
Quantity

Payment Methods

Description

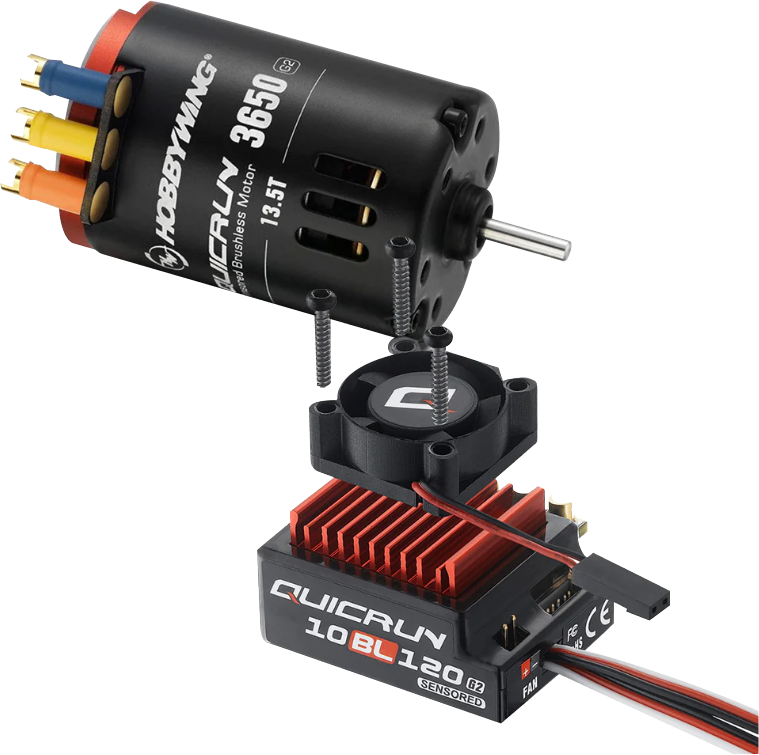

What is included in this combo?

  • (1) QUICRUN WP 10BL120 SD G2 ESC (Sensored)
  • (1) QUICRUN 3650 SD G2 brushless motor w/ your choice of Turn
  • HOBBYWING decals
  • Accessories

Overview

  • High performance but low price, users can own this reliable ESC at an affordable cost.
  • Sensored programmable electric speed controller for a brushless motor.
  • Compatible with LCD program box PRO, LED Program Card (purchase separately)

  • The QUICRUN 10BL120 Sensored G2 COMBO is not suitable for drones because it is designed for 1/10th scale RC cars and off-road vehicles, not for multirotor UAV applications. Here's why:

    Why the QUICRUN 10BL120 Sensored G2 Combo is Not for Drones

    1. Optimized for Ground Vehicles

      • This ESC is specifically designed for RC cars and is tuned for high torque acceleration, braking, and speed control—not for continuous throttle control needed in drones.

    2. Sensored Brushless Motor Design

      • The motor in this combo is a sensored brushless motor, which is beneficial for RC cars (providing smooth startup and low-speed control).
      • Drones use sensorless brushless motors, as flight controllers handle RPM adjustments dynamically and do not require sensors.

    3. ESC Firmware and Protocols

      • The QUICRUN 10BL120 ESC does not support multirotor protocols like DShot, OneShot, or Multishot, which are necessary for drone stabilization.
      • It is not compatible with flight controllers like PX4, ArduPilot, Betaflight, or INAV.

    4. Weight and Form Factor

      • RC car ESCs are bulkier and heavier compared to drone-specific ESCs, making them impractical for aerial applications.

    5. No Fast PWM Switching for Multirotors

      • Drone ESCs operate at high PWM frequencies (typically 24kHz to 48kHz), whereas RC car ESCs like the 10BL120 operate at much lower frequencies, leading to slow throttle response and instability in flight.



Specifications

Specification Details

QUICRUN 10BL120 SENSORED G2

Cont./Peak Current - 120A / 760A
Motor Type - Sensored/Sensorless Brushless Motor
Applications - 1/10th Touring, Buggy, Drift
Motor Limit - 2S Lipo: ≥ 4.5T / 3S Lipo: ≥ 10.5T / 3650 size motor
LiPo Cells - 2-3S LiPo
BEC Output - 6V/7.4V @ 4A (Switch-mode)
Cooling Fan - Powered by built-in BEC
Size/Weight - 44(L) × 36.8(W) × 32.3(H) mm / 101.5g (with wires)
Programming Port - Throttle cable

Model - QUICRUN-3650SD-6.5T-G2
PN - 30404312
KV (No-load) - 5750
LiPo - 2S
R (Ω) - 0.0066
No-load Current (A) - 4.6
Dimension (mm) - Outer Diameter 36 / Length 52.8
Shaft (mm) - Diameter 3.17 / Length of Projecting Part 15
Pole - 2
Weight (g) - 194
Applicable - 1:10, 1:12 On-Road (Truggy/F1/Monster) & Off-Road (Buggy/2WD SC Truck/Truck) / STOCK/SPORT Race (choose the motor base on competition rules) / Free/Casual run for new beginners.Rock Crawler (21.5T/25.5T only)

Model - QUICRUN-3650SD-8.5T-G2
PN - 30404311
KV (No-load) - 4560
LiPo - 2S
R (Ω) - 0.0125
No-load Current (A) - 3.2
Dimension (mm) - Outer Diameter 36 / Length 52.8
Shaft (mm) - Diameter 3.17 / Length of Projecting Part 15
Pole - 2
Weight (g) - 186
Applicable - 1:10, 1:12 On-Road (Truggy/F1/Monster) & Off-Road (Buggy/2WD SC Truck/Truck) / STOCK/SPORT Race (choose the motor base on competition rules) / Free/Casual run for new beginners.Rock Crawler (21.5T/25.5T only)

Model - QUICRUN-3650SD-10.5T-G2
PN - 30404309
KV (No-load) - 3600
LiPo - 2-3S
R (Ω) - 0.0183
No-load Current (A) - 2.8
Dimension (mm) - Outer Diameter 36 / Length 52.8
Shaft (mm) - Diameter 3.17 / Length of Projecting Part 15
Pole - 2
Weight (g) - 186
Applicable - 1:10, 1:12 On-Road (Truggy/F1/Monster) & Off-Road (Buggy/2WD SC Truck/Truck) / STOCK/SPORT Race (choose the motor base on competition rules) / Free/Casual run for new beginners.Rock Crawler (21.5T/25.5T only)

Model - QUICRUN-3650SD-13.5T-G2
PN - 30404310
KV (No-load) - 2850
LiPo - 2-3S
R (Ω) - 0.0289
No-load Current (A) - 2.4
Dimension (mm) - Outer Diameter 36 / Length 52.8
Shaft (mm) - Diameter 3.17 / Length of Projecting Part 15
Pole - 2
Weight (g) - 186
Applicable - 1:10, 1:12 On-Road (Truggy/F1/Monster) & Off-Road (Buggy/2WD SC Truck/Truck) / STOCK/SPORT Race (choose the motor base on competition rules) / Free/Casual run for new beginners.Rock Crawler (21.5T/25.5T only)

Model - QUICRUN-3650SD-17.5T-G2
PN - 30404306
KV (No-load) - 2170
LiPo - 2-3S
R (Ω) - 0.0488
No-load Current (A) - 1.6
Dimension (mm) - Outer Diameter 36 / Length 52.8
Shaft (mm) - Diameter 3.17 / Length of Projecting Part 15
Pole - 2
Weight (g) - 187
Applicable - 1:10, 1:12 On-Road (Truggy/F1/Monster) & Off-Road (Buggy/2WD SC Truck/Truck) / STOCK/SPORT Race (choose the motor base on competition rules) / Free/Casual run for new beginners.Rock Crawler (21.5T/25.5T only)

Model - QUICRUN-3650SD-21.5T-G2
PN - 30404307
KV (No-load) - 1800
LiPo - 2-3S
R (Ω) - 0.0747
No-load Current (A) - 1.3
Dimension (mm) - Outer Diameter 36 / Length 52.8
Shaft (mm) - Diameter 3.17 / Length of Projecting Part 15
Pole - 2
Weight (g) - 187
Applicable - 1:10, 1:12 On-Road (Truggy/F1/Monster) & Off-Road (Buggy/2WD SC Truck/Truck) / STOCK/SPORT Race (choose the motor base on competition rules) / Free/Casual run for new beginners.Rock Crawler (21.5T/25.5T only)

Model - QUICRUN-3650SD-25.5T-G2
PN - 30404308
KV (No-load) - 1520
LiPo - 2-3S
R (Ω) - 0.01
No-load Current (A) - 1.1
Dimension (mm) - Outer Diameter 36 / Length 52.8
Shaft (mm) - Diameter 3.17 / Length of Projecting Part 15
Pole - 2
Weight (g) - 186
Applicable - 1:10, 1:12 On-Road (Truggy/F1/Monster) & Off-Road (Buggy/2WD SC Truck/Truck) / STOCK/SPORT Race (choose the motor base on competition rules) / Free/Casual run for new beginners.Rock Crawler (21.5T/25.5T only)
