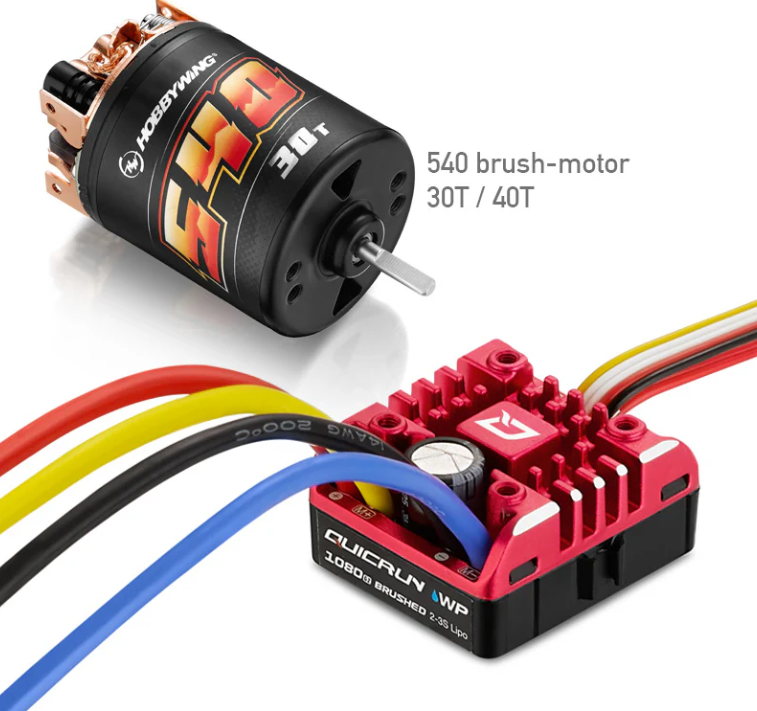

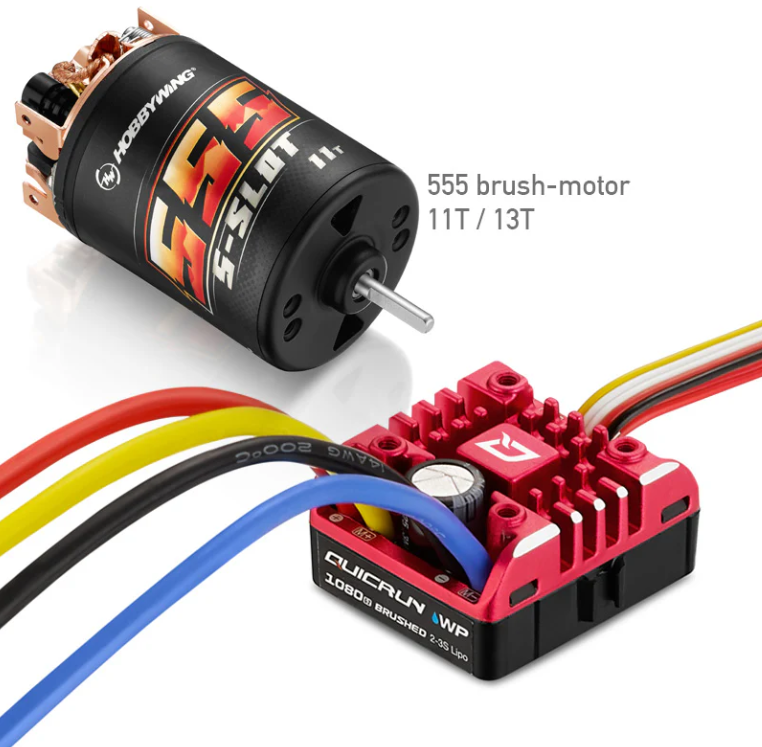

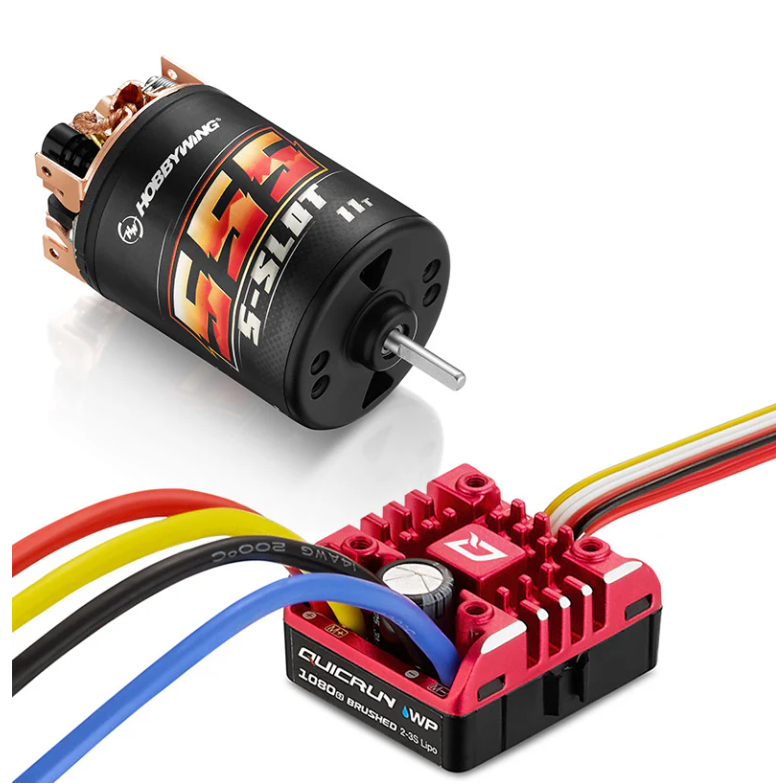

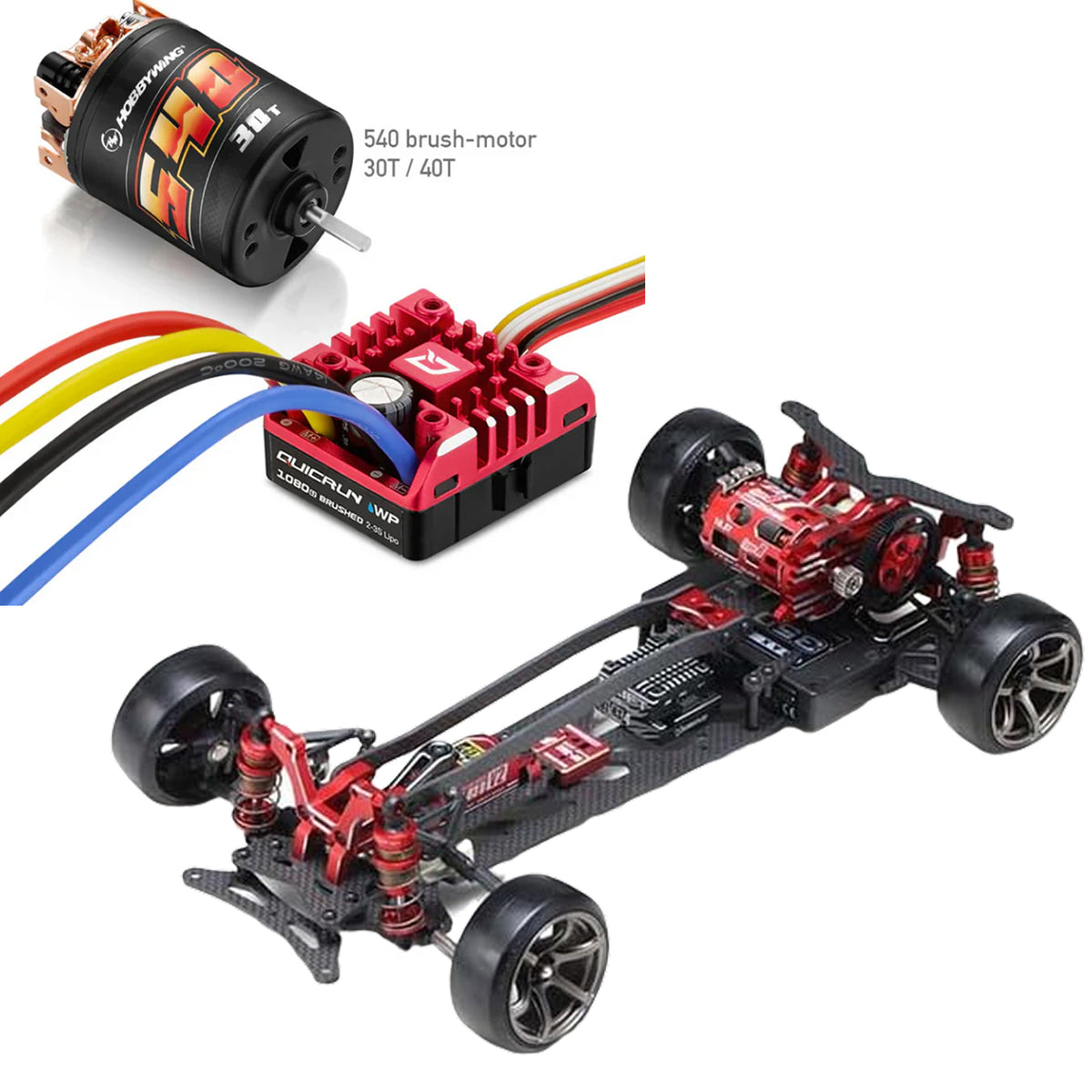

QUICRUN 1080 G2 Combo

Features

• Fully Water-proof and dust-proof, suitable for all-weather races.
• Small in size, with a built-in capacitor module.
• Four operating modes available (Real Car Operating / FWD with Brake / FWD and REV with Brake / FWD and REV)
• In the first "real car mode" The direction of the motor is switchable in real time by using the idle channel on the remote control.
• Real-Time Adjustment of Drag Braking Force.
• 15 programmable parameter items
• PWM Frequency: 1K/2K/4K/8K/16K Adjustable
• Freewheeling (DEO) capability
• Drag brake rate in 9 levels (adjustable)
• Electronic switch
• Aluminum case for great heat dissipation
• Great current endurance capability.
• Great built-in BEC output capacity switchable 6V/ 7.4/ 8.4V
• Automatic throttle range calibration, easy to use.
• Multiple protections:
• Over Voltage Protection
• Low voltage cut-off protection for battery
• Over-heating protection
• Throttle signal loss protection, and much more
• Risk-Free manufacturer's limited warranty available through Authorized Dealers in North America

• WP-1080 G2 ESC VS WP-1080 (G1)


  • BEC output can go up to 8.4V

  • Real-Time Adjustment of Drag Braking Force.
  • Real Car Mode
  • New Aluminum case

Specification: QuicRun Brushed ESC series

Brushed ESC - p/n
WP 1080 G2 - 30120202
WP 1080 - 30112750
WP 1060 - 30120201

Brushed ESC - Waterproof
WP 1080 G2 - Yes
WP 1080 - Yes
WP 1060 - Yes

Brushed ESC - Dual Mode
WP 1080 G2 - No
WP 1080 - No
WP 1060 - No

Brushed ESC - Fwd Cont. / Peak Rev Cont. / Peak
WP 1080 G2 - 80A / 400A
WP 1080 - 80A / 400A
WP 1060 - 60A / 360A

Brushed ESC - Car Applicable
WP 1080 G2 - 1/10 Rock Crawler
WP 1080 - 1/8 - 1/10 Rock Crawler and Tank or Boat
WP 1060 - 1/10 Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank

Brushed ESC - Motor Limit
WP 1080 G2 - Brushed Motors 540/550 Series 2S LiPo or 5S NiMH / 3S LiPo or 9S NiMH
WP 1080 - Brushed Motors 540/550/775 Series 2S LiPo or 6S NiMH: ≥10T or\RPM<3000@7.4V / 3S LiPo or 9S NiMH: ≥16T or RPM<2000@7.4V
WP 1060 - Brushed motor 540 or 550 series / 2S Lipo or 6 NiMH: T ≥12T or RPM<3000 @7.2V / 3S Lipo or 9 NiMH: T≥18T or RPM< 2000 @7.2V

Brushed ESC - Battery
WP 1080 G2 - 2-3S LiPo or 5-9S NiMH
WP 1080 - 2-3S LiPo or 5-9S NiMH
WP 1060 - 2-3S Lipo or 5-9 NiMH

Brushed ESC - BEC Output
WP 1080 G2 - 6V/7.4V/8.4V @ 4A (switch-mode)
WP 1080 - 6V/7.4V @ 3A (switch mode)
WP 1060 - 2A/5V (Linear Mode)

Brushed ESC - PWM Frequency
WP 1080 G2 - Adjustable 1K/2K/4K/8K/16K
WP 1080 - Adjustable 1K/2K/4K/8K/16K
WP 1060 - 1KHz

Brushed ESC - Wires
WP 1080 G2 - 14AWG-200mm w/ XT60 Connector
WP 1080 - 14AWG-200mm w/ XT60 Connector
WP 1060 - 14AWG-200mm w/TAMIYA Connector

Brushed ESC - Size/ Weight
WP 1080 G2 - 37.2(L)* 31.9(W)*18.4(H) (without fan)
WP 1080 - 36.5(L)* 32(W)*18(H) (without fan)
WP 1060 - 36.5(L)*32(W)*18(H)

Brushed ESC - External Program Port
WP 1080 G2 - Separate Port Available
WP 1080 - External Program Port Available
WP 1060 - N/A

Brushed ESC - Programming
WP 1080 G2 - LED Program card
WP 1080 - LED Program card
WP 1060 - Jumper Cap

Brushed ESC - Cooling Fan
WP 1080 G2 - -
WP 1080 - Without cooling fan
WP 1060 - -

Brushed ESC - Weight*
WP 1080 G2 - 70.2g w/ wire and connectors
WP 1080 - 58.5g
WP 1060 - 39g
