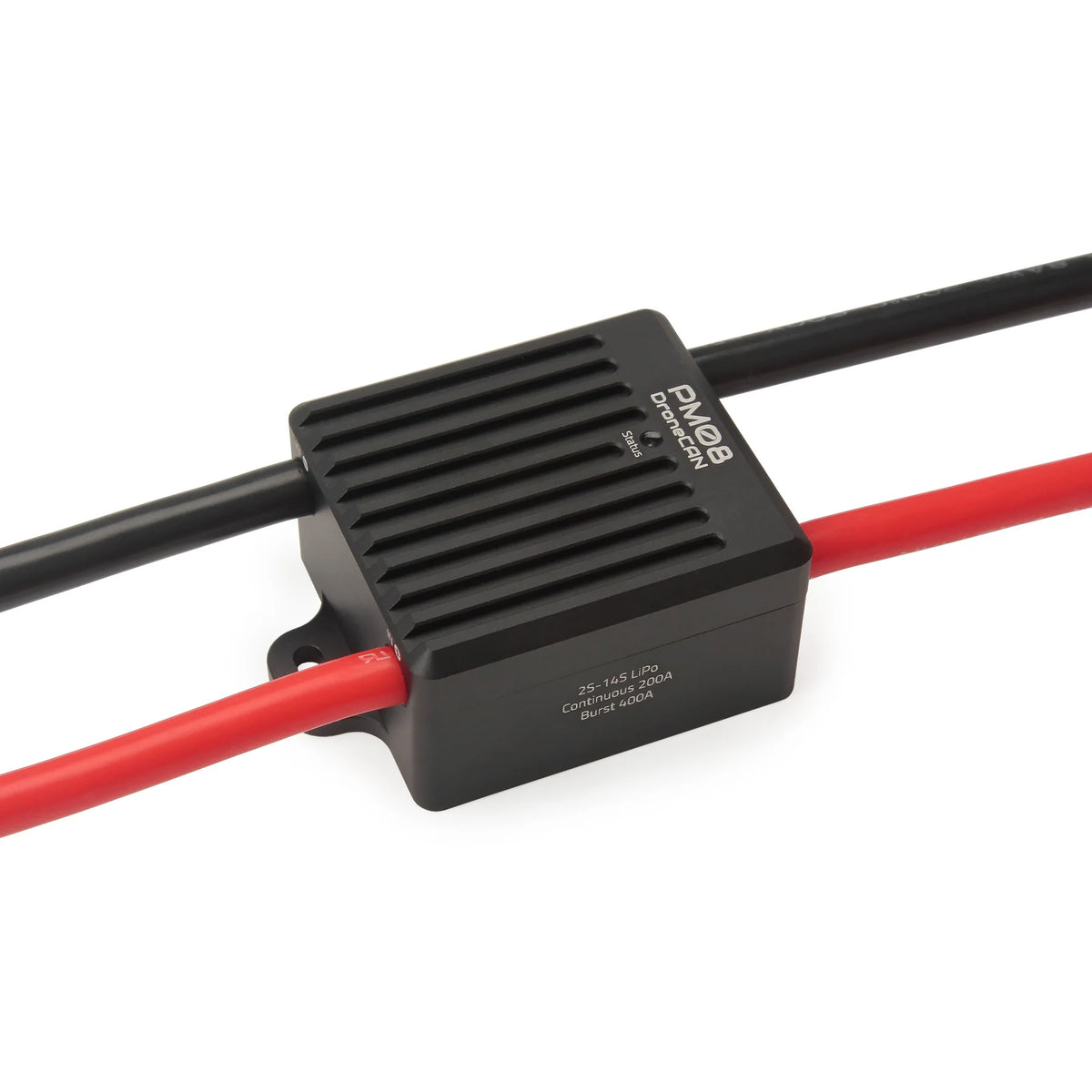

Feature

• Supports 2-14S & 200A Cont, 400A Burst
• DroneCAN Communication Protocol
• Small & Compact Design
• Two 5V Output with Independent BEC IC and Circuitry
• Separated Sensor and BEC Board to Minimize Electrical Noise Interference

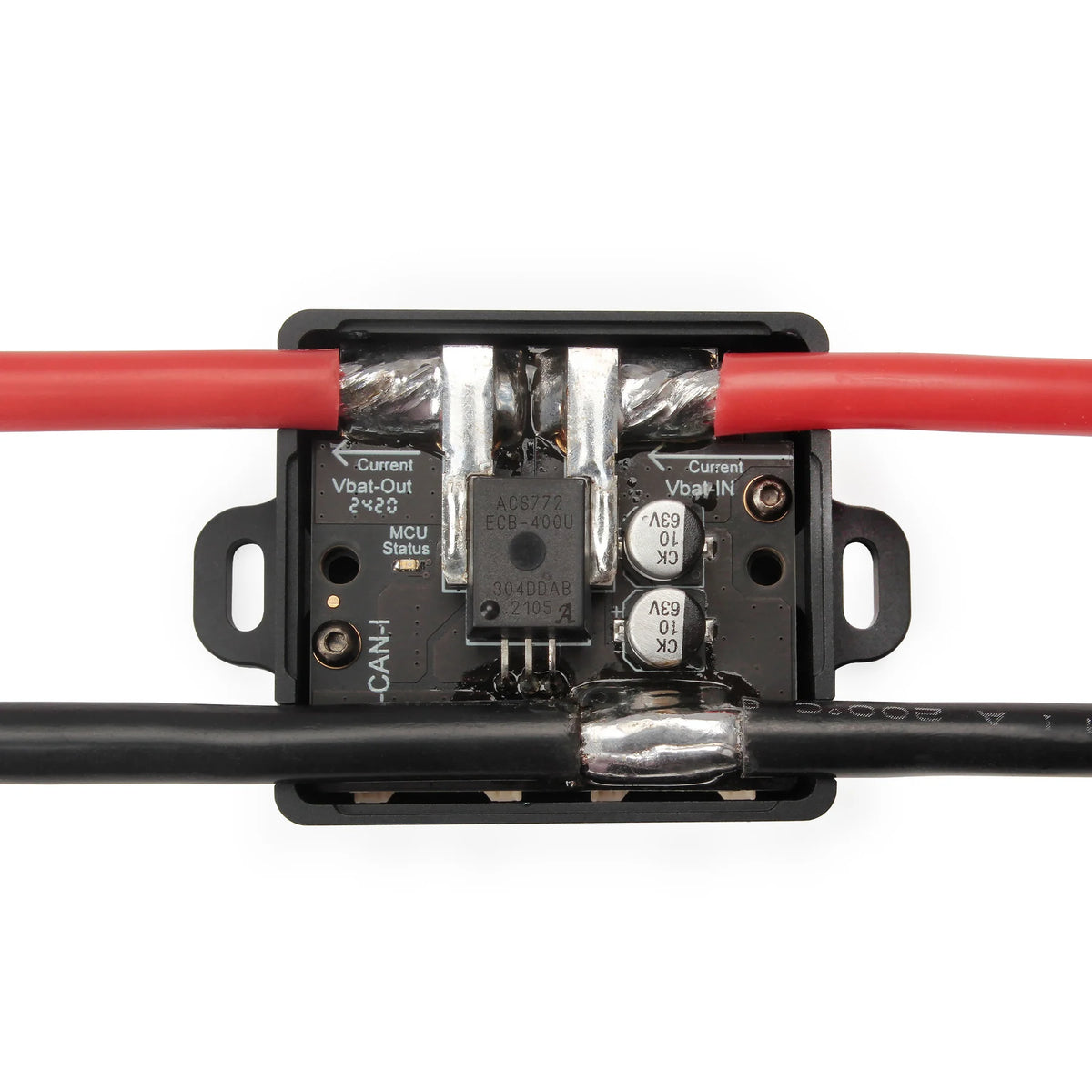

• Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)
• High Accuracy Temperature Sensor for Temperature Monitor

• High-Efficiency Aluminum Heat Dissipation Shell

  Pinout



  Interface Type

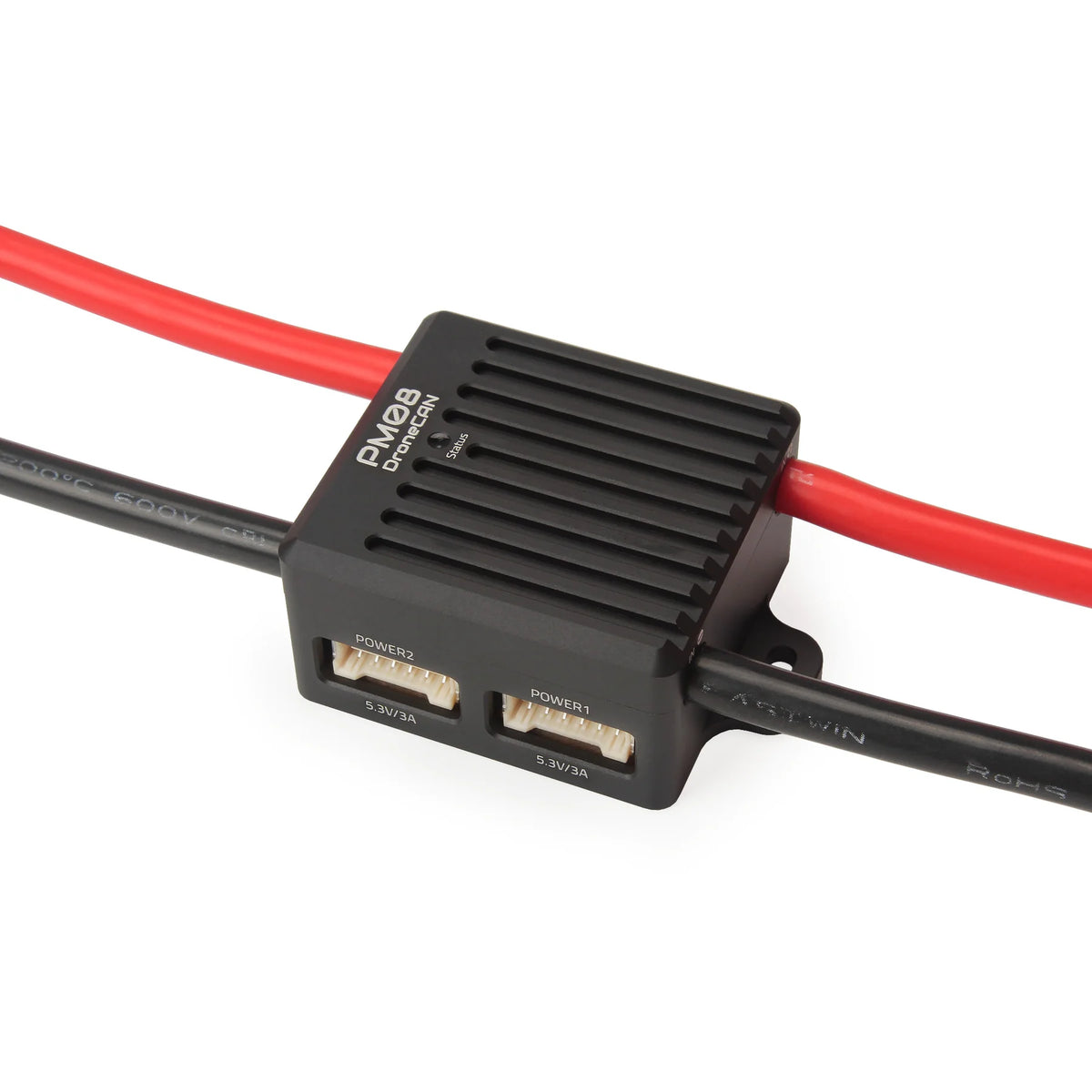

  • Power & CAN Port: Molex CLIK-Mate 2mm 6Pin
  • Battery IN/OUT Options:

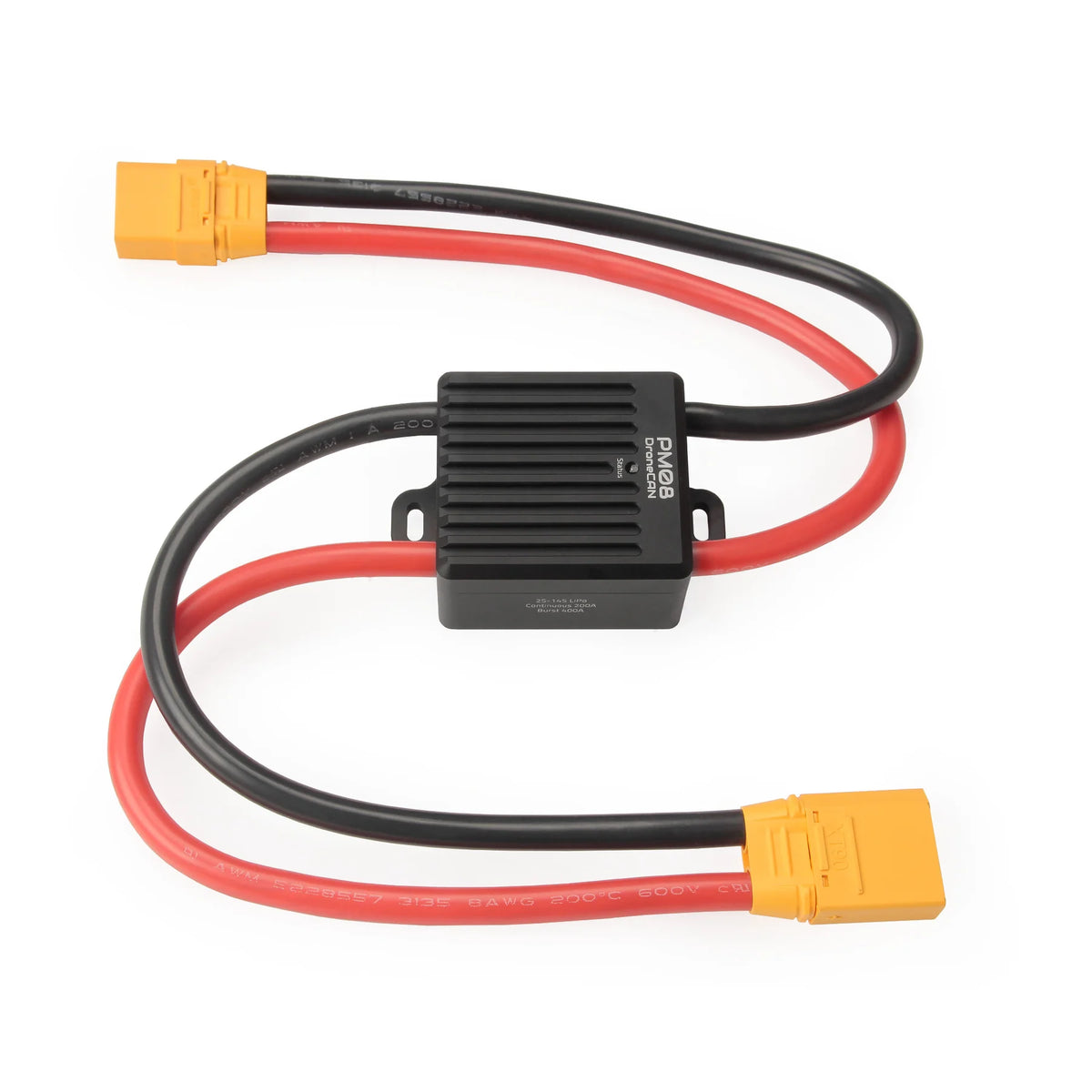

    • XT90 Connectors

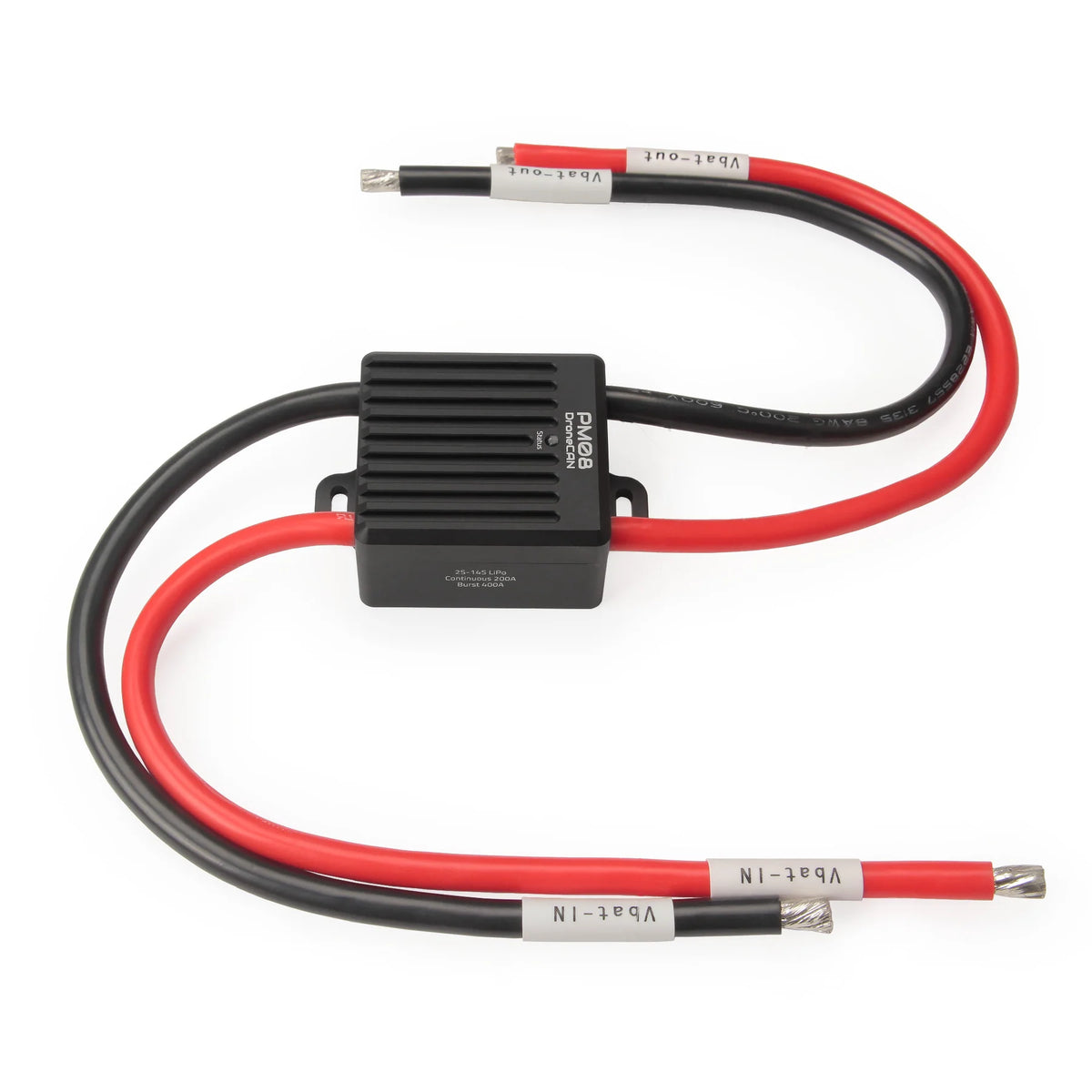

    • Tinned Wires

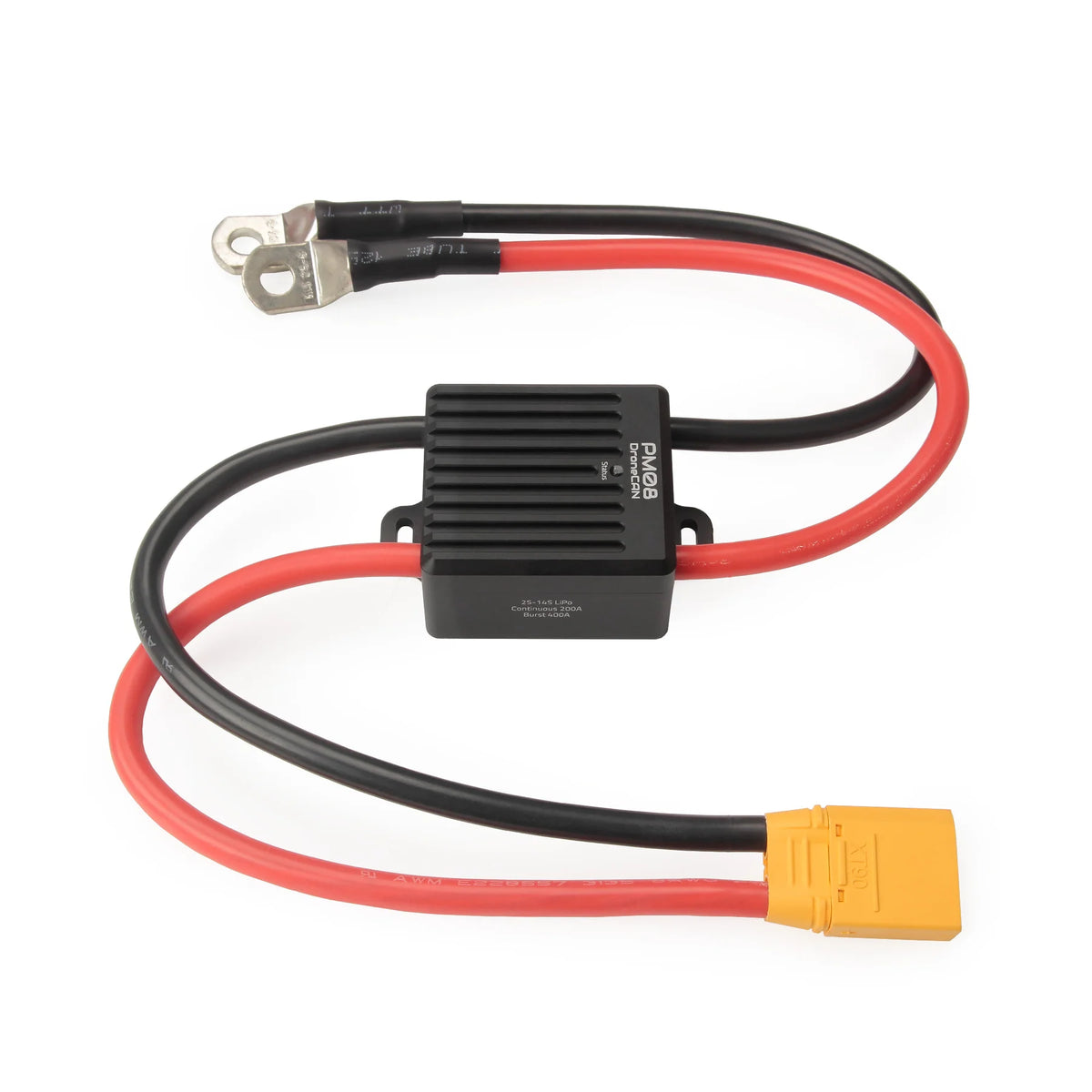

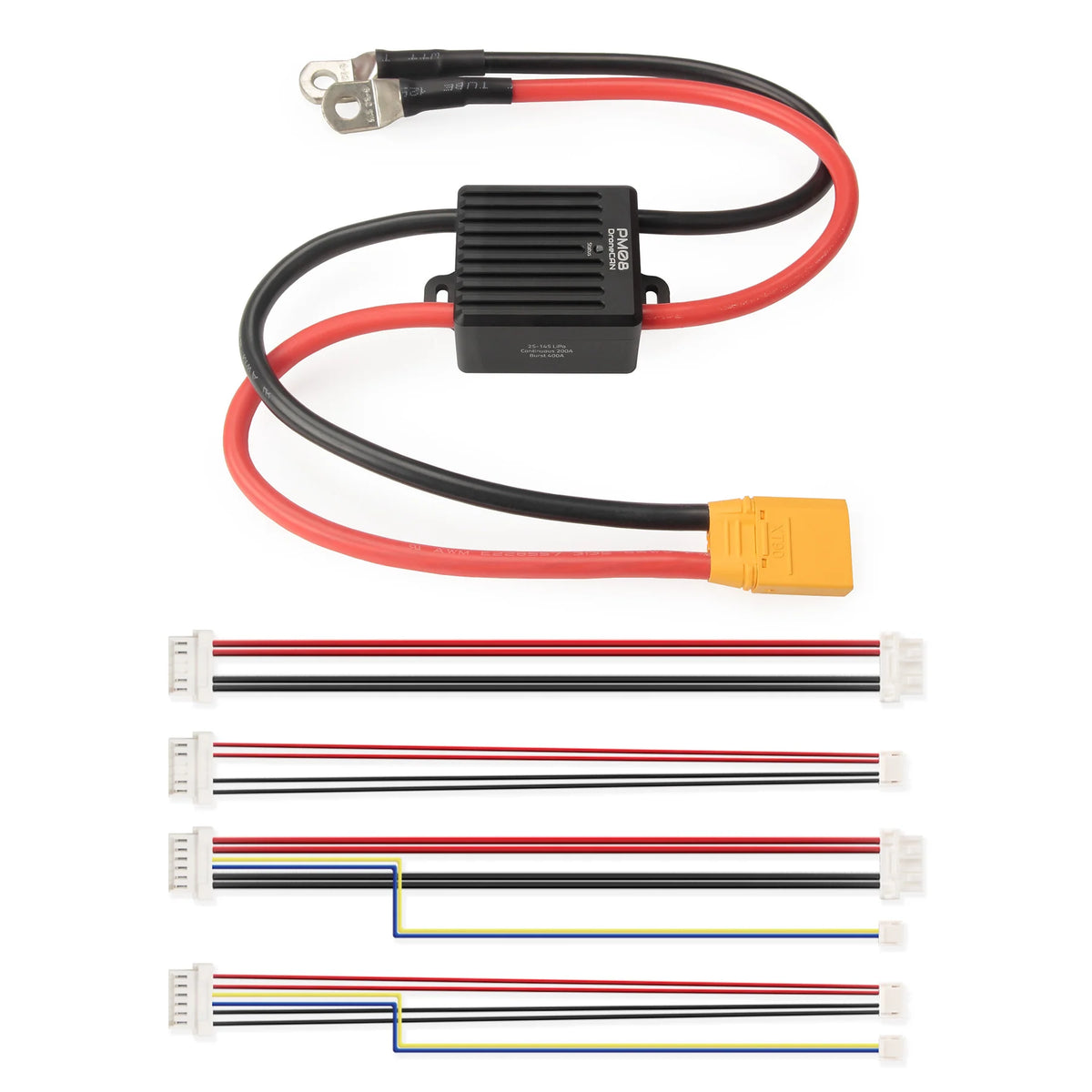

    • XT90 & Ring Terminals


  Status LED

  • Flashing quickly continuously: MCU is in the bootloader stage, waiting for firmware to be flash
  • Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection
  • Flashing slowly (one-second intervals): CAN is successfully connected

Technical Specifications

🖥 Processor

STM32F405RG (168MHz, 1024KB Flash, 196KB RAM)

🔋 Power & Performance

Voltage Input: 760.9V (2S14S)

Continuous Current: 200A

Burst Current:

400A @ 25℃ (1 sec)

1000A @ 25℃ (<1 sec)

Max Current Sensing: 376A

Power Port Output: 5.3V / 3A each port

⚡ Accuracy & Protocol

Voltage Accuracy: ±0.1V

Current Accuracy: ±5%

Temperature Accuracy: ±1℃

Protocol: DroneCAN

🌡 Operating Conditions

Operating Temperature: -25℃ ~ 85℃

Firmware Upgrade: Supported

Calibration: Supported

📏 Mechanical Specifications

Size: 45mm × 41mm × 26mm (excluding cable)

Weight: 185g (including cable)
