Description
The Matek's line of F7 flight controllers brings a host of new possibilities to your fixed wing or multirotor. This F7 FC features STM32F722, MPU6000, BMP280, 32M flash Blackbox, 10x PWM outputs, 6x UARTs, I2C, BEC 5V and 8V, 3~8S supported, DJI FPV OSD supported.

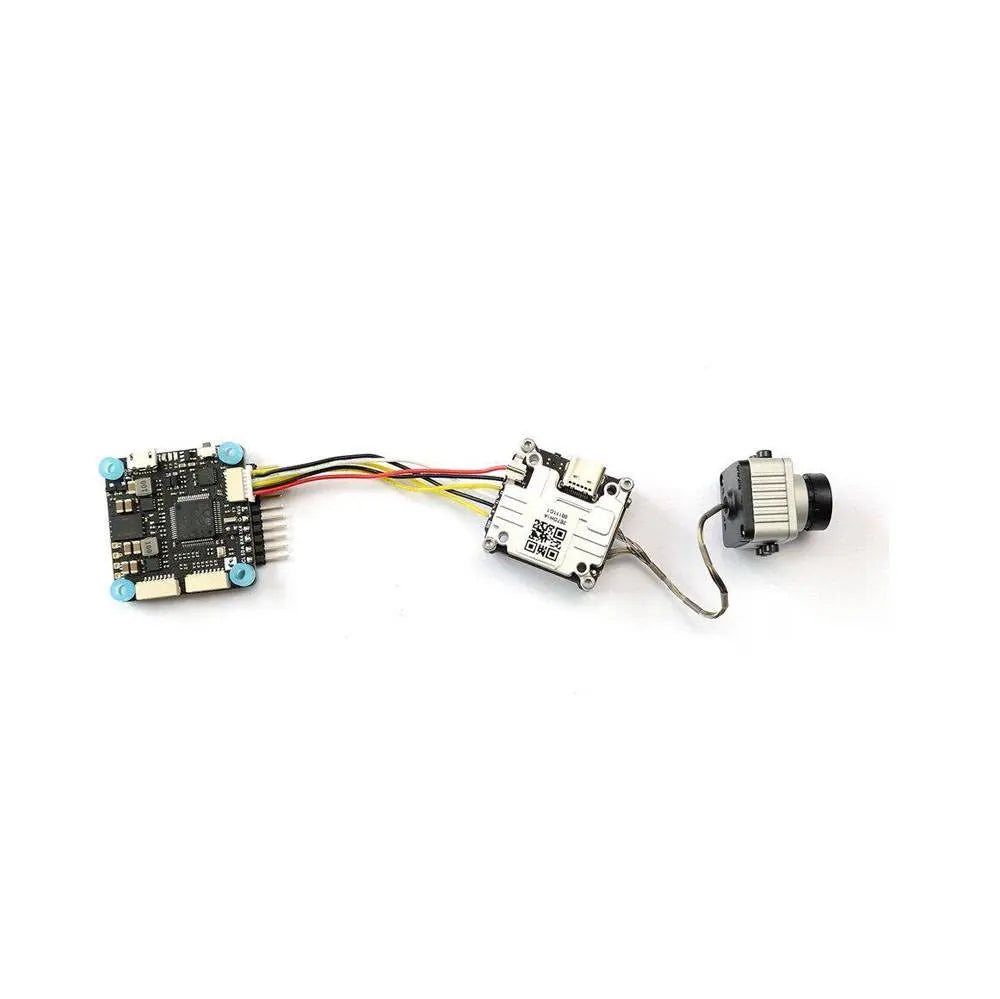

Perfect for your DJI Digital FPV System!
Specifications

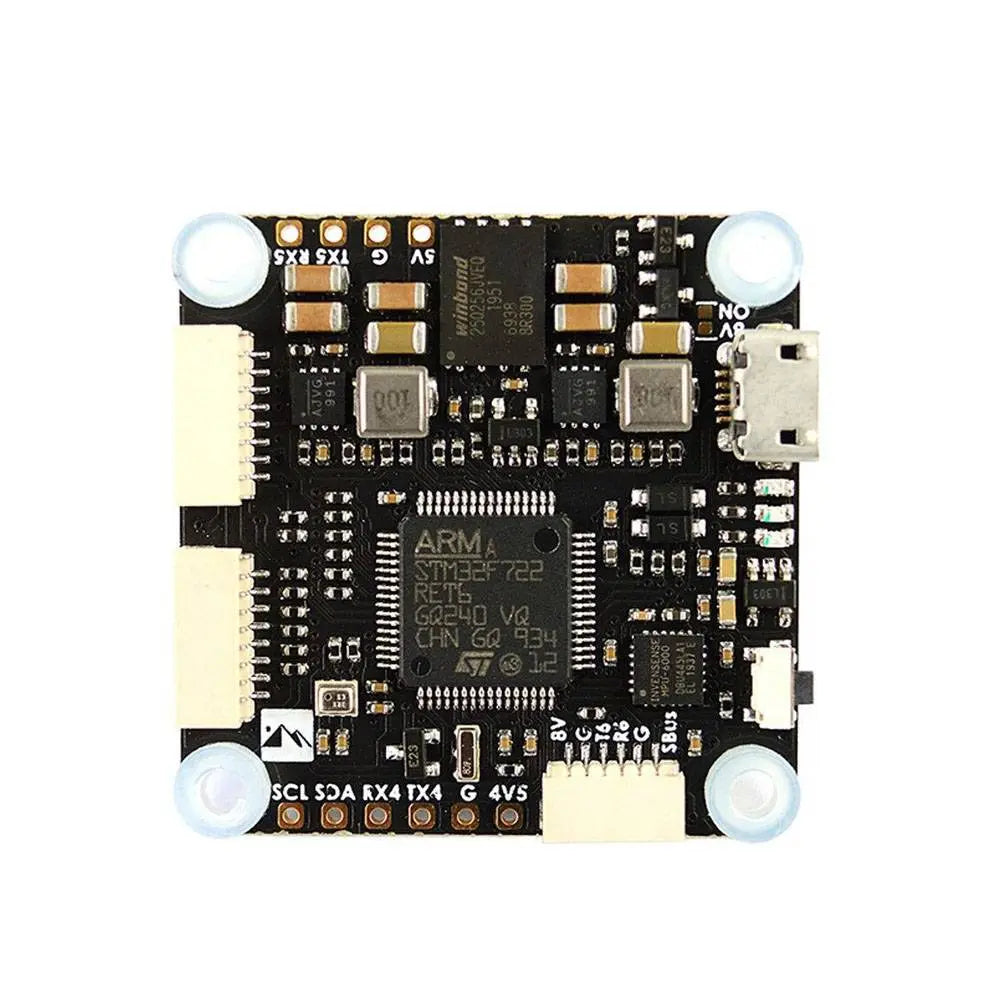

- MCU: 216MHz STM32F722RET6
- IMU: MPU6000 (SPI)
- Baro: BMP280 (I2C)
- Blackbox: 32M-byte Flash memory (SPI)
- OSD: Support external DJI OSD/FrskyOSD, No Analog MAX7456 OSD built-in
- 6x Uarts with built-in inversion
- 1x Softserial_Tx option
- 10x Dshot/PWM outputs
- 1x I2C
- 4x ADC (VBAT, Current, RSSI, AirSpeed)
- 2x SH1.0_8pin connector (Vbat/G/Curr/Rx3/S1~S10)
- 1x SH1.0_6pin connector for DJI FPV Air Unit
- 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
- Switchable 8V output
- PWM camera control: Yes
- TR/SA VTX control: Yes
- WS2812 Led Strip : Yes
- Beeper : Yes
- RSSI: Yes
- Analog Airspeed sensor: Yes
- Digital Airspeed sensor: Yes
Power
- Input: 9~36V (3~8S LiPo)
- BEC: 5V 2A cont. (Max.3A)
- BEC: 8V 2A cont. (Max.3A)
- LDO 3.3V: Max.200mA
- Battery Voltage Sensor: 1:10 (Scale 110)
- No Current Sensor built-in
FC Firmware
- (Optional Firmware) BetaFlight unified target: MATEKF722HD(MTKS)
- (Stock Firmware) INAV target: MATEKF722PX
Physical
- Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
- Dimensions: 36 x 36 x 5 mm
- Weight: 6.5g

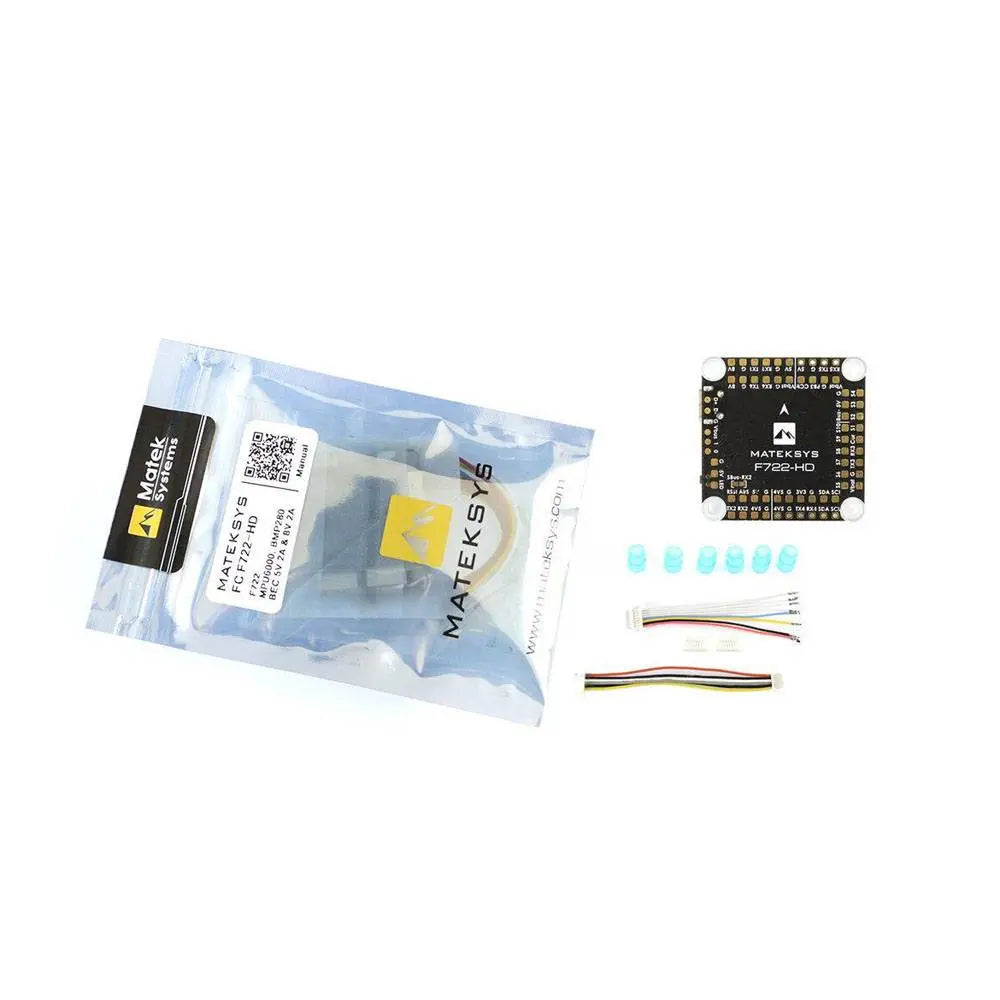

Includes
- 1 x FC F722-HD
- 6 x Silicon grommets M4 to M3

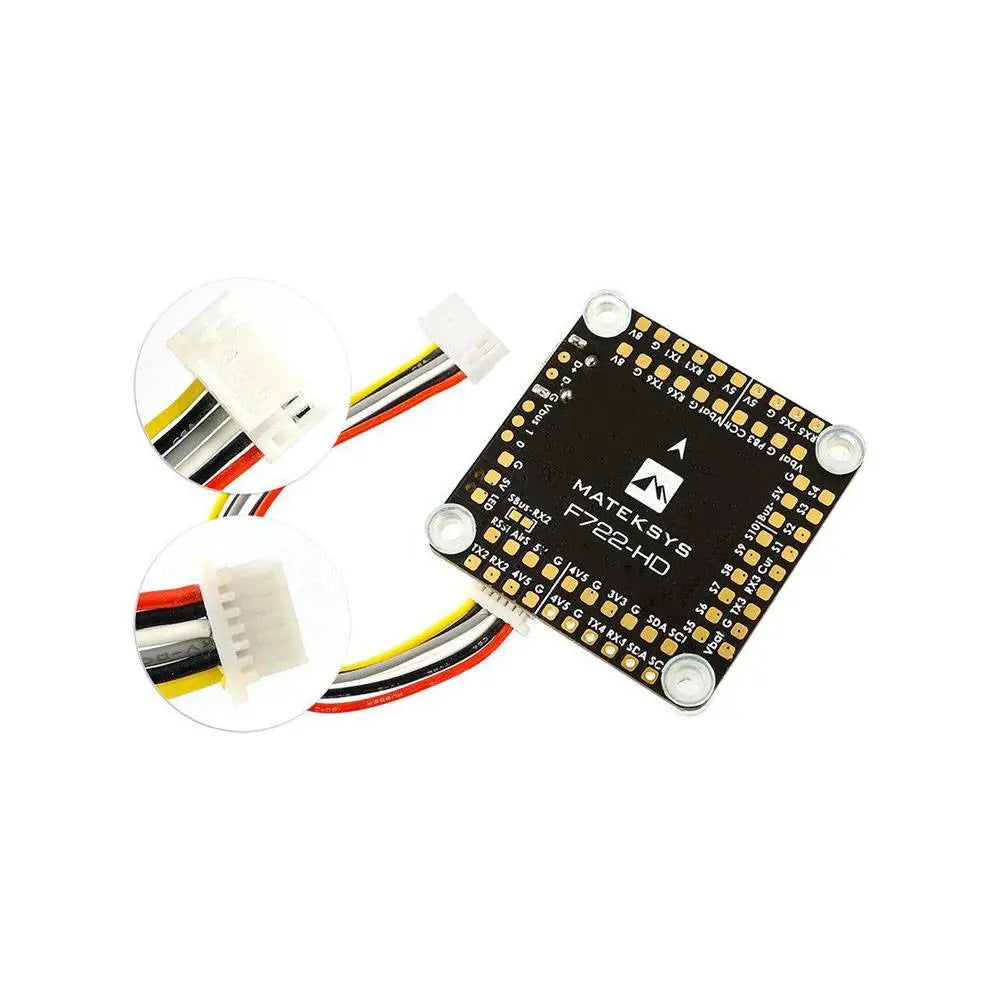

- 1 x SH1.0_8pin cable 5cm
- 2 x SH1.0_8pin connectors
- 1 x SH1.0_6pin to GH1.25_8pin cable 8cm
MATEKSYS F722 Flight Controller for DJI Digital FPV System
$59.99
