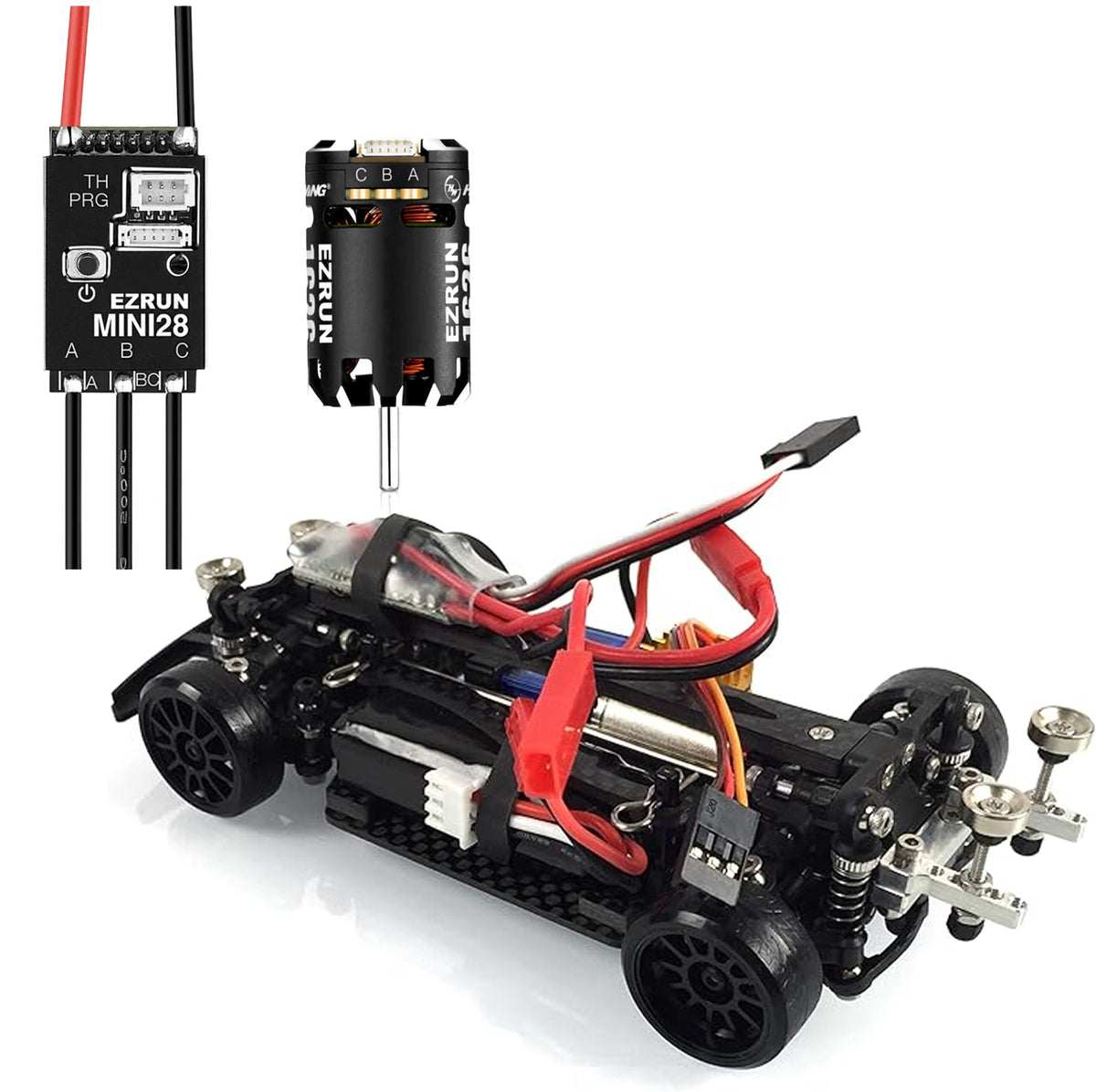

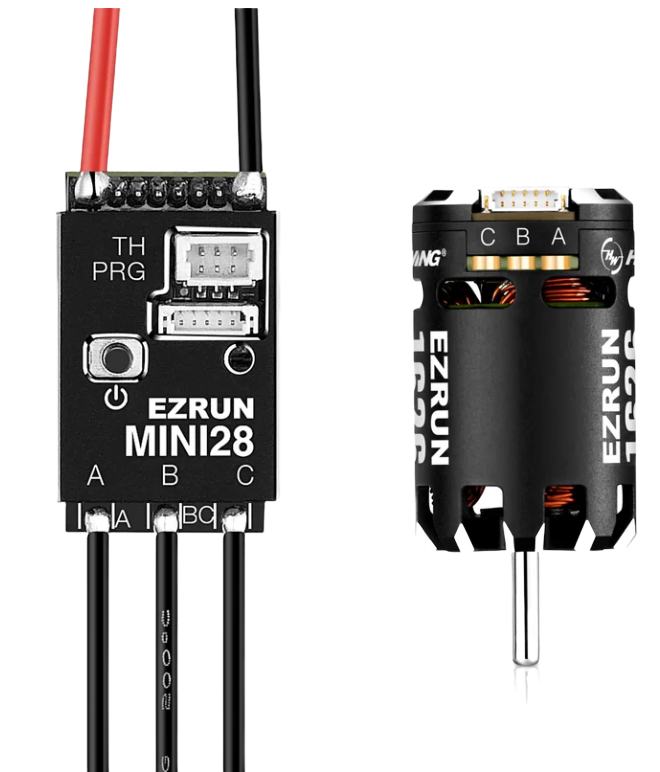

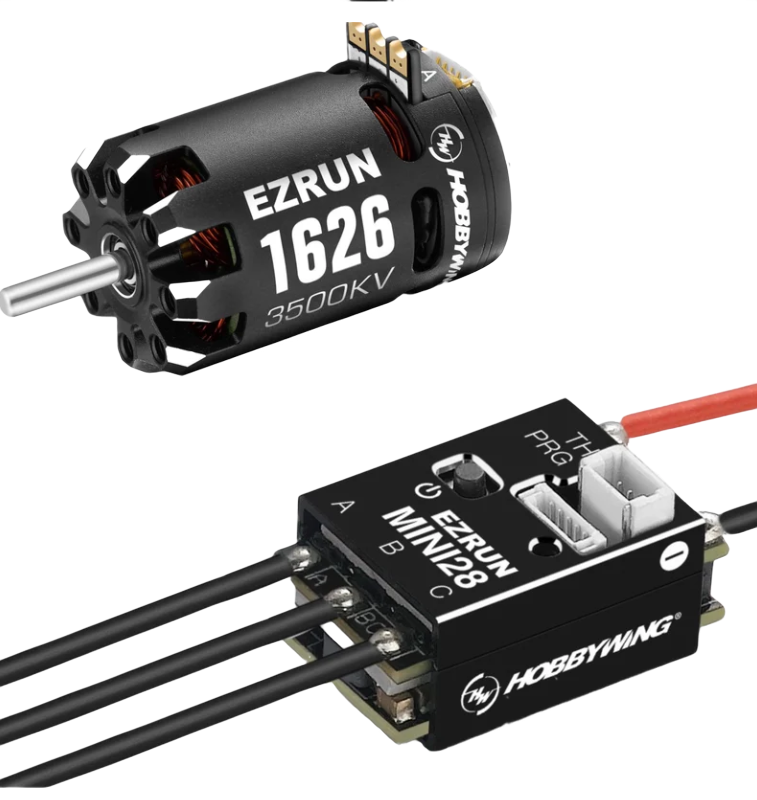

EZRUN Mini28 Combo (Mini28 ESC + 1626 SD Motor)

• Available Pre order Out of stock
• Free Shipping
$220.00
Quantity

Payment Methods

Description

Designed for high-power 1/28th scale builders

    What's in the box?
    • (1) EZRUN Mini28 ESC
    • (1) EZRUN 1626 Sensored Motor
    • (1) Supportive accessories (double side tape, etc)



      p/n  ESC Motor kv Lipo Rating
      38020366 Ezrun MINI28 Ezrun 1626SD 3500 2s
      38020367 Ezrun MINI28 Ezrun 1626SD 5000 2s
      38020368 Ezrun MINI28 Ezrun 1626SD 6500 2s
      38010605 Ezrun MINI28  Ezrun 1626SD Drift 4000 2s



      Features

      • Improved top speed / Precision response / High efficiency with the cool operation
      • When used with the EzRun Mini28 ESC, timing advance can be used to increase top speeds drastically.
      • Zero cogging, consistent torque, and excellent low-speed response give an amazing feel and driveability
      • Modular detachable structure, convenient for daily cleaning and maintenance.

      • Why EZRUN Mini28 Combo is NOT Suitable for Drones?

        1. Designed for Mini RC Cars, NOT UAVs

          • The EZRUN Mini28 Combo is an ESC + Brushless Motor system built for 1/28 scale RC cars.
          • It is optimized for small RC vehicles that require acceleration, braking, and precise throttle control—not drone propulsion.

        2. Sensored Motor – NOT Ideal for Drones

          • The 1626 SD Motor is a sensored brushless motor, which is common for RC cars but not used in drones.
          • Drones require sensorless brushless motors (BLDC) that operate at high RPMs without additional feedback sensors.

        3. Incompatible ESC Protocols

          • The Mini28 ESC is built for RC car controllers, not for drone flight controllers (like PX4, ArduPilot, or DJI).
          • Lacks PWM, DShot, or CAN protocols used in drone ESCs.

        4. Low KV & Torque-Focused Motor

          • The 1626 SD motor is designed for low-speed, high-torque applications.
          • Drone motors require high-speed (high KV rating) for efficient lift and stable flight.



       Programming devices (purchase separately):

      Specifications

      Specification:

      Model - PN
      Ezrun 1626-3500KV - 30402653
      Ezrun 1626-5000KV - 30402654
      Ezrun 1626-6500KV - 30402655

      Model - Pole
      Ezrun 1626-3500KV - 2
      Ezrun 1626-5000KV - 2
      Ezrun 1626-6500KV - 2

      Model - KV
      Ezrun 1626-3500KV - 3500KV
      Ezrun 1626-5000KV - 5000KV
      Ezrun 1626-6500KV - 6500KV

      Model - No-load Current(A)
      Ezrun 1626-3500KV - 0.4A
      Ezrun 1626-5000KV - 0.5A
      Ezrun 1626-6500KV - 0.6A

      Model - Input Voltage
      Ezrun 1626-3500KV - 2S
      Ezrun 1626-5000KV - 2S
      Ezrun 1626-6500KV - 2S

      Model - Diameter/ Length(mm)
      Ezrun 1626-3500KV - 16
      Ezrun 1626-5000KV - 16
      Ezrun 1626-6500KV - 16

      Model - Shaft Diameter/ Length (mm)
      Ezrun 1626-3500KV - 26
      Ezrun 1626-5000KV - 26
      Ezrun 1626-6500KV - 26

      Model - Applications
      Ezrun 1626-3500KV - 1/28th Mini
      Ezrun 1626-5000KV - 1/28th Mini
      Ezrun 1626-6500KV - 1/28th Mini

      Model - Weight
      Ezrun 1626-3500KV - 18g
      Ezrun 1626-5000KV - 18g
      Ezrun 1626-6500KV - 18g
