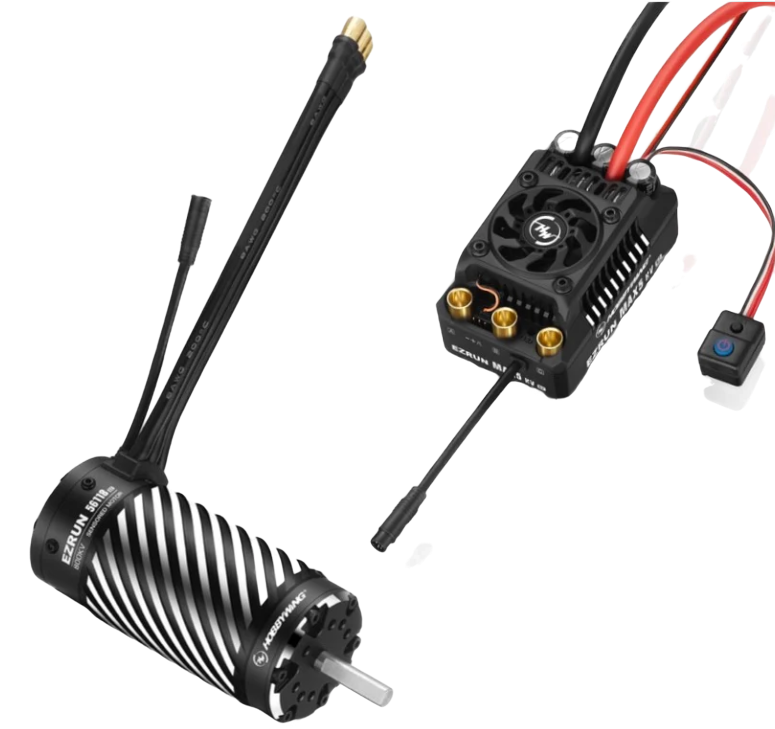

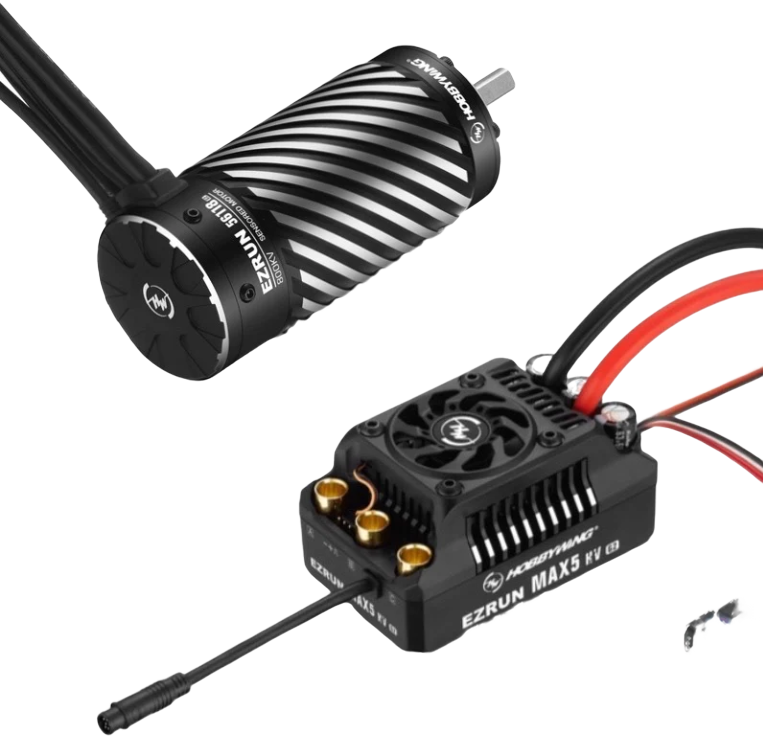

EZRUN MAX5 G2 Combo

What is inside the box?

• (1) Ezrun MAX5 G2 ESC (6-12S)

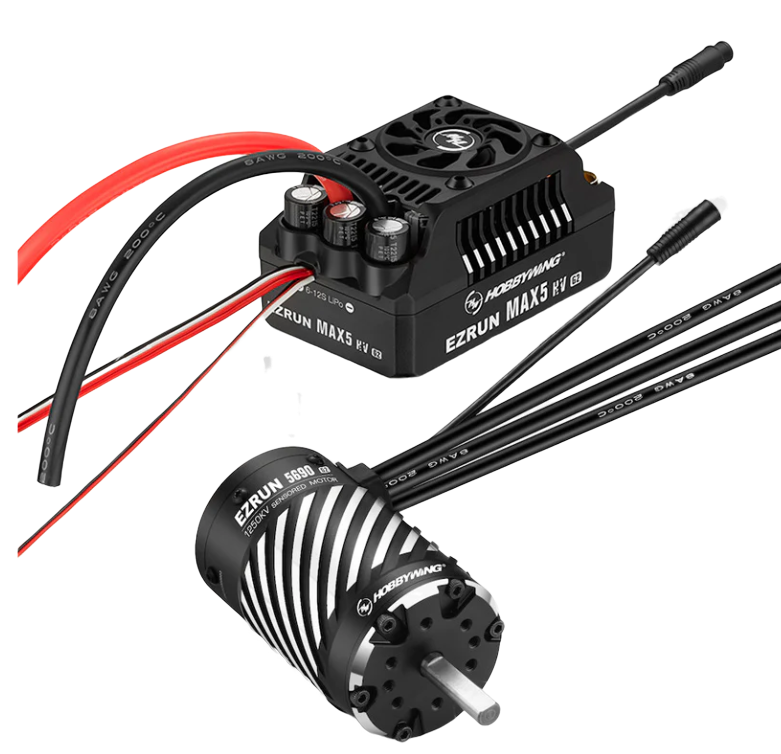

• (1) EzRun5690 SD G2 motor* or EzRun 56118 SD G2 motor with your choice of KV
• User's manual
• A HOBBYWING decal

*ATTENTION: When pairing with the EzRun 5690 SD G2 motor, it is necessary to replace the motor wire plugs with 8mm plugs(plugs included) for the MAX5 G2 ESC.

Note: The range of KV value here is the recommended value under the standard application (combined with the rpm supported by the motor and the actual load of the whole vehicle), and does not represent the maximum rpm supported by esc.

Specifications:


Cont. / Peak Current - 250A / 1600A

Motor Type - Sensored / Sensorless Brushless Motor

Applications - 1/5th Buggy, Truck

Motor Limit (Note*) - With 8S Lipo: KV ≤ 1200
With 12S Lipo: KV ≤ 800, 56118 size motor

Lipo Cells - 6-12S Lipo

BEC Output - 6V / 7.4V / 8.4V adjustable, continuous current 8A (Switch-mode)

Cooling Fan - A stable 6V or 7.4V or 8.4V from the built-in BEC

Size / Weight: 94.5(L) x 59.4(W) x 50.9(H) mm / 428.5g (included input wires)

Programming Port: Independent programming port

ESC:
Model - EZRUN 56118SD G2-650KV
KV - 650KV
Lipos - 8-12S
No-load Current - 5.5A
Diameter / Length - Ø=56mm (2.20") L=119.2mm (4.69")
Shaft Diameter / Length - Ø=8mm (0.31") L=30mm (1.18")
Bearing Size (mm) - Front: D22D8T7 Rear: D19D8T6
Poles - 4
Weight - 1272g
Applications - 1/5th Buggy, Truck

Model - EZRUN 56118SD G2-800KV
KV - 800KV
Lipos - 8-12S
No-load Current - 6.9A
Weight - 1277g

Model - EZRUN 56118SD G2-1100KV
KV - 1100KV
Lipos - 6-8S
No-load Current - 8.0A
Weight - 1287g
