CANFace CF2 "Babel-Babel"

Available

Explore product intelligence ↓
$96.35

Cable set

Bulk sales only. Minimum 52 units per item. For smaller orders, contact us.

Product intelligence

Capabilities

  • Hardware interface conversion
  • Development and diagnostic connectivity
  • Embedded-system integration

Resources

Product details

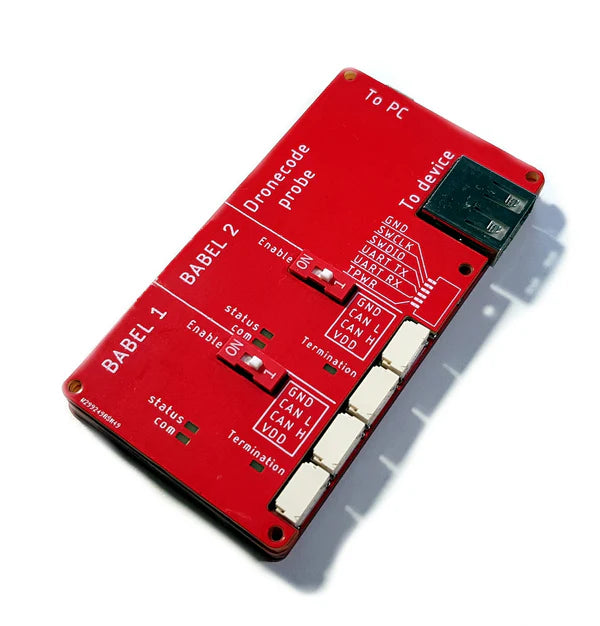

CANFace CF2 "Babel-Babel" consists of three devices that are assembled on a single PCB: 2x Babel USB-CAN adapters and a Dronecode probe (a generic JTAG/SWD + UART console adapter).

CF2 Babel-Babel helps firmware developers keep the table clean and unobstructed, as it replaces four USB cables and three different devices with one compact box.



More information

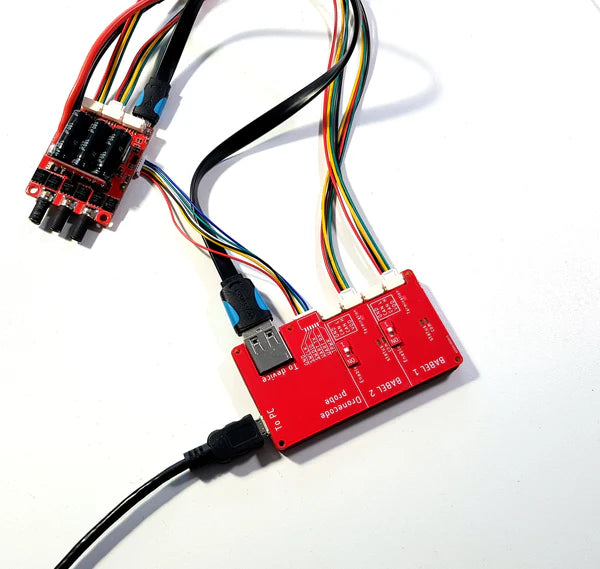

CF2 Babel-Babel is connected to the PC with a single USB cable as it contains a built-in USB hub. It provides the following interfaces for connecting to the device under development:

  • CAN 1 (standard UCANPHY Micro connector)
  • CAN 2 (ditto)
  • SWD and UART (Dronecode Debug connector, medium, aka DCD-M)
  • USB (regular USB 2.0 type A connector)

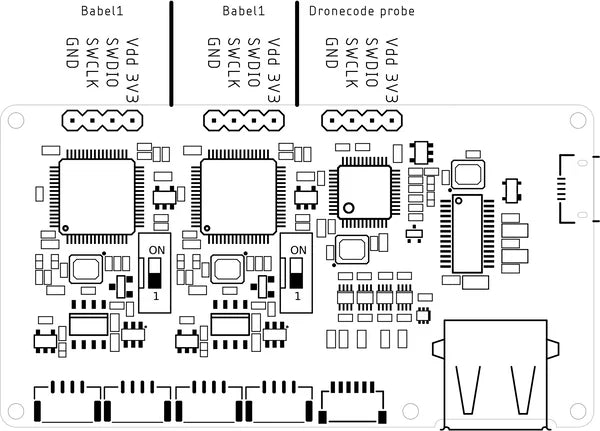

Along with that, all these interfaces are routed to additional PLS connectors (regular 0.1' single-row pin headers). These connectors may be used for production testing purposes as shown on the image.

This is an open-hardware product; please find the sources and detailed technical documentation on GitHub at github.com/Zubax/Babel-Babel.

The cable set (if selected) includes the following items:

  • DCD-Mini standard debug cable, 1 pc
  • UCANPHY Micro standard patch cable 1m, 2 pcs
  • Micro USB cable, 1 pc
